Report No.: PTCHX07170921002E-FC01

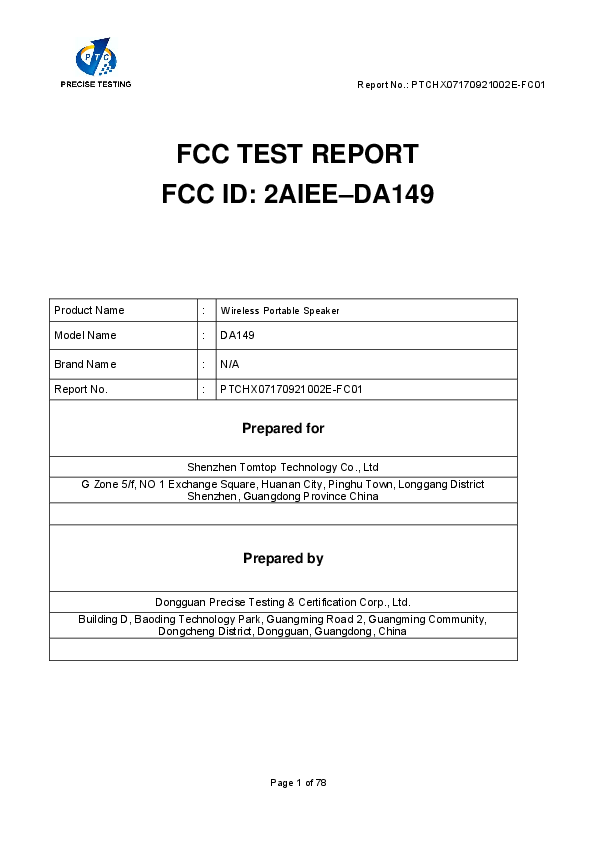

FCC TEST REPORT
FCC ID: 2AIEE–DA149
Product Name
Wireless Portable Speaker
Model Name
DA149
Brand Name
N/A
Report No.
PTCHX07170921002E-FC01
Prepared for
Shenzhen Tomtop Technology Co., Ltd
G Zone 5/f, NO 1 Exchange Square, Huanan City, Pinghu Town, Longgang District
Shenzhen, Guangdong Province China
Prepared by
Dongguan Precise Testing & Certification Corp., Ltd.
Building D, Baoding Technology Park, Guangming Road 2, Guangming Community,
Dongcheng District, Dongguan, Guangdong, China
Page 1 of 78
Report No.: PTCHX07170921002E-FC01
1TEST RESULT CERTIFICATION
Applicant’s name
Shenzhen Tomtop Technology Co., Ltd
Address
G Zone 5/f, NO 1 Exchange Square, Huanan City, Pinghu Town,
Longgang District Shenzhen, Guangdong Province China
Manufacture's name :
SHENZHEN NARUI ELECTRONIC CO., LTD.
Address
No.6 Building,Ma'an shan Industrial Zone,Hao'San Area,Shajing SubDistrict, Bao'an District,Shenzhen city,China
Product name
Wireless Portable Speaker
Model name
DA149
Brand Name
N/A
Standards
FCC CFR47 Part 15 Section 15.247
Test procedure
ANSI C63.10:2013
Test Date
July 09, 2017 to July 11, 2017
Date of Issue
July 12, 2017
Test Result
Pass
This device described above has been tested by PTC, and the test results show that the
equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable
only to the tested sample identified in the report.
This report shall not be reproduced except in full, without the written approval of PTC, this
document may be altered or revised by PTC, personal only, and shall be noted in the revision
of the document.
Testing Engineer
August Qiu
Technical Manager
Hack Ye
Authorized Signatory
Chris Du
Page 2 of 78
Report No.: PTCHX07170921002E-FC01
Contents
Page
1 TEST RESULT CERTIFICATION .............................................................................................................................. 2
2 TEST SUMMARY ......................................................................................................................................................... 5
3 TEST FACILITY............................................................................................................................................................ 6
4 GENERAL INFORMATION ........................................................................................................................................ 7
4.1
GENERAL DESCRIPTION OF E.U.T............................................................................ 7
4.2
TEST MODE ............................................................................................................... 8
5 EQUIPMENT DURING TEST ................................................................................................................................... 10
5.1
EQUIPMENTS LIST ................................................................................................... 10
5.2
MEASUREMENT UNCERTAINTY ............................................................................... 11
5.3
DESCRIPTION OF SUPPORT UNITS.......................................................................... 12
6 CONDUCTED EMISSION ......................................................................................................................................... 13
6.1
E.U.T. OPERATION ................................................................................................. 13
6.2
EUT SETUP ............................................................................................................. 13
6.3
TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ........................................ 14
6.4
MEASUREMENT PROCEDURE: ................................................................................. 14
6.5
CONDUCTED EMISSION LIMIT .................................................................................. 14
6.6
MEASUREMENT DESCRIPTION ................................................................................ 14
6.7
CONDUCTED EMISSION TEST RESULT.................................................................... 14
7 RADIATED SPURIOUS EMISSIONS ..................................................................................................................... 19
7.1
EUT OPERATION ..................................................................................................... 19
7.2
TEST SETUP ............................................................................................................ 20
7.3
SPECTRUM ANALYZER SETUP ................................................................................ 21
7.4
TEST PROCEDURE................................................................................................... 22
7.5
SUMMARY OF TEST RESULTS ................................................................................. 23
8 CONDUCTED BAND EDGE EMISSION ................................................................................................................ 33
8.1
REQUIREMENT.................................................................................................... 33
8.2
TEST PROCEDURE............................................................................................. 33
8.3
TEST SETUP......................................................................................................... 33
Page 3 of 78
Report No.: PTCHX07170921002E-FC01
8.4
EUT OPERATION CONDITIONS ....................................................................... 34
8.5
TEST RESULTS.................................................................................................... 34
9 20 DB BANDWIDTH MEASUREMENT .................................................................................................................. 42
9.1
TEST PROCEDURE................................................................................................... 42
9.2
TEST RESULT .......................................................................................................... 42
10 MAXIMUM PEAK OUTPUT POWER ................................................................................................................... 49
10.1
TEST PROCEDURE................................................................................................... 49
10.2
TEST RESULT .......................................................................................................... 49
11 HOPPING CHANNEL SEPARATION................................................................................................................... 56
11.1
TEST PROCEDURE................................................................................................... 56
11.2
TEST RESULT .......................................................................................................... 57
12 NUMBER OF HOPPING FREQUENCY ............................................................................................................... 63
12.1
TEST PROCEDURE................................................................................................... 63
12.2
TEST RESULT .......................................................................................................... 63
13 DWELL TIME ............................................................................................................................................................ 64
13.1
TEST PROCEDURE................................................................................................... 64
13.2
TEST RESULT .......................................................................................................... 64
14 ANTENNA REQUIREMENT ................................................................................................................................... 67
15 TEST PHOTOS......................................................................................................................................................... 68
16 EUT PHOTOS ........................................................................................................................................................... 70
Page 4 of 78
Report No.: PTCHX07170921002E-FC01
2 Test Summary
Test Items
Test Requirement
Result
Radiated Spurious Emissions
15.205(a)
15.209
15.247(d)
PASS
Band edge
15.247(d)
15.205(a)
PASS
Conduct Emission
15.207
PASS
20dB Bandwidth
15.247(a)(1)
PASS
Maximum Peak Output Power
15.247(b)(1)
PASS
Frequency Separation
15.247(a)(1)
PASS
Number of Hopping Frequency
15.247(a)(1)(iii)
PASS
Dwell time
15.247(a)(1)(iii)
PASS
Antenna Requirement
15.203
PASS
Remark:
N/A: Not Applicable
Page 5 of 78
Report No.: PTCHX07170921002E-FC01
3 TEST FACILITY
Dongguan Precise Testing & Certification Corp., Ltd.
Building D,Baoding Technology Park,Guangming Road2, Dongcheng District, Dongguan, Guangdong,
China, Dongguan, 523129
China
FCC Registration Number: 371540
IC Registration Number: 12191A-1
Page 6 of 78
Report No.: PTCHX07170921002E-FC01
4 General Information
4.1 General Description of E.U.T.
Product Name
Wireless Portable Speaker
Model Name
DA149
Bluetooth Version
BT4.1+EDR
Operating frequency
2402-2480MHz
Numbers of Channel
79 channels
Antenna Type:
PCB Print Antenna
Antenna Gain:
2dBi
Type of Modulation
GFSK, Pi/4DQPSK, 8DPSK
Power supply
DC 3.7V, 2000mAh Battery
Hardware Version
N/A
Software Version
4.1
Page 7 of 78
Report No.: PTCHX07170921002E-FC01
4.2 Test Mode
The EUT has been tested under its typical operating condition. Pre-defined engineering
program for regulatory testing used to control the EUT for staying in continuous
transmitting. Only the worst case data were reported.
The EUT has been associated with peripherals pursuant to ANSI C63.10-2013 and
configuration operated in a manner tended to maximize its emission characteristics in a
typical application. Frequency range investigated: radiation (9 KHz to the 10th harmonics
of the highest fundamental frequency or to 40 GHz, whichever is lower).
The EUT has been tested under TX operating condition.
This EUT is a FHSS system, were conducted to determine the final configuration from all
possible combinations. We use software control the EUT, Let EUT hopping on and
transmit with highest power, all the modes GFSK, Π/4-DQPSK, 8DPSK have been tested.
79 Channels are provided by EUT. The 3 channels of lower, medium and higher were
chosen for test.
Page 8 of 78
Report No.: PTCHX07170921002E-FC01
Channel List:
Channel
Frequency
(MHz)
Channel
Frequency
(MHz)
Channel
Frequency
(MHz)
Channel
Frequency
(MHz)
12
16
20
24
28
32
36
40
44
48
52
56
60
64
68
72
76
2402
2406
2410
2414
2418
2422
2426
2430
2434
2438
2442
2446
2450
2454
2458
2462
2466
2470
2474
2478
13
17
21
25
29
33
37
41
45
49
53
57
61
65
69
73
77
2403
2407
2411
2415
2419
2423
2427
2431
2435
2439
2443
2447
2451
2455
2459
2463
2467
2471
2475
2479
10
14
18
22
26
30
34
38
42
46
50
54
58
62
66
70
74
78
2404
2408
2412
2416
2420
2424
2428
2432
2436
2440
2444
2448
2452
2456
2460
2464
2468
2472
2476
2480
11
15
19
23
27
31
35
39
43
47
51
55
59
63
67
71
75
2405
2409
2413
2417
2421
2425
2429
2433
2437
2441
2445
2449
2453
2457
2461
2465
2469
2473
2477
Channel
Frequency(MHz)
2402
40
2441
79
2480
Page 9 of 78
Report No.: PTCHX07170921002E-FC01
5 Equipment During Test
5.1 Equipments List
RF Conducted Test
Name of
Manufacturer
Model
Serial No.
Calibration Due
Equipment
MXG Signal
Agilent
N9020A
MY56070279
Apr 7,18
Analyzer
MIMO4TX-1
MIMO4TX
TW5451101
Apr 7,18
MXG Vector Signal
Agilent
N5182A
MY50143410
Apr 7,18
Generator
MXG Analog Signal
KEYSIGHT
N5181B
MY53050432
Apr 7,18
Generator
Remark: The temporary antenna connector is soldered on the PCB board in order to perform conducted
tests and this temporary antenna connector is listed in the equipment list.
Radiated Emissions
Name of Equipment
Manufacturer
Model
Serial No.
Calibration Due
EMI Test Receiver
Rohde&Schwarz
ESCI
101417
Sep. 03, 2018
Bilog Antenna
SCHWARZBECK
VULB9160
9160-3355
Aug 31, 2018
Preamplifier (low
frequency)
SCHWARZBECK
BBV 9475
9745-0013
Sep. 03, 2018
Spectrum Analyzer
Agilent
E4407B
MY45109572
Oct. 13, 2017
Horn Antenna
SCHWARZBECK
9120D
9120D-1246
Aug. 31, 2018
LOW NOISE
AMPLIFIER
ZHINAN
ZN3380C
15002
Sep 03, 2018
Conducted Emissions
Name of Equipment
Manufacturer
Model
Serial No.
Calibration Due
EMI Test Receiver
Rohde&Schwarz
ESCI
101417
Sep. 03, 2018
Artificial Mains Network
Rohde&Schwarz
L2-16B
000WX31025
Sep. 03, 2018
Artificial Mains Network
Rohde&Schwarz
ENV216
101342
Sep. 03, 2018
Page 10 of 78
Report No.: PTCHX07170921002E-FC01
5.2 Measurement Uncertainty
Parameter
Uncertainty
RF output power, conducted
±1.0dB
Power Spectral Density, conducted
Radio Frequency
±2.2dB
± 1 x 10-6
Bandwidth
± 1.5 x 10-6
Time
±2%
Duty Cycle
±2%
Temperature
±1°C
Humidity
±5%
DC and low frequency voltages
±3%
Conducted Emissions (150kHz~30MHz)
3.64dB
Radiated Emission(30MHz~1GHz)
5.03dB
Radiated Emission(1GHz~25GHz)
4.74dB
Remark: The coverage Factor (k=2), and measurement Uncertainty for a level of Confidence of 95%
Page 11 of 78
Report No.: PTCHX07170921002E-FC01
5.3 Description of Support Units
Equipment
Adapter
Model No.
NSA12UH-050200
Input: AC 100-240V, 50/60Hz, 0.5A
Output: DC 5V, 2A
Page 12 of 78
Series No.
N/A
Report No.: PTCHX07170921002E-FC01
6 Conducted Emission
Test Requirement:
FCC CFR 47 Part 15 Section 15.207
Test Method:
ANSI C63.10:2013
Test Result:
PASS
Frequency Range:
150kHz to 30MHz
Class/Severity:
Class B
Detector:
Peak for pre-scan (9kHz Resolution Bandwidth)
Temperature:
25.5 C
Humidity:
51 % RH
Atmospheric Pressure:
101.2kPa
EUT Operation :
Refer to section 3.3
6.1 E.U.T. Operation
Operating Environment :
6.2 EUT Setup
The conducted emission tests were performed using the setup accordance with the ANSI C63.10: 2013
0.4m
EUT
Receiver
PC System
0.8m
0.8m
LISN
:50 Terminator
Page 13 of 78
Report No.: PTCHX07170921002E-FC01
6.3 Test SET-UP (Block Diagram of Configuration)
Test Receiver
AC Mains
L.I.S.N
EUT
6.4 Measurement Procedure:
1. The EUT was placed on a table, which is 0.8m above ground plane.
2. Maximum procedure was performed on the six highest emissions to ensure EUT compliance.
3. Repeat above procedures until all frequency measured was complete.
6.5 Conducted Emission Limit
Conducted Emission
Frequency(MHz)
Quasi-peak
Average
0.15-0.5
66-56
56-46
0.5-5.0
56
46
5.0-30.0
60
50
Note:
1. The lower limit shall apply at the transition frequencies
2.The limit decreases in line with the logarithm of the frequency in the range of 0.15 to 0.50MHz.
6.6 Measurement Description
The maximised peak emissions from the EUT was scanned and measured for both the Live and
Neutral Lines. Quasi-peak & average measurements were performed if peak emissions were within
6dB of the average limit line.
6.7 Conducted Emission Test Result
Pass
Please find the following pages.
Page 14 of 78
Report No.: PTCHX07170921002E-FC01
Line -120V/60Hz:
Page 15 of 78
Report No.: PTCHX07170921002E-FC01
Neutral -120V/60Hz:
Page 16 of 78
Report No.: PTCHX07170921002E-FC01
Line -240V/60Hz:
Page 17 of 78
Report No.: PTCHX07170921002E-FC01
Neutral -240V/60Hz:
Page 18 of 78
Report No.: PTCHX07170921002E-FC01
7 Radiated Spurious Emissions
Test Requirement:
FCC CFR47 Part 15 Section 15.209 & 15.247
Test Method:
ANSI C63.10:2013
Test Result:
PASS
Measurement Distance:
3m
Limit:
See the follow table
Field Strength
Frequency (MHz)
Field Strength Limit at 3m Measurement Dist
Distance
uV/m
(m)
uV/m
dBuV/m
0.009 ~ 0.490
2400/F(kHz)
300
10000 * 2400/F(kHz)
20log(2400/F(kHz)) + 80
0.490 ~ 1.705
24000/F(kHz)
30
100 * 24000/F(kHz)
20log(24000/F(kHz)) + 40
1.705 ~ 30
30
30
100 * 30
20log(30) + 40
30 ~ 88
100
100
20log(100)
88 ~ 216
150
150
20log(150)
216 ~ 960
200
200
20log(200)
Above 960
500
500
20log(500)
7.1 EUT Operation
Operating Environment :
Temperature:
23.5 C
Humidity:
51.1 % RH
Atmospheric Pressure:
101.2kPa
EUT Operation :
Refer to section 3.3
Test Voltage
AC 120V/60Hz
Page 19 of 78
Report No.: PTCHX07170921002E-FC01
7.2 Test Setup
The radiated emission tests were performed in the 3m Semi- Anechoic Chamber test site
The test setup for emission measurement below 30MHz.
Semi-anechoic 3m Chamber
Turn Table From 0°to 360°
3m
EUT
Turn Table
0.8m
PC
System
Spectrum
Analyzer
AMP
Combining
Network
AMP
Combining
Network
The test setup for emission measurement from 30 MHz to 1 GHz.
Semi-anechoic 3m Chamber
Antenna Elevation Varies From 1 to 4 m
Turn Table From 0°to 360°
3m
EUT
0.8m
Turn Table
PC
System
Spectrum
Analyzer
Page 20 of 78
Report No.: PTCHX07170921002E-FC01
The test setup for emission measurement above 1 GHz.
Anechoic 3m Chamber
Antenna Elevation Varies From 1 to 4 m
Turn Table From 0°to 360°
3m
EUT
1.5m
Turn Table
PC System
Absorbers
Spectrum Analyzer
AMP
Combining
Network
7.3 Spectrum Analyzer Setup
Spectrum Parameter
Attenuation
Start Frequency
Stop Frequency
RB / VB (emission in restricted
band)
Receiver Parameter
Attenuation
Start ~ Stop Frequency
Start ~ Stop Frequency
Start ~ Stop Frequency
Setting
Auto
1000 MHz
10th carrier harmonic
1 MHz / 1 MHz for Peak, 1 MHz / 10Hz for Average
Setting
Auto
9kHz~150kHz / RB 200Hz for QP
150kHz~30MHz / RB 9kHz for QP
30MHz~1000MHz / RB 120kHz for QP
Page 21 of 78
Report No.: PTCHX07170921002E-FC01
7.4 Test Procedure
1. The testing follows the guidelines in Spurious Radiated Emissions of ANSI C63.10-2013.
2. Below 1000MHz, The EUT was placed on a turn table which is 0.8m above ground plane. And above
1000MHz, The EUT was placed on a styrofoam table which is 1.5m above ground plane.
3. The EUT was set 3 meters from the interference receiving antenna, which was mounted on the top of a
variable height antenna tower.
4. For each suspected emission, the EUT was arranged to its worst case and then tune the Antenna tower
(From 1m to 4m) and turntable (from 0 degree to 360 degree) to find the maximum reading. A pre-amp
and a high pass filter are used for the test in order to get better signal level to comply with the guidelines.
5. Set to the maximum power setting and enable the EUT transmit continuously.
6. Final measurement (Above 1GHz): The frequency range will be divided into different sub ranges
depending of the frequency range of the used horn antenna. The EMI Receiver set to peak and average
mode and a resolution bandwidth of 1MHz. The measurement will be performed in horizontal and vertical
polarization of the measuring antenna and while rotating the EUT in its vertical axis in the range of 0
degree to 360 degree in order to have the antenna inside the cone of radiation.
7. Test Procedure of measurement (For Above 1GHz):
1) Monitor the frequency range at horizontal polarization and move the antenna over all sides of the EUT(if
necessary move the EUT to another orthogonal axis).
2) Change the antenna polarization and repeat 1) with vertical polarization.
3) Make a hardcopy of the spectrum.
4) Measure the frequency of the detected emissions with a lower span and resolution bandwidth to increase
the accuracy and note the frequency value.
5) Change the analyser mode to Clear/ Write and found the cone of emission.
6) Rotate and move the EUT, so that the measuring distance can be enlarged to 3m and the antenna will be
still inside the cone of emission.
7) Measure the level of the detected frequency with the correct resolution bandwidth, with the antenna
polarization and azimuth and the peak and average detector, which causes the maximum emission.
8) Repeat steps 1) to 7) for the next antenna spot if the EUT is larger than the antenna beamwidth.
7. The radiation measurements are tested under 3-axes(X,Y,Z) position(X denotes lying on the table, Y
denotes side stand and Z denotes vertical stand), After pre-test, It was found that the worse radiation
emission was get at the X position. So the data shown was the X position only.
Page 22 of 78
Report No.: PTCHX07170921002E-FC01
7.5 Summary of Test Results
Test Frequency: Below 30MHz
The measurements were more than 20 dB below the limit and not reported.
Test Frequency: 30MHz ~ 1GHz
Remark: only the worst data(GFSK modulation mode) were reported.
Page 23 of 78
Report No.: PTCHX07170921002E-FC01
Test plot for Horizontal: GFSK(2402MHz)
Page 24 of 78
Report No.: PTCHX07170921002E-FC01
Test plot for Vertical: GFSK(2402MHz)
Page 25 of 78
Report No.: PTCHX07170921002E-FC01
Test plot for Horizontal: GFSK(2441MHz)
Page 26 of 78
Report No.: PTCHX07170921002E-FC01
Test plot for Vertical: GFSK(2441MHz)
Page 27 of 78
Report No.: PTCHX07170921002E-FC01
Test plot for Horizontal: GFSK(2480MHz)
Page 28 of 78
Report No.: PTCHX07170921002E-FC01
Test plot for Vertical: GFSK(2480MHz)
Page 29 of 78
Report No.: PTCHX07170921002E-FC01
Test Frequency: Above 1000MHz~10th Harmonics:
GFSK Low Channel (2402MHz)
Frequency
(MHz)
S.A
Reading
(dBuV)
Detector
(PK/AV)
Polarity
(H/V)
Ant.
Factor
(dB/m)
Cable
Loss
(dB)
4804
4804
4804
4804
17800
17800
17800
17800
34.69
35.06
41.24
42.07
24.66
23.15
38.04
37.96
AV
AV
PK
PK
AV
AV
PK
PK
30.33
30.33
30.33
30.33
41.33
41.33
41.33
41.33
6.18
6.18
6.18
6.18
9.73
9.73
9.73
9.73
PreAmp.
Gain
(dB)
29.35
29.35
29.35
29.35
30.35
30.35
30.35
30.35
Emission
Level
(dBuV/m)
Limit
(dBuV/m)
Margin
(dB)
41.85
42.22
48.4
49.23
45.37
43.86
58.75
58.67
54
54
74
74
54
54
74
74
-12.15
-11.78
-25.6
-24.77
-8.63
-10.14
-15.25
-15.33
Emission
Level
(dBuV/m)
Limit
(dBuV/m)
Margin
(dB)
45.15
43.9
53.04
52.58
45.42
43.75
59.35
57.15
54
54
74
74
54
54
74
74
-8.85
-10.1
-20.96
-21.42
-8.58
-10.25
-14.65
-16.85
Emission
Level
(dBuV/m)
Limit
(dBuV/m)
Margin
(dB)
41.82
42.64
53.87
52.75
42.7
43.38
56.16
54.7
54
54
74
74
54
54
74
74
-12.18
-11.36
-20.13
-21.25
-11.3
-10.62
-17.84
-19.3
GFSK Low Channel (2441MHz)
Frequency
(MHz)
S.A
Reading
(dBuV)
Detector
(PK/AV)
Polarity
(H/V)
Ant.
Factor
(dB/m)
Cable
Loss
(dB)
4882
4882
4882
4882
17811
17811
17811
17811
35.26
34.01
43.15
42.69
25.72
24.05
39.65
37.45
AV
AV
PK
PK
AV
AV
PK
PK
31.36
31.36
31.36
31.36
40.55
40.55
40.55
40.55
6.59
6.59
6.59
6.59
9.73
9.73
9.73
9.73
PreAmp.
Gain
(dB)
28.06
28.06
28.06
28.06
30.58
30.58
30.58
30.58
GFSK High Channel (2480MHz)
Frequency
(MHz)
S.A
Reading
(dBuV)
Detector
(PK/AV)
Polarity
(H/V)
Ant.
Factor
(dB/m)
Cable
Loss
(dB)
4960
4960
4960
4960
17809
17809
17809
17809
33.22
34.04
45.27
44.15
24.69
25.37
38.15
36.69
AV
AV
PK
PK
AV
AV
PK
PK
31
31
31
31
41.35
41.35
41.35
41.35
6.03
6.03
6.03
6.03
7.35
7.35
7.35
7.35
Page 30 of 78
PreAmp.
Gain
(dB)
28.43
28.43
28.43
28.43
30.69
30.69
30.69
30.69
Report No.: PTCHX07170921002E-FC01
π/4-DQPSK Low Channel (2402MHz)
Frequency
(MHz)
S.A
Reading
(dBuV)
Detector
(PK/AV)
Polarity
(H/V)
Ant.
Factor
(dB/m)
Cable
Loss
(dB)
4804
4804
4804
4804
17803
17803
17803
17803
35.15
34.06
40.27
41.66
25.34
24.17
37.92
36.26
AV
AV
PK
PK
AV
AV
PK
PK
29.38
29.38
29.38
29.38
40.72
40.72
40.72
40.72
5.36
5.36
5.36
5.36
8.76
8.76
8.76
8.76
PreAmp.
Gain
(dB)
30.33
30.33
30.33
30.33
29.75
29.75
29.75
29.75
Emission
Level
(dBuV/m)
Limit
(dBuV/m)
Margin
(dB)
39.56
38.47
44.68
46.07
45.07
43.9
57.65
55.99
54
54
74
74
54
54
74
74
-14.44
-15.53
-29.32
-27.93
-8.93
-10.1
-16.35
-18.01
Emission
Level
(dBuV/m)
Limit
(dBuV/m)
Margin
(dB)
43.71
42.31
51.2
49.33
33.34
32.43
46.9
46.31
54
54
74
74
54
54
74
74
-10.29
-11.69
-22.8
-24.67
-20.66
-21.57
-27.1
-27.69
Emission
Level
(dBuV/m)
Limit
(dBuV/m)
Margin
(dB)
42.03
42.41
53.52
52.62
41.75
39.18
52.08
50.72
54
54
74
74
54
54
74
74
-11.97
-11.59
-20.48
-21.38
-12.25
-14.82
-21.92
-23.28
π/4-DQPSK Low Channel (2441MHz)
Frequency
(MHz)
S.A
Reading
(dBuV)
Detector
(PK/AV)
Polarity
(H/V)
Ant.
Factor
(dB/m)
Cable
Loss
(dB)
4882
4882
4882
4882
17804
17804
17804
17804
34.66
33.26
42.15
40.28
24.59
23.68
38.15
37.56
AV
AV
PK
PK
AV
AV
PK
PK
30.75
30.75
30.75
30.75
39.76
39.76
39.76
39.76
5.93
5.93
5.93
5.93
8.72
8.72
8.72
8.72
PreAmp.
Gain
(dB)
27.63
27.63
27.63
27.63
39.73
39.73
39.73
39.73
π/4-DQPSK High Channel (2480MHz)
Frequency
(MHz)
S.A
Reading
(dBuV)
Detector
(PK/AV)
Polarity
(H/V)
Ant.
Factor
(dB/m)
Cable
Loss
(dB)
4960
4960
4960
4960
17816
17816
17816
17816
32.66
33.04
44.15
43.25
26.72
24.15
37.05
35.69
AV
AV
PK
PK
AV
AV
PK
PK
29.67
29.67
29.67
29.67
40.33
40.33
40.33
40.33
7.15
7.15
7.15
7.15
6.39
6.39
6.39
6.39
Page 31 of 78
PreAmp.
Gain
(dB)
27.45
27.45
27.45
27.45
31.69
31.69
31.69
31.69
Report No.: PTCHX07170921002E-FC01
8DPSK Low Channel (2402MHz)
Frequency
(MHz)
S.A
Reading
(dBuV)
Detector
(PK/AV)
Polarity
(H/V)
Ant.
Factor
(dB/m)
Cable
Loss
(dB)
4804
4804
4804
4804
17809
17809
17809
17809
34.66
33.15
39.2
40.35
24.59
25.36
38.04
37.46
AV
AV
PK
PK
AV
AV
PK
PK
30.35
30.35
30.35
30.35
38.72
38.72
38.72
38.72
5.69
5.69
5.69
5.69
7.36
7.36
7.36
7.36
PreAmp.
Gain
(dB)
29.75
29.75
29.75
29.75
30.11
30.11
30.11
30.11
Emission
Level
(dBuV/m)
Limit
(dBuV/m)
Margin
(dB)
40.95
39.44
45.49
46.64
40.56
41.33
54.01
53.43
54
54
74
74
54
54
74
74
-13.05
-14.56
-28.51
-27.36
-13.44
-12.67
-19.99
-20.57
Emission
Level
(dBuV/m)
Limit
(dBuV/m)
Margin
(dB)
44.07
40.91
50.01
47.92
35.73
33.68
46.24
45.74
54
54
74
74
54
54
74
74
-9.93
-13.09
-23.99
-26.08
-18.27
-20.32
-27.76
-28.26
Emission
Level
(dBuV/m)
Limit
(dBuV/m)
Margin
(dB)
40.38
41.07
50.27
51.71
41.62
40.16
54.9
51.17
54
54
74
74
54
54
74
74
-13.62
-12.93
-23.73
-22.29
-12.38
-13.84
-19.1
-22.83
8DPSK Low Channel (2441MHz)
Frequency
(MHz)
S.A
Reading
(dBuV)
Detector
(PK/AV)
Polarity
(H/V)
Ant.
Factor
(dB/m)
Cable
Loss
(dB)
4882
4882
4882
4882
17806
17806
17806
17806
34.21
31.05
40.15
38.06
25.74
23.69
36.25
35.75
AV
AV
PK
PK
AV
AV
PK
PK
29.66
29.66
29.66
29.66
38.25
38.25
38.25
38.25
6.69
6.69
6.69
6.69
9.43
9.43
9.43
9.43
PreAmp.
Gain
(dB)
26.49
26.49
26.49
26.49
37.69
37.69
37.69
37.69
8DPSK High Channel (2480MHz)
Frequency
(MHz)
S.A
Reading
(dBuV)
Detector
(PK/AV)
Polarity
(H/V)
Ant.
Factor
(dB/m)
Cable
Loss
(dB)
4960
4960
4960
4960
17811
17811
17811
17811
31.36
32.05
41.25
42.69
25.14
23.68
38.42
34.69
AV
AV
PK
PK
AV
AV
PK
PK
28.75
28.75
28.75
28.75
39.67
39.67
39.67
39.67
6.99
6.99
6.99
6.99
7.14
7.14
7.14
7.14
PreAmp.
Gain
(dB)
26.72
26.72
26.72
26.72
30.33
30.33
30.33
30.33
Note: 1. The testing has been conformed to 10*2480MHz=24800MHz.
2. All other emissions more than 30dB below the limit.
3. Factor = Antenna Factor + Cable Loss – Pre-amplifier.
Emission Level = Reading + Factor
Margin=Emission Level-Limit
Page 32 of 78
Report No.: PTCHX07170921002E-FC01
8 CONDUCTED BAND EDGE EMISSION
8.1 REQUIREMENT
According to FCC section 15.247(d), in any 100kHz bandwidth outside the frequency band in
which the spread spectrum or digitally modulated intentional radiator is operating, the radio
frequency power that is produced by the intentional radiator shall be at least 20dB below that in
the 100kHz bandwidth within the band that contains the highest level of the desired power, based
on either an RF conducted or a radiated measurement.
8.2 TEST PROCEDURE
Spectrum Parameter
Detector
Start/Stop Frequency
RB / VB (emission in restricted band)
Trace-Mode:
. For Band edge
Spectrum Parameter
Detector
Start/Stop Frequency
RB / VB (emission in restricted band)
Trace-Mode:
Setting
Peak
30 MHz to 10th carrier harmonic
100 KHz/300 KHz
Max hold
Setting
Peak
Lower Band Edge: 2300 – 2403 MHz
Upper Band Edge: 2479 – 2500 MHz
100 KHz/300 KHz
Max hold
8.3 TEST SETUP
1. The transmitter output is connected to a spectrum analyzer. The resolution bandwidth is set to
100KHz. The video bandwidth is set to 300KHz.
2. The spectrum from 30MHz to 26 GHz is investigated with the transmitter set to the lowest,
middle, and highest channels.
Page 33 of 78
Report No.: PTCHX07170921002E-FC01
8.4 EUT OPERATION CONDITIONS
The EUT tested system was configured as the statements of 2.3 Unless otherwise a special
operating condition is specified in the follows during the testing.
8.5 TEST RESULTS
For Non-Hopping Mode:
Frequency(MHz)
Modulation
Peak
Power
Output
(dBm)
2399.99
2399.99
2399.99
2483.99
2483.53
2483.73
GFSK
π/4-DQPSK
8DPSK
GFSK
π/4-DQPSK
8DPSK
2.42
-0.92
-0.84
5.14
3.21
3.25
Emission
Read Value
(dBm)
Result of
Band edge
(dBc)
Band Edge
Limit (dBc)
-48.96
-49.81
-50.42
-58.74
-58.84
-58.45
51.38
48.89
49.58
63.88
62.05
61.70
>20dBc
>20dBc
>20dBc
>20dBc
>20dBc
>20dBc
Test Plot:
Please refer to the following pages.
Page 34 of 78
Report No.: PTCHX07170921002E-FC01
GFSK
Page 35 of 78
Report No.: PTCHX07170921002E-FC01
π/4-DQPSK
Page 36 of 78
Report No.: PTCHX07170921002E-FC01
8DPSK
Page 37 of 78
Report No.: PTCHX07170921002E-FC01
For Hopping Mode:
Frequency(MHz)
Modulation
Peak
Power
Output
(dBm)
2399.99
2399.99
2399.99
2484.97
2484.99
2485.14
GFSK
π/4-DQPSK
8DPSK
GFSK
π/4-DQPSK
8DPSK
3.38
8.47
4.52
5.11
3.21
3.16
Emission
Read Value
(dBm)
Result of
Band edge
(dBc)
Band Edge
Limit (dBc)
-50.08
-42.26
-49.72
-52.48
-53.42
-53.72
53.46
50.73
54.24
57.59
56.63
56.88
>20dBc
>20dBc
>20dBc
>20dBc
>20dBc
>20dBc
Test Plot:
Please refer to the following pages.
Page 38 of 78
Report No.: PTCHX07170921002E-FC01
GFSK
Page 39 of 78
Report No.: PTCHX07170921002E-FC01
π/4-DQPSK
Page 40 of 78
Report No.: PTCHX07170921002E-FC01
8DPSK
Page 41 of 78
Report No.: PTCHX07170921002E-FC01
9 20 dB Bandwidth Measurement
Test Requirement
FCC CFR47 Part 15 Section 15.247
Test Method
ANSI C63.10:2013
Test Mode
Refer to section 3.3
9.1 Test Procedure
1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum;
2. Set the spectrum analyzer: RBW = 30kHz, VBW = 100kHz
9.2 Test Result
Test Mode:
CH00 / CH39 / CH78 (GFSK/(1Mbps)Mode)
Channel number
Channel frequency (MHz)
20dB Down
BW(kHz)
00
2402
818
39
2441
818
78
2480
818
Page 42 of 78
Report No.: PTCHX07170921002E-FC01
Page 43 of 78
Report No.: PTCHX07170921002E-FC01
Test Mode:
CH00 / CH39 / CH78 (Π/4-DQPSK /(2Mbps)Mode)
Channel number
Channel frequency (MHz)
20dB Down
BW(kHz)
00
2402
1346
39
2441
1362
78
2480
1250
Page 44 of 78
Report No.: PTCHX07170921002E-FC01
Page 45 of 78
Report No.: PTCHX07170921002E-FC01
Test Mode:
CH00 / CH39 / CH78 (8DPSK(3Mbps)Mode)
Channel number
Channel frequency (MHz)
20dB Down
BW(kHz)
00
2402
1218
39
2441
1213
78
2480
1345
Page 46 of 78
Report No.: PTCHX07170921002E-FC01
Page 47 of 78
Report No.: PTCHX07170921002E-FC01
Page 48 of 78
Report No.: PTCHX07170921002E-FC01
10 Maximum Peak Output Power
Test Requirement
FCC CFR47 Part 15 Section 15.247
Test Method
ANSI C63.10:2013
Test Limit
Regulation 15.247 (b)(1), For frequency hopping systems operating in the
2400-2483.5 MHz band employing at least 75 non-overlapping hopping
channels, and all frequency hopping systems in the 5725-5850 MHz
band: 1 watt (30dBm). For all other frequency hopping systems in the
2400-2483.5 MHz band: 0.125 watts.
Refer to the result “Number of Hopping Frequency” of this document. The
0.125watts (20.97 dBm) limit applies.
Test Mode
Refer to section 3.3
10.1 Test Procedure
1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the
spectrum.
2. Set the spectrum analyser: RBW = 3 MHz. VBW =10MHz. Sweep = auto; Detector Function = Peak.
3. Keep the EUT in transmitting at lowest, medium and highest channel individually. Record the max value.
10.2 Test Result
GFSK(1Mbps)
Pass/Fail
Frequency
Conducted Output Peak
Power
Conducted Output
Peak Power
LIMIT
(MHz)
(dBm)
(mW)
(mW)
CH00
2402
-0.74
0.843
1000
Pass
CH39
2441
-1.23
0.753
1000
Pass
CH78
2480
-1.66
0.682
1000
Pass
Test
Channel
Page 49 of 78
Report No.: PTCHX07170921002E-FC01
Page 50 of 78
Report No.: PTCHX07170921002E-FC01
π/4QPSK(2Mbps)
Frequency
Conducted Output Peak
Power
Conducted Output
Peak Power
LIMIT
(MHz)
(dBm)
(mW)
(mW)
CH00
2402
-0.93
0.807
125
Pass
CH39
2441
-1.36
0.731
125
Pass
CH78
2480
-1.79
0.662
125
Pass
Test
Channel
Page 51 of 78
Pass/Fail
Report No.: PTCHX07170921002E-FC01
Page 52 of 78
Report No.: PTCHX07170921002E-FC01
8DPSK(3Mbps)
Frequency
Conducted Output Peak
Power
Conducted Output
Peak Power
LIMIT
(MHz)
(dBm)
(mW)
(mW)
CH00
2402
-0.91
0.811
125
Pass
CH39
2441
-1.38
0.728
125
Pass
CH78
2480
-1.80
0.661
125
Pass
Test
Channel
Page 53 of 78
Pass/Fail
Report No.: PTCHX07170921002E-FC01
Page 54 of 78
Report No.: PTCHX07170921002E-FC01
Page 55 of 78
Report No.: PTCHX07170921002E-FC01
11 Hopping Channel Separation
Test Requirement
FCC CFR47 Part 15 Section 15.247
Test Method
ANSI C63.10:2013
Test Limit
Test Mode
Regulation 15.247(a)(1) Frequency hopping systems shall have
hopping channel carrier frequencies separated by a minimum of 25
kHz or the 20 dB bandwidth of the hopping channel, whichever is
greater. Alternatively, frequency hopping systems operating in the
2400-2483.5MHz band may have hopping channel carrier frequencies
that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of
the hopping channel, whichever is greater, provided the systems
operate with an output power no greater than 1W.
Hopping
11.1 Test Procedure
1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the
spectrum.
2. Set the spectrum analyzer: RBW = 30KHz. VBW = 100KHz , Span = 3MHz. Sweep = auto; Detector
Function = Peak. Trace = Max hold.
3. Allow the trace to stabilize. Use the marker-delta function to determine the separation between the
peaks of the adjacent channels. The limit is specified in one of the subparagraphs of this Section
Submit this plot.
Page 56 of 78
Report No.: PTCHX07170921002E-FC01
11.2 Test Result
Test Mode:
CH00 / CH39 / CH78 (GFSK(1Mbps) Mode)
Separation Limit
Channel number
Channel
frequency (MHz)
Separation Read
Value (kHz)
2/3 20dB Down BW(kHz)
00
2402
1001
>818
39
2441
1001
>818
78
2480
1001
>818
Page 57 of 78
Report No.: PTCHX07170921002E-FC01
Page 58 of 78
Report No.: PTCHX07170921002E-FC01
Test Mode:
CH00 / CH39 / CH78 (π/4-DQPSK(2Mbps) Mode)
Separation Limit
Channel number
Channel frequency
(MHz)
Separation Read
Value (kHz)
2/3 20dB Down BW(kHz)
00
2402
1001
>897
39
2441
1001
>908
78
2480
1001
>833
Page 59 of 78
Report No.: PTCHX07170921002E-FC01
Page 60 of 78
Report No.: PTCHX07170921002E-FC01
Test Mode:
CH00 / CH39 / CH78 (8DPSK(3Mbps)Mode)
Separation Limit
Channel number
Channel frequency
(MHz)
Separation Read
Value (kHz)
00
2402
1001
>812
39
2441
1001
>809
78
2480
1001
>897
Page 61 of 78
2/3 20dB Down BW(kHz)
Report No.: PTCHX07170921002E-FC01
Page 62 of 78
Report No.: PTCHX07170921002E-FC01
12 Number of Hopping Frequency
Test Requirement
FCC CFR47 Part 15 Section 15.247
Test Method
ANSI C63.10:2013
Test Limit
Test Mode
Regulation 15.247 (a)(1)(iii) Frequency hopping systems in the 24002483.5 MHz band shall use at least 15 channels.
Hopping(GFSK)
12.1 Test Procedure
1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the
spectrum.
2. Set the spectrum analyzer: RBW = 100KHz. VBW = 300KHz. Sweep = auto; Detector Function = Peak.
Trace = Max hold.
3. Allow the trace to stabilize. It may prove necessary to break the span up to sections. in order to clearly
show all of the hopping frequencies. The limit is specified in one of the subparagraphs of this Section.
4. Set the spectrum analyzer: Start Frequency = 2.4GHz, Stop Frequency = 2.483GHz. Sweep=auto;
12.2 Test Result
Channel Number
Limit
79
≥15
Page 63 of 78
Report No.: PTCHX07170921002E-FC01
13 Dwell Time
Test Requirement
FCC CFR47 Part 15 Section 15.247
Test Method
ANSI C63.10:2013
Test Limit
Test Mode
Regulation 15.247(a)(1)(iii) Frequency hopping systems in the 24002483.5 MHz band shall use at least 15 channels. The average time of
occupancy on any channel shall not be greater than 0.4 seconds within
a period of 0.4 seconds multiplied by the number of hopping channels
employed.
The worst case(GFSK) was recorded
13.1 Test Procedure
1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the
spectrum.
2. Set spectrum analyzer span = 0. Centred on a hopping channel;
3. Set RBW = 1MHz and VBW = 3MHz.Sweep = as necessary to capture the entire dwell time per hopping
channel. Set the EUT for DH5, DH3 and DH1 packet transmitting.
4. Use the marker-delta function to determine the dwell time. If this value varies with different modes of
operation (e.g.. data rate. modulation format. etc.). repeat this test for each variation. The limit is specified in
one of the subparagraphs of this Section. Submit this plot(s).
13.2 Test Result
Test Mode:
GFSK(1Mbps) –DH1/DH3/DH5
Mode
Number of transmission in a 31.6( 79
Hopping*0.4)
Length of
transmissions
time(msec)
Result
(msec)
Limit (msec)
DH1
1600/(2*79) x 31.6 = 320
0.359
114.88
400
DH3
1600/(4*79) x 31.6 =160
1.657
265.12
400
DH5
1600/(6*79) x 31.6 =106.67
2.778
296.32
400
Page 64 of 78
Report No.: PTCHX07170921002E-FC01
Page 65 of 78
Report No.: PTCHX07170921002E-FC01
Page 66 of 78
Report No.: PTCHX07170921002E-FC01
14 Antenna Requirement
According to the FCC part15.203, a transmitter can only be sold or operated with antennas with which it was
approved. This product has an internal PCB Antenna, it meet the requirement of this section.
Page 67 of 78
Report No.: PTCHX07170921002E-FC01
15 TEST PHOTOS
Page 68 of 78
Report No.: PTCHX07170921002E-FC01
Page 69 of 78
Report No.: PTCHX07170921002E-FC01
16 EUT PHOTOS
Page 70 of 78
Report No.: PTCHX07170921002E-FC01
Page 71 of 78
Report No.: PTCHX07170921002E-FC01
Page 72 of 78
Report No.: PTCHX07170921002E-FC01
Page 73 of 78
Report No.: PTCHX07170921002E-FC01
Page 74 of 78
Report No.: PTCHX07170921002E-FC01
Page 75 of 78
Report No.: PTCHX07170921002E-FC01
Page 76 of 78
Report No.: PTCHX07170921002E-FC01
Page 77 of 78
Report No.: PTCHX07170921002E-FC01
******THE END REPORT******
Page 78 of 78
Download: DA149 Wireless Portable Speaker Test Report DA149 RP FCC part15.247-BT4.1+EDR Shenzhen Tomtop Technology Co., Ltd
Mirror Download [FCC.gov]DA149 Wireless Portable Speaker Test Report DA149 RP FCC part15.247-BT4.1+EDR Shenzhen Tomtop Technology Co., Ltd
Document ID3601647
Application IDvqAkaaDf5W1SdEHrQJDANw==
Document DescriptionRF Test Report
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize450.22kB (5627720 bits)
Date Submitted2017-10-11 00:00:00
Date Available2017-10-12 00:00:00
Creation Date2017-10-10 11:14:34
Producing SoftwareAcrobat Distiller 10.1.2 (Windows)
Document Lastmod2017-10-10 11:14:34
Document TitleDA149 RP FCC part15.247-BT4.1+EDR
Document CreatorPScript5.dll Version 5.2.2
Document Author: Administrator

Source Exif Data:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.5
Linearized                      : No
Warning                         : Invalid xref table
EXIF Metadata provided by EXIF.tools

Facebook Twitter Google+ RSS © FCCID.io 2018
