FCC ID 2AIJ4T-M1
Two way radio
by Quanzhou HengLiDa Tel-Equipment Co.,Ltd.
Grantee Code: 2AIJ4 Product Code: TM1
Latest application date: 2016-07-06
Device Images
FCC ID Device Details
| FCC ID | 2AIJ4T-M1 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AIJ4 |
| Product Code | TM1 |
| Applicant Business | Quanzhou HengLiDa Tel-Equipment Co.,Ltd. 🇨🇳 |
| Related Domains |  hlddjj.com |
| Equipment Class | Two way radio |
| Test Firm | Shenzhen CTL Testing Technology Co., Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 462.55-462.725 MHz | Original Equipment | 2016-07-06 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User manual | Users Manual | 2016-07-06 | PDF 491.4 KB |

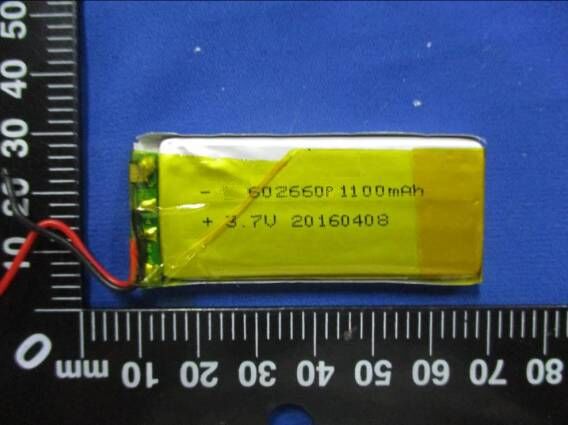

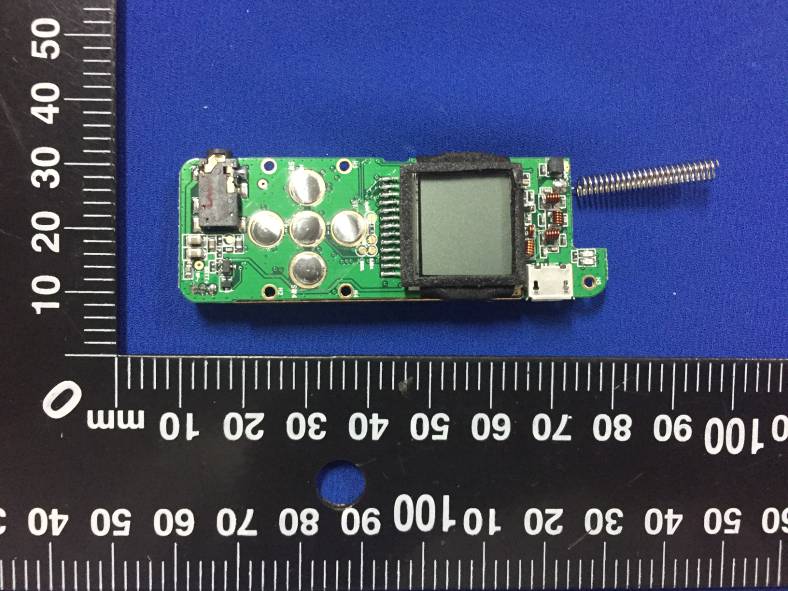

| Internal photos | Internal Photos | 2016-07-06 | PDF 327.9 KB |

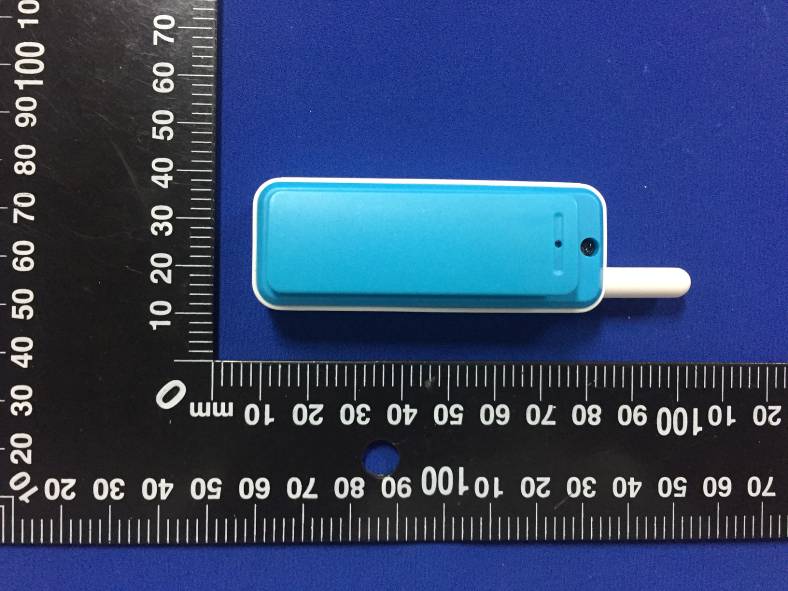

| External photos | External Photos | 2016-07-06 | PDF 655.2 KB |
| Label | ID Label/Location Info | 2016-07-06 | PDF 47.2 KB |

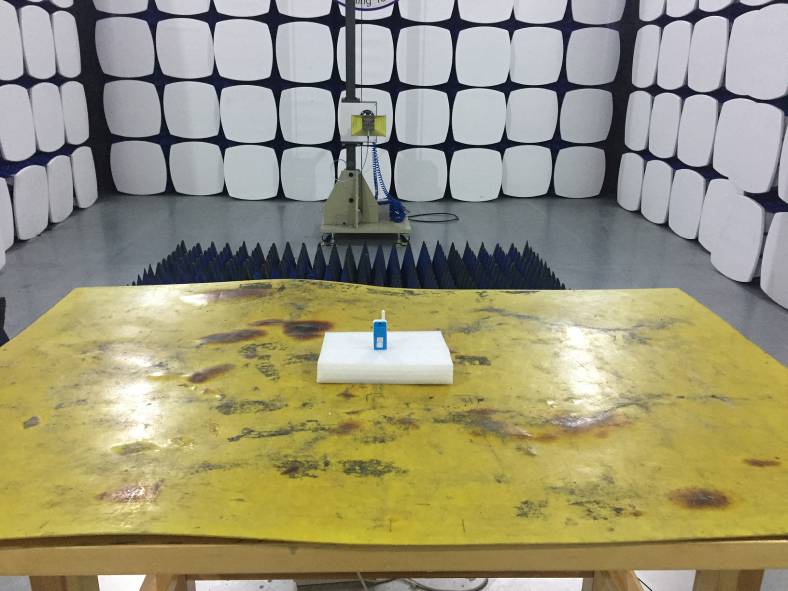

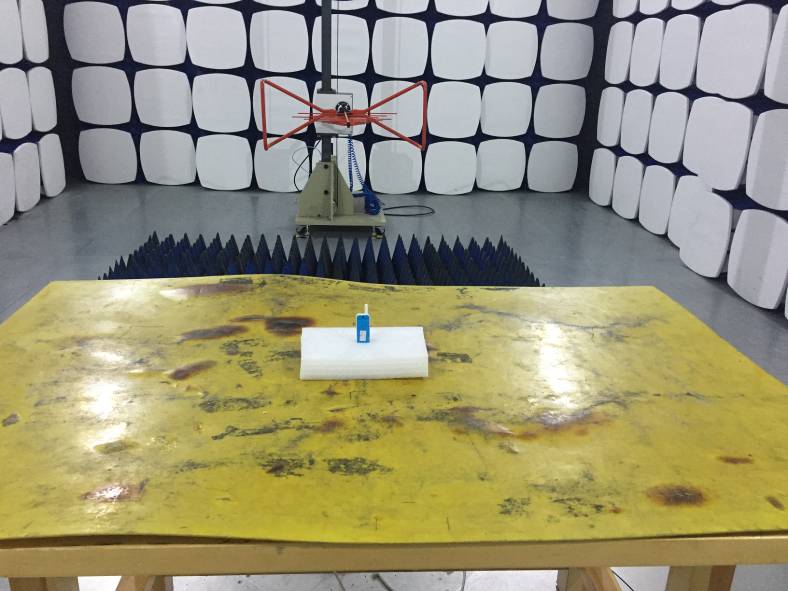

| Test setup | Test Setup Photos | 2016-07-06 | PDF 175.1 KB |
| Test report | Test Report | 2016-07-06 | PDF 1.6 MB |
| Cover letter | Cover Letter(s) | 2016-07-06 | PDF 66.5 KB |
| SAR report | RF Exposure Info | 2016-07-06 | PDF 4.8 MB |
| Block Diagram Metadata only | Block Diagram | PDF 51.4 KB | |
| Schematics Metadata only | Schematics | PDF 310.2 KB | |
| Operational Description Metadata only | Operational Description | PDF 17.1 KB | |
| Tune up Metadata only | Parts List/Tune Up Info | PDF 15.8 KB |
Application Information
| Application ID | anhLP8VHbnwfpheU1EPEOg== |
|---|---|
| Final Action Date | 2016-07-06 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0025605973 |
| Model | T-M1 |
| Frequency Range | 462.55-462.725 MHz |
| Equipment Class | FRF - Part 95 Family Radio Face Held Transmitter |
| Device Description | Two way radio |
| Responsible Party | YUZHAN HONG, general manager, hld@hlddjj.com , 0595-86769179 |
| Test Firm | Tracy Qi, Shenzhen CTL Testing Technology Co., Ltd., qihui@ctl-lab.com  , 86-755-89486194 |
| TCB Email | stuart.beck@nemko.com  |
| TCB Scope | B2: General Mobile Radio And Broadcast Services equipment in the following 47 CFR Parts 22 (non-cellular) 73, 74, 90, 95, 97, & 101 (all below 3 GHz) |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is ERP. There must be an informational insert inside the box (product package) or the users manual must include information that clearly informs the consumer (buyer/owner) when the radio is transmitting on GMRS frequencies, that operation on GMRS frequencies requires an FCC license and such operation is subject to additional rules specified in 47 C.F.R. Part 95. This transmitter has been tested for SAR compliance in Push-to-Talk and body-worn operating configurations. Hand held and body-worn SAR compliance is limited to the specific antennas, belt-clips, holsters and accessories tested for this device. Users must be provided with transmitter operating conditions for satisfying RF exposure compliance. The highest reported 50% duty cycle SAR levels for head and body-worn accessories exposure conditions are 0.72 W/kg and 1.18 W/kg respectively. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| anhLP8VHbnwfpheU1EPEOg== | 2016-07-06 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application anhLP8VHbnwfpheU1EPEOg==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Nemko North America, INC. 303 River Road Ottawa, Ontario, K1V 1H2 Canada |
Date of Grant: 07/06/2016 Application Dated: 07/06/2016 |
| Quanzhou HengLiDa Tel-Equipment Co.,Ltd. |
| 659 Xingpu, Xiamei Town, Nan'an City, |
| Fujian Province,China. |
| nan'an, China |
| Attention: YUZHAN HONG , general manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AIJ4T-M1 |
| Name of Grantee: | Quanzhou HengLiDa Tel-Equipment Co.,Ltd. |
| Equipment Class: | Part 95 Family Radio Face Held Transmitter |
| Notes: | Two way radio |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 95A | 462.55 - 462.725 | 1.14 | 3.0 PM | 9K95F3E |
| Output power listed is ERP. There must be an informational insert inside the box (product package) or the users manual must include information that clearly informs the consumer (buyer/owner) when the radio is transmitting on GMRS frequencies, that operation on GMRS frequencies requires an FCC license and such operation is subject to additional rules specified in 47 C.F.R. Part 95. This transmitter has been tested for SAR compliance in Push-to-Talk and body-worn operating configurations. Hand held and body-worn SAR compliance is limited to the specific antennas, belt-clips, holsters and accessories tested for this device. Users must be provided with transmitter operating conditions for satisfying RF exposure compliance. The highest reported 50% duty cycle SAR levels for head and body-worn accessories exposure conditions are 0.72 W/kg and 1.18 W/kg respectively. |
EAS Grant - Application anhLP8VHbnwfpheU1EPEOg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Quanzhou HengLiDa Tel-Equipment Co.,Ltd. 659 Xingpu, Xiamei Town, Nan'an City, Fujian Province,China. nan'an, China |
Date of Grant: 07/06/2016 Application Dated: 07/06/2016 |
| Attention: YUZHAN HONG , general manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AIJ4T-M1 |
| Name of Grantee: | Quanzhou HengLiDa Tel-Equipment Co.,Ltd. |
| Equipment Class: | Part 95 Family Radio Face Held Transmitter |
| Notes: | Two way radio |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 95A | 462.55 - 462.725 | 1.14 | 3.0 PM | 9K95F3E |
| Output power listed is ERP. There must be an informational insert inside the box (product package) or the users manual must include information that clearly informs the consumer (buyer/owner) when the radio is transmitting on GMRS frequencies, that operation on GMRS frequencies requires an FCC license and such operation is subject to additional rules specified in 47 C.F.R. Part 95. This transmitter has been tested for SAR compliance in Push-to-Talk and body-worn operating configurations. Hand held and body-worn SAR compliance is limited to the specific antennas, belt-clips, holsters and accessories tested for this device. Users must be provided with transmitter operating conditions for satisfying RF exposure compliance. The highest reported 50% duty cycle SAR levels for head and body-worn accessories exposure conditions are 0.72 W/kg and 1.18 W/kg respectively. |
| Mail To: |
