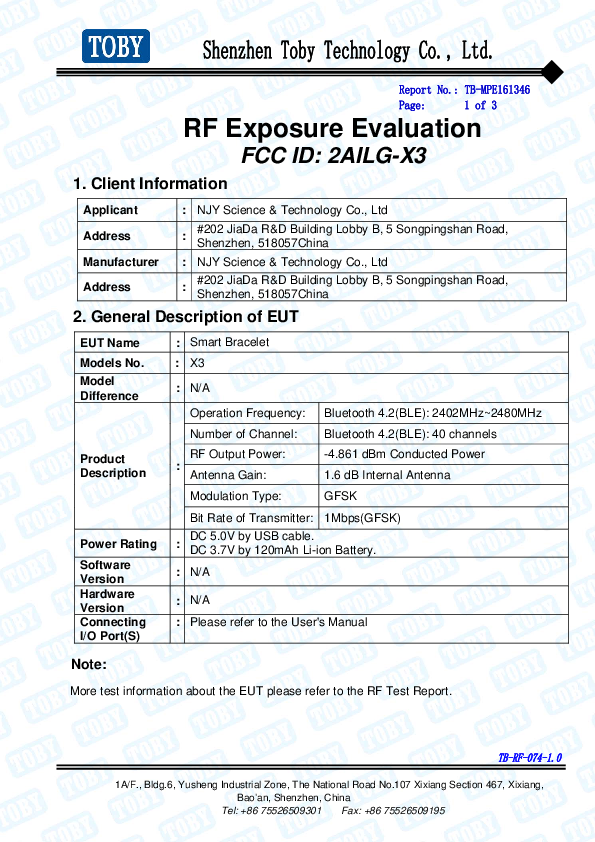

Shenzhen Toby Technology Co., Ltd.
Report No.: TB-MPE161346
Page:
1 of 3
RF Exposure Evaluation
FCC ID: 2AILG-X3
1. Client Information
Applicant
: NJY Science & Technology Co., Ltd
Address
Manufacturer
: NJY Science & Technology Co., Ltd
Address
#202 JiaDa R&D Building Lobby B, 5 Songpingshan Road,
Shenzhen, 518057China
#202 JiaDa R&D Building Lobby B, 5 Songpingshan Road,
Shenzhen, 518057China
2. General Description of EUT
EUT Name
: Smart Bracelet
Models No.
: X3
Model
Difference
: N/A
Product
Description
Operation Frequency:
Bluetooth 4.2(BLE): 2402MHz~2480MHz
Number of Channel:
Bluetooth 4.2(BLE): 40 channels
RF Output Power:
-4.861 dBm Conducted Power
Antenna Gain:
1.6 dB Internal Antenna
Modulation Type:
GFSK
Bit Rate of Transmitter: 1Mbps(GFSK)
Power Rating
Software
Version
Hardware
Version
Connecting
I/O Port(S)
DC 5.0V by USB cable.
DC 3.7V by 120mAh Li-ion Battery.
: N/A
: N/A
: Please refer to the User's Manual
Note:
More test information about the EUT please refer to the RF Test Report.
TB-RF-074-1.0
1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang,
Bao’an, Shenzhen, China
Tel: +86 75526509301
Fax: +86 75526509195
Report No.: TB-MPE161346
Page:
2 of 3
SAR Test Exclusion Calculations
1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure
Procedures and Equipment Authorization Policies v06.
(1) Clause 4.3: General SAR test reduction and exclusion guidance
Sub clause 4.31: Standalone SAR test exclusion considerations
1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test
separation distance≤5 mm are determined by:
[(max. power of channel, including tune-up tolerance, mW)/(min. test
separation, mm)]*[√f(GHz) ] ≤3.0 for 1-g SAR
[(max. power of channel, including tune-up tolerance, mW)/(min. test
separation, mm)]*[√f(GHz) ] ≤7.5.0 for 10-g SAR
TB-RF-074-1.0
Report No.: TB-MPE161346
Page:
3 of 3
2. Calculation:
Test separation: 5mm
Bluetooth Mode (GFSK)
Frequency
(GHz)
Conducted
Power
(dBm)
Turn-up Power
Tolerance
(dB)
Max power of tune
up tolerance
(dbm)
Max power of tune
up tolerance
(mw)
Calculation
Value
Threshold
Value
2.402
-4.861
-5±1
-4
0.398
0.123
3.0
2.442
-5.200
-5±1
-4
0.398
0.124
3.0
2.480
-5.725
-5±1
-4
0.398
0.125
3.0
So standalone SAR measurements are not required.
-----END OF REPORT-----
