FCC ID 2AIM5BTV3
Smart TV box
by Legacy Direct
Grantee Code: 2AIM5 Product Code: BTV3
Latest application date: 2016-07-26
Device Images
FCC ID Device Details
| FCC ID | 2AIM5BTV3 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AIM5 |
| Product Code | BTV3 |
| Applicant Business | Legacy Direct 🇺🇸 |
| Related Domains |  legacy.direct  morlab.cn |
| Equipment Class | Smart TV box |
| Test Firm | Shenzhen Morlab Communications Technology Co., Ltd |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5150-5250 MHz | Original Equipment | 2016-07-26 |
| 2402-2480 MHz | Original Equipment | 2016-07-26 |
| 2402-2480 MHz | Original Equipment | 2016-07-26 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2016-07-26 | PDF 745.4 KB |
| Internal Photos | Internal Photos | 2016-07-26 | PDF 285.4 KB |
| External Photos | External Photos | 2016-07-26 | PDF 292.8 KB |
| ID Label/Location Info | ID Label/Location Info | 2016-07-26 | PDF 143.5 KB |

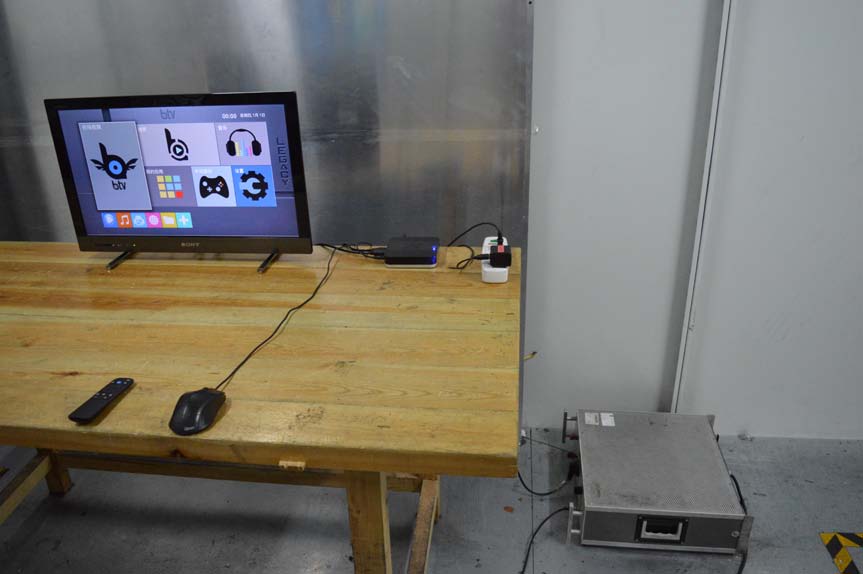

| Test Setup Photos | Test Setup Photos | 2016-07-26 | PDF 361.9 KB |

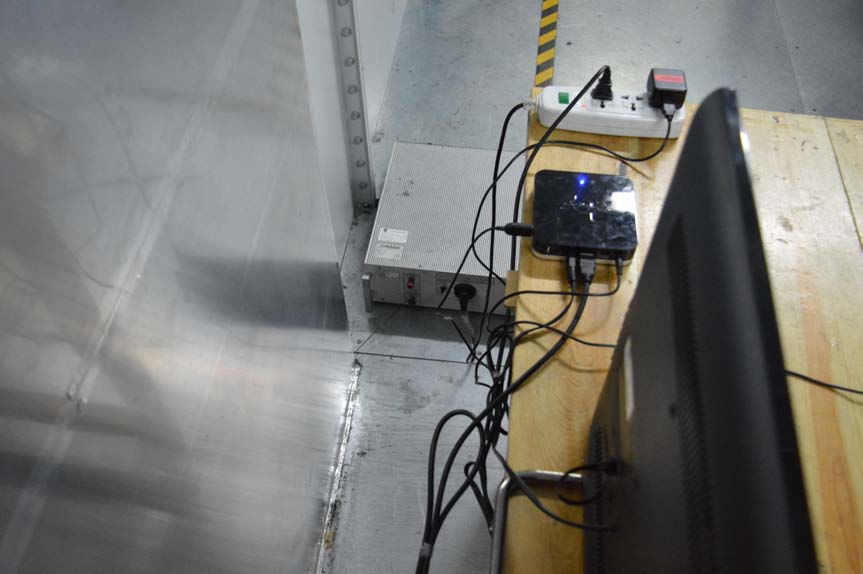

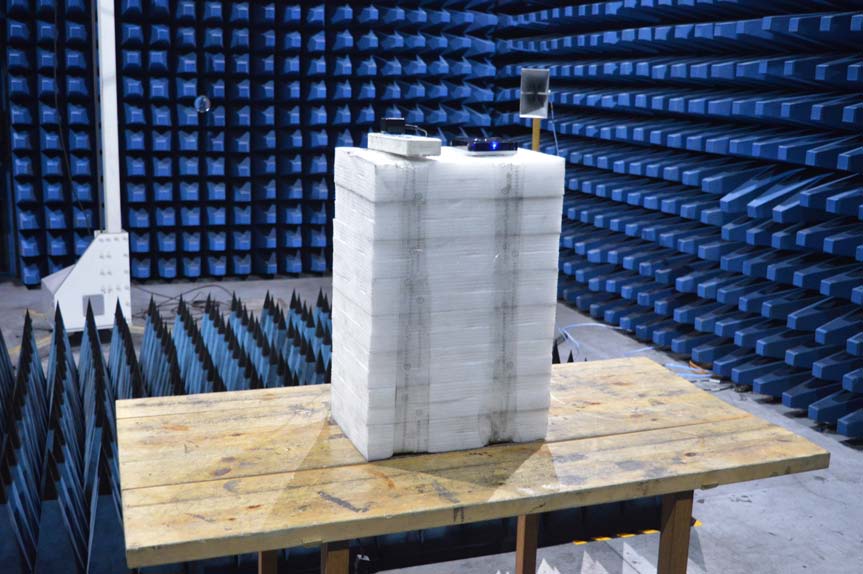

| Test Setup Photos | Test Setup Photos | 2016-07-26 | PDF 358.8 KB |
| Test Report Metadata only | Test Report | 2016-07-26 | PDF 3.4 MB |
| Test Report | Test Report | 2016-07-26 | PDF 2.9 MB |
| Test Report for BLE | Test Report | 2016-07-26 | PDF 1.9 MB |
| Test Report for WLAN | Test Report | 2016-07-26 | PDF 2.6 MB |
| Test Report_revised0721 | Test Report | 2016-07-26 | PDF 3.6 MB |
| Confidentiality | Cover Letter(s) | 2016-07-26 | PDF 406.6 KB |
| DOC Letter | Cover Letter(s) | 2016-07-26 | PDF 69.2 KB |
| Declaration Letter | Cover Letter(s) | 2016-07-26 | PDF 342.6 KB |
| Declaration of authorization | Cover Letter(s) | 2016-07-26 | PDF 373.5 KB |
| MPE | RF Exposure Info | 2016-07-26 | PDF 1.8 MB |
| Block Diagram Metadata only | Block Diagram | PDF 178 KB | |
| Schematics Metadata only | Schematics | PDF 1.3 MB | |
| Operational Description Metadata only | Operational Description | PDF 292 KB | |
| Software security for UNII Metadata only | Operational Description | PDF 99.9 KB | |
| BOM Metadata only | Parts List/Tune Up Info | PDF 90.3 KB |
Application Information
| Application ID | cKNrJ2mDrF9KP2RN9Lmxlw== |
|---|---|
| Final Action Date | 2016-07-26 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0025626409 |
| Model | BTV3 |
| Frequency Range | 5150-5250 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | Smart TV box |
| Responsible Party | James Wang, james@legacy.direct , 9498995189 |
| Agent | Ivy Ivy Ivy, Shenzhen Morlab Communications Technology, ivy.zhu@morlab.cn , 86075536698618 |
| Technical Contact | Ivy Zhu, Shenzhen Morlab Communications Technology, ivy.zhu@morlab.cn , 86075536698618 |
| Non-Technical Contact | Ivy Zhu, Shenzhen Morlab Communications Technology, ivy.zhu@morlab.cn , 86075536698618 |
| Test Firm | Ivy zhu, Shenzhen Morlab Communications Technology Co., Ltd, ivy.zhu@morlab.cn , 8675536698555 |
| TCB Email | certification@telefication.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | 5GHz Band WLAN >20cm (also for MIMO) Output power listed is conducted. The antenna(s) used for this transmitter must be used to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has a 20 MHz bandwidth mode. |
