FCC ID 2AIMNDZ09
Smart watch
by Shenzhen Shengyuantai Technology CO.,LTD
Grantee Code: 2AIMN Product Code: DZ09
Latest application date: 2016-06-23
Device Images
FCC ID Device Details
| FCC ID | 2AIMNDZ09 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AIMN |
| Product Code | DZ09 |
| Applicant Business | Shenzhen Shengyuantai Technology CO.,LTD 🇨🇳 |
| Equipment Class | Smart watch |
| Test Firm | Shenzhen STS Test Services Co., Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 824.2-848.8 MHz | Original Equipment | 2016-06-23 |
| 2402-2480 MHz | Original Equipment | 2016-06-23 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2016-06-23 | PDF 322.1 KB |
| Internal Photos | Internal Photos | 2016-06-23 | PDF 618.2 KB |

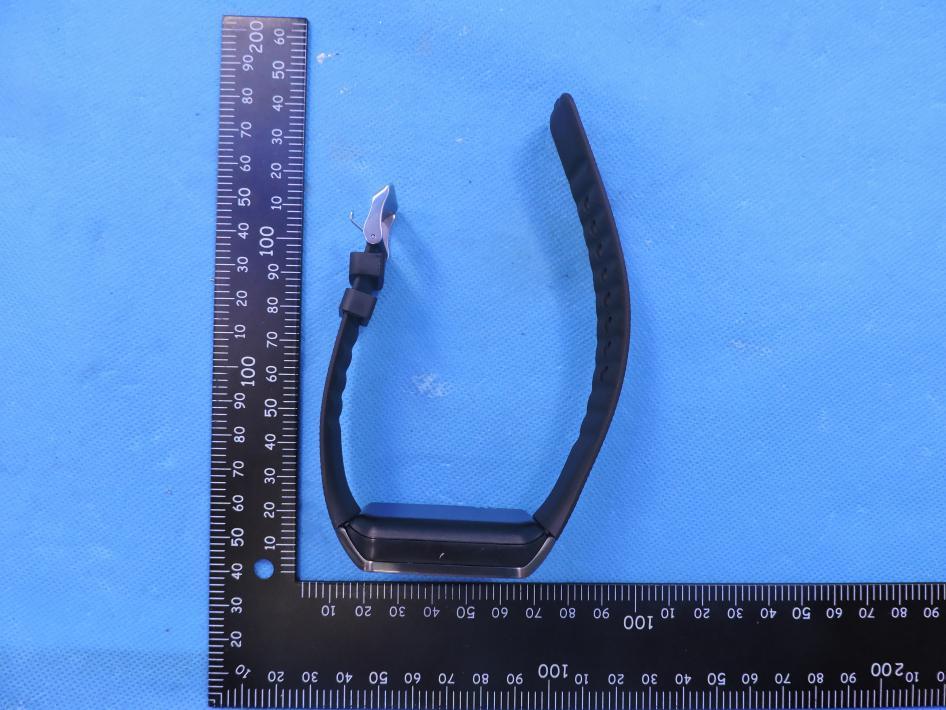

| External Photos | External Photos | 2016-06-23 | PDF 511 KB |
| Label & Label Location | ID Label/Location Info | 2016-06-23 | PDF 52.3 KB |
| RF Test Set-Up Photos | Test Setup Photos | 2016-06-23 | PDF 1.9 MB |
| RF Test Set-Up Photos | Test Setup Photos | 2016-06-23 | PDF 219.9 KB |

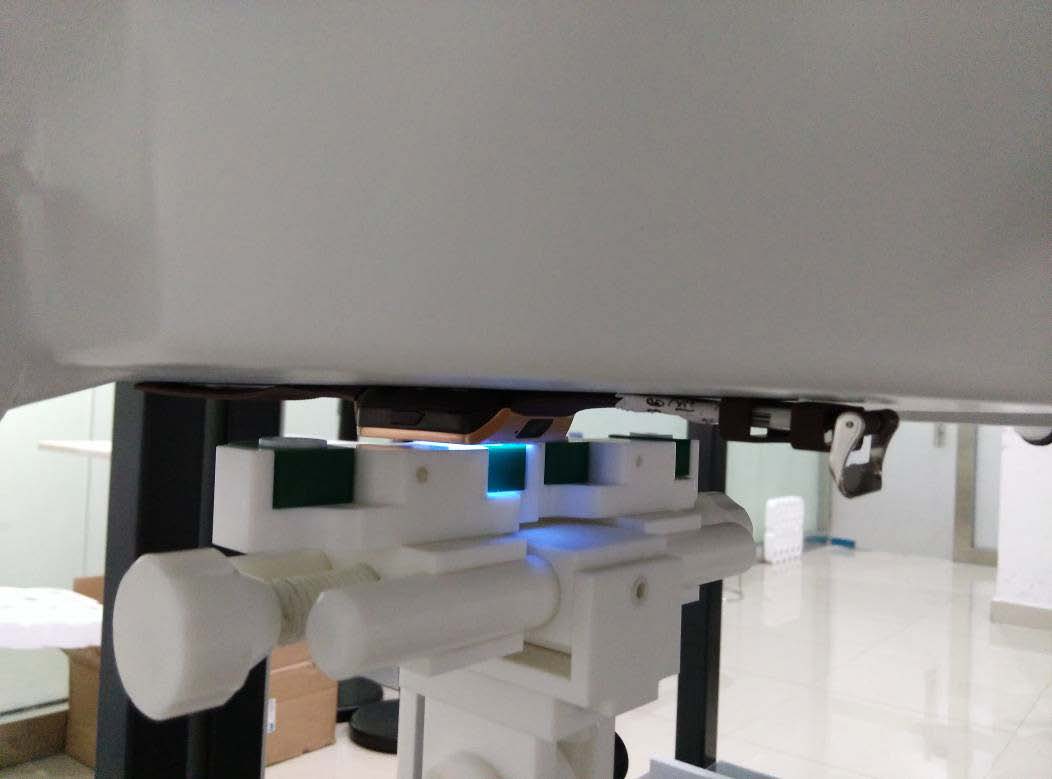

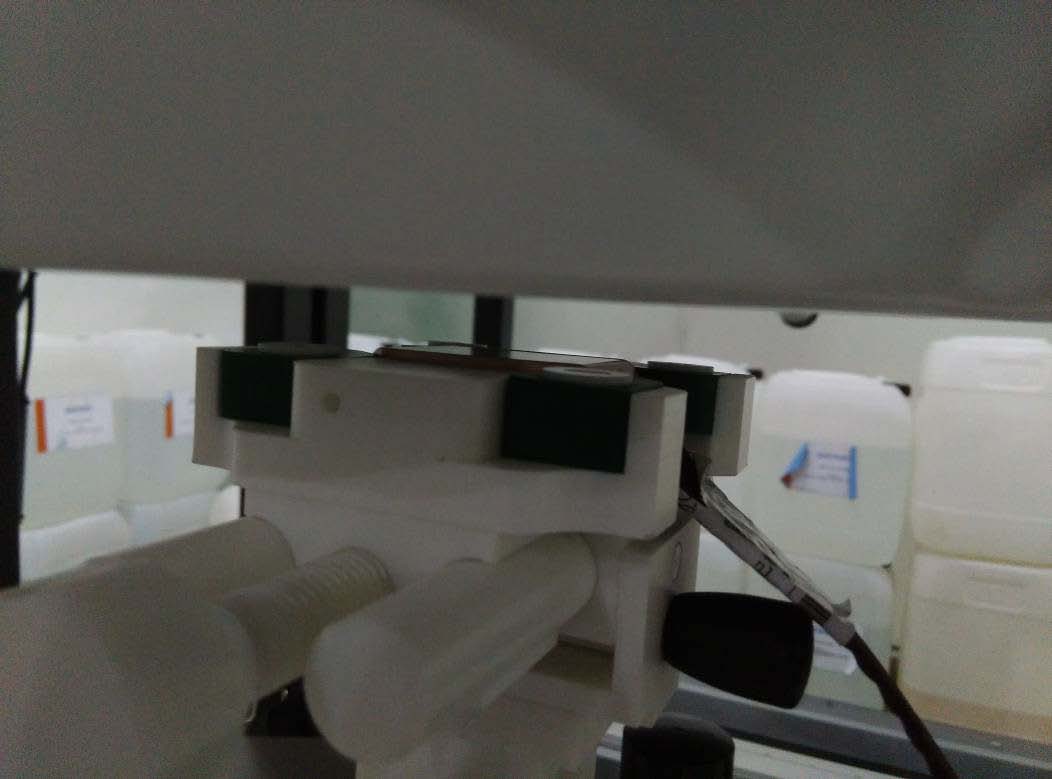

| SAR Test Set-Up Photos | Test Setup Photos | 2016-06-23 | PDF 89.4 KB |

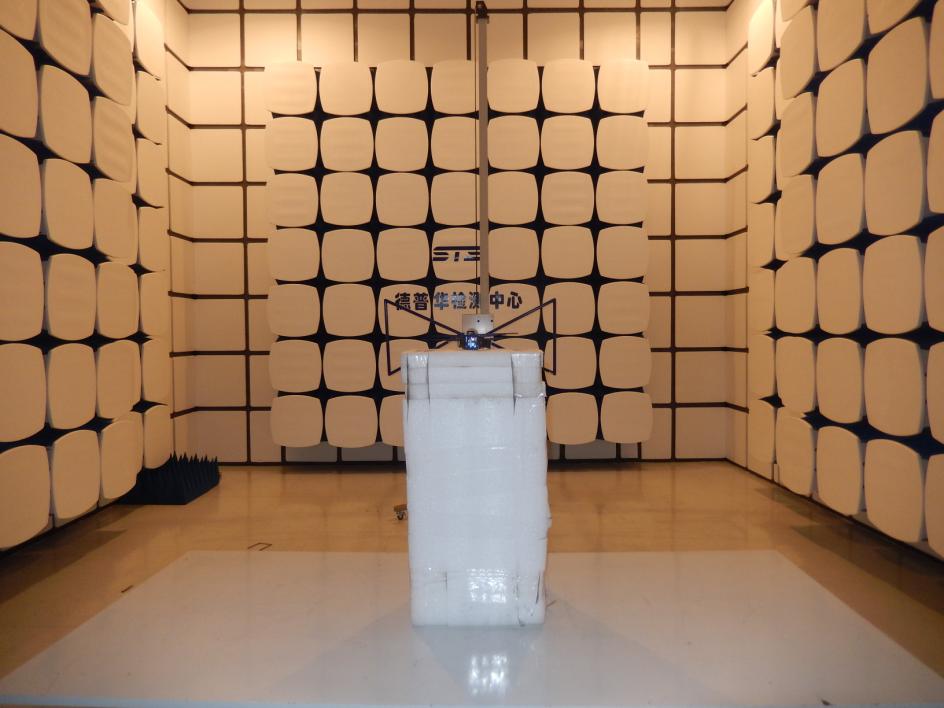

| Test Set-Up Photos | Test Setup Photos | 2016-06-23 | PDF 1.2 MB |
| Part 15B Test Report | Test Report | 2016-06-23 | PDF 1 MB |
| RF Test Report | Test Report | 2016-06-23 | PDF 284 KB |
| RF Test Report | Test Report | 2016-06-23 | PDF 3.4 MB |
| SAR Test Report | RF Exposure Info | 2016-06-23 | PDF 2.2 MB |
| Authorization Letter | Cover Letter(s) | 2016-06-23 | PDF 161.1 KB |
| Family Models Letter | Cover Letter(s) | 2016-06-23 | PDF 125.9 KB |
| LTC Letter | Cover Letter(s) | 2016-06-23 | PDF 105.9 KB |
| SAR Calibration Report | RF Exposure Info | 2016-06-23 | PDF 4.4 MB |
| Block Diagram Metadata only | Block Diagram | PDF 94.4 KB | |
| Schematics Metadata only | Schematics | PDF 243.9 KB | |
| MT6261D Specification datasheet Metadata only | Operational Description | PDF 3.7 MB | |
| Operational Description Metadata only | Operational Description | PDF 227.8 KB | |
| BOM List Metadata only | Parts List/Tune Up Info | PDF 47.7 KB | |
| Tune-Up Procedure Metadata only | Parts List/Tune Up Info | PDF 89.2 KB |
Application Information
| Application ID | ns8JSzTkEXZ5jBZdAm24EQ== |
|---|---|
| Final Action Date | 2016-06-23 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0025624990 |
| Model | DZ09 |
| Frequency Range | 824.2-848.8 MHz |
| Equipment Class | PCF - PCS Licensed Transmitter held to face |
| Device Description | Smart watch |
| Responsible Party | Weipeng Li, 2727302496@qq.com  , 18038099862 |
| Test Firm | Bovey Yang, Shenzhen STS Test Services Co., Ltd., bovey@stsapp.com  , (86)-0755-61996328 |
| TCB Email | tcb@siemic.com  |
| TCB Scope | B1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27 |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is ERP for Part 22 and EIRP for Part 24. This device has been tested and meets FCC RF exposure guidelines when used in a wrist-worn configuration or used a minimum of 10mm from the face. End-users must be informed of the face separation requirements for satisfying RF exposure compliance. Highest reported SAR for product specific (next-to-mouth), extremity (wrist) is: 0.14W/kg, 2.82 W/kg. This device contains functions that are not operational in U.S. Territories. This filing is only applicable for U.S. operations |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| ns8JSzTkEXZ5jBZdAm24EQ== | 2016-06-23 | Original Equipment |
| e4fMmUcbosDjVzvtIXlovQ== | 2016-06-23 | Original Equipment |
| 3rO8gKyK2tSmJQofi+SoSw== | 2016-06-23 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application ns8JSzTkEXZ5jBZdAm24EQ==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. 775 Montague Expressway Milpitas, CA 95035 |
Date of Grant: 06/23/2016 Application Dated: 06/23/2016 |
| Shenzhen Shengyuantai Technology CO.,LTD |
| 2A20,2F,LongshengAB,Huafa North Road, |
| Futian District |
| Shenzhen, China |
| Attention: Weipeng Li |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AIMNDZ09 |
| Name of Grantee: | Shenzhen Shengyuantai Technology CO.,LTD |
| Equipment Class: | PCS Licensed Transmitter held to face |
| Notes: | Smart watch |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 1.782 | 0.033 PM | 318KGXW | |
| 22H | 824.2 - 848.8 | 1.734 | 0.033 PM | 318KG7W | |
| 24E | 1850.2 - 1909.8 | 0.71 | 0.013 PM | 321KGXW | |
| 24E | 1850.2 - 1909.8 | 0.692 | 0.013 PM | 318KG7W |
| Output power listed is ERP for Part 22 and EIRP for Part 24. This device has been tested and meets FCC RF exposure guidelines when used in a wrist-worn configuration or used a minimum of 10mm from the face. End-users must be informed of the face separation requirements for satisfying RF exposure compliance. Highest reported SAR for product specific (next-to-mouth), extremity (wrist) is: 0.14W/kg, 2.82 W/kg. This device contains functions that are not operational in U.S. Territories. This filing is only applicable for U.S. operations |
EAS Grant - Application ns8JSzTkEXZ5jBZdAm24EQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Shenzhen Shengyuantai Technology CO.,LTD 2A20,2F,LongshengAB,Huafa North Road, Futian District Shenzhen, China |
Date of Grant: 06/23/2016 Application Dated: 06/23/2016 |
| Attention: Weipeng Li |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AIMNDZ09 |
| Name of Grantee: | Shenzhen Shengyuantai Technology CO.,LTD |
| Equipment Class: | PCS Licensed Transmitter held to face |
| Notes: | Smart watch |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 1.782 | 0.033 PM | 318KGXW | |
| 22H | 824.2 - 848.8 | 1.734 | 0.033 PM | 318KG7W | |
| 24E | 1850.2 - 1909.8 | 0.71 | 0.013 PM | 321KGXW | |
| 24E | 1850.2 - 1909.8 | 0.692 | 0.013 PM | 318KG7W |
| Output power listed is ERP for Part 22 and EIRP for Part 24. This device has been tested and meets FCC RF exposure guidelines when used in a wrist-worn configuration or used a minimum of 10mm from the face. End-users must be informed of the face separation requirements for satisfying RF exposure compliance. Highest reported SAR for product specific (next-to-mouth), extremity (wrist) is: 0.14W/kg, 2.82 W/kg. This device contains functions that are not operational in U.S. Territories. This filing is only applicable for U.S. operations |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. 775 Montague Expressway Milpitas, CA 95035 |
Date of Grant: 06/23/2016 Application Dated: 06/23/2016 |
| Shenzhen Shengyuantai Technology CO.,LTD |
| 2A20,2F,LongshengAB,Huafa North Road, |
| Futian District |
| Shenzhen, China |
| Attention: Weipeng Li |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AIMNDZ09 |
| Name of Grantee: | Shenzhen Shengyuantai Technology CO.,LTD |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | Smart watch |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15B | - |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application e4fMmUcbosDjVzvtIXlovQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Shenzhen Shengyuantai Technology CO.,LTD 2A20,2F,LongshengAB,Huafa North Road, Futian District Shenzhen, China |
Date of Grant: 06/23/2016 Application Dated: 06/23/2016 |
| Attention: Weipeng Li |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AIMNDZ09 |
| Name of Grantee: | Shenzhen Shengyuantai Technology CO.,LTD |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | Smart watch |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15B | - |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. 775 Montague Expressway Milpitas, CA 95035 |
Date of Grant: 06/23/2016 Application Dated: 06/23/2016 |
| Shenzhen Shengyuantai Technology CO.,LTD |
| 2A20,2F,LongshengAB,Huafa North Road, |
| Futian District |
| Shenzhen, China |
| Attention: Weipeng Li |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AIMNDZ09 |
| Name of Grantee: | Shenzhen Shengyuantai Technology CO.,LTD |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Smart watch |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.00195 |
| Power listed is the maximum conducted output power. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application 3rO8gKyK2tSmJQofi+SoSw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Shenzhen Shengyuantai Technology CO.,LTD 2A20,2F,LongshengAB,Huafa North Road, Futian District Shenzhen, China |
Date of Grant: 06/23/2016 Application Dated: 06/23/2016 |
| Attention: Weipeng Li |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AIMNDZ09 |
| Name of Grantee: | Shenzhen Shengyuantai Technology CO.,LTD |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Smart watch |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.00195 |
| Power listed is the maximum conducted output power. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
