FCC ID 2AINXVC3SMP85
Zigbee Communication Module
by Shanghai Vancount Wireless Intelligent Control System Co.,Ltd.
Grantee Code: 2AINX Product Code: VC3SMP85
Latest application date: 2016-08-08
Device Images
FCC ID Device Details
| FCC ID | 2AINXVC3SMP85 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AINX |
| Product Code | VC3SMP85 |
| Applicant Business | Shanghai Vancount Wireless Intelligent Control System Co.,Ltd. 🇨🇳 |
| Related Domains |  vancount.com |
| Equipment Class | Zigbee Communication Module |
| Test Firm | Waltek Services(Shenzhen) Co., Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2405-2480 MHz | Original Equipment | 2016-08-08 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

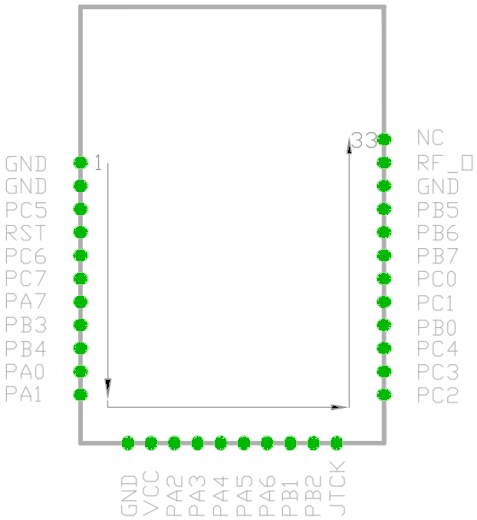

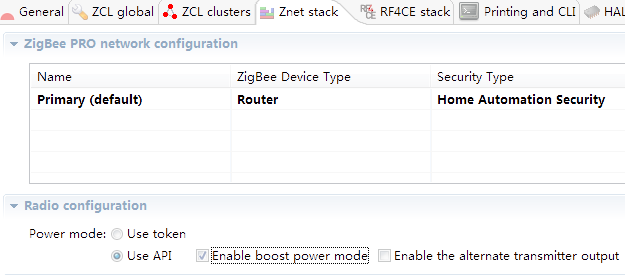

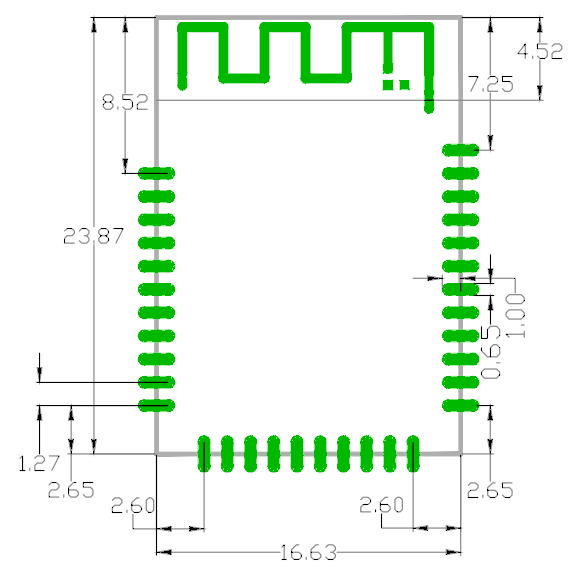

| Users Manual | Users Manual | 2016-08-08 | PDF 2.3 MB |
| internal photos | Internal Photos | 2016-08-08 | PDF 387.1 KB |
| External Photos | External Photos | 2016-08-08 | PDF 387.1 KB |
| ID Label | ID Label/Location Info | 2016-08-08 | PDF 155.2 KB |

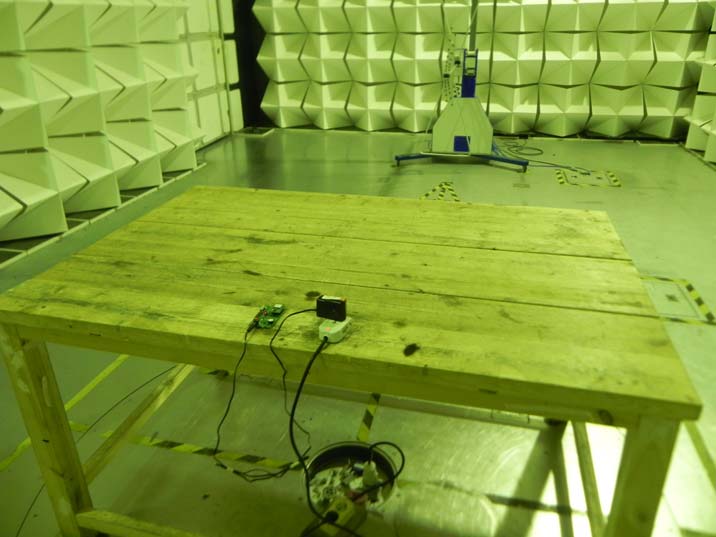

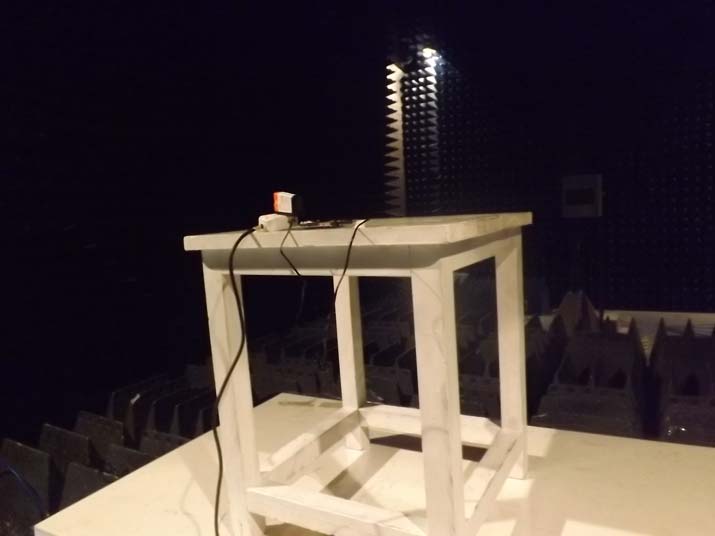

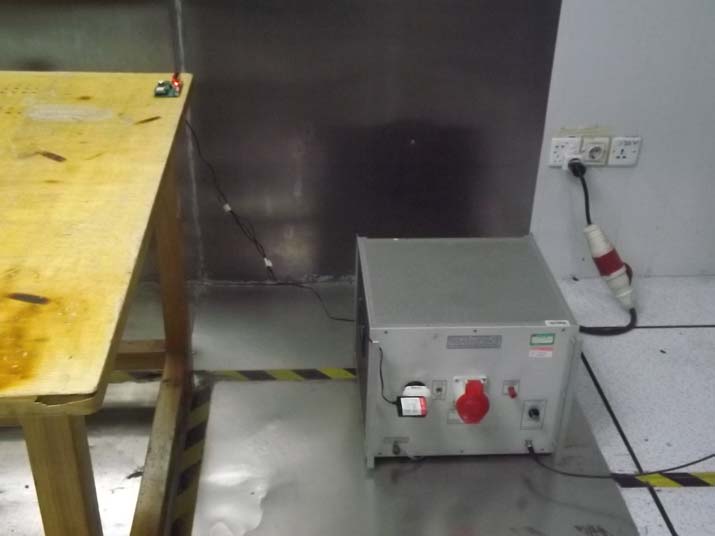

| Test Setup Photo | Test Setup Photos | 2016-08-08 | PDF 136.1 KB |
| Test Report | Test Report | 2016-08-08 | PDF 1.4 MB |
| Letter of Agency | Attestation Statements | 2016-08-08 | PDF 115.4 KB |
| Authorisation Letter | Cover Letter(s) | 2016-08-08 | PDF 12.8 KB |
| Letter of Confidentiality | Cover Letter(s) | 2016-08-08 | PDF 147.5 KB |
| modular approval letter | Cover Letter(s) | 2016-08-08 | PDF 36.4 KB |
| RF exposure | RF Exposure Info | 2016-08-08 | PDF 225.5 KB |

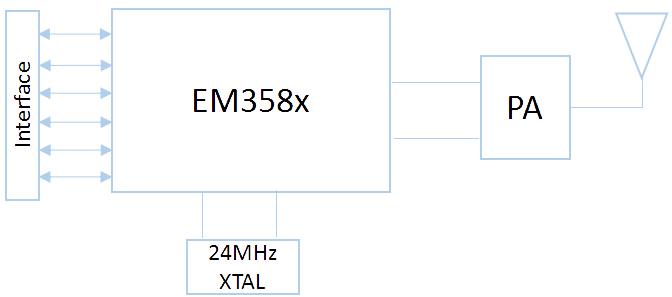

| Block Diagram Metadata only | Block Diagram | PDF 160.3 KB | |
| Schematic Metadata only | Schematics | PDF 56.1 KB | |
| operational description Metadata only | Operational Description | PDF 464.8 KB | |
| part placement Metadata only | Parts List/Tune Up Info | PDF 34.1 KB | |
| parts lists Metadata only | Parts List/Tune Up Info | PDF 41.8 KB | |
| parts placement Metadata only | Parts List/Tune Up Info | PDF 34.1 KB | |
| pcb layout Metadata only | Parts List/Tune Up Info | PDF 1 MB |
Application Information
| Application ID | KpIFbQxCq5NvBeYIVww6Cw== |
|---|---|
| Final Action Date | 2016-08-08 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0025629478 |
| Model | VC3SMP85 |
| Frequency Range | 2405-2480 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Zigbee Communication Module |
| Responsible Party | Xin Fu, Manager, fx@vancount.com , 8621-50563240-8027 |
| Test Firm | Philo zhong, Waltek Services(Shenzhen) Co., Ltd., philo@waltek.com.cn  , 0086-755-27553488 |
| TCB Email | roy.ediss@element.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Full modular approval. RF output power is conducted. OEM/Host integrator is responsible for complying with the instructions and requirements for the transmitter they choose to integrate into a host product. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product guidelines. End-users and responsible parties must be provided with operating and installation instructions to ensure RF exposure compliance. |
