FCC ID 2AIO4-S10
Bluetooth Speaker
by Orange Peel Creative
Grantee Code: 2AIO4 Product Code: S10
Latest application date: 2016-06-12
Device Images
FCC ID Device Details
| FCC ID | 2AIO4-S10 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AIO4 |
| Product Code | S10 |
| Applicant Business | Orange Peel Creative 🇺🇸 |
| Related Domains |  orangepeelcreative.net |
| Equipment Class | Bluetooth Speaker |
| Test Firm | Shenzhen CTL Testing Technology Co., Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2016-06-12 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2016-06-12 | PDF 595.8 KB |
| Internal Photos | Internal Photos | 2016-06-12 | PDF 226 KB |
| External Photos | External Photos | 2016-06-12 | PDF 355.3 KB |
| Label | ID Label/Location Info | 2016-06-12 | PDF 64 KB |

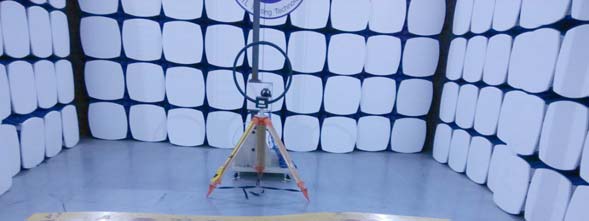

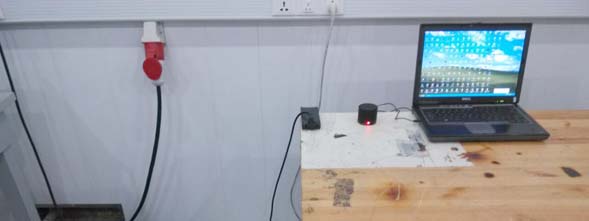

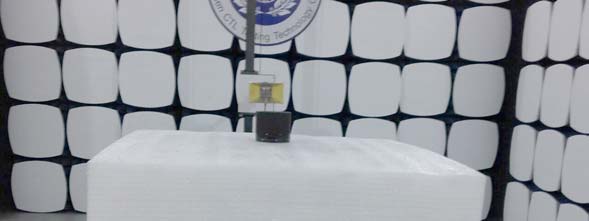

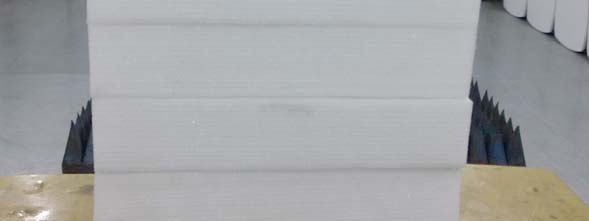

| Test Set Up Photos | Test Setup Photos | 2016-06-12 | PDF 161.9 KB |
| Test Report | Test Report | 2016-06-12 | PDF 1.9 MB |
| Confidentiality | Cover Letter(s) | 2016-06-12 | PDF 21.3 KB |
| DOC | Cover Letter(s) | 2016-06-12 | PDF 17.1 KB |
| RF Safety | RF Exposure Info | 2016-06-12 | PDF 62.9 KB |
| Block Diagram Metadata only | Block Diagram | PDF 13.4 KB | |
| Schematics Metadata only | Schematics | PDF 41.1 KB | |
| Operational Description Metadata only | Operational Description | PDF 45.7 KB |
Application Information
| Application ID | /d/5dVdiEis5KEfV210H8A== |
|---|---|
| Final Action Date | 2016-06-12 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0025641192 |
| Model | S10 |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DXX - Part 15 Low Power Communication Device Transmitter |
| Device Description | Bluetooth Speaker |
| Responsible Party | Traci Mederos, Manager, traci@orangepeelcreative.net , 503-789-7272 |
| Test Firm | Tracy Qi, Shenzhen CTL Testing Technology Co., Ltd., qihui@ctl-lab.com  , 86-755-89486194 |
| TCB Email | stuart.beck@nemko.com  |
| TCB Scope | A2: Low Power Transmitters (except Spread Spectrum) and radar detectors operating above 1 GHz |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| /d/5dVdiEis5KEfV210H8A== | 2016-06-12 | Original Equipment |
Equipment Authorization
| Frequency | Rules |
|---|---|
| 2402-2480 MHz | 15C |
Grants
TCB Grant - Application /d/5dVdiEis5KEfV210H8A==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Nemko North America, INC. 303 River Road Ottawa, Ontario, K1V 1H2 Canada |
Date of Grant: 06/12/2016 Application Dated: 06/08/2016 |
| Orange Peel Creative |
| 2906 NE Rocky Butte Road |
| Portland, OR 97220 |
| Attention: Traci Mederos , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AIO4-S10 |
| Name of Grantee: | Orange Peel Creative |
| Equipment Class: | Part 15 Low Power Communication Device Transmitter |
| Notes: | Bluetooth Speaker |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 |
EAS Grant - Application /d/5dVdiEis5KEfV210H8A==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Orange Peel Creative 2906 NE Rocky Butte Road Portland, OR 97220 United States |
Date of Grant: 06/12/2016 Application Dated: 06/08/2016 |
| Attention: Traci Mederos , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AIO4-S10 |
| Name of Grantee: | Orange Peel Creative |
| Equipment Class: | Part 15 Low Power Communication Device Transmitter |
| Notes: | Bluetooth Speaker |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 |
