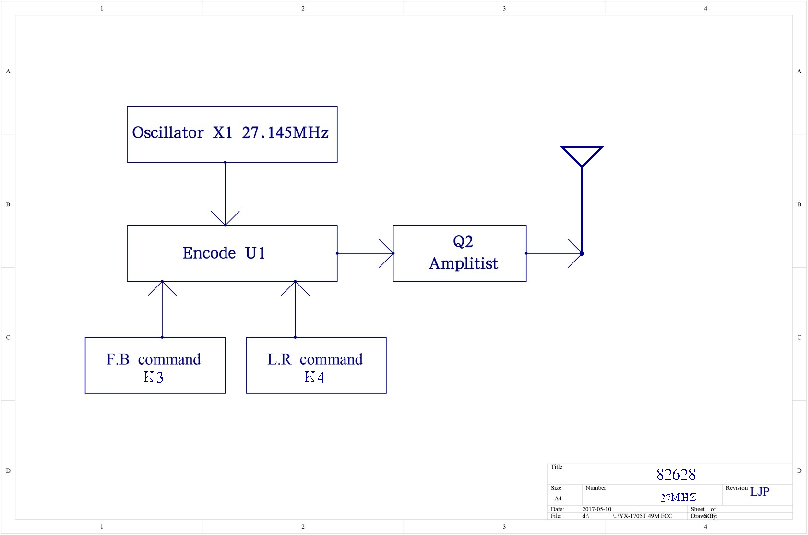

8262827 RC ATV Block Diagram - FCC ID 2AIS6-82628-27

FCC ID 2AIS6-82628-27

Block Diagram

RC ATV

by HUAJUN TOYS COMPANY LIMITED

Document preview loads when visible.

Document Details

FCC ID2AIS6-82628-27
Document ID3608279
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleNo Title
ApplicantHUAJUN TOYS COMPANY LIMITED
Equipment ClassRC ATV
Product Code8262827
Application IDq9TFlno/K7W8G9aZT6U10Q==
Application PurposeOriginal Equipment
Application Date2017-10-19
Frequency Range27.145 MHz
FRN0025669334
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByTerry Chan Assistant Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2017-10-18
Available2017-10-19
Created2017-05-10
Modified2017-06-08
Pages1
File TypeAdobe Acrobat PDF
File Size240822
File SHA-25680e285a2401ea2bd2ab842e94e4c3a5ac785a10595bc3c0262c2dde4451cc278
PDF Metadata AuthorWindows 9x/NT/2000/XP User
PDF Metadata ProducerAdobe Photoshop for Windows -- Image Conversion Plug-in Windows 9x/NT/2000/XP User
FCC.gov SourcesFCC.gov 3608279
