PHOENIX ENGINEERING CORP. Bluetooth Low Energy Module PXPML1

An FCC ID is the product ID assigned by the FCC to identify wireless products in the market. The FCC chooses 3 or 5 character "Grantee" codes to identify the business that created the product. For example, the grantee code for FCC ID: 2AJCWPXPML1 is 2AJCW. The remaining characters of the FCC ID, PXPML1, are often associated with the product model, but they can be random. These letters are chosen by the applicant. In addition to the application, the FCC also publishes internal images, external images, user manuals, and test results for wireless devices. They can be under the "exhibits" tab below.

Purchase on Amazon: Bluetooth Low Energy Module

*Please Check Individual Documents for more images

Application: Bluetooth Low Energy Module
Equipment Class: DTS - Digital Transmission System
Short Link: fcc.id/2AJCWPXPML1
Sources: FCC.gov | FCC.report
Registered By: PHOENIX ENGINEERING CORP. - 2AJCW (Japan)

App #	Purpose	Date	Unique ID
1	Original Equipment	2016-08-29	M3slq+ueS1Awbk0WeSR9AA==

Operating Frequencies

Frequency Range	Power Output	Rule Parts	Line Entry
2.402-2.48 GHz	1.1 mW	15C	1

Exhibits

Document	Type	Submitted Available
Label and Location	ID Label/Location Info Adobe Acrobat PDF (425 kB)	2016-08-29 2016-08-29
User Manual	Users Manual Adobe Acrobat PDF (39 kB)	2016-08-29 2016-08-29

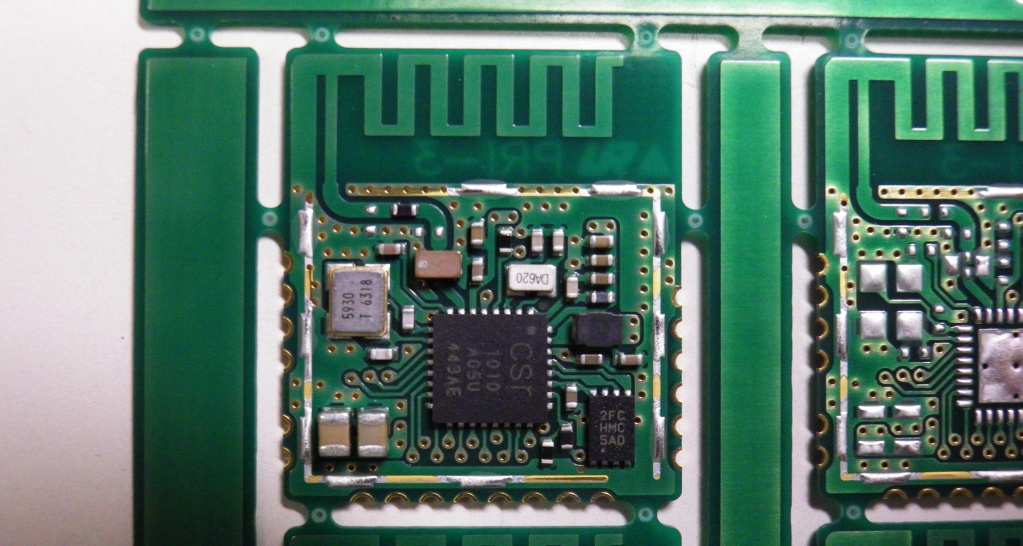

Internal Photo	Internal Photos Adobe Acrobat PDF (183 kB)	2016-08-29 2016-08-29

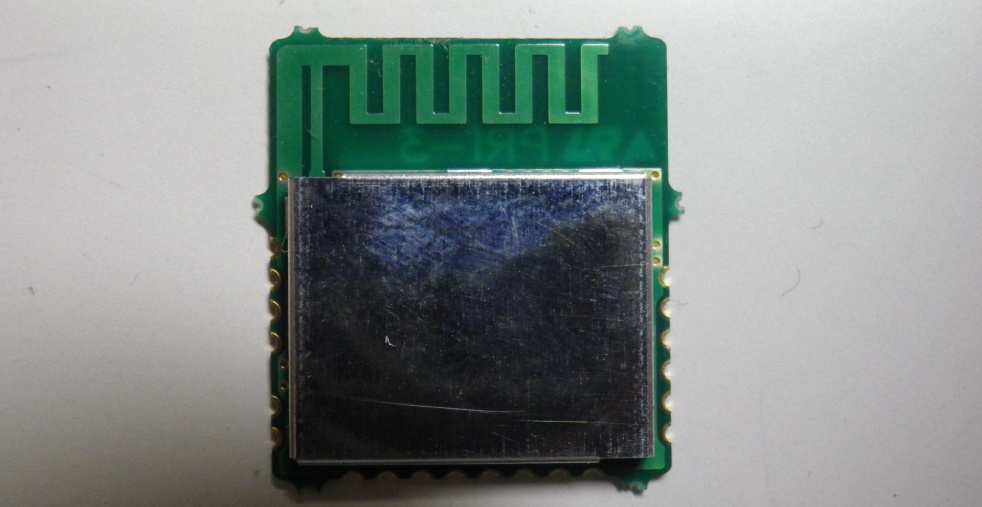

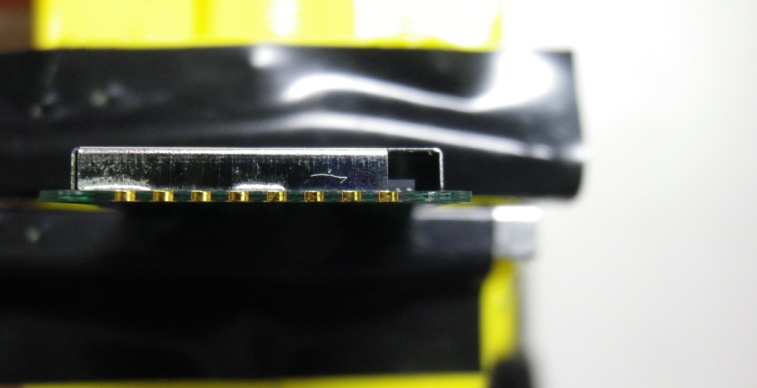

External Photo	External Photos Adobe Acrobat PDF (183 kB)	2016-08-29 2016-08-29
FCC Test Setup Photo_DTS	Test Setup Photos Adobe Acrobat PDF (646 kB)	2016-08-29 2016-08-29
FCC Test Report_DTS	Test Report Adobe Acrobat PDF (881 kB)	2016-08-29 2016-08-29
FCC RF Exposure_DTS	RF Exposure Info Adobe Acrobat PDF (83 kB)	2016-08-29 2016-08-29
FCC Request for Confidentiality Letter	Cover Letter(s) Adobe Acrobat PDF (1388 kB)	2016-08-29 2016-08-29
FCC MA Letter	Cover Letter(s) Adobe Acrobat PDF (2130 kB)	2016-08-29 2016-08-29
FCC Authorization Letter	Cover Letter(s) Adobe Acrobat PDF (1505 kB)	2016-08-29 2016-08-29
(Confidential) Theory of Operation-Antenna Specification	Operational Description Adobe Acrobat PDF (199 kB)	2016-08-29
(Confidential) Theory of Operation-Specification	Operational Description Adobe Acrobat PDF (197 kB)	2016-08-29
(Confidential) Block Diagram	Block Diagram Adobe Acrobat PDF (164 kB)	2016-08-29
(Confidential) Schematics	Schematics Adobe Acrobat PDF (212 kB)	2016-08-29
(Confidential) Theory of Operation-Interface Specification	Operational Description Adobe Acrobat PDF (720 kB)	2016-08-29
(Confidential) Parts List	Parts List/Tune Up Info Adobe Acrobat PDF (9 kB)	2016-08-29
