FCC ID 2AJDUK8
Smart Watch
by Shenzhen Usmart Electronic Technology Company.,Ltd
Grantee Code: 2AJDU Product Code: K8
Latest application date: 2016-08-24
Device Images
FCC ID Device Details
| FCC ID | 2AJDUK8 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AJDU |
| Product Code | K8 |
| Applicant Business | Shenzhen Usmart Electronic Technology Company.,Ltd 🇨🇳 |
| Related Domains |  usmartele.com |
| Equipment Class | Smart Watch |
| Test Firm | Shenzhen Tongce Testing Lab |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2016-08-24 |
| 824.2-848.8 MHz | Original Equipment | 2016-08-24 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2016-08-24 | PDF 734.1 KB |

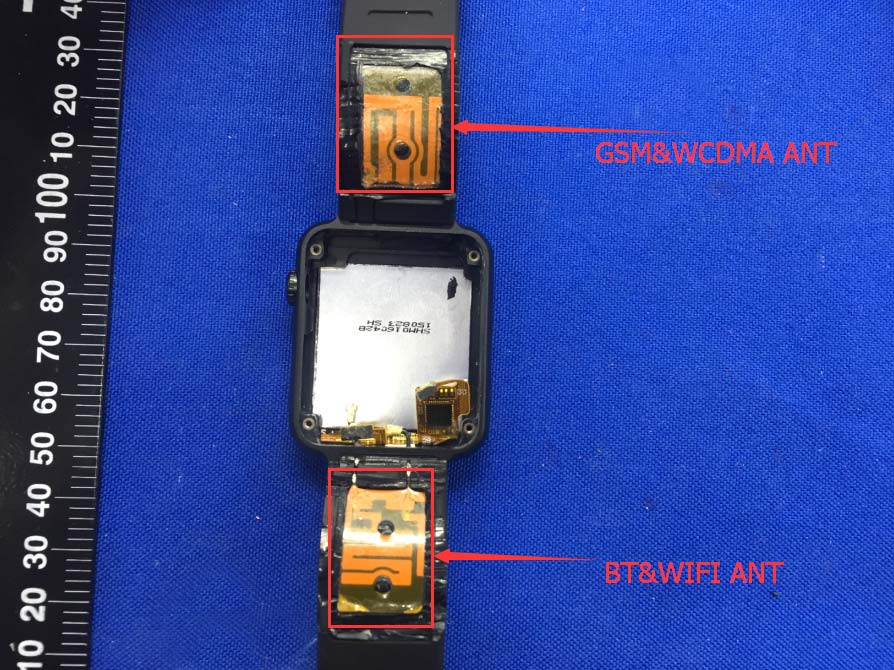

| Internal Photographs | Internal Photos | 2016-08-24 | PDF 996.9 KB |
| External Photographs | External Photos | 2016-08-24 | PDF 281.2 KB |
| Label Information/Location | ID Label/Location Info | 2016-08-24 | PDF 81.6 KB |
| Label/Location Information | ID Label/Location Info | 2016-08-24 | PDF 81.6 KB |

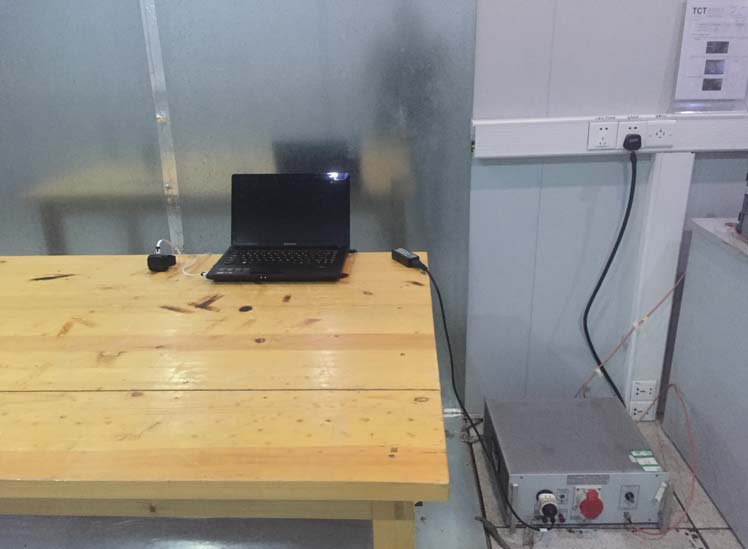

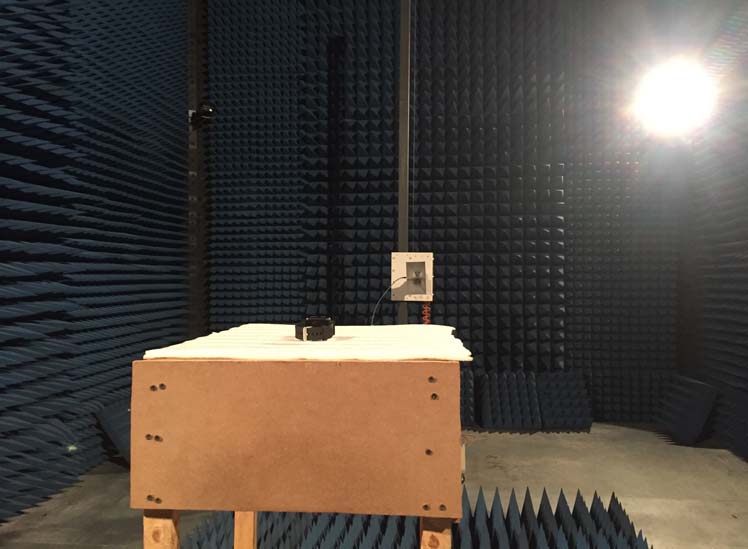

| Test Setup Photographs | Test Setup Photos | 2016-08-24 | PDF 127.4 KB |
| Test Setup Photographs SAR | Test Setup Photos | 2016-08-24 | PDF 323.9 KB |
| SAR Test Report | Test Report | 2016-08-24 | PDF 5.5 MB |
| Test Report | Test Report | 2016-08-24 | PDF 4 MB |
| Test Report BLE | Test Report | 2016-08-24 | PDF 5.2 MB |
| Test Report SAR | Test Report | 2016-08-24 | PDF 5.2 MB |
| Test Report WiFi Part 1 | Test Report | 2016-08-24 | PDF 2.6 MB |
| Test Report WiFi Part 2 | Test Report | 2016-08-24 | PDF 5 MB |
| Authorization Letter | Cover Letter(s) | 2016-08-24 | PDF 622 KB |
| Confidentiality Request | Cover Letter(s) | 2016-08-24 | PDF 1.8 MB |
| Block Diagram Metadata only | Block Diagram | PDF 80.3 KB | |
| Schematics Metadata only | Schematics | PDF 445.4 KB | |
| Operational Description Metadata only | Operational Description | PDF 26 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 98.4 KB | |
| Tune Up Procedure Metadata only | Parts List/Tune Up Info | PDF 79.2 KB |
Application Information
| Application ID | uu+e/p+HBFq+w04he3tajA== |
|---|---|
| Final Action Date | 2016-08-24 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0025788977 |
| Model | K8 |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Smart Watch |
| Responsible Party | anne lu, Manager, annelu@usmartele.com , +86075523608995 |
| Technical Contact | Joe Zhou, Shenzhen Tongce Testing Lab, joe.zhou@tct-lab.com  , 86-0755-36638142 |
| Test Firm | Charlle Lai, Shenzhen Tongce Testing Lab, 184199833@qq.com  , 15112400427 |
| TCB Email | certification@micomlabs.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is conducted output power. SAR compliance for specific operating conditions is limited to the specific configuration tested for this filing. End users must be informed of the specific configuration requirements for satisfying RF Exposure compliance. The highest reported SAR for Next to Mouth, Extremity and Simultaneous Transmission use conditions is 0.44 W/kg, 0.54 W/kg and 3.96 W/kg, respectively. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| uu+e/p+HBFq+w04he3tajA== | 2016-08-24 | Original Equipment |
| 3gIgvGJLqlRZD1SloooHjA== | 2016-08-24 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application uu+e/p+HBFq+w04he3tajA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
MiCOM Labs 575 Boulder Court Pleasanton, CA 94566 |
Date of Grant: 08/24/2016 Application Dated: 08/24/2016 |
| Shenzhen Usmart Electronic Technology Company.,Ltd |
| 2F building Mu Design industrial park |
| Nanshan district |
| Shenzhen, 518052 China |
| Attention: anne lu , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AJDUK8 |
| Name of Grantee: | Shenzhen Usmart Electronic Technology Company.,Ltd |
| Equipment Class: | Digital Transmission System |
| Notes: | Smart Watch |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 20 | 15C | 2402.0 - 2480.0 | 0.0005 | ||
| 20 | 15C | 2412.0 - 2462.0 | 0.0286 |
| Output power listed is conducted output power. SAR compliance for specific operating conditions is limited to the specific configuration tested for this filing. End users must be informed of the specific configuration requirements for satisfying RF Exposure compliance. The highest reported SAR for Next to Mouth, Extremity and Simultaneous Transmission use conditions is 0.44 W/kg, 0.54 W/kg and 3.96 W/kg, respectively. |
| 20: | All electrical and mechanical devices employed for spurious radiation suppression, including any modifications made during certification testing, must be incorporated in each unit marketed. |
EAS Grant - Application uu+e/p+HBFq+w04he3tajA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Shenzhen Usmart Electronic Technology Company.,Ltd 2F building Mu Design industrial park Nanshan district Shenzhen, 518052 China |
Date of Grant: 08/24/2016 Application Dated: 08/24/2016 |
| Attention: anne lu , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AJDUK8 |
| Name of Grantee: | Shenzhen Usmart Electronic Technology Company.,Ltd |
| Equipment Class: | Digital Transmission System |
| Notes: | Smart Watch |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 20 | 15C | 2402.0 - 2480.0 | 0.0005 | ||
| 20 | 15C | 2412.0 - 2462.0 | 0.0286 |
| Output power listed is conducted output power. SAR compliance for specific operating conditions is limited to the specific configuration tested for this filing. End users must be informed of the specific configuration requirements for satisfying RF Exposure compliance. The highest reported SAR for Next to Mouth, Extremity and Simultaneous Transmission use conditions is 0.44 W/kg, 0.54 W/kg and 3.96 W/kg, respectively. |
| 20: | All electrical and mechanical devices employed for spurious radiation suppression, including any modifications made during certification testing, must be incorporated in each unit marketed. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
MiCOM Labs 575 Boulder Court Pleasanton, CA 94566 |
Date of Grant: 08/24/2016 Application Dated: 08/24/2016 |
| Shenzhen Usmart Electronic Technology Company.,Ltd |
| 2F building Mu Design industrial park |
| Nanshan district |
| Shenzhen, 518052 China |
| Attention: anne lu , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AJDUK8 |
| Name of Grantee: | Shenzhen Usmart Electronic Technology Company.,Ltd |
| Equipment Class: | PCS Licensed Transmitter |
| Notes: | Smart Watch |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| BC | 22H | 824.2 - 848.8 | 2.2803 | 0.025 PM | 22H |
| BC | 22H | 826.4 - 846.6 | 0.2037 | 0.026 PM | 22H |
| BC | 24E | 1850.2 - 1909.8 | 1.094 | 0.013 PM | 24E |
| Power output listed is conducted output power. SAR compliance for specific operating conditions is limited to the specific configuration tested for this filing. End users must be informed of the specific configuration requirements for satisfying RF Exposure compliance. The highest reported SAR for Next to Mouth, Extremity, Product Specific (Hotspot), and Simultaneous Transmission use conditions is 0.78 W/kg, 1.98 W/kg, 3.42 W/kg and 3.96 W/kg, respectively. Maximum E.R.P. for Part 22 is 1.188 Watts Maximum E.R.I.P for Part 24 is 0.512 Watts |
| BC: | The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. |
EAS Grant - Application 3gIgvGJLqlRZD1SloooHjA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Shenzhen Usmart Electronic Technology Company.,Ltd 2F building Mu Design industrial park Nanshan district Shenzhen, 518052 China |
Date of Grant: 08/24/2016 Application Dated: 08/24/2016 |
| Attention: anne lu , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AJDUK8 |
| Name of Grantee: | Shenzhen Usmart Electronic Technology Company.,Ltd |
| Equipment Class: | PCS Licensed Transmitter |
| Notes: | Smart Watch |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| BC | 22H | 824.2 - 848.8 | 2.2803 | 0.025 PM | 22H |
| BC | 22H | 826.4 - 846.6 | 0.2037 | 0.026 PM | 22H |
| BC | 24E | 1850.2 - 1909.8 | 1.094 | 0.013 PM | 24E |
| Power output listed is conducted output power. SAR compliance for specific operating conditions is limited to the specific configuration tested for this filing. End users must be informed of the specific configuration requirements for satisfying RF Exposure compliance. The highest reported SAR for Next to Mouth, Extremity, Product Specific (Hotspot), and Simultaneous Transmission use conditions is 0.78 W/kg, 1.98 W/kg, 3.42 W/kg and 3.96 W/kg, respectively. Maximum E.R.P. for Part 22 is 1.188 Watts Maximum E.R.I.P for Part 24 is 0.512 Watts |
| BC: | The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. |
| Mail To: |
