FCC ID 2AJMTSIPY1
sipy
by Pycom Ltd
Grantee Code: 2AJMT Product Code: SIPY1
Latest application date: 2017-03-27
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 902.2-904.7 MHz | Original Equipment | 2017-03-27 |
| 2402-2480 MHz | Original Equipment | 2017-03-27 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2017-03-27 | PDF 725.2 KB |
| Internal Photos | Internal Photos | 2017-03-27 | PDF 180.4 KB |
| External Photos | External Photos | 2017-03-27 | PDF 147.8 KB |
| Label Info | ID Label/Location Info | 2017-03-27 | PDF 32.6 KB |

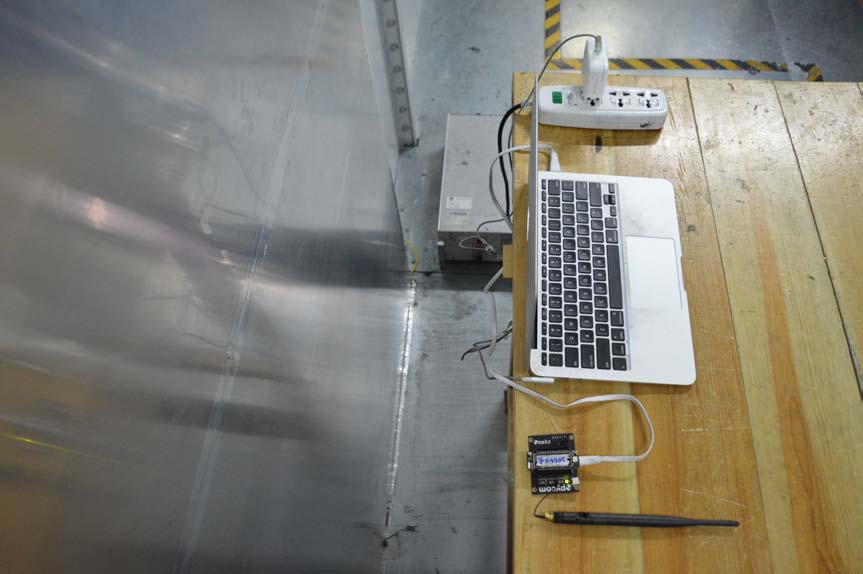

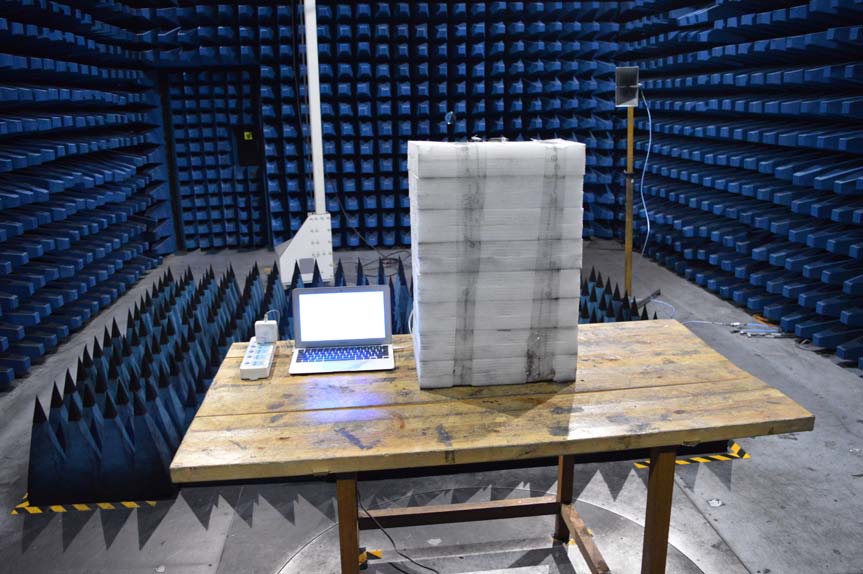

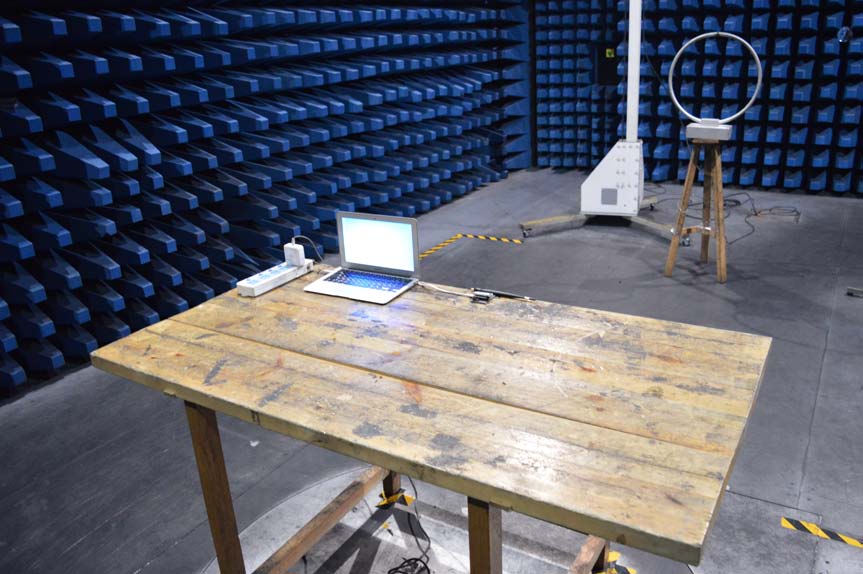

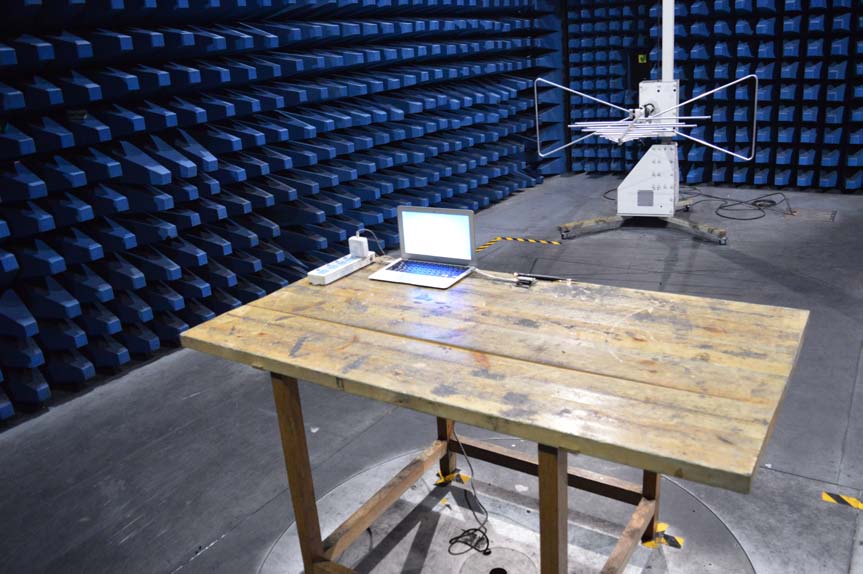

| Test Setup Photos | Test Setup Photos | 2017-03-27 | PDF 372.2 KB |
| Test Report BT 4.0 | Test Report | 2017-03-27 | PDF 1.9 MB |
| Test Report BT2.1 | Test Report | 2017-03-27 | PDF 2.8 MB |
| Test Report Sigfix | Test Report | 2017-03-27 | PDF 1.9 MB |
| Test Report Wi-Fi 2.4G | Test Report | 2017-03-27 | PDF 3 MB |
| Confidentiality Letter | Cover Letter(s) | 2017-03-27 | PDF 484.8 KB |
| Confidentilaity Request Letter | Cover Letter(s) | 2017-03-27 | PDF 484.8 KB |
| Cover Letter - Modular Approval | Cover Letter(s) | 2017-03-27 | PDF 74.1 KB |
| Cover Letter for Modular Approval | Cover Letter(s) | 2017-03-27 | PDF 74.1 KB |
| POA - Agent Authorization Letter | Cover Letter(s) | 2017-03-27 | PDF 463.4 KB |
| RF Exposure | RF Exposure Info | 2017-03-27 | PDF 2 MB |
| Block Diagram Metadata only | Block Diagram | PDF 20.7 KB | |
| Schematics Metadata only | Schematics | PDF 105 KB | |
| Operational Description Metadata only | Operational Description | PDF 251.9 KB | |
| Part List Metadata only | Parts List/Tune Up Info | PDF 47 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 47 KB |
Application Information
| Application ID | HOMT/Y+LAmBw8jjNk4iRiQ== |
|---|---|
| Final Action Date | 2017-03-27 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0025849142 |
| Model | SIPY1 |
| Frequency Range | 902.2-904.7 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | sipy |
| Responsible Party | Fred de Haro, fred@pycom.io  , +44 (0) 790 02 48686 |
| Test Firm | Ivy zhu, Shenzhen Morlab Communications Technology Co., Ltd, ivy.zhu@morlab.cn  , 8675536698555 |
| TCB Email | tei@timcoengr.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Single Modular Approval. Power listed is conducted. Approval is limited to OEM installation only. Compliance of this device in all final host configurations is the responsibility of the Grantee. This device is to be used only for mobile and fixed applications. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not transmit simultaneously with any other antenna or transmitter or in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions and labeling requirements for finished products. OEM integrators and end-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. Grantee is responsible for providing specific testing instructions to host manufacturers for additional testing to verify compliance as a composite system. This includes retesting of transmitter module per part 15.31(h) and (k). |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| HOMT/Y+LAmBw8jjNk4iRiQ== | 2017-03-27 | Original Equipment |
| 0w9CO+EGAcLp+AWkkW+s3w== | 2017-03-27 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application HOMT/Y+LAmBw8jjNk4iRiQ==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 03/27/2017 Application Dated: 03/27/2017 |
| Pycom Ltd |
| Surrey Technology Park 2 Huxley Road |
| Guildford Surrey GU2 7RE |
| Guildford, GU2 7RE United Kingdom |
| Attention: Fred Haro |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AJMTSIPY1 |
| Name of Grantee: | Pycom Ltd |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | sipy |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0037 | ||
| CC | 15C | 902.2 - 904.7 | 0.2051 |
| Single Modular Approval. Power listed is conducted. Approval is limited to OEM installation only. Compliance of this device in all final host configurations is the responsibility of the Grantee. This device is to be used only for mobile and fixed applications. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not transmit simultaneously with any other antenna or transmitter or in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions and labeling requirements for finished products. OEM integrators and end-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. Grantee is responsible for providing specific testing instructions to host manufacturers for additional testing to verify compliance as a composite system. This includes retesting of transmitter module per part 15.31(h) and (k). |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application HOMT/Y+LAmBw8jjNk4iRiQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Pycom Ltd Surrey Technology Park 2 Huxley Road Guildford Surrey GU2 7RE Guildford, GU2 7RE United Kingdom |
Date of Grant: 03/27/2017 Application Dated: 03/27/2017 |
| Attention: Fred Haro |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AJMTSIPY1 |
| Name of Grantee: | Pycom Ltd |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | sipy |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0037 | ||
| CC | 15C | 902.2 - 904.7 | 0.2051 |
| Single Modular Approval. Power listed is conducted. Approval is limited to OEM installation only. Compliance of this device in all final host configurations is the responsibility of the Grantee. This device is to be used only for mobile and fixed applications. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not transmit simultaneously with any other antenna or transmitter or in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions and labeling requirements for finished products. OEM integrators and end-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. Grantee is responsible for providing specific testing instructions to host manufacturers for additional testing to verify compliance as a composite system. This includes retesting of transmitter module per part 15.31(h) and (k). |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 03/27/2017 Application Dated: 03/27/2017 |
| Pycom Ltd |
| Surrey Technology Park 2 Huxley Road |
| Guildford Surrey GU2 7RE |
| Guildford, GU2 7RE United Kingdom |
| Attention: Fred Haro |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AJMTSIPY1 |
| Name of Grantee: | Pycom Ltd |
| Equipment Class: | Digital Transmission System |
| Notes: | sipy |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0023 | ||
| CC | 15C | 2412.0 - 2462.0 | 0.0893 |
| Single Modular Approval. Power listed is conducted. Approval is limited to OEM installation only. Compliance of this device in all final host configurations is the responsibility of the Grantee. This device is to be used only for mobile and fixed applications. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not transmit simultaneously with any other antenna or transmitter or in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions and labeling requirements for finished products. OEM integrators and end-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. Grantee is responsible for providing specific testing instructions to host manufacturers for additional testing to verify compliance as a composite system. This includes retesting of transmitter module per part 15.31(h) and (k). |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application 0w9CO+EGAcLp+AWkkW+s3w==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Pycom Ltd Surrey Technology Park 2 Huxley Road Guildford Surrey GU2 7RE Guildford, GU2 7RE United Kingdom |
Date of Grant: 03/27/2017 Application Dated: 03/27/2017 |
| Attention: Fred Haro |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AJMTSIPY1 |
| Name of Grantee: | Pycom Ltd |
| Equipment Class: | Digital Transmission System |
| Notes: | sipy |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0023 | ||
| CC | 15C | 2412.0 - 2462.0 | 0.0893 |
| Single Modular Approval. Power listed is conducted. Approval is limited to OEM installation only. Compliance of this device in all final host configurations is the responsibility of the Grantee. This device is to be used only for mobile and fixed applications. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not transmit simultaneously with any other antenna or transmitter or in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions and labeling requirements for finished products. OEM integrators and end-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. Grantee is responsible for providing specific testing instructions to host manufacturers for additional testing to verify compliance as a composite system. This includes retesting of transmitter module per part 15.31(h) and (k). |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: |
