FCC ID 2AJSTJWA-AC2319R
Wi-Fi Range Extender
by YICHEN (SHENZHEN) TECHNOLOGY CO., LTD
Grantee Code: 2AJST Product Code: JWAAC2319R
Latest application date: 2017-05-02
Device Images
FCC ID Device Details
| FCC ID | 2AJSTJWA-AC2319R |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AJST |
| Product Code | JWAAC2319R |
| Applicant Business | YICHEN (SHENZHEN) TECHNOLOGY CO., LTD 🇨🇳 |
| Related Domains |  jcg.com.cn |
| Equipment Class | Wi-Fi Range Extender |
| Test Firm | Keyway Testing Technology Co., Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Original Equipment | 2017-05-02 |
| 5180-5240 MHz | Original Equipment | 2017-05-02 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2017-05-02 | PDF 1.8 MB |
| Internal Photos | Internal Photos | 2017-05-02 | PDF 525.7 KB |
| Internal photos | Internal Photos | 2017-05-02 | PDF 525.7 KB |
| External Photos | External Photos | 2017-05-02 | PDF 472.6 KB |
| External photos | External Photos | 2017-05-02 | PDF 472.6 KB |
| Label & Label Location | ID Label/Location Info | 2017-05-02 | PDF 183.5 KB |
| label and Label location | ID Label/Location Info | 2017-05-02 | PDF 183.5 KB |

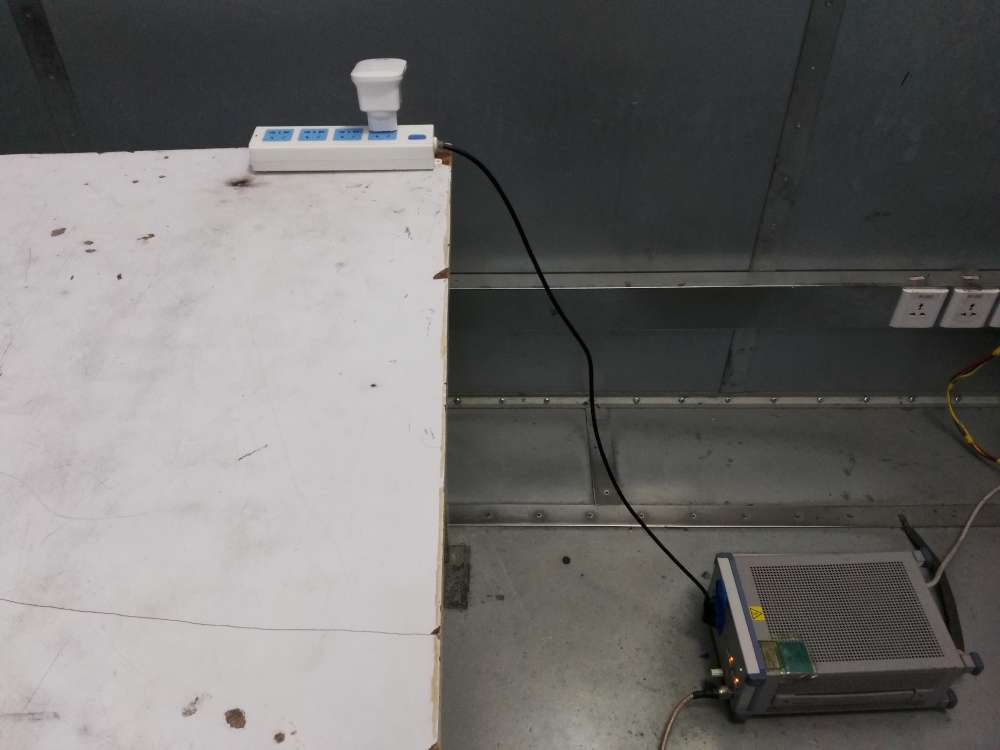

| RF Test Set-up Photos | Test Setup Photos | 2017-05-02 | PDF 163.9 KB |
| RF Test Report-1 | Test Report | 2017-05-02 | PDF 3.6 MB |
| RF Test Report-1 | Test Report | 2017-05-02 | PDF 2.6 MB |
| RF Test Report-2 | Test Report | 2017-05-02 | PDF 3.4 MB |
| RF Test Report-2 | Test Report | 2017-05-02 | PDF 2.6 MB |
| DOC Attestation Letter | Attestation Statements | 2017-05-02 | PDF 54.1 KB |
| Authorization letter | Cover Letter(s) | 2017-05-02 | PDF 20.9 KB |
| DTS Ch12&13 Declaration letter | Cover Letter(s) | 2017-05-02 | PDF 74.3 KB |
| Family model letter | Cover Letter(s) | 2017-05-02 | PDF 11.3 KB |
| LTC Letter | Cover Letter(s) | 2017-05-02 | PDF 19.7 KB |
| MPE Report | RF Exposure Info | 2017-05-02 | PDF 78.2 KB |
| Block Diagram Metadata only | Block Diagram | PDF 76 KB | |
| Schematics Metadata only | Schematics | PDF 177 KB | |
| Operational Description Metadata only | Operational Description | PDF 54.5 KB | |
| SW Declaration Letter Metadata only | Operational Description | PDF 65.6 KB |
Application Information
| Application ID | WUtsjRVPG/6O6658ojTTDQ== |
|---|---|
| Final Action Date | 2017-05-02 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0025882648 |
| Model | JWA-AC2319R |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Wi-Fi Range Extender |
| Responsible Party | He Li, coldmoon@jcg.com.cn , 86-755-84550187 |
| Test Firm | Jade Yang, Keyway Testing Technology Co., Ltd., jade.yang@keywaytest.com  , 86-769-87182258 |
| TCB Email | tcb@siemic.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is maximum combined conducted output power. The device has 20MHz and 40MHz bandwidth. Device is 2X2 MIMO. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures. |
