FCC ID 2AKC8CTP054661

Telematics Control Unit

by Daimler Trucks North America, LLC

Grantee Code: 2AKC8   Product Code: CTP054661
Latest application date: 2017-01-11

Device Images

FCC ID 2AKC8CTP054661 Internal Photos
Internal Photos
FCC ID 2AKC8CTP054661 Internal Photos
Internal Photos
FCC ID 2AKC8CTP054661 Users Manual
Users Manual
FCC ID 2AKC8CTP054661 Users Manual
Users Manual
FCC ID 2AKC8CTP054661 Users Manual
Users Manual
FCC ID 2AKC8CTP054661 Users Manual
Users Manual
FCC ID 2AKC8CTP054661 Users Manual
Users Manual
FCC ID 2AKC8CTP054661 Users Manual
Users Manual
FCC ID 2AKC8CTP054661 Users Manual
Users Manual
FCC ID 2AKC8CTP054661 Users Manual
Users Manual
FCC ID 2AKC8CTP054661 Users Manual
Users Manual
FCC ID 2AKC8CTP054661 Users Manual
Users Manual
FCC ID 2AKC8CTP054661 Users Manual
Users Manual

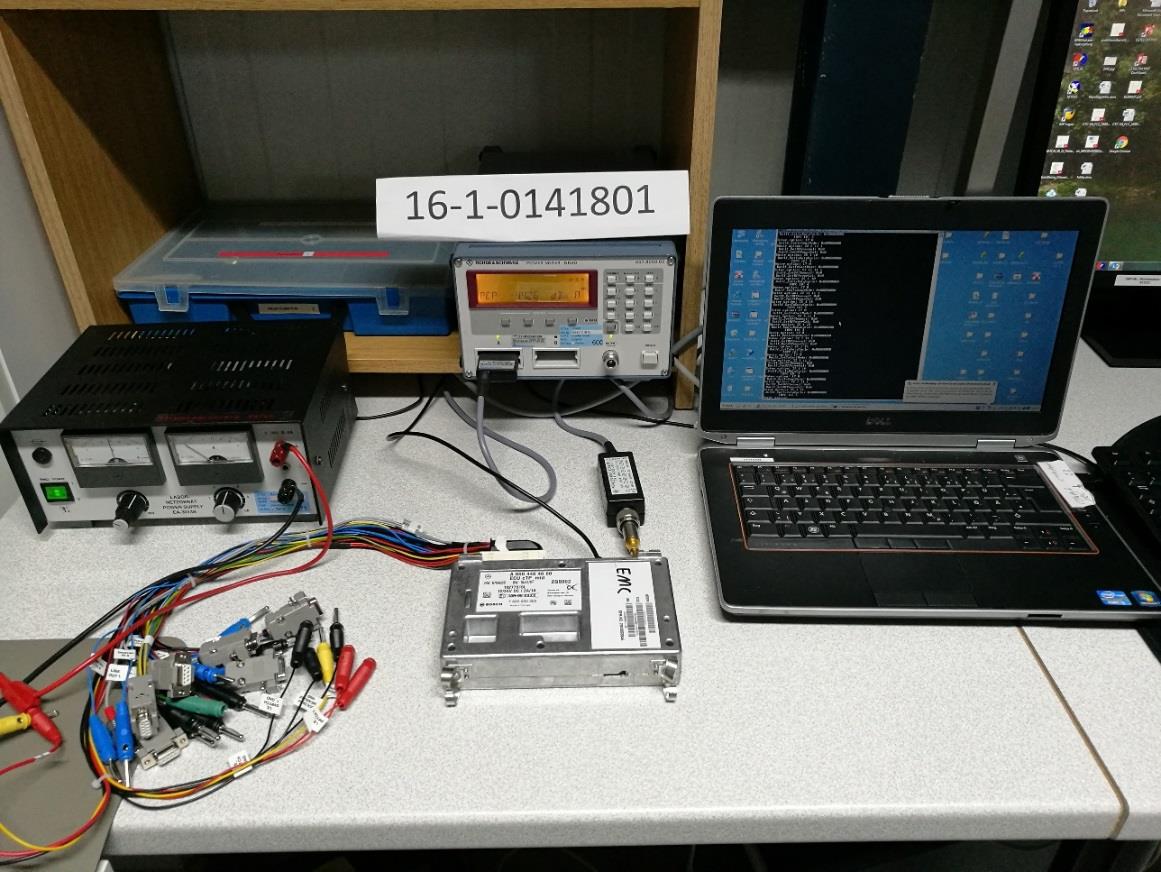

FCC ID 2AKC8CTP054661 Test Setup Photos
Test Setup Photos
FCC ID 2AKC8CTP054661 Test Setup Photos
Test Setup Photos
FCC ID 2AKC8CTP054661 ID Label Location Info
ID Label Location Info
FCC ID 2AKC8CTP054661 Test Setup Photos
Test Setup Photos
FCC ID 2AKC8CTP054661 Test Setup Photos
Test Setup Photos
FCC ID 2AKC8CTP054661 Test Setup Photos
Test Setup Photos
FCC ID 2AKC8CTP054661 Test Setup Photos
Test Setup Photos
FCC ID 2AKC8CTP054661 Test Setup Photos
Test Setup Photos
FCC ID 2AKC8CTP054661 Test Setup Photos
Test Setup Photos
FCC ID 2AKC8CTP054661 Test Setup Photos
Test Setup Photos
FCC ID 2AKC8CTP054661 Test Setup Photos
Test Setup Photos

FCC ID Device Details

FCC ID2AKC8CTP054661
Mirrorsfcc.id | gov | fccid.ai
Grantee Code2AKC8
Product CodeCTP054661
Applicant BusinessDaimler Trucks North America, LLC 🇺🇸
Related Domains daimler.com
Equipment ClassTelematics Control Unit
Test FirmCETECOM GmbH

Operating Frequencies

Frequency RangeApplication PurposeFinal Action Date
824.2-848.8 MHzOriginal Equipment2017-01-11
2402-2480 MHzOriginal Equipment2017-01-10

Exhibits

DocumentTypeAvailableFile
Antenna InstallationUsers Manual2017-01-11PDF 1.1 MB
StatementsUsers Manual2017-01-11PDF 167.8 KB
installation instructionUsers Manual2017-01-11PDF 201.5 KB
SPEC sheetUsers Manual2017-01-10PDF 171.5 KB
Int PhotosInternal Photos2017-01-11PDF 785.9 KB
Int photosInternal Photos2017-01-10PDF 785.9 KB
ext photosExternal Photos2017-01-11PDF 935.9 KB
labelID Label/Location Info2017-01-11PDF 837.7 KB
label locationID Label/Location Info2017-01-11PDF 201.1 KB
Label and locationID Label/Location Info2017-01-10PDF 201.1 KB
Test Setup photosTest Setup Photos2017-01-11PDF 1.4 MB
test setup photosTest Setup Photos2017-01-10PDF 1.4 MB
Module ReportsTest Report2017-01-11PDF 117.6 KB
Test Report 16-1-0141801T02a-C1Test Report2017-01-11PDF 894.8 KB
Test Report LISA-U201Test Report2017-01-11PDF 3.7 MB
Test Report Module GSMTest Report2017-01-11PDF 1.4 MB
Test Report Module WCDMATest Report2017-01-11PDF 1.3 MB
Test report 16-1-0141801T02a-C1Test Report2017-01-11PDF 519.4 KB
Test report Annex 1 Measurement diagrams 16-1-0141801T02a-C1Test Report2017-01-11PDF 475.3 KB
Test Report_16-1-0141801T06a-C1Test Report2017-01-10PDF 1.7 MB
Test report 16-1-0141801T04a-C1Test Report2017-01-10PDF 1.7 MB
Test report_16-1-0141801T04-C1Test Report2017-01-10PDF 2 MB
Test report_16-1-0141801T06a-C1Test Report2017-01-10PDF 1.5 MB
test report_16-1-0141801T06a-C1Test Report2017-01-10PDF 519.4 KB
Declaration 2 u-bloxCover Letter(s)2017-01-11PDF 326 KB
Declaration u-blox Metadata onlyCover Letter(s)2017-01-11PDF 321.8 KB
LTC request Metadata onlyCover Letter(s)2017-01-11PDF 59.8 KB
Module certification overviewCover Letter(s)2017-01-11PDF 73.2 KB
PoA 2 from u-bloxCover Letter(s)2017-01-11PDF 377.7 KB
PoA Daimler to PhoenixCover Letter(s)2017-01-11PDF 97.8 KB
Poa from u-bloxCover Letter(s)2017-01-11PDF 331.1 KB
Tune up declarationCover Letter(s)2017-01-11PDF 56.2 KB
confidentiality letterCover Letter(s)2017-01-11PDF 59.4 KB
PoACover Letter(s)2017-01-10PDF 97.8 KB
u-blox declarationCover Letter(s)2017-01-10PDF 321.8 KB
Block Daigram Metadata onlyBlock DiagramPDF 60.7 KB
CTPMIDDTNA_Block Diagram Metadata onlyBlock DiagramPDF 355.4 KB
Schematics LISA-U201 Metadata onlySchematicsPDF 538.7 KB
schematics Metadata onlySchematicsPDF 1 MB
operational description CTPMIDDTNA Metadata onlyOperational DescriptionPDF 590.2 KB
Parts List Metadata onlyParts List/Tune Up InfoPDF 456.4 KB
Tune up Info Metadata onlyParts List/Tune Up InfoPDF 186.3 KB

Application Information

Application IDXO1a/o0z+aqhghP/ItJ8TA==
Final Action Date2017-01-11
Application PurposeOriginal Equipment
Applicant FRN0006877872
ModelCTP054661
Frequency Range824.2-848.8 MHz
Equipment ClassPCB - PCS Licensed Transmitter
Device DescriptionTelematics Control Unit
Responsible PartyJuergen Weber, Telematics Manager - Mechatronics, juergen.w.weber@daimler.com , 503-745-5182
AgentUwe Uwe Uwe, Phoenix Testlab GmbH, Dollitz.uwe@phoenix-testlab.de , +4952359500-
Test FirmNiels Jess, CETECOM GmbH, niels.jess@cetecom.com , +49 2054 9519 603
TCB EmailBrandhorst.dirk@phoenix-testlab.de
TCB ScopeB1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27
Short-Term ConfidentialityNo
Long-Term ConfidentialityYes
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceYes
Composite PartNo
Cognitive RadioNo
Authorization WaiverNo
Authorization Waiver ApprovedNo
Section 5301 CertificationYes
Related OET Knowledge DataBase InquiryNo
Grant CommentsPower listed is conducted output power. This device contains functions that are not operational in U.S Territories. This filing is only applicable for US operations. The device is for fixed installation in transportation vehicles. The antenna gain including cable loss, must not exceed 0 dBi. Endusers must be provided with the transmitter operating conditions for satisfying RF exposure compliance. This device contains DTS transmitters certified under the same FCC ID.

Applications

Application IDDatePurpose
XO1a/o0z+aqhghP/ItJ8TA==2017-01-11Original Equipment
vHXvN/E17q3N/Mstii+cfw==2017-01-10Original Equipment

Equipment Authorization

FrequencyOutputToleranceEmissionRules
824.2-848.8 MHz1.7780.1ppm315KGXW22H
824.2-848.8 MHz0.5240.1ppm326KG7W22H
826.4-846.6 MHz0.2290.1ppm4M69F9W22H
826.4-846.6 MHz0.1650.1ppm4M50D7W22H
1850.2-1909.8 MHz0.870.1ppm318KGXW24E
1850.2-1909.8 MHz0.3890.1ppm324KG7W24E
1852.4-1907.6 MHz0.1820.1ppm4M69F9W24E
1852.4-1907.6 MHz0.1380.1ppm4M69D7W24E
2402-2480 MHz0.0004515C
2412-2462 MHz0.018715C

Grants

TCB Grant - Application XO1a/o0z+aqhghP/ItJ8TA==

TCB GRANT OF EQUIPMENT
AUTHORIZATION		 TCB
Certification
Issued Under the Authority of the
Federal Communications Commission
By:

  PHOENIX TESTLAB GmbH
Koenigswinkel 10
32825 Blomberg,
Germany 		Date of Grant: 01/11/2017

Application Dated: 01/10/2017
Daimler Trucks North America, LLC
4555 North Channel Ave
P.O. Box 97217,
Portland, OR 97217

Attention: Juergen Weber , Telematics Manager - Mechatronics

NOT TRANSFERABLE
EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below.

FCC IDENTIFIER:  2AKC8CTP054661
Name of Grantee:  Daimler Trucks North America, LLC
Equipment Class: PCS Licensed Transmitter
Notes: Telematics Control Unit
Grant Notes  FCC Rule Parts Frequency
Range (MHZ) 		Output
Watts 		Frequency
Tolerance 		Emission
Designator
22H 824.2  -  848.8 1.778 0.1  PM 315KGXW
22H 824.2  -  848.8 0.524 0.1  PM 326KG7W
22H 826.4  -  846.6 0.229 0.1  PM 4M69F9W
22H 826.4  -  846.6 0.165 0.1  PM 4M50D7W
