FCC ID 2AKLPA8
Smart Phone
by TOOCAN ELECTRONICS S.A.S
Grantee Code: 2AKLP Product Code: A8
Latest application date: 2016-12-26
Device Images
FCC ID Device Details
| FCC ID | 2AKLPA8 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AKLP |
| Product Code | A8 |
| Applicant Business | TOOCAN ELECTRONICS S.A.S 🇨🇴 |
| Equipment Class | Smart Phone |
| Test Firm | Dongguan Precise Testing Service Co., Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 824.2-848.8 MHz | Original Equipment | 2016-12-26 |
| 2402-2480 MHz | Original Equipment | 2016-12-26 |
| 2402-2480 MHz | Original Equipment | 2016-12-25 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| 15_A8 UserMan | Users Manual | 2016-12-26 | PDF 3 MB |
| 09_A8 IntPho | Internal Photos | 2016-12-26 | PDF 704.6 KB |

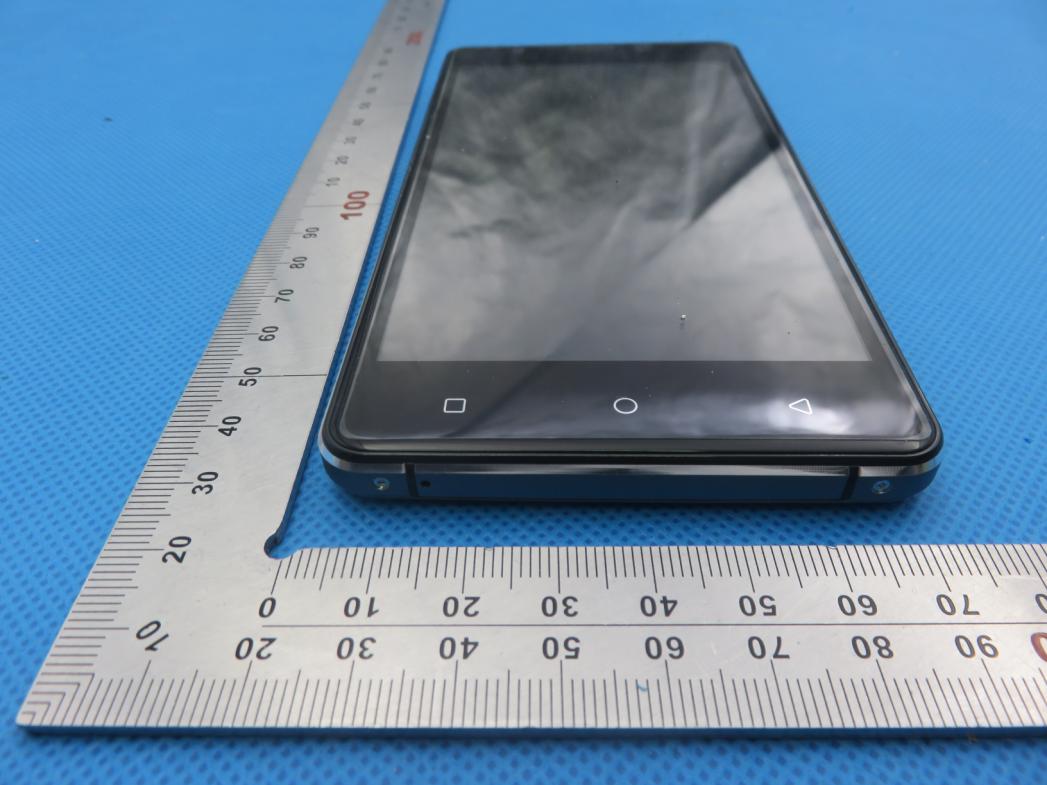

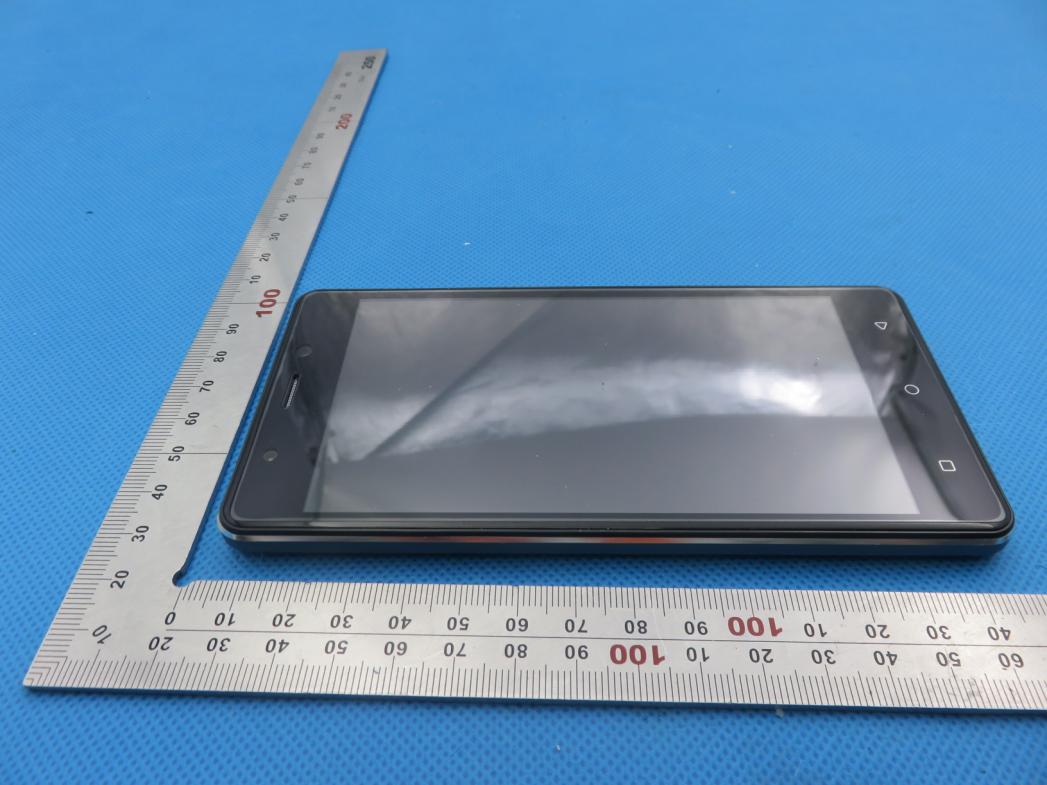

| 08_A8 ExtPho | External Photos | 2016-12-26 | PDF 901.3 KB |
| 06-07_A8 LabelSmpl-Loc | ID Label/Location Info | 2016-12-26 | PDF 369.5 KB |
| 17_A8 AntSpec | Operational Description | 2016-12-26 | PDF 19.6 KB |

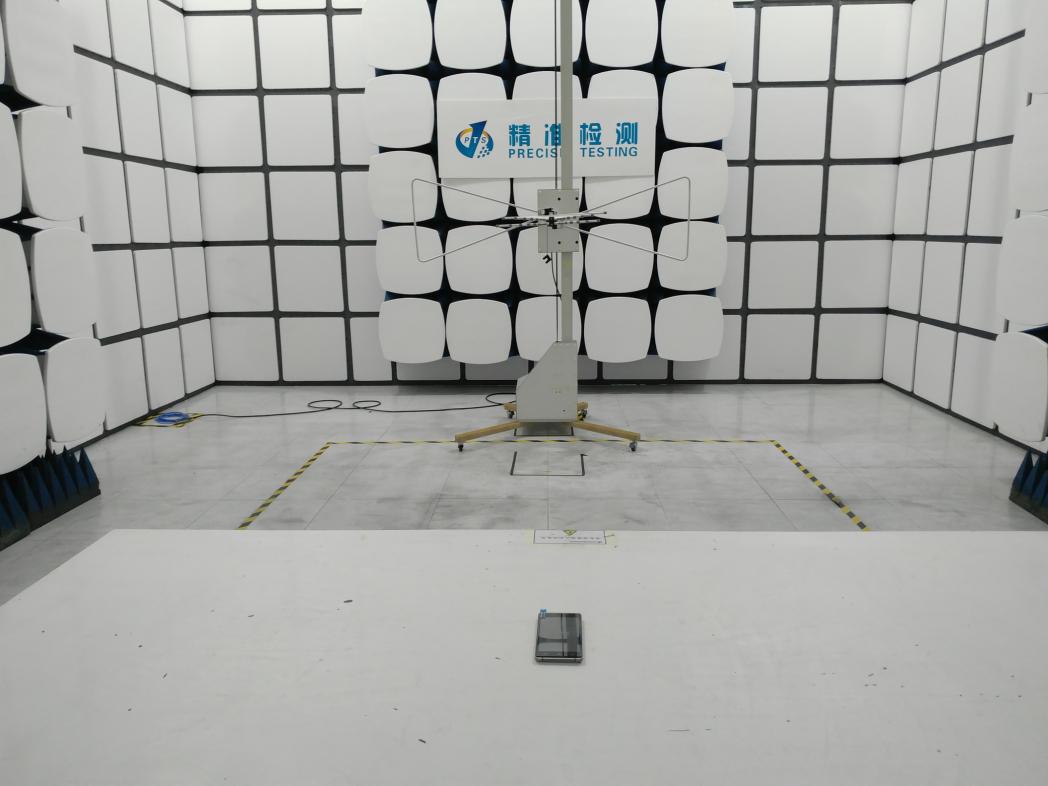

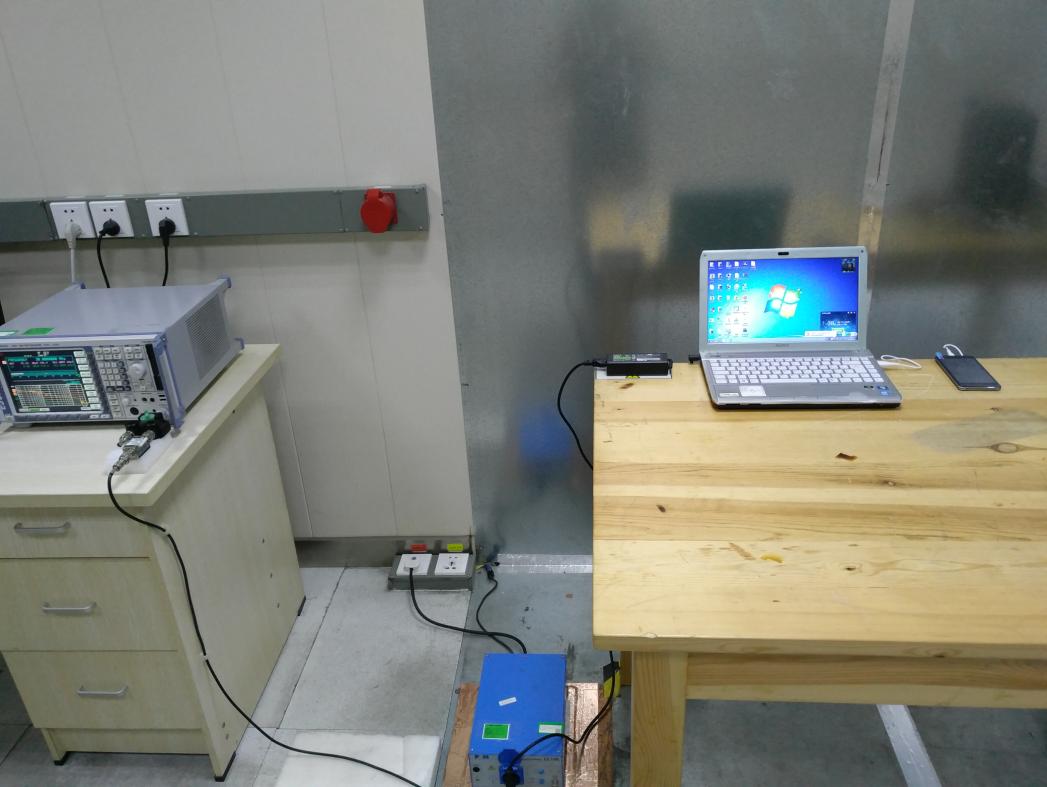

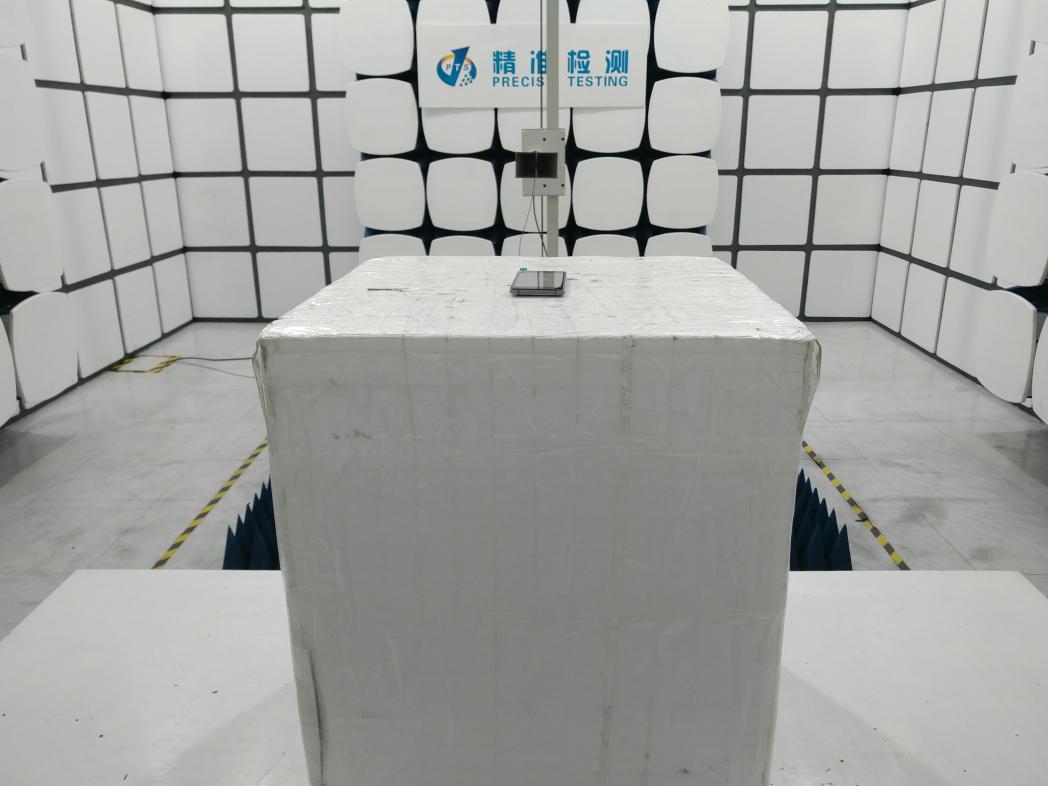

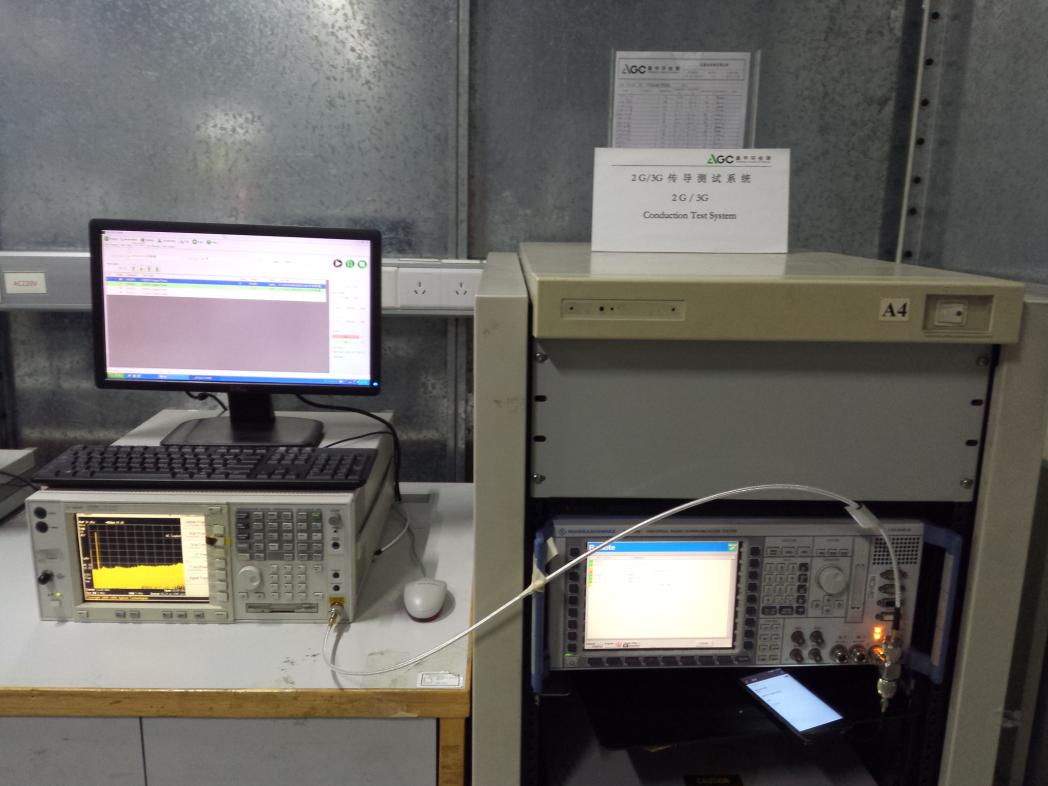

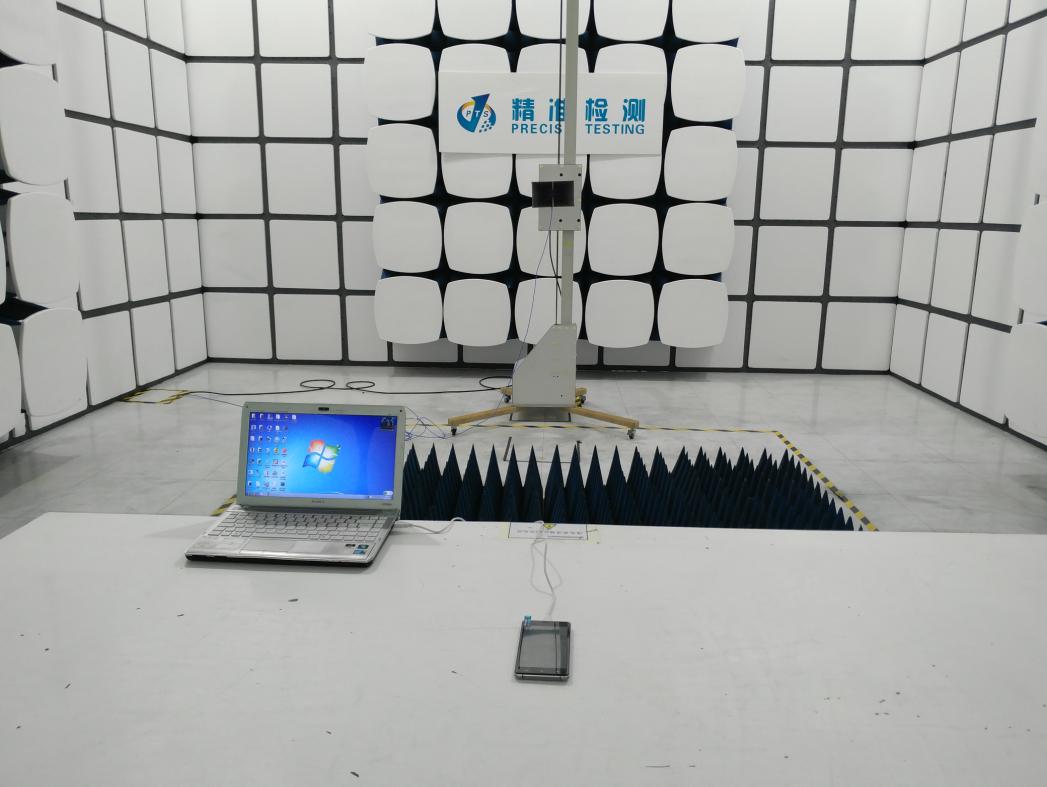

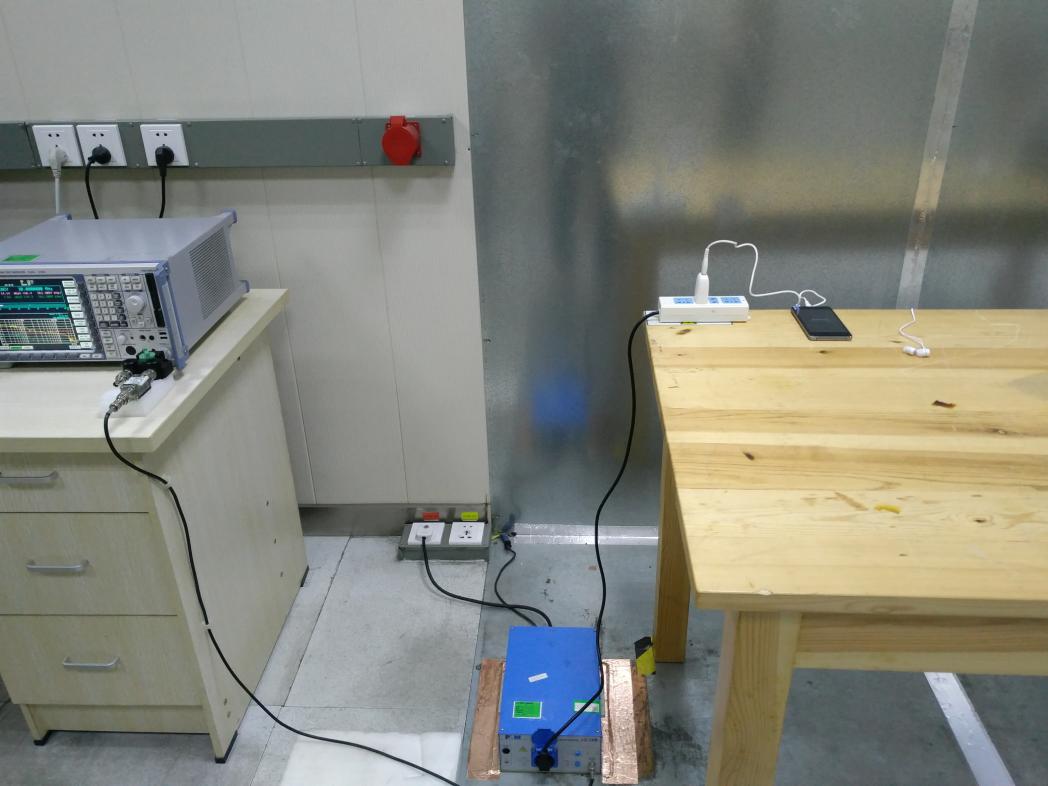

| 10_A8 TSup DSS-DTS | Test Setup Photos | 2016-12-26 | PDF 285.3 KB |
| 10_A8 TSup JBP | Test Setup Photos | 2016-12-26 | PDF 299.2 KB |
| 10_A8 TSup PCE | Test Setup Photos | 2016-12-26 | PDF 367.5 KB |
| 14_A8 TestRpt DTS-BLE | Test Report | 2016-12-26 | PDF 3.2 MB |
| 14_A8 TestRpt DTS-WiFi-1 | Test Report | 2016-12-26 | PDF 3.7 MB |
| 14_A8 TestRpt DTS-WiFi-2 | Test Report | 2016-12-26 | PDF 3.3 MB |
| 14_A8 TestRpt JBP | Test Report | 2016-12-26 | PDF 2.5 MB |
| 14_A8 TestRpt PCE | Test Report | 2016-12-26 | PDF 3.4 MB |
| 14_A8 TestRpt DSS-1 | Test Report | 2016-12-25 | PDF 3.4 MB |
| 14_A8 TestRpt DSS-2 | Test Report | 2016-12-25 | PDF 3.1 MB |
| 18_A8 RFExp | RF Exposure Info | 2016-12-26 | PDF 4.3 MB |
| 12_A8 BlkDia Metadata only | Block Diagram | PDF 72.9 KB | |
| 13_A8 Schem Metadata only | Schematics | PDF 222.9 KB | |
| 11_A8 OpDes Metadata only | Operational Description | PDF 282.4 KB | |
| 11_A8 OpDes.pdf Metadata only | Operational Description | PDF 282.4 KB | |
| 16_A8 PartsLst Metadata only | Parts List/Tune Up Info | PDF 210.8 KB | |
| 21_A8 TunPro Metadata only | Parts List/Tune Up Info | PDF 309 KB |
Application Information
| Application ID | L5IgN2YVTt0kDiSAvT7x9A== |
|---|---|
| Final Action Date | 2016-12-26 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0026099374 |
| Model | A8 |
| Frequency Range | 824.2-848.8 MHz |
| Equipment Class | PCE - PCS Licensed Transmitter held to ear |
| Device Description | Smart Phone |
| Responsible Party | OLGA LUCIA QUINTERO PEREZ, Manager, olquint@hotmail.com  , +57-300-3902860 |
| Test Firm | Chris Du, Dongguan Precise Testing Service Co., Ltd., chris.du@pts-testing.com  , 86-769-8928-2919 |
| TCB Email | joergkusig@eurofins.com  |
| TCB Scope | B1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27 |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance is based on a separation distance of 5mm for body-worn operation and 10mm for hotspot operation respectively between the unit and the body of the user. End-users must be informed of the body- worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters not listed in this filing may not contain metallic components. Highest reported SAR for Head, Body-worn and simultaneous transmission is: 0.657W/kg, 1.127/kg and 1.427W/kg respectively. This device also contains functions that are not operational in U.S. Territories. This filing is only applicable for US operations. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| L5IgN2YVTt0kDiSAvT7x9A== | 2016-12-26 | Original Equipment |
| 88hu0WWw/K5HBNfmeKpObw== | 2016-12-26 | Original Equipment |
| 85IdmwgzZ8iJP19g3xEt8A== | 2016-12-26 | Original Equipment |
| JHK+V1SQUPlFXcgrH95esw== | 2016-12-25 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application L5IgN2YVTt0kDiSAvT7x9A==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Eurofins Product Service GmbH Storkower Strasse 38c D-15526 Reichenwalde, Germany |
Date of Grant: 12/26/2016 Application Dated: 12/26/2016 |
| TOOCAN ELECTRONICS S.A.S |
| Calle 45 # 53-50 oficina 0911 CC gran plaza |
| medellin, Colombia |
| Attention: OLGA PEREZ , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AKLPA8 |
| Name of Grantee: | TOOCAN ELECTRONICS S.A.S |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | Smart Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 1.05 | 1.0 PM | 248KGXW | |
| 22H | 826.6 - 846.4 | 0.155 | 1.0 PM | 4M19F9W | |
| 24E | 1850.2 - 1909.8 | 0.539 | 1.0 PM | 247KGXW | |
| 24E | 1852.6 - 1907.4 | 0.157 | 1.0 PM | 4M22F9W |
| Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance is based on a separation distance of 5mm for body-worn operation and 10mm for hotspot operation respectively between the unit and the body of the user. End-users must be informed of the body- worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters not listed in this filing may not contain metallic components. Highest reported SAR for Head, Body-worn and simultaneous transmission is: 0.657W/kg, 1.127/kg and 1.427W/kg respectively. This device also contains functions that are not operational in U.S. Territories. This filing is only applicable for US operations. |
EAS Grant - Application L5IgN2YVTt0kDiSAvT7x9A==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
TOOCAN ELECTRONICS S.A.S Calle 45 # 53-50 oficina 0911 CC gran plaza medellin, Colombia |
Date of Grant: 12/26/2016 Application Dated: 12/26/2016 |
| Attention: OLGA PEREZ , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AKLPA8 |
| Name of Grantee: | TOOCAN ELECTRONICS S.A.S |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | Smart Phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 1.05 | 1.0 PM | 248KGXW | |
| 22H | 826.6 - 846.4 | 0.155 | 1.0 PM | 4M19F9W | |
| 24E | 1850.2 - 1909.8 | 0.539 | 1.0 PM | 247KGXW | |
| 24E | 1852.6 - 1907.4 | 0.157 | 1.0 PM | 4M22F9W |
| Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance is based on a separation distance of 5mm for body-worn operation and 10mm for hotspot operation respectively between the unit and the body of the user. End-users must be informed of the body- worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters not listed in this filing may not contain metallic components. Highest reported SAR for Head, Body-worn and simultaneous transmission is: 0.657W/kg, 1.127/kg and 1.427W/kg respectively. This device also contains functions that are not operational in U.S. Territories. This filing is only applicable for US operations. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Eurofins Product Service GmbH Storkower Strasse 38c D-15526 Reichenwalde, Germany |
Date of Grant: 12/25/2016 Application Dated: 12/24/2016 |
| TOOCAN ELECTRONICS S.A.S |
| Calle 45 # 53-50 oficina 0911 CC gran plaza |
| medellin, Colombia |
| Attention: OLGA PEREZ , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AKLPA8 |
| Name of Grantee: | TOOCAN ELECTRONICS S.A.S |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Smart Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.003 |
| Power listed is conducted. |
EAS Grant - Application JHK+V1SQUPlFXcgrH95esw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
TOOCAN ELECTRONICS S.A.S Calle 45 # 53-50 oficina 0911 CC gran plaza medellin, Colombia |
Date of Grant: 12/25/2016 Application Dated: 12/24/2016 |
| Attention: OLGA PEREZ , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AKLPA8 |
| Name of Grantee: | TOOCAN ELECTRONICS S.A.S |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Smart Phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.003 |
| Power listed is conducted. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Eurofins Product Service GmbH Storkower Strasse 38c D-15526 Reichenwalde, Germany |
Date of Grant: 12/26/2016 Application Dated: 12/26/2016 |
| TOOCAN ELECTRONICS S.A.S |
| Calle 45 # 53-50 oficina 0911 CC gran plaza |
| medellin, Colombia |
| Attention: OLGA PEREZ , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AKLPA8 |
| Name of Grantee: | TOOCAN ELECTRONICS S.A.S |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | Smart Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15B | - |
EAS Grant - Application 88hu0WWw/K5HBNfmeKpObw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
TOOCAN ELECTRONICS S.A.S Calle 45 # 53-50 oficina 0911 CC gran plaza medellin, Colombia |
Date of Grant: 12/26/2016 Application Dated: 12/26/2016 |
| Attention: OLGA PEREZ , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AKLPA8 |
| Name of Grantee: | TOOCAN ELECTRONICS S.A.S |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | Smart Phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15B | - |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Eurofins Product Service GmbH Storkower Strasse 38c D-15526 Reichenwalde, Germany |
Date of Grant: 12/26/2016 Application Dated: 12/25/2016 |
| TOOCAN ELECTRONICS S.A.S |
| Calle 45 # 53-50 oficina 0911 CC gran plaza |
| medellin, Colombia |
| Attention: OLGA PEREZ , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AKLPA8 |
| Name of Grantee: | TOOCAN ELECTRONICS S.A.S |
| Equipment Class: | Digital Transmission System |
| Notes: | Smart Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.0007 | |||
| 15C | 2412.0 - 2462.0 | 0.0437 |
| Power listed is conducted. This device supports 20 and 40MHz bandwidth operation. |
EAS Grant - Application 85IdmwgzZ8iJP19g3xEt8A==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
TOOCAN ELECTRONICS S.A.S Calle 45 # 53-50 oficina 0911 CC gran plaza medellin, Colombia |
Date of Grant: 12/26/2016 Application Dated: 12/25/2016 |
| Attention: OLGA PEREZ , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AKLPA8 |
| Name of Grantee: | TOOCAN ELECTRONICS S.A.S |
| Equipment Class: | Digital Transmission System |
| Notes: | Smart Phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.0007 | |||
| 15C | 2412.0 - 2462.0 | 0.0437 |
| Power listed is conducted. This device supports 20 and 40MHz bandwidth operation. |
| Mail To: |
