FCC ID 2ALE4-TK10SDC
GPS TRACKER
by ZhongShan Highyes Electronics Co.,LTD
Grantee Code: 2ALE4 Product Code: TK10SDC
Latest application date: 2017-04-19
Device Images
FCC ID Device Details
| FCC ID | 2ALE4-TK10SDC |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2ALE4 |
| Product Code | TK10SDC |
| Applicant Business | ZhongShan Highyes Electronics Co.,LTD 🇨🇳 |
| Related Domains |  kingneed.com |
| Equipment Class | GPS TRACKER |
| Test Firm | Shenzhen CTL Testing Technology Co., Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 824.2-848.8 MHz | Original Equipment | 2017-04-19 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User manual | Users Manual | 2017-04-19 | PDF 468.9 KB |

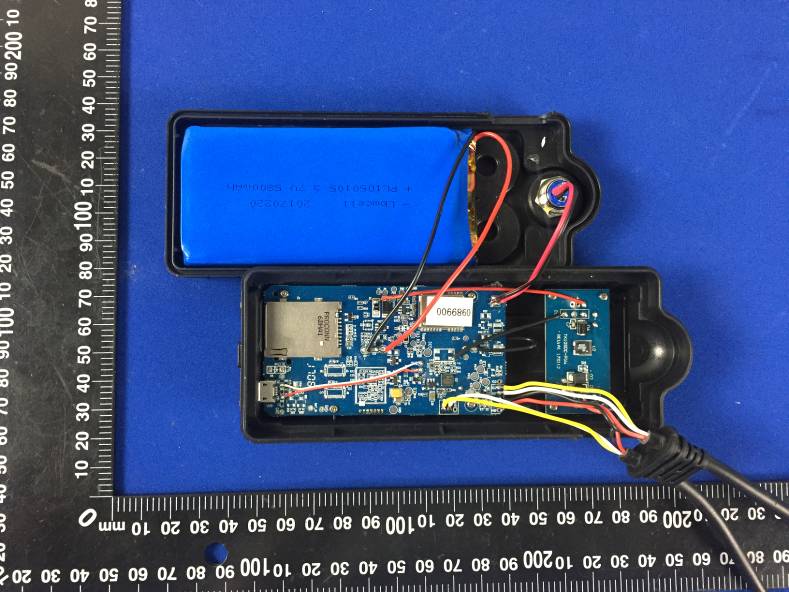

| Internal photos | Internal Photos | 2017-04-19 | PDF 959.4 KB |
| External photos | External Photos | 2017-04-19 | PDF 351.8 KB |
| Label | ID Label/Location Info | 2017-04-19 | PDF 110.4 KB |
| Test report | Test Report | 2017-04-19 | PDF 4.2 MB |
| Cover letter | Cover Letter(s) | 2017-04-19 | PDF 17.6 KB |
| RF Exposure | RF Exposure Info | 2017-04-19 | PDF 23.8 KB |
| Block Diagram Metadata only | Block Diagram | PDF 12.8 KB | |
| Schematics Metadata only | Schematics | PDF 379.2 KB | |
| Operational Description Metadata only | Operational Description | PDF 77.5 KB | |
| Parts list Metadata only | Parts List/Tune Up Info | PDF 48.8 KB | |
| Tune up Metadata only | Parts List/Tune Up Info | PDF 34.9 KB |
Application Information
| Application ID | PKQxU+PtRR5Q64/eM2GWKA== |
|---|---|
| Final Action Date | 2017-04-19 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0026336222 |
| Model | TK10SDC |
| Frequency Range | 824.2-848.8 MHz |
| Equipment Class | PCB - PCS Licensed Transmitter |
| Device Description | GPS TRACKER |
| Responsible Party | Tanya Tang, Manager, digital02@kingneed.com , +86-0760-86226138 |
| Test Firm | Tracy Qi, Shenzhen CTL Testing Technology Co., Ltd., qihui@ctl-lab.com  , 86-755-89486194 |
| TCB Email | stuart.beck@nemko.com  |
| TCB Scope | B1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27 |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is ERP for Part 22 and EIRP for Part 24. The antenna(s) used for this transmitter must be installed to provide separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device contains functions that are not operational in the U.S. Territories. This filing is only applicable for U.S. operations. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| PKQxU+PtRR5Q64/eM2GWKA== | 2017-04-19 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application PKQxU+PtRR5Q64/eM2GWKA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Nemko North America, INC. 303 River Road Ottawa, Ontario, K1V 1H2 Canada |
Date of Grant: 04/19/2017 Application Dated: 04/19/2017 |
| ZhongShan Highyes Electronics Co.,LTD |
| The third to the sixth floor, No.150, |
| the Industrial Zone, Shaxi |
| Zhongshan City, China |
| Attention: Tanya Tang , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ALE4-TK10SDC |
| Name of Grantee: | ZhongShan Highyes Electronics Co.,LTD |
| Equipment Class: | PCS Licensed Transmitter |
| Notes: | GPS TRACKER |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 1.3366 | 0.09 PM | 247KGXW | |
| 22H | 824.2 - 848.8 | 0.4188 | 0.09 PM | 249KG7W | |
| 22H | 826.4 - 846.6 | 0.1216 | 0.11 PM | 4M21F9W | |
| 24E | 1850.2 - 1909.8 | 0.7962 | 0.04 PM | 246KGXW | |
| 24E | 1850.2 - 1909.8 | 0.3673 | 0.04 PM | 247KG7W | |
| 24E | 1852.4 - 1907.6 | 0.1387 | 0.05 PM | 4M21F9W |
| Power listed is ERP for Part 22 and EIRP for Part 24. The antenna(s) used for this transmitter must be installed to provide separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device contains functions that are not operational in the U.S. Territories. This filing is only applicable for U.S. operations. |
EAS Grant - Application PKQxU+PtRR5Q64/eM2GWKA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
ZhongShan Highyes Electronics Co.,LTD The third to the sixth floor, No.150, the Industrial Zone, Shaxi Zhongshan City, China |
Date of Grant: 04/19/2017 Application Dated: 04/19/2017 |
| Attention: Tanya Tang , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ALE4-TK10SDC |
| Name of Grantee: | ZhongShan Highyes Electronics Co.,LTD |
| Equipment Class: | PCS Licensed Transmitter |
| Notes: | GPS TRACKER |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 1.3366 | 0.09 PM | 247KGXW | |
| 22H | 824.2 - 848.8 | 0.4188 | 0.09 PM | 249KG7W | |
| 22H | 826.4 - 846.6 | 0.1216 | 0.11 PM | 4M21F9W | |
| 24E | 1850.2 - 1909.8 | 0.7962 | 0.04 PM | 246KGXW | |
| 24E | 1850.2 - 1909.8 | 0.3673 | 0.04 PM | 247KG7W | |
| 24E | 1852.4 - 1907.6 | 0.1387 | 0.05 PM | 4M21F9W |
| Power listed is ERP for Part 22 and EIRP for Part 24. The antenna(s) used for this transmitter must be installed to provide separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device contains functions that are not operational in the U.S. Territories. This filing is only applicable for U.S. operations. |
