KW12FD8412 K-Force WE 12S Block Diagram - FCC ID 2ALMLKW12FD8412
FCC ID 2ALMLKW12FD8412

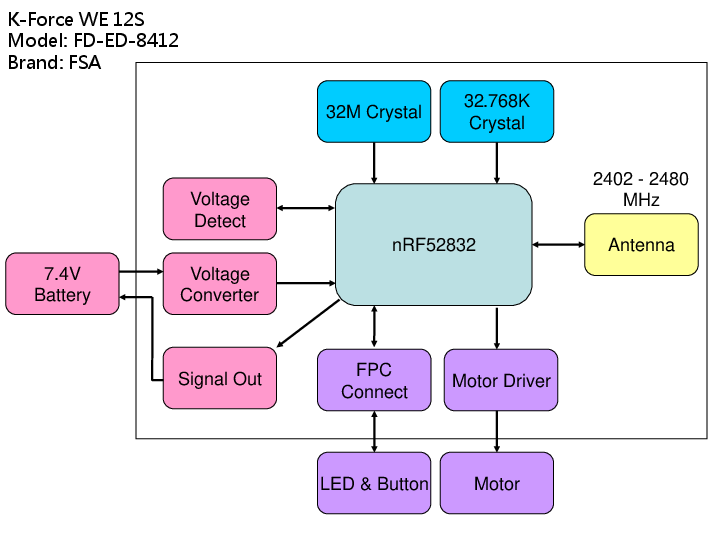

Block Diagram_S01
K-Force WE 12S
Document preview loads when visible.
Document Details
| FCC ID | 2ALMLKW12FD8412 |
|---|---|
| Document ID | 6935819 |
| Document Type | Block Diagram |
| Description | Block Diagram_S01 |
| Document Title | 投影片 1 |
| Applicant | Tien Hsin Industries Co.,LTD. |
| Equipment Class | K-Force WE 12S |
| Product Code | KW12FD8412 |
| Application ID | FasYdIF171O3jN7t4BCfdg== |
| Application Purpose | Original Equipment |
| Application Date | 2023-11-29 |
| Frequency Range | 2402-2480 MHz |
| FRN | 0026371013 |
| Test Firm | SGS Taiwan Ltd. Central RF Lab |
| Certified By | Jim Chang Manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | Yes |
| Submitted | 2023-11-22 |
| Available | 2023-11-29 |
| Created | 2023-11-01 |
| Modified | 2023-11-03 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 54431 |
| File SHA-256 | 4ff7a8dbf6cb9d8ee10fc0a8ca4744894bca0b33de46c3b111359c0bacc81e5b |
| PDF Metadata Author | kaihong |
| PDF Metadata Producer | 適用於 Microsoft 365 的 Microsoft® PowerPoint® kaihong |
| FCC.gov Sources | FCC.gov 6935819 |
