RAPTOR45TX Ground Penetrating Radar... - FCC ID 2ALZQ-RAPTOR45-TX

FCC ID 2ALZQ-RAPTOR45-TX

Label / label location

Ground Penetrating Radar

by ImpulseRadar Sweden AB

Document preview loads when visible.

Document Details

FCC ID2ALZQ-RAPTOR45-TX
Document ID3395804
Document TypeID Label/Location Info

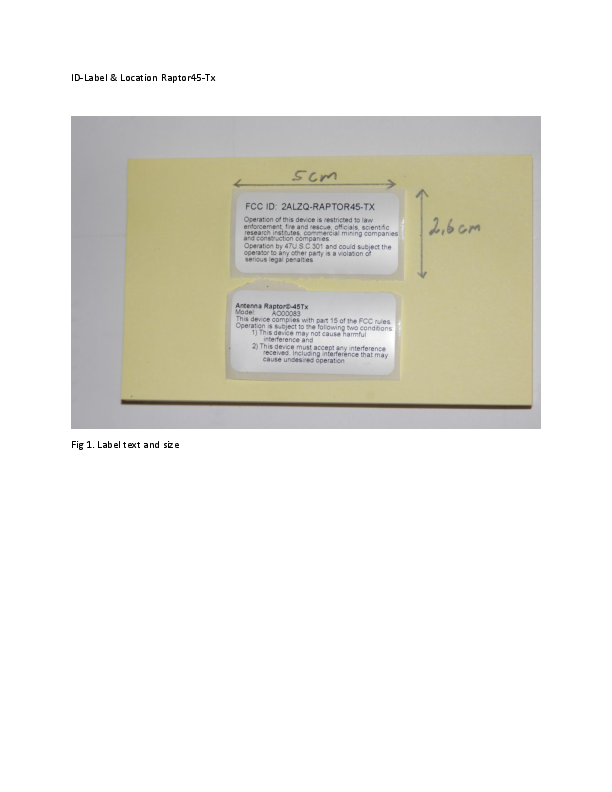

DescriptionLabel / label location
ApplicantImpulseRadar Sweden AB
Equipment ClassGround Penetrating Radar
Product CodeRAPTOR45TX
Application IDkBKlHTzdOhjYY1/zjRaDuA==
Application PurposeOriginal Equipment
Application Date2017-06-28
Frequency Range1000-1136 MHz
FRN0026494518
Test FirmSaab AB
Certified ByBernth Johansson CTO
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2017-05-18
Available2017-06-28
Created2017-05-03
Modified2017-05-03
Pages2
File TypeAdobe Acrobat PDF
File Size295687
File SHA-256ed499aabf197af9c3a98946fd8ff33232bf931c8a8d8ade6ce0c76729a6cdd08
PDF Metadata AuthorBernth Johansson
PDF Metadata ProducerMicrosoft® Word 2016 Bernth Johansson
FCC.gov SourcesFCC.gov 3395804

Related FCC Exhibits

DocumentTypeAvailableFile
Users manualUsers Manual2017-06-28PDF 517.8 KB
Internal photographs 1Internal Photos2017-06-28PDF 1.3 MB
Internal photographs 2Internal Photos2017-06-28PDF 95.8 KB
Example of GPR Tx and Rx antennas mounted in a trolleyExternal Photos2017-06-28PDF 184.6 KB
External photographsExternal Photos2017-06-28PDF 205.1 KB
Label / label locationID Label/Location Info2017-06-28PDF 288.8 KB
Test setup photographsTest Setup Photos2017-06-28PDF 1 MB
Test ReportTest Report2017-06-28PDF 1,009 KB
Confidentiality requestCover Letter(s)2017-06-28PDF 43.9 KB
Block diagram Metadata onlyBlock DiagramPDF 183 KB
Schematic diagram Metadata onlySchematicsPDF 215.5 KB
Operational description Metadata onlyOperational DescriptionPDF 279.2 KB
