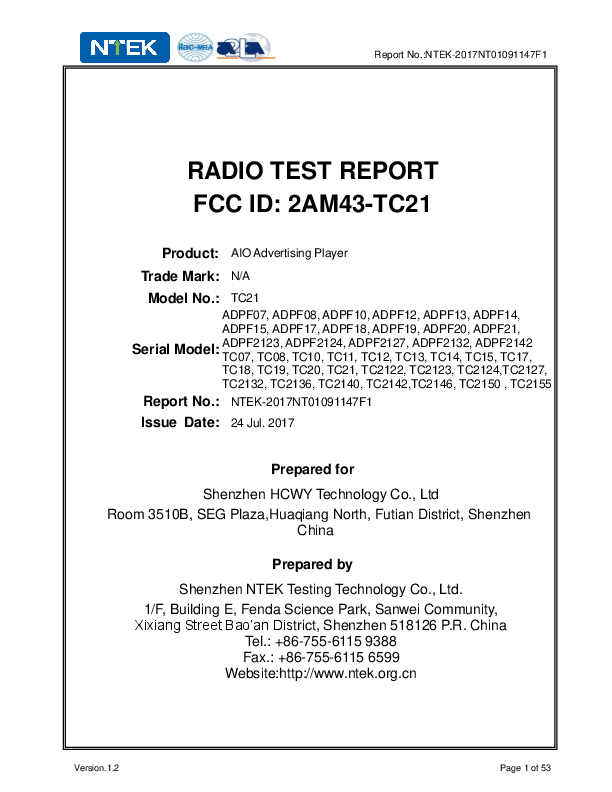

Report No.:NTEK-2017NT01091147F1
RADIO TEST REPORT
FCC ID: 2AM43-TC21
Product: AIO Advertising Player
Trade Mark: N/A
Model No.: TC21
ADPF07, ADPF08, ADPF10, ADPF12, ADPF13, ADPF14,
ADPF15, ADPF17, ADPF18, ADPF19, ADPF20, ADPF21,
ADPF2123, ADPF2124, ADPF2127, ADPF2132, ADPF2142
Serial Model: TC07, TC08, TC10, TC11, TC12, TC13, TC14, TC15, TC17,
TC18, TC19, TC20, TC21, TC2122, TC2123, TC2124,TC2127,
TC2132, TC2136, TC2140, TC2142,TC2146, TC2150 , TC2155
Report No.: NTEK-2017NT01091147F1
Issue Date: 24 Jul. 2017
Prepared for
Shenzhen HCWY Technology Co., Ltd
Room 3510B, SEG Plaza,Huaqiang North, Futian District, Shenzhen,
China
Prepared by
Shenzhen NTEK Testing Technology Co., Ltd.
1/F, Building E, Fenda Science Park, Sanwei Community,
Xixiang Street Bao’an District, Shenzhen 518126 P.R. China
Tel.: +86-755-6115 9388
Fax.: +86-755-6115 6599
Website:http://www.ntek.org.cn
Version.1.2
Page 1 of 53
Report No.:NTEK-2017NT01091147F1
TABLE OF CONTENTS
TEST RESULT CERTIFICATION ...................................................................................................................... 3
SUMMARY OF TEST RESULTS ......................................................................................................................... 4
FACILITIES AND ACCREDITATIONS ............................................................................................................. 5
3.1
3.2
3.3
FACILITIES..................................................................................................................................................... 5
LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5
MEASUREMENT UNCERTAINTY ............................................................................................................... 5
GENERAL DESCRIPTION OF EUT .................................................................................................................. 6
DESCRIPTION OF TEST MODES ..................................................................................................................... 8
SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9
6.1
6.2
6.3
BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9
SUPPORT EQUIPMENT............................................................................................................................... 10
EQUIPMENTS LIST FOR ALL TEST ITEMS.............................................................................................. 11
TEST REQUIREMENTS .................................................................................................................................... 13
7.1
7.2
7.3
7.4
7.5
7.6
7.7
7.8
7.9
7.10
CONDUCTED EMISSIONS TEST ............................................................................................................... 13
RADIATED SPURIOUS EMISSION ............................................................................................................ 18
NUMBER OF HOPPING CHANNEL ........................................................................................................... 27
HOPPING CHANNEL SEPARATION MEASUREMENT ........................................................................... 29
AVERAGE TIME OF OCCUPANCY (DWELL TIME) ................................................................................ 33
20DB BANDWIDTH TEST .......................................................................................................................... 37
PEAK OUTPUT POWER .............................................................................................................................. 41
CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 45
SPURIOUS RF CONDUCTED EMISSION .................................................................................................. 49
ANTENNA APPLICATION .......................................................................................................................... 53
Version.1.2
Page 2 of 53
Report No.:NTEK-2017NT01091147F1
TEST RESULT CERTIFICATION
Applicant’s name .........................
Shenzhen
HCWY Technology Co., Ltd
Address .......................................
Room
3510B, SEG Plaza,Huaqiang North, Futian District, Shenzhen, China
Manufacturer's Name ..................
Shenzhen
HCWY Technology Co., Ltd
Address ....................................... :
Room 3510B, SEG Plaza,Huaqiang North, Futian District, Shenzhen, China
Product description
Product name ..............................
AIO
: Advertising Player
Model and/or type reference .....
TC21
Serial Model ................................
ADPF07,
ADPF08, ADPF10, ADPF12, ADPF13, ADPF14, ADPF15,
ADPF17, ADPF18, ADPF19, ADPF20, ADPF21, ADPF2123, ADPF2124,
ADPF2127, ADPF2132, ADPF2142 TC07, TC08, TC10, TC11, TC12, TC13,
TC14, TC15, TC17, TC18, TC19, TC20, TC21, TC2122, TC2123, TC2124,
TC2127, TC2132, TC2136, TC2140, TC2142, TC2146, TC2150 , TC2155
Measurement Procedure Used:
APPLICABLE STANDARDS
STANDARD/ TEST PROCEDURE
TEST RESULT
FCC 47 CFR Part 2, Subpart J:2016
FCC 47 CFR Part 15, Subpart C:2016
KDB 174176 D01 Line Conducted FAQ v01r01
ANSI C63.10-2013
Complied
This device described above has been tested by Shenzhen NTEK Testing Technology Co., Ltd., and the test
results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is
applicable only to the tested sample identified in the report.
This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK Testing
Technology Co., Ltd., this document may be altered or revised by Shenzhen NTEK Testing Technology Co.,
Ltd., personnel only, and shall be noted in the revision of the document.
The test results of this report relate only to the tested sample identified in this report.
Date of Test
Testing Engineer
09 Jan. 2017 ~ 24 Jul. 2017
(Lake Xie)
Technical Manager
(Jason Chen)
Authorized Signatory
(Sam Chen)
Version.1.2
Page 3 of 53
Report No.:NTEK-2017NT01091147F1
SUMMARY OF TEST RESULTS
FCC Part15 (15.247), Subpart C
Standard Section
Test Item
Verdict
15.207
Conducted Emission
PASS
15.247(c)
Radiated Spurious Emission
PASS
15.247(a)(1)
Hopping Channel Separation
PASS
15.247(b)(1)
Peak Output Power
PASS
15.247(a)(iii)
Number of Hopping Frequency
PASS
15.247(a)(iii)
Dwell Time
PASS
15.247(a)(1)
Bandwidth
PASS
15.205
Band Edge Emission
PASS
15.203
Antenna Requirement
PASS
Remark
Remark:
1. “N/A” denotes test is not applicable in this Test Report.
2. All test items were verified and recorded according to the standards and without any deviation during
the test.
Version.1.2
Page 4 of 53
Report No.:NTEK-2017NT01091147F1
FACILITIES AND ACCREDITATIONS
3.1 FACILITIES
All measurement facilities used to collect the measurement data are located at
1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen 518126
P.R. China.
The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.10 and CISPR
Publication 22.
3.2 LABORATORY ACCREDITATIONS AND LISTINGS
Site Description
CNAS-Lab.
: Accredited by CNAS, 2014.09.04
The Laboratory has been assessed and proved to be in compliance with
CNAS-CL01:2006 (identical to ISO/IEC 17025:2005)
The Certificate Registration Number is L5516.
IC-Registration
FCC- Accredited
A2LA-Lab.
Name of Firm
Site Location
Accredited by Industry Canada, August 29, 2012
The Certificate Registration Number is 9270A-1.
Test Firm Registration Number: 463705.
Designation Number: CN1184
The Certificate Registration Number is 4298.01
This laboratory is accredited in accordance with the recognized
International Standard ISO/IEC 17025:2005 General requirements for
the competence of testing and calibration laboratories.
This accreditation demonstrates technical competence for a defined
scope and the operation of a laboratory quality management system
(refer to joint ISO-ILAC-IAF Communiqué dated 8 January 2009).
: Shenzhen NTEK Testing Technology Co., Ltd.
: 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang
Street, Bao’an District, Shenzhen 518126 P.R. China.
3.3 MEASUREMENT UNCERTAINTY
The reported uncertainty of measurement y±U, where expended uncertainty U is based on a standard
uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %.
No.
Item
Uncertainty
Conducted Emission Test
±2.80dB
RF power, conducted
±0.16dB
Spurious emissions, conducted
±0.21dB
All emissions, radiated(30MHz~1GHz)
±2.64dB
All emissions, radiated(1GHz~6GHz)
±2.40dB
All emissions, radiated(>6GHz)
±2.52dB
Temperature
±0.5°C
Humidity
±2%
Version.1.2
Page 5 of 53
Report No.:NTEK-2017NT01091147F1
GENERAL DESCRIPTION OF EUT
Product Feature and Specification
Equipment
AIO Advertising Player
Trade Mark
N/A
FCC ID
2AM43-TC21
Model No.
TC21
Serial Model
ADPF07, ADPF08, ADPF10, ADPF12, ADPF13, ADPF14,
ADPF15, ADPF17, ADPF18, ADPF19, ADPF20, ADPF21,
ADPF2123, ADPF2124, ADPF2127, ADPF2132, ADPF2142
TC07, TC08, TC10, TC11, TC12, TC13, TC14, TC15, TC17,
TC18, TC19, TC20, TC21, TC2122, TC2123, TC2124,
TC2127, TC2132, TC2136, TC2140, TC2142, TC2146,
TC2150 , TC2155
Model Difference
All the model are the same circuit and RF module,
except the model name.
Operating Frequency
2402MHz~2480MHz
Modulation
GFSK,π/4-DQPSK, 8-DPSK
Bluetooth Version
BT V4.0(EDR+BR)
Number of Channels
79 Channels
Antenna Type
FPCB Antenna
Antenna Gain
1 dBi
DC supply:
DC 12V from Adapter
Power supply
Adapter supply:
Model:FJ-SW1203000
INPUT:100-240V~50/60Hz 1.5A MAX
OUTPUT:12V 3000mA
HW Version
R03-V3.1
SW Version
ZX-WF2152T-R03-21.5L-Z3.9-6212-G-20170520
Note: Based on the application, features, or specification exhibited in User's Manual, the EUT is considered
as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual.
Version.1.2
Page 6 of 53
Report No.:NTEK-2017NT01091147F1
Revision History
Report No.
Version
Description
Issued Date
NTEK-2017NT01091147F1
Rev.01
Initial issue of report
Jul 24, 2017
Version.1.2
Page 7 of 53
Report No.:NTEK-2017NT01091147F1
DESCRIPTION OF TEST MODES
To investigate the maximum EMI emission characteristics generates from EUT, the test system was
pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode
which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration
mode(s) mentioned above was evaluated respectively.
The Transmitter was operated in the normal operating mode. The TX frequency was fixed which was for the
purpose of the measurements.
Test of channel included the lowest and middle and highest frequency to perform the test, then record on this
report.
Those data rates (1Mbps for GFSK modulation; 2Mbps for π/4-DQPSK modulation; 3Mbps for 8-DPSK
modulation) were used for all test.
The EUT was pretested with 3 orientations placed on the table for the radiated emission measurement –X, Y,
and Z-plane. The X-plane results were found as the worst case and were shown in this report.
Carrier Frequency and Channel list:
Channel
Frequency(MHz)
2402
2403
…
…
39
2441
40
2442
…
…
77
2479
78
2480
Note: fc=2402MHz+k×1MHz k=0 to 78
The following summary table is showing all test modes to demonstrate in compliance with the standard.
For AC Conducted Emission
Final Test Mode
Description
Mode 1
normal link mode
Note: AC power line Conducted Emission was tested under maximum output power.
For Radiated Test Cases
Final Test Mode
Description
Mode 1
normal link mode
Mode 2
CH00(2402MHz)
Mode 3
CH39(2441MHz)
Mode 4
CH78(2480MHz)
Note: For radiated test cases, the worst mode data rate 3Mbps was reported only, because this data rate
has the highest RF output power at preliminary tests, and no other significantly frequencies found in
conducted spurious emission.
For Conducted Test Cases
Final Test Mode
Description
Mode 2
CH00(2402MHz)
Mode 3
CH39(2441MHz)
Mode 4
CH78(2480MHz)
Mode 5
Hopping mode
Note: The engineering test program was provided and the EUT was programmed to be in continuously
transmitting mode.
1. AC power line Conducted Emission was tested under maximum output power.
Version.1.2
Page 8 of 53
Report No.:NTEK-2017NT01091147F1
SETUP OF EQUIPMENT UNDER TEST
6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM
For AC Conducted Emission Mode
C-1
E-1
EUT
AC PLUG
E-2
Adapter
C-2
E-3
Earphone
For Radiated Test Cases
AC PLUG
E-1
C-1
EUT
E-2
Adapter
For Conducted Test Cases
AC PLUG
C2
Measurement
Instrument
EUT
E-2
Adapter
Note:The temporary antenna connector is soldered on the PCB board in order to perform conducted tests and
this temporary antenna connector is listed in the equipment list.
Version.1.2
Page 9 of 53
Report No.:NTEK-2017NT01091147F1
6.2 SUPPORT EQUIPMENT
The EUT has been tested as an independent unit together with other necessary accessories or support units.
The following support units or accessories were used to form a representative test configuration during the
tests.
Item
Equipment
Mfr/Brand
Model/Type No.
FCC ID
Note
AIO Advertising
E-1
N/A
TC21
2AM43-TC21
EUT
Player
E-2
Adapter
N/A
FJ-SW1203000
N/A
E-3
Earphone
N/A
2688
N/A
Peripherals
Item
Cable Type
Shielded Type
Ferrite Core
Length
C-1
DC Cable
NO
YES
1.2m
C-2
Earphone Cable
NO
NO
0.8m
C-3
RF Cable
NO
NO
0.5m
Notes:
(1)
(2)
(3)
The support equipment was authorized by Declaration of Confirmation.
For detachable type I/O cable should be specified the length in cm in『Length』column.
“YES” is means “shielded” “with core”; “NO” is means “unshielded” “without core”.
Version.1.2
53
Page 10 of
Report No.:NTEK-2017NT01091147F1
6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS
Radiation Test equipment
Kind of
Equipment
Item
Manufacturer
Type No.
Serial No.
Last
calibration
Calibrated
until
Calibrati
on
period
Spectrum
Analyzer
Spectrum
Analyzer
EMI Test
Receiver
Aglient
E4407B
MY45108040
2017.06.06
2018.06.05
1 year
Agilent
N9020A
MY49100060 2016.11.10
2017.11.09
1 year
Agilent
N9038A
MY53227146 2017.06.06
2018.06.05 1 year
Test Receiver
R&S
ESPI
101318
2017.06.06
2018.06.05
1 year
Bilog Antenna
TESEQ
CBL6111D
31216
2017.04.09
2018.04.08
1 year
50Ω Coaxial
Switch
Anritsu
MP59B
6200983705
2017.06.06
2018.06.05
1 year
Horn Antenna
EM
EM-AH-1018
2011071402
2017.04.09
2018.04.08
1 year
Horn Ant
Schwarzbeck
9170-181
2017.07.06
2018.07.05
1 year
Amplifier
EMC
980246
2016.08.09
2017.08.08
1 year
10
Amplifier
MITEQ
177156
2017.06.06
2018.06.05
1 year
11
Loop Antenna
ARA
PLA-1030/B
1029
2017.06.06
2018.06.05
1 year
12
Power Meter
DARE
RPR3006W
15I00041SN
O84
2016.08.09
2017.08.08
1 year
N/A
R-01
N/A
2017.04.21
2020.04.20
3 year
N/A
R-02
N/A
2017.04.21
2020.04.20
3 year
N/A
R-03
N/A
2017.04.21
2020.04.20
3 year
N/A
R-04
N/A
2017.04.21
2020.04.20
3 year
NTS
R001
N/A
N/A
N/A
N/A
13
14
15
16
17
Test Cable
(9KHz-30MHz)
Test Cable
(30MHz-1GHz)
High Test
Cable(1G-40G
Hz)
High Test
Cable(1G-40G
Hz)
temporary
antenna
connector
(Note)
BBHA 9170
EMC051835
SE
TTA1840-35HG
Note:
We will use the temporary antenna connector (soldered on the PCB board) When conducted test
And this temporary antenna connector is listed within the instrument list
Version.1.2
53
Page 11 of
Report No.:NTEK-2017NT01091147F1
Conduction Test equipment
Kind of
Item
Manufacturer
Equipment
Type No.
Serial No.
Last
calibration
Calibrated
until
Calibration
period
Test Receiver
R&S
ESCI
101160
2017.06.06
2018.06.05
1 year
LISN
R&S
ENV216
101313
2017.04.19
2018.04.18
1 year
8129245
2017.06.06
2018.06.05
1 year
6200983704
2017.06.06
2018.06.05
1 year
N/A
2017.04.21
2020.04.20
3 year
N/A
2017.04.21
2020.04.20
3 year
N/A
2017.04.21
2020.04.20
3 year
29
2017.04.19
SCHWARZBE
NNLK 8129
CK
ANRITSU
50Ω Coaxial
MP59B
CORP
Switch
Test Cable
(9KHz-30MH
N/A
C01
z)
Test Cable
(9KHz-30MH
N/A
C02
z)
Test Cable
(9KHz-30MH
N/A
C03
z)
LISN
Filter
TRILTHIC
2400MHz
2018.04.18
1 year
Note: Each piece of equipment is scheduled for calibration once a year.
Version.1.2
53
Page 12 of
Report No.:NTEK-2017NT01091147F1
TEST REQUIREMENTS
7.1 CONDUCTED EMISSIONS TEST
7.1.1
Applicable Standard
According to FCC Part 15.207(a) and KDB 174176 D01 Line Conducted FAQ v01r01
7.1.2
Conformance Limit
Conducted Emission Limit
Quasi-peak
Average
0.15-0.5
66-56*
56-46*
0.5-5.0
56
46
5.0-30.0
60
50
Note: 1. *Decreases with the logarithm of the frequency
2. The lower limit shall apply at the transition frequencies
3. The limit decreases in line with the logarithm of the frequency in the range of 0.15 to 0.50MHz.
Frequency(MHz)
7.1.3
Test Configuration
Reference
Ground
EMI Receiver
EUT
Auxiliary
Equipment
80cm
Reference
Ground
50Ω
80cm
LISN
7.1.4
LISN
Test Procedure
According to the requirements in Section 13.1.4.1 of ANSI C63.10-2013 Conducted emissions the EUT
measured in the frequency range between 0.15 MHz and 30 MHz using CISPR Quasi-Peak and average
detector mode.
1. The EUT was placed 0.4 meter from the conducting wall of the shielding room.
2. The EUT was placed on a table which is 0.8m above ground plane.
3. Connect EUT to the power mains through a line impedance stabilization network (LISN). All other
support equipments powered from additional LISN(s). The LISN provide 50 Ohm/ 50uH of coupling
impedance for the measuring instrument.
4. Interconnecting cables that hang closer than 40 cm to the ground plane shall be folded back and forth in
the center forming a bundle 30 to 40cm long.
5. I/O cables that are not connected to a peripheral shall be bundled in the center. The end of the cable
may be terminated, if required, using the correct terminating impedance. The overall length shall not
exceed 1 m.
6. LISN at least 80 cm from nearest part of EUT chassis.
7. The frequency range from 150KHz to 30MHz was searched.
8. Set the test-receiver system to Peak Detect Function and specified bandwidth(IF bandwidth=9KHz) with
Maximum Hold Mode
9. For the actual test configuration, please refer to the related Item –EUT Test Photos.
7.1.5
Test Results
Pass
Version.1.2
53
Page 13 of
Report No.:NTEK-2017NT01091147F1
7.1.6
Test Results
AIO Advertising Player
Temperature:26 ℃
1010hPa
Pressure:
Test Voltage : DC 12V from Adapter AC 120V/60Hz
EUT:
Frequency
Reading Level Correct Factor
Model Name :
TC21
Relative Humidity:54%
Phase :
Mode 1
Test Mode:
Measure-ment
Limits
Margin
Remark
(MHz)
(dBμV)
(dB)
(dBμV)
(dBμV)
(dB)
0.1539
42.82
10.13
52.95
65.78
-12.83
QP
0.1539
23.08
10.13
33.21
55.78
-22.57
AVG
0.5100
34.83
9.84
44.67
56.00
-11.33
QP
0.5100
26.71
9.84
36.55
46.00
-9.45
AVG
0.9780
25.16
9.76
34.92
56.00
-21.08
QP
0.9780
12.55
9.76
22.31
46.00
-23.69
AVG
3.1099
25.64
9.77
35.41
56.00
-20.59
QP
3.1099
14.24
9.77
24.01
46.00
-21.99
AVG
13.7500
31.72
9.92
41.64
60.00
-18.36
QP
13.7500
27.50
9.92
37.42
50.00
-12.58
AVG
24.2420
29.84
10.12
39.96
60.00
-20.04
QP
24.2420
24.50
10.12
34.62
50.00
-15.38
AVG
Remark:
1. All readings are Quasi-Peak and Average values.
2. Factor = Insertion Loss + Cable Loss.
Version.1.2
53
Page 14 of
Report No.:NTEK-2017NT01091147F1
EUT:
Temperature:
Pressure:
Test Voltage :
Frequency
Model Name :
Relative Humidity:
Phase :
AIO Advertising Player
26 ℃
1010hPa
DC 12V from Adapter AC 120V/60Hz Test Mode:
Reading Level Correct Factor
Measure-ment
TC21
54%
Mode 1
Limits
Margin
Remark
(MHz)
(dBμV)
(dB)
(dBμV)
(dBμV)
(dB)
0.1539
42.21
10.07
52.28
65.78
-13.50
QP
0.1539
22.59
10.07
32.66
55.78
-23.12
AVG
0.5100
35.43
9.85
45.28
56.00
-10.72
QP
0.5100
27.82
9.85
37.67
46.00
-8.33
AVG
1.6660
27.16
9.76
36.92
56.00
-19.08
QP
1.6660
18.81
9.76
28.57
46.00
-17.43
AVG
3.5340
24.06
9.79
33.85
56.00
-22.15
QP
3.5340
15.16
9.79
24.95
46.00
-21.05
AVG
12.3020
35.60
9.92
45.52
60.00
-14.48
QP
12.3020
27.30
9.92
37.22
50.00
-12.78
AVG
22.2420
30.23
10.14
40.37
60.00
-19.63
QP
22.2420
24.02
10.14
34.16
50.00
-15.84
AVG
Remark:
1. All readings are Quasi-Peak and Average values.
2. Factor = Insertion Loss + Cable Loss.
Version.1.2
53
Page 15 of
Report No.:NTEK-2017NT01091147F1
AIO Advertising Player
Temperature: 26 ℃
1010hPa
Pressure:
Test Voltage : DC 12V from Adapter AC 240V/60Hz
EUT:
Frequency
Reading Level Correct Factor
Model Name :
TC21
Relative Humidity:54%
Phase :
Test Mode:
Measure-ment
Mode 1
Limits
Margin
Remark
(MHz)
(dBμV)
(dB)
(dBμV)
(dBμV)
(dB)
0.1580
42.55
10.14
52.69
65.56
-12.87
QP
0.1580
26.05
10.14
36.19
55.56
-19.37
AVG
0.1900
39.42
10.16
49.58
64.03
-14.45
QP
0.1900
22.80
10.16
32.96
54.03
-21.07
AVG
0.5540
36.90
9.82
46.72
56.00
-9.28
QP
0.5540
28.51
9.82
38.33
46.00
-7.67
AVG
0.8380
26.75
9.76
36.51
56.00
-19.49
QP
0.8380
18.41
9.76
28.17
46.00
-17.83
AVG
3.2420
28.02
9.77
37.79
56.00
-18.21
QP
3.2420
18.49
9.77
28.26
46.00
-17.74
AVG
13.4419
31.89
9.92
41.81
60.00
-18.19
QP
13.4419
24.73
9.92
34.65
50.00
-15.35
AVG
Remark:
1. All readings are Quasi-Peak and Average values.
2. Factor = Insertion Loss + Cable Loss.
Version.1.2
53
Page 16 of
Report No.:NTEK-2017NT01091147F1
EUT:
Temperature:
Pressure:
Test Voltage :
Frequency
AIO Advertising Player
26 ℃
1010hPa
DC 12V from Adapter AC 240V/60Hz
Reading Level Correct Factor
Measure-ment
TC21
Model Name :
Relative Humidity:54%
Phase :
Mode 1
Test Mode:
Limits
Margin
Remark
(MHz)
(dBμV)
(dB)
(dBμV)
(dBμV)
(dB)
0.5620
37.43
9.83
47.26
56.00
-8.74
QP
0.5620
29.54
9.83
39.37
46.00
-6.63
AVG
0.8340
28.90
9.76
38.66
56.00
-17.34
QP
0.8340
21.75
9.76
31.51
46.00
-14.49
AVG
1.1300
28.82
9.76
38.58
56.00
-17.42
QP
1.1300
21.12
9.76
30.88
46.00
-15.12
AVG
2.8740
29.00
9.77
38.77
56.00
-17.23
QP
2.8740
18.36
9.77
28.13
46.00
-17.87
AVG
3.9060
27.45
9.79
37.24
56.00
-18.76
QP
3.9060
17.91
9.79
27.70
46.00
-18.30
AVG
13.8740
33.56
9.95
43.51
60.00
-16.49
QP
13.8740
26.99
9.95
36.94
50.00
-13.06
AVG
Remark:
1. All readings are Quasi-Peak and Average values.
2. Factor = Insertion Loss + Cable Loss.
Version.1.2
53
Page 17 of
Report No.:NTEK-2017NT01091147F1
7.2 RADIATED SPURIOUS EMISSION
7.2.1
Applicable Standard
According to FCC Part 15.247(d) and 15.209 and ANSI C63.10-2013
7.2.2
Conformance Limit
According to FCC Part 15.247(d): radiated emissions which fall in the restricted bands, as defined in
§15.205(a), must also comply with the radiated emission limits specified in §15.209(a) (see §15.205(c)).
According to FCC Part15.205, Restricted bands
MHz
MHz
MHz
GHz
0.090-0.110
16.42-16.423
399.9-410
4.5-5.15
10.495-0.505
16.69475-16.69525
608-614
5.35-5.46
2.1735-2.1905
16.80425-16.80475
960-1240
7.25-7.75
4.125-4.128
25.5-25.67
1300-1427
8.025-8.5
4.17725-4.17775
37.5-38.25
1435-1626.5
9.0-9.2
4.20725-4.20775
73-74.6
1645.5-1646.5
9.3-9.5
6.215-6.218
74.8-75.2
1660-1710
10.6-12.7
6.26775-6.26825
123-138
2200-2300
14.47-14.5
8.291-8.294
149.9-150.05
2310-2390
15.35-16.2
8.362-8.366
156.52475-156.52525
2483.5-2500
17.7-21.4
8.37625-8.38675
156.7-156.9
2690-2900
22.01-23.12
8.41425-8.41475
162.0125-167.17
3260-3267
23.6-24.0
12.29-12.293
167.72-173.2
3332-3339
31.2-31.8
12.51975-12.52025
240-285
3345.8-3358
36.43-36.5
12.57675-12.57725
322-335.4
3600-4400
(2)
13.36-13.41
20dBc in any 100 kHz bandwidth outside the operating frequency band. In case the emission fall within the
restricted band specified on 15.205(a), then the 15.209(a) limit in the table below has to be followed.
Restricted
Field Strength (μV/m)
Field Strength (dBμV/m) Measurement Distance
Frequency(MHz)
0.009~0.490
2400/F(KHz)
20 log (uV/m)
300
0.490~1.705
2400/F(KHz)
20 log (uV/m)
30
1.705~30.0
30
29.5
30
30-88
100
40
88-216
150
43.5
216-960
200
46
Above 960
500
54
Limits of Radiated Emission Measurement(Above 1000MHz)
Class B (dBuV/m) (at 3M)
Frequency(MHz)
Above 1000
PEAK
AVERAGE
74
54
Remark :1. Emission level in dBuV/m=20 log (uV/m)
2. Measurement was performed at an antenna to the closed point of EUT distance of meters.
3. Distance extrapolation factor =40log(Specific distance/ test distance)( dB);
Limit line=Specific limits(dBuV) + distance extrapolation factor.
Version.1.2
53
Page 18 of
Report No.:NTEK-2017NT01091147F1
7.2.3
Measuring Instruments
The Measuring equipment is listed in the section 6.3 of this test report.
7.2.4
Test Configuration
(a) For radiated emissions below 30MHz
Turntable
3m
EUT
0.8 m
Test
Receiver
1.0m
Ground Plane
Coaxial Cable
(b) For radiated emissions from 30MHz to 1000MHz
3m
Turntable
1m to 4m
EUT
Test
Receiver
0.8m
Ground Plane
Coaxial Cable
(c) For radiated emissions above 1000MHz
3m
4m
Turntable
EUT
1.5m
1.5m
Amplifie
Version.1.2
53
Test Receiver
Page 19 of
Report No.:NTEK-2017NT01091147F1
7.2.5
Test Procedure
The test site semi-anechoic chamber has met the requirement of NSA tolerance 4 dB according to the
standards: ANSI C63.10-2013. The test distance is 3m.The setup is according to the requirements in Section
13.1.4.1 of ANSI C63.10-2013 and CAN/CSA-CEI/IEC CISPR 22.
This test is required for any spurious emission that falls in a Restricted Band, as defined in Section 15.205.
It must be performed with the highest gain of each type of antenna proposed for use with the EUT.
Use the following spectrum analyzer settings:
Spectrum Parameter
Setting
Attenuation
Auto
Start Frequency
1000 MHz
Stop Frequency
10th carrier harmonic
RB / VB (emission in restricted band)
1 MHz / 1 MHz for Peak, 1 MHz / 10Hz for Average
Receiver Parameter
Attenuation
Start ~ Stop Frequency
Start ~ Stop Frequency
Start ~ Stop Frequency
Setting
Auto
9kHz~150kHz / RB 200Hz for QP
150kHz~30MHz / RB 9kHz for QP
30MHz~1000MHz / RB 120kHz for QP
a. The measuring distance of at 3 m shall be used for measurements at frequency up to 1GHz. For
frequencies above 1GHz, any suitable measuring distance may be used.
b. The EUT was placed on the top of a rotating table 0.8 m for below 1GHz and 1.5m for above 1GHz the
ground at a 3 meter. The table was rotated 360 degrees to determine the position of the highest
radiation.
c. The height of the equipment or of the substitution antenna shall be 0.8 m for below 1GHz and 1.5m for
above 1GHz; the height of the test antenna shall vary between 1 m to 4 m. Both horizontal and vertical
polarizations of the antenna are set to make the measurement.
d. For the radiated emission test above 1GHz:
Place the measurement antenna away from each area of the EUT determined to be a source of
emissions at the specified measurement distance, while keeping the measurement antenna aimed at
the source of emissions at each frequency of significant emissions, with polarization oriented for
maximum response. The measurement antenna may have to be higher or lower than the EUT,
depending on the radiation pattern of the emission and staying aimed at the emission source for
receiving the maximum signal. The final measurement antenna elevation shall be that which maximizes
the emissions. The measurement antenna elevation for maximum emissions shall be restricted to a
range of heights of from 1 m to 4 m above the ground or reference ground plane.
e. The initial step in collecting conducted emission data is a spectrum analyzer peak detector mode
pre-scanning the measurement frequency range. Significant peaks are then marked and then Quasi
Peak detector mode re-measured.
f. If the Peak Mode measured value compliance with and lower than Quasi Peak Mode Limit, the EUT
shall be deemed to meet QP Limits and then no additional QP Mode measurement performed.
g. For the actual test configuration, please refer to the related Item –EUT Test Photos.
Note:
Both horizontal and vertical antenna polarities were tested
and performed pretest to three orthogonal axis. The worst case emissions were reported
Version.1.2
53
Page 20 of
Report No.:NTEK-2017NT01091147F1
During the radiated emission test, the Spectrum Analyzer was set with the following configurations:
Frequency Band (MHz)
Function
Resolution bandwidth
Video Bandwidth
30 to 1000
QP
120 kHz
300 kHz
Peak
1 MHz
1 MHz
Average
1 MHz
10 Hz
Above 1000
Note: for the frequency ranges below 30 MHz, a narrower RBW is used for these ranges but the measured
value should add a RBW correction factor (RBWCF) where RBWCF [dB] =10*lg(100 [kHz]/narrower RBW
[kHz]). , the narrower RBW is 1 kHz and RBWCF is 20 dB for the frequency 9 kHz to 150 kHz, and the
narrower RBW is 10 kHz and RBWCF is 10 dB for the frequency 150 kHz to 30 MHz.
7.2.6
Test Results

Spurious Emission below 30MHz (9KHz to 30MHz)
EUT:
AIO Advertising Player Model No.:
Temperature:
20 ℃
Test Mode:
Mode2/Mode3/Mode4 Test By:
Relative Humidity:
TC21
48%
Lake Xie
Ant.Pol.
Emission Level(dBuV/m)
Limit 3m(dBuV/m)
Over(dB)
Freq.
(MHz)
H/V
PK
AV
PK
AV
PK
AV
--------Note: the amplitude of spurious emission that is attenuated by more than 20dB below the permissible
limit has no need to be reported.
Distance extrapolation factor =20log(Specific distance/ test distance)( dB);
Limit line=Specific limits(dBuV) + distance extrapolation factor
Version.1.2
53
Page 21 of
Report No.:NTEK-2017NT01091147F1

Spurious Emission below 1GHz (30MHz to 1GHz)
All the modulation modes have been tested, and the worst result was report as below:
EUT:
Temperature:
Pressure:
Test Voltage :
Polar
(H/V)
AIO Advertising Player Model Name :
20 ℃
Relative Humidity:
1010hPa
Test Mode:
DC 12V from Adapter AC 120V/60Hz
Frequency
(MHz)
Meter
Reading
Factor
(dBuV)
(dB)
TC21
48%
Mode 1
Emission
Level
Limits
(dBuV/m)
(dBuV/m)
Remark
30.6378
16.96
19.55
36.51
40.00
93.4402
24.97
11.21
36.18
43.50
151.0665
22.38
12.97
35.35
43.50
334.8589
24.81
17.35
42.16
46.00
375.9384
23.15
19.06
42.21
46.00
597.2233
16.90
24.57
41.47
46.00
Remark:
Absolute Level= ReadingLevel+ Factor, Margin= Absolute Level - Limit
Version.1.2
53
Margin
(dB)
-3.49
-7.32
-8.15
-3.84
-3.79
-4.53
QP
QP
QP
QP
QP
QP
Page 22 of
Report No.:NTEK-2017NT01091147F1
Polar
(H/V)
Frequency
Meter
Reading
Factor
Emission
Level
Limits
Margin
(MHz)
(dBuV)
(dB)
(dBuV/m)
(dBuV/m)
(dB)
Remark
167.8242
22.93
11.69
34.62
43.50
252.0627
26.18
15.42
41.60
46.00
336.0351
23.65
17.38
41.03
46.00
504.7062
19.80
21.70
41.50
46.00
588.9050
16.60
24.62
41.22
46.00
758.0407
13.42
27.73
41.15
46.00
Remark:
Absolute Level= ReadingLevel+ Factor, Margin= Absolute Level - Limit
Version.1.2
53
-8.88
-4.40
-4.97
-4.50
-4.78
-4.85
QP
QP
QP
QP
QP
QP
Page 23 of
Report No.:NTEK-2017NT01091147F1
 Spurious Emission Above 1GHz (1GHz to 25GHz)
EUT:
AIO Advertising Player Model No.:
Temperature:
20 ℃
TC21
Relative Humidity:
48%
Test Mode:
Mode2/Mode3/Mode4 Test By:
Lake Xie
All the modulation modes have been tested, and the worst result was report as below:
Frequenc
(MHz)
Read
Level
(dBμV)
Cable
loss
(dB)
Antenna
Preamp
Emission
Limits
Margin
Factor
Factor
Level
dB/m
(dB)
(dBμV/m) (dBμV/m)
(dB)
Low Channel (2402 MHz)(GFSK)--Above 1G
4804.166
64.45
5.21
35.59
44.30
60.95
74.00
4804.166
7206.447
42.14
65.6
5.21
6.48
35.59
36.27
44.30
44.60
38.64
63.75
54.00
74.00
7206.447
4804.109
4804.109
7206.223
7206.223
43.39
66.71
44.46
63.19
50.29
4882.138
4882.138
Remark
Comment
-13.05
Pk
Vertical
-15.36
-10.25
AV
Pk
6.48
5.21
5.21
6.48
6.48
36.27
44.60
41.54
54.00
-12.46
35.55
44.30
63.17
74.00
-10.83
35.55
44.30
40.92
54.00
-13.08
36.27
44.52
61.42
74.00
-12.58
36.27
44.52
48.52
54.00
-5.48
Mid Channel (2441 MHz)(GFSK)--Above 1G
AV
Pk
AV
Pk
AV
Vertical
Vertical
Vertical
Horizontal
Horizontal
64.15
43.61
5.21
5.21
35.66
35.66
44.20
44.20
60.82
40.28
74.00
54.00
-13.18
-13.72
Pk
AV
Vertical
Vertical
7323.081
63.86
7.10
36.50
44.43
63.03
74.00
-10.97
Pk
7323.081
4882.364
4882.364
7323.417
7323.417
43.57
64.62
46.47
62.16
42.32
7.10
5.21
5.21
7.10
7.10
36.50
44.43
42.74
54.00
-11.26
35.66
44.20
61.29
74.00
-12.71
35.66
44.20
43.14
54.00
-10.86
36.50
44.43
61.33
74.00
-12.67
36.50
44.43
41.49
54.00
-12.51
High Channel (2480 MHz)(GFSK)-- Above 1G
AV
Pk
AV
Pk
AV
Vertical
Vertical
4960.528
4960.528
68.62
46.65
5.21
5.21
35.52
35.52
44.21
44.21
65.14
43.17
74.00
54.00
-8.86
-10.83
Pk
AV
Vertical
7440.111
62.28
7.10
36.53
44.60
61.31
74.00
-12.69
Pk
7440.111
4960.235
4960.235
7440.192
42.22
62.62
42.29
62.54
7.10
5.21
5.21
7.10
36.53
35.52
35.52
36.53
44.60
44.21
44.21
44.60
41.25
59.14
38.81
61.57
54.00
74.00
54.00
74.00
-12.75
-14.86
-15.19
-12.43
AV
Pk
AV
Pk
Vertical
Vertical
Horizontal
Horizontal
7440.192
43.5
7.10
36.53
44.60
42.53
54.00
-11.47
AV
Note:
Horizontal
Horizontal
Horizontal
Horizontal
Horizontal
Horizontal
Vertical
Horizontal
Horizontal
(1) All Readings are Peak Value (VBW=3MHz) and AV Value (VBW=10Hz).
(2) Emission Level= Antenna Factor + Cable Loss + Read Level - Preamp Factor
(3)All other emissions more than 20dB below the limit.
Version.1.2
53
Page 24 of
Report No.:NTEK-2017NT01091147F1
 Spurious Emission in Band edge
EUT:
AIO Advertising Player Model No.:
Temperature:
20 ℃
Relative Humidity:
TC21
48%
Test Mode:
Mode2/ Mode4
Test By:
Lake Xie
All the modulation modes have been tested, and the worst result was report as below:
Frequenc
Meter
Reading
(MHz)
(dBμV)
Cable
Loss
(dB)
2310.00
2310.00
2310.00
2310.00
2390.00
2390.00
2390.00
2390.00
2483.50
2483.50
2483.50
2483.50
60.55
43.33
62.64
43.48
62.25
41.15
60.64
43.35
62.58
43.57
59.88
43.64
2.97
2.97
2.97
2.97
3.14
3.14
3.14
3.14
3.58
3.58
3.58
3.58
2310.00
2310.00
2310.00
2310.00
2390.00
2390.00
2390.00
2390.00
2483.50
2483.50
2483.50
2483.50
52.02
43.22
51.83
42.27
54.81
43.75
51.77
43.46
53.36
40.07
51.51
43.93
2.97
2.97
2.97
2.97
3.14
3.14
3.14
3.14
3.58
3.58
3.58
3.58
Note:
Antenna
Factor
dB/m
Preamp Emission
Limits
Factor
Level
(dB)
(dBμV/m) (dBμV/m)
1Mbps (GFSK)-hopping
27.80
43.80
47.52
74
27.80
43.80
30.30
54
27.80
43.80
49.61
74
27.80
43.80
30.45
54
27.21
43.80
48.80
74
27.21
43.80
27.70
54
27.21
43.80
47.19
74
27.21
43.80
29.90
54
27.70
44.00
49.86
74
27.70
44.00
30.85
54
27.70
44.00
47.16
74
27.70
44.00
30.92
54
1Mbps(GFSK)- Non-hopping
27.80
43.80
38.99
74
27.80
43.80
30.19
54
27.80
43.80
38.80
74
27.80
43.80
29.24
54
27.21
43.80
41.36
74
27.21
43.80
30.30
54
27.21
43.80
38.32
74
27.21
43.80
30.01
54
27.70
44.00
40.64
74
27.70
44.00
27.35
54
27.70
44.00
38.79
74
27.70
44.00
31.21
54
Margin
Detector
(dB)
Type
-26.48
-23.70
-24.39
-23.55
-25.20
-26.30
-26.81
-24.10
-24.14
-23.15
-26.84
-23.08
Pk
AV
Pk
AV
Pk
AV
Pk
AV
Pk
AV
Pk
AV
Horizontal
Horizontal
Vertical
Vertical
Vertical
Vertical
Horizontal
Horizontal
Vertical
Vertical
Horizontal
Horizontal
-35.01
-23.81
-35.20
-24.76
-32.64
-23.70
-35.68
-23.99
-33.36
-26.65
-35.21
-22.79
Pk
AV
Pk
AV
Pk
AV
Pk
AV
Pk
AV
Pk
AV
Horizontal
Horizontal
Vertical
Vertical
Vertical
Vertical
Horizontal
Horizontal
Vertical
Vertical
Horizontal
Horizontal
Comment
(1) All other emissions more than 20dB below the limit.
Version.1.2
53
Page 25 of
Report No.:NTEK-2017NT01091147F1
 Spurious Emission in Restricted Band 3260MMHz-18000MHz
EUT:
AIO Advertising Player Model No.:
Temperature:
20 ℃
Relative Humidity:
Test Mode:
Mode2/ Mode4
Test By:
All the modulation modes have been tested, and the worst result
Frequenc Readin Cable Antenn Preamp Emission
g Level Loss
Factor
Level
Factor
(dBμ
(MHz)
(dBμV) (dB)
dB/m
(dB)
V/m)
Note:
TC21
48%
Lake Xie
was report as below:
Detect
Limits Margin
or
Comment
(dBμ
(dB)
Type
V/m)
3260
60.53
4.04
29.57
44.70
49.44
74
-24.56
Pk
Vertical
3260
49.86
4.04
29.57
44.70
38.77
54
-15.23
AV
Vertical
3260
59.69
4.04
29.57
44.70
48.60
74
-25.40
Pk
Horizontal
3260
48.75
4.04
29.57
44.70
37.66
54
-16.34
AV
Horizontal
3332
63.35
4.26
29.87
44.40
53.08
74
-20.92
Pk
Vertical
3332
50.46
4.26
29.87
44.40
40.19
54
-13.81
AV
Vertical
3332
64.48
4.26
29.87
44.40
54.21
74
-19.79
Pk
Horizontal
3332
47.76
4.26
29.87
44.40
37.49
54
-16.51
AV
Horizontal
17797
45.53
10.99
43.95
43.50
56.97
74
-17.03
Pk
Vertical
17797
28.98
10.99
43.95
43.50
40.42
54
-13.58
AV
Vertical
17788
44.46
11.81
43.69
44.60
55.36
74
-18.64
Pk
Horizontal
17788
30.13
11.81
43.69
44.60
41.03
54
-12.97
AV
Horizontal
(1) All other emissions more than 20dB below the limit.
Version.1.2
53
Page 26 of
Report No.:NTEK-2017NT01091147F1
7.3 NUMBER OF HOPPING CHANNEL
7.3.1
Applicable Standard
According to FCC Part 15.247(a)(1) (iii)and ANSI C63.10-2013
7.3.2
Conformance Limit
Frequency hopping systems in the 2400-2483.5MHz band shall use at least 15 channels.
7.3.3
Measuring Instruments
The Measuring equipment is listed in the section 6.3 of this test report.
7.3.4
Test Setup
Please refer to Section 6.1 of this test report.
7.3.5
Test Procedure
The testing follows ANSI C63.10-2013 clause 7.8.3
The RF output of EUT was connected to the spectrum analyzer by RF cable and attenuator.
The path loss was compensated to the results for each measurement.
Set to the maximum power setting and enable the EUT transmit continuously.
The EUT must have its hopping function enabled.
Use the following spectrum analyzer settings:
Span = the frequency band of operation
RBW : To identify clearly the individual channels, set the RBW to less than 30% of the channel
spacing or the 20 dB bandwidth, whichever is smaller.
VBW  RBW
Sweep = auto
Detector function = peak
Trace = max hold
7.3.6
Test Results
EUT:
AIO Advertising Player Model No.:
TC21
Temperature:
20 ℃
Relative Humidity:
48%
Test Mode:
Mode 5(1Mbps)
Test By:
Lake Xie
Number of Hopping
(Channel)
79
Version.1.2
53
Adaptive Frequency hopping
(Channel)
20
limit
Verdict
≥15
Pass
Page 27 of
Report No.:NTEK-2017NT01091147F1
Number of Hopping Channel Plot
Version.1.2
53
Page 28 of
Report No.:NTEK-2017NT01091147F1
7.4 HOPPING CHANNEL SEPARATION MEASUREMENT
7.4.1
Applicable Standard
According to FCC Part 15.247(a)(1) and ANSI C63.10-2013
7.4.2
Conformance Limit
Frequency hopping systems operating in the 2400-2483.5MHz band shall have hopping channel carrier
frequencies that are separated by 25kHz or two-thirds of the 20dB bandwidth of the hopping channel,
whichever is greater.
7.4.3
Measuring Instruments
The Measuring equipment is listed in the section 6.3 of this test report.
7.4.4
Test Setup
Please refer to Section 6.1 of this test report.
7.4.5
Test Procedure
The testing follows ANSI C63.10-2013 clause 7.8.2
The RF output of EUT was connected to the spectrum analyzer by RF cable and attenuator.
The path loss was compensated to the results for each measurement.
Set to the maximum power setting and enable the EUT transmit continuously.
The EUT was operating in controlled its channel.
Use the following spectrum analyzer settings:
Span = Measurement Bandwidth or Channel Separation
RBW: Start with the RBW set to approximately 30% of the channel spacing; adjust as necessary
to best identify the center of each individual channel.
VBW  RBW
Sweep = auto
Detector function = peak
Trace = max hold
Version.1.2
53
Page 29 of
Report No.:NTEK-2017NT01091147F1
7.4.6
Test Results
EUT:
AIO Advertising Player Model No.:
TC21
Temperature:
20 ℃
48%
Test Mode:
Mode2/Mode3/Mode4 Test By:
Modulation
Mode
GFSK
π/4-DQPSK
8-DPSK
Version.1.2
53
Relative Humidity:
Channel
Number
Channel
Frequency
(MHz)
39
78
39
78
39
78
2402
2441
2480
2402
2441
2480
2402
2441
2480
Measured
Channel
Separation
(kHz)
1000
1000
1000
1000
1000
1000
1000
1000
1000
Lake Xie
Limit
(kHz)
>700.667
>699.333
>700.000
>905.333
>908.000
>906.667
>891.333
>891.333
>888.667
2/3 of 20dB BW
2/3 of 20dB BW
2/3 of 20dB BW
2/3 of 20dB BW
2/3 of 20dB BW
2/3 of 20dB BW
2/3 of 20dB BW
2/3 of 20dB BW
2/3 of 20dB BW
Verdict
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
Page 30 of
Report No.:NTEK-2017NT01091147F1
Test Plot
(1Mbps) Channel Separation plot on channel 00-01
(2Mbps) Channel Separation plot on channel 00-01
(1Mbps) Channel Separation plot on channel 39-40
(2Mbps) Channel Separation plot on channel 39-40
(1Mbps) Channel Separation plot on channel 77-78
(2Mbps) Channel Separation plot on channel 77-78
Version.1.2
53
Page 31 of
Report No.:NTEK-2017NT01091147F1
Test Plot
(3Mbps) Channel Separation plot on channel 00-01
(3Mbps) Channel Separation plot on channel 39-40
(3Mbps) Channel Separation plot on channel 77-78
Version.1.2
53
Page 32 of
Report No.:NTEK-2017NT01091147F1
7.5 AVERAGE TIME OF OCCUPANCY (DWELL TIME)
7.5.1
Applicable Standard
According to FCC Part 15.247(a)(1)(iii) and ANSI C63.10-2013
7.5.2
Conformance Limit
The average time of occupancy on any channel shall not be greater than 0.4s within a period of 0.4s
multiplied by the number of hopping channels employed.
7.5.3
Measuring Instruments
The Measuring equipment is listed in the section 6.3 of this test report.
7.5.4
Test Setup
Please refer to Section 6.1 of this test report.
7.5.5
Test Procedure
The testing follows ANSI C63.10-2013 clause 7.8.4
The RF output of EUT was connected to the spectrum analyzer by RF cable and attenuator.
The path loss was compensated to the results for each measurement.
Set to the maximum power setting and enable the EUT transmit continuously.
The EUT must have its hopping function enabled.
Use the following spectrum analyzer settings:
Span = zero span, centered on a hopping channel
RBW  1MHz
VBW  RBW
Sweep = as necessary to capture the entire dwell time per hopping channel
Detector function = peak
Trace = max hold
Measure the maximum time duration of one single pulse.
Set the EUT for DH5, DH3 and DH1 packet transmitting.
Measure the maximum time duration of one single pulse.
Version.1.2
53
Page 33 of
Report No.:NTEK-2017NT01091147F1
7.5.6
Test Results
EUT:
AIO Advertising Player Model No.:
TC21
Temperature:
20 ℃
48%
Test Mode:
Mode2/Mode3/Mode4 Test By:
Modulatio Channel
n Mode
Number
GFSK
π/4DQPSK
8DPSK
39
39
39
39
39
39
39
39
39
39
39
39
39
39
39
39
39
39
Packet
type
DH1
DH3
DH5
2DH1
2DH3
2DH5
3DH1
3DH3
3DH5
Relative Humidity:
Mode
Normal
AFH
Normal
AFH
Normal
AFH
Normal
AFH
Normal
AFH
Normal
AFH
Normal
AFH
Normal
AFH
Normal
AFH
Hops
Over
Occupanc
y(ms)
Time
320
160
160
80
106.67
53.33
320
160
160
80
106.67
53.33
320
160
160
80
106.67
53.33
Lake Xie
Pulse
width
(ms)
0.44
0.44
1.73
1.73
2.96
2.96
0.48
0.48
1.71
1.71
2.96
2.96
0.45
0.45
1.72
1.72
2.96
2.96
dwell time
(ms)
140.80
70.40
276.80
138.40
315.74
157.86
153.60
76.80
273.60
136.80
315.74
157.86
144.00
72.00
275.20
137.60
315.74
157.86
Limit
(ms)
<400
<400
<400
<400
<400
<400
<400
<400
<400
<400
<400
<400
<400
<400
<400
<400
<400
<400
Verdict
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
Note:
A Period Time = (channel number)*0.4
DH1 Time Slot: Reading * (1600/2)*31.6/(channel number)
DH3 Time Slot: Reading * (1600/4)*31.6/(channel number)
DH5 Time Slot: Reading * (1600/6)*31.6/(channel number)
For Example:
1. In normal mode, hopping rate is 1600 hops/s with 6 slots in 79 hopping channels.
With channel hopping rate (1600 / 6 / 79) in Occupancy Time Limit (0.4 x 79) (s),
Hops Over Occupancy Time comes to (1600 / 6 / 79) x (0.4 x 79) = 106.67 hops.
2. In AFH mode, hopping rate is 800 hops/s with 6 slots in 20 hopping channels.
With channel hopping rate (800 / 6 / 20) in Occupancy Time Limit (0.4 x 20) (s),
Hops Over Occupancy Time comes to (800 / 6 / 20) x (0.4 x 20) = 53.33 hops.
3.
Dwell Time(s) = Hops Over Occupancy Time (hops) x Package Transfer Time
Version.1.2
53
Page 34 of
Report No.:NTEK-2017NT01091147F1
Test Plot
Package Transfer Time Plot CH39-DH1
Package Transfer Time Plot CH39-2DH1
Package Transfer Time Plot CH39-DH3
Package Transfer Time Plot CH39-2DH3
Package Transfer Time Plot CH39-DH5
Package Transfer Time Plot CH39-2DH5
Version.1.2
53
Page 35 of
Report No.:NTEK-2017NT01091147F1
Test Plot
Package Transfer Time Plot CH39-3DH1
Package Transfer Time Plot CH39-3DH3
Package Transfer Time Plot CH39-3DH5
Version.1.2
53
Page 36 of
Report No.:NTEK-2017NT01091147F1
7.6 20DB BANDWIDTH TEST
7.6.1
Applicable Standard
According to FCC Part 15.247(a)(1) and ANSI C63.10-2013
7.6.2
Conformance Limit
No limit requirement.
7.6.3
Measuring Instruments
The Measuring equipment is listed in the section 6.3 of this test report.
7.6.4
Test Setup
Please refer to Section 6.1 of this test report.
7.6.5
Test Procedure
The testing follows ANSI C63.10-2013 clause 6.9.2
The RF output of EUT was connected to the spectrum analyzer by RF cable and attenuator.
The path loss was compensated to the results for each measurement.
Set to the maximum power setting and enable the EUT transmit continuously.
The EUT was operating in controlled its channel.
Use the following spectrum analyzer settings:
Span = approximately 2 to 3 times the 20 dB bandwidth, centered on a hopping channel
RBW  1% of the 20 dB bandwidth
VBW  RBW
Sweep = auto
Detector function = peak
Trace = max hold
Version.1.2
53
Page 37 of
Report No.:NTEK-2017NT01091147F1
7.6.6
Test Results
EUT:
AIO Advertising Player Model No.:
TC21
Temperature:
20 ℃
48%
Test Mode:
Mode2/Mode3/Mode4 Test By:
Test Channel
Relative Humidity:
Frequency
Measured
Bandwidth
(KHz)
2402
2441
2480
39
78
2402
2441
2480
39
78
2402
2441
2480
Limit
Verdict
(kHz)
(MHz)
39
78
Lake Xie
1Mbps
1.051
1.049
1.05
2Mbps
1.358
1.362
1.36
3Mbps
1.337
1.337
1.333
N/A
N/A
N/A
PASS
PASS
PASS
N/A
N/A
N/A
PASS
PASS
PASS
N/A
N/A
N/A
PASS
PASS
PASS
Note: N/A (Not Applicable)
Version.1.2
53
Page 38 of
Report No.:NTEK-2017NT01091147F1
Test Plot
20dB Bandwidth plot on channel 00 (1Mbps)
20dB Bandwidth plot on channel 00 (2Mbps)
20dB Bandwidth plot on channel 39 (1Mbps)
20dB Bandwidth plot on channel 39 (2Mbps)
20dB Bandwidth plot on channel 78 (1Mbps)
20dB Bandwidth plot on channel 78 (2Mbps)
Version.1.2
53
Page 39 of
Report No.:NTEK-2017NT01091147F1
Test Plot
20dB Bandwidth plot on channel 00 (3Mbps)
20dB Bandwidth plot on channel 39 (3Mbps)
20dB Bandwidth plot on channel 78 (3Mbps)
Version.1.2
53
Page 40 of
Report No.:NTEK-2017NT01091147F1
7.7 PEAK OUTPUT POWER
7.7.1
Applicable Standard
According to FCC Part 15.247(b)(1) and ANSI C63.10-2013
7.7.2
Conformance Limit
The maximum peak conducted output power of the intentional radiator shall not exceed the following: (1) For
frequency hopping systems operating in the 2400-2483.5 MHz band employing at least 75 non-overlapping
hopping channels, and all frequency hopping systems in the 5725-5850 MHz band: 1 watt. For all other
frequency hopping systems in the 2400-2483.5 MHz band 0.125 watts.
7.7.3
Measuring Instruments
The Measuring equipment is listed in the section 6.3 of this test report.
7.7.4
Test Setup
Please refer to Section 6.1 of this test report.
7.7.5
Test Procedure
The testing follows ANSI C63.10-2013 clause 7.8.5.
The RF output of EUT was connected to the spectrum analyzer by RF cable and attenuator.
The path loss was compensated to the results for each measurement.
Set to the maximum power setting and enable the EUT transmit continuously.
The EUT was operating in controlled its channel.
Use the following spectrum analyzer settings:
Span = approximately 5 times the 20 dB bandwidth, centered on a hopping channel
RBW  the 20 dB bandwidth of the emission being measured
VBW  RBW
Sweep = auto
Detector function = peak
Trace = max hold
Version.1.2
53
Page 41 of
Report No.:NTEK-2017NT01091147F1
7.7.6
Test Results
EUT:
AIO Advertising Player Model No.:
TC21
Temperature:
20 ℃
48%
Test Mode:
Mode2/Mode3/Mode4 Test By:
Test
Channel
Frequenc
(MHz)
Version.1.2
53
39
78
2402
2441
2480
39
78
2402
2441
2480
39
78
2402
2441
2480
Relative Humidity:
Peak
Output
Power
Power
Setting
(dBm)
1Mbps
Default
7.5
Default
7.41
Default
2Mbps
Default
4.78
Default
4.85
Default
4.14
3Mbps
Default
5.24
Default
5.24
Default
4.47
Lake Xie
LIMIT
Verdict
(dBm)
30
30
30
PASS
PASS
PASS
20.97
20.97
20.97
PASS
PASS
PASS
20.97
20.97
20.97
PASS
PASS
PASS
Page 42 of
Report No.:NTEK-2017NT01091147F1
Test Plot
Peak output Power plot on channel 00 (1Mbps)
Peak output Power plot on channel 00 (2Mbps)
Peak output Power plot on channel 39 (1Mbps)
Peak output Power plot on channel 39 (2Mbps)
Peak output Power plot on channel 78 (1Mbps)
Peak output Power plot on channel 78 (2Mbps)
Version.1.2
53
Page 43 of
Report No.:NTEK-2017NT01091147F1
Test Plot
Peak output Power plot on channel 00 (3Mbps)
Peak output Power plot on channel 39 (3Mbps)
Peak output Power plot on channel 78 (3Mbps)
Version.1.2
53
Page 44 of
Report No.:NTEK-2017NT01091147F1
7.8 CONDUCTED BAND EDGE MEASUREMENT
7.8.1
Applicable Standard
According to FCC Part 15.247(d) and ANSI C63.10-2013
7.8.2
Conformance Limit
In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated
intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall
be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the
desired power, based on either an RF conducted or a radiated measurement, provided the transmitter
demonstrates compliance with the peak conducted power limits. If the transmitter complies with the
conducted power limits based on the use of RMS averaging over a time interval, as permitted under
paragraph (b)(3) of this section, the attenuation required under this paragraph shall be 30 dB instead of 20
dB. Attenuation below the general limits specified in §15.209(a) is not required. In addition, radiated
emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated
emission limits specified in §15.209(a) (see §15.205(c)).
7.8.3
Measuring Instruments
The Measuring equipment is listed in the section 6.3 of this test report.
7.8.4
Test Setup
Please refer to Section 6.1 of this test report.
7.8.5
Test Procedure
The testing follows ANSI C63.10-2013 clause 7.8.6.
The RF output of EUT was connected to the spectrum analyzer by RF cable and attenuator.
The path loss was compensated to the results for each measurement.
Set to the maximum power setting and enable the EUT transmit continuously.
The EUT must have its hopping function enabled.
Use the following spectrum analyzer settings:
Span = approximately 5 times the 20 dB bandwidth, centered on a hopping channel
RBW = 100KHz
VBW = 300KHz
Band edge emissions must be at least 20 dB down from the highest emission level within the authorized
band as measured with a 100kHz RBW. The attenuation shall be 30 dB instead of 20 dB when RMS
conducted output power procedure is used.
Measure the highest amplitude appearing on spectral display and set it as a reference level. Plot the graph
with marking the highest point and edge frequency.
Repeat above procedures until all measured frequencies were complete.
Version.1.2
53
Page 45 of
Report No.:NTEK-2017NT01091147F1
7.8.6
Test Results
EUT:
AIO Advertising Player
Model No.:
TC21
Temperature:
20 ℃
Relative Humidity: 48%
Test Mode:
Mode2 /Mode4/ Mode 5
Test By:
Lake Xie
Note: Hopping enabled and disabled have evaluated,and the wortest data was reported
Test Plot
GFSK: Band Edge-Low Channel
GFSK: Band Edge-High Channel
GFSK: Band Edge-Low Channel (Hopping Mode)
GFSK: Band Edge-High Channel (Hopping Mode)
Version.1.2
53
Page 46 of
Report No.:NTEK-2017NT01091147F1
Test Plot
π /4-DQPSK: Band Edge-Low Channel
π /4-DQPSK: Band Edge-Low Channel
(Hopping Mode)
Version.1.2
53
π /4-DQPSK: Band Edge-High Channel
π /4-DQPSK: Band Edge-High Channel
(Hopping Mode)
Page 47 of
Report No.:NTEK-2017NT01091147F1
Test Plot
8-DPSK: Band Edge-Low Channel
8-DPSK: Band Edge-Low Channel
(Hopping Mode)
Version.1.2
53
8-DPSK: Band Edge-High Channel
8-DPSK: Band Edge-High Channel (Hopping Mode)
Page 48 of
Report No.:NTEK-2017NT01091147F1
7.9 SPURIOUS RF CONDUCTED EMISSION
7.9.1
Applicable Standard
According to FCC Part 15.247(d) and ANSI C63.10-2013.
7.9.2
Conformance Limit
In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated
intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall
be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the
desired power, based on either an RF conducted or a radiated measurement, provided the transmitter
demonstrates compliance with the peak conducted power limits. If the transmitter complies with the
conducted power limits based on the use of RMS averaging over a time interval, as permitted under
paragraph (b)(3) of this section, the attenuation required under this paragraph shall be 30 dB instead of 20
dB. Attenuation below the general limits specified in §15.209(a) is not required. In addition, radiated
emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated
emission limits specified in §15.209(a) (see §15.205(c)).
7.9.3
Measuring Instruments
The Measuring equipment is listed in the section 6.3 of this test report.
7.9.4
Test Setup
Please refer to Section 6.1 of this test report.
7.9.5
Test Procedure
Establish an emission level by using the following procedure:
a) Set the center frequency and span to encompass frequency range to be measured.
b) Set the RBW = 100 kHz.
c) Set the VBW ≥ [3 × RBW].
d) Detector = peak.
e) Sweep time = auto couple.
f) Trace mode = max hold.
g) Allow trace to fully stabilize.
h) Use the peak marker function to determine the maximum amplitude level.
Then the limit shall be attenuated by at least 20 dB relative to the maximum
amplitude level in 100 kHz.
7.9.6
Test Results
Remark: The measurement frequency range is from 9KHz to the 10th harmonic of the fundamental
frequency. The lowest, middle and highest channels are tested to verify the spurious emissions and bandege
measurement data.
The worst mode is GFSK mode, and the report only show the worst mode data.
Version.1.2
53
Page 49 of
Report No.:NTEK-2017NT01091147F1
Test Plot(GFSK)
Version.1.2
53
GFSK on channel 00
GFSK on channel 00
GFSK on channel 00
GFSK on channel 00
Page 50 of
Report No.:NTEK-2017NT01091147F1
Test Plot
Version.1.2
53
GFSK on channel 39
GFSK on channel 39
GFSK on channel 39
GFSK on channel 39
Page 51 of
Report No.:NTEK-2017NT01091147F1
Test Plot
Version.1.2
53
GFSKon channel 78
GFSK on channel 78
GFSK on channel 78
GFSK on channel 78
Page 52 of
Report No.:NTEK-2017NT01091147F1
7.10 ANTENNA APPLICATION
7.10.1 Antenna Requirement
15.203 requirement: For intentional device, according to 15.203: an intentional radiator shall be designed to
ensure that no antenna other than that furnished by the responsible partyshall be used with the device.
7.10.2 Result
The EUT antenna is permanent attached FPCB antenna(Gain:1dBi). It comply with the standard
requirement.
END OF REPORT
Version.1.2
53
Page 53 of
Download: TC21 AIO Advertising Player Test Report ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT Shenzhen HCWY Technology Co., Ltd
Mirror Download [FCC.gov]TC21 AIO Advertising Player Test Report ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT Shenzhen HCWY Technology Co., Ltd
Document ID3548884
Application ID4B//9vEOvee5ou2+jLNa9w==
Document DescriptionTest report DSS
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize102.42kB (1280240 bits)
Date Submitted2017-09-07 00:00:00
Date Available2017-09-07 00:00:00
Creation Date2017-08-31 03:53:03
Producing SoftwareMicrosoft® Office Word 2007
Document Lastmod2017-08-31 03:53:03
Document TitleELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT
Document CreatorMicrosoft® Office Word 2007
Document Author: fly

Source Exif Data:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.5
Linearized                      : No
Page Count                      : 53
Language                        : zh-CN
Tagged PDF                      : Yes
Title                           : ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT
Author                          : fly
Creator                         : Microsoft® Office Word 2007
Create Date                     : 2017:08:31 03:53:03
Modify Date                     : 2017:08:31 03:53:03
Producer                        : Microsoft® Office Word 2007
EXIF Metadata provided by EXIF.tools

Facebook Twitter Google+ RSS © FCCID.io 2017
