Shenzhen CTL Testing Technology Co., Ltd.
Tel: +86-755-89486194 E-mail: [email protected]

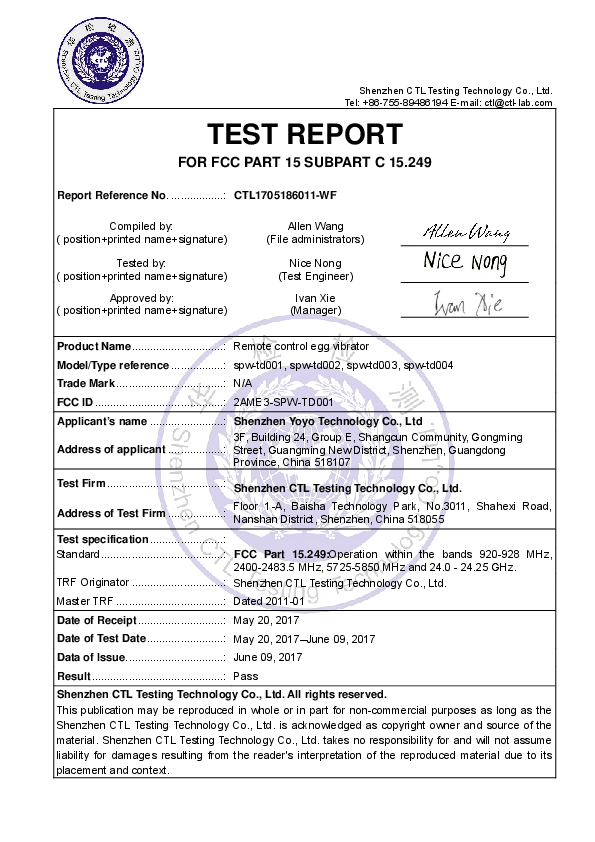

TEST REPORT
FOR FCC PART 15 SUBPART C 15.249
Report Reference No. .................: CTL1705186011-WF
Compiled by:
( position+printed name+signature)
Allen Wang
(File administrators)
Tested by:
( position+printed name+signature)
Nice Nong
(Test Engineer)
Approved by:
( position+printed name+signature)
Ivan Xie
(Manager)
Product Name..............................: Remote control egg vibrator
Model/Type reference .................: spw-td001, spw-td002, spw-td003, spw-td004
Trade Mark ...................................: N/A
FCC ID ..........................................: 2AME3-SPW-TD001
Applicant’s name ........................: Shenzhen Yoyo Technology Co., Ltd
3F, Building 24, Group E, Shangcun Community, Gongming
Address of applicant ..................: Street, Guangming New District, Shenzhen, Guangdong
Province, China 518107
Test Firm ......................................: Shenzhen CTL Testing Technology Co., Ltd.
Address of Test Firm ..................:
Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road,
Nanshan District, Shenzhen, China 518055
Test specification ........................:
Standard........................................: FCC Part 15.249:Operation within the bands 920-928 MHz,
2400-2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz.
TRF Originator ..............................: Shenzhen CTL Testing Technology Co., Ltd.
Master TRF ...................................: Dated 2011-01
Date of Receipt............................: May 20, 2017
Date of Test Date .........................: May 20, 2017–June 09, 2017
Data of Issue................................: June 09, 2017
Result ...........................................: Pass
Shenzhen CTL Testing Technology Co., Ltd. All rights reserved.
This publication may be reproduced in whole or in part for non-commercial purposes as long as the
Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the
material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume
liability for damages resulting from the reader's interpretation of the reproduced material due to its
placement and context.
V1.0
Page 2 of 22
Report No.: CTL1705186011-WF
TEST REPORT
Test Report No. :
CTL1705186011-WF
June 09, 2017
Date of issue
Equipment under Test
Remote control egg vibrator
Model /Type
spw-td001, spw-td002, spw-td003, spw-td004
Applicant
Shenzhen Yoyo Technology Co., Ltd
Address
3F, Building 24, Group E, Shangcun Community,
Gongming Street, Guangming New District,
Shenzhen, Guangdong Province, China 518107
Manufacturer
Shenzhen Yoyo Technology Co., Ltd
Address
3F, Building 24, Group E, Shangcun Community,
Gongming Street, Guangming New District,
Shenzhen, Guangdong Province, China 518107
Test result
Pass *
* In the configuration tested, the EUT complied with the standards specified page 5.
The test report merely corresponds to the test sample.
It is not permitted to copy extracts of these test result without the written permission of the test laboratory.
V1.0
Page 3 of 22
Report No.: CTL1705186011-WF
** Modified History **
Revision
Version 1.0
Description
Initial Test Report Release
Issued Data
June 09, 2017
Report No.
CTL1705186011-WF
Remark
Tracy Qi
V1.0
Page 4 of 22
Table of Contents
1.
TEST STANDARDS.....................................................................................................................................................5
TEST DESCRIPTION ........................................................................................................................................................5
TEST FACILITY ..............................................................................................................................................................6
STATEMENT OF THE MEASUREMENT UNCERTAINTY ...............................................................................................................6
GENERAL INFORMATION....................................................................................................................................... 7
2.1.
2.2.
2.3.
2.4.
2.5.
2.6.
3.
Page
SUMMARY............................................................................................................................................................ 5
1.1.
1.2.
1.3.
1.4.
2.
Report No.: CTL1705186011-WF
ENVIRONMENTAL CONDITIONS ........................................................................................................................................7
GENERAL DESCRIPTION OF EUT ......................................................................................................................................7
DESCRIPTION OF TEST MODES AND TEST FREQUENCY ..........................................................................................................7
EQUIPMENTS USED DURING THE TEST ..............................................................................................................................8
RELATED SUBMITTAL(S) / GRANT(S).................................................................................................................................8
MODIFICATIONS ...........................................................................................................................................................8
TEST CONDITIONS AND RESULTS ........................................................................................................................... 9
3.1.
3.2.
3.3.
3.4.
CONDUCTED EMISSIONS TEST .........................................................................................................................................9
RADIATED EMISSIONS AND BAND EDGE ..........................................................................................................................10
OCCUPIED BANDWIDTH MEASUREMENT .........................................................................................................................15
ANTENNA REQUIREMENT .............................................................................................................................................16
4.
TEST SETUP PHOTOS OF THE EUT ........................................................................................................................ 17
5.
EXTERNAL AND INTERNAL PHOTOS OF THE EUT .................................................................................................. 18
V1.0
Page 5 of 22
Report No.: CTL1705186011-WF
1. SUMMARY
1.1. TEST STANDARDS
The tests were performed according to following standards:
FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875
MHz, and 24.0 - 24.25 GHz.
ANSI C63.10:2013 : American National Standard for Testing Unlicensed Wireless Devices
ANSI C63.4: 2014: –American National Standard for Methods of Measurement of Radio-Noise
Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40GHz
Range of 9 kHz to 40GHz
1.2. Test Description
FCC PART 15.249
FCC Part 15.249(a)
Field Strength of Fundamental
PASS
FCC Part 15.209
Spurious Emission
PASS
FCC Part 15.209
Band edge
PASS
FCC Part 15.215(c)
20dB bandwidth
PASS
FCC Part 15.207
Conducted Emission
N/A
FCC Part 15.203
Antenna Requirement
PASS
V1.0
Page 6 of 22
Report No.: CTL1705186011-WF
1.3. Test Facility
1.3.1 Address of the test laboratory
Shenzhen CTL Testing Technology Co., Ltd.
Floor 1-A, Baisha Technology Park, No. 3011, Shahexi Road, Nanshan, Shenzhen 518055 China
There is one 3m semi-anechoic chamber and two line conducted labs for final test. The Test Sites
meet the requirements in documents ANSI C63.4 and CISPR 22/EN 55022 requirements.
1.3.2 Laboratory accreditation
The test facility is recognized, certified, or accredited by the following organizations:
IC Registration No.: 9618B
The 3m alternate test site of Shenzhen CTL Testing Technology Co., Ltd. EMC Laboratory has been
registered by Certification and Engineer Bureau of Industry Canada for the performance of with
Registration No.: 9618B on November 13, 2013.
FCC-Registration No.: 970318
Shenzhen CTL Testing Technology Co., Ltd. EMC Laboratory has been registered and fully described
in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the
FCC is maintained in our files. Registration 970318, December 19, 2013.
1.4. Statement of the measurement uncertainty
The data and results referenced in this document are true and accurate. The reader is cautioned that
there may be errors within the calibration limits of the equipment and facilities. The measurement
uncertainty was calculated for all measurements listed in this test report acc. to CISPR 16 - 4
„Specification for radio disturbance and immunity measuring apparatus and methods – Part 4:
Uncertainty in EMC Measurements“ and is documented in the Shenzhen CTL Testing Technology Co.,
Ltd. quality system acc. to DIN EN ISO/IEC 17025. Furthermore, component and process variability of
devices similar to that tested may result in additional deviation. The manufacturer has the sole
responsibility of continued compliance of the device.
Hereafter the best measurement capability for CTL laboratory is reported:
Test
Range
Measurement
Uncertainty
4.10dB
4.32dB
Notes
Radiated Emission
30~1000MHz
(1)
Radiated Emission
Above 1GHz
(1)
Conducted
0.15~30MHz
3.20dB
(1)
Disturbance
(1) This uncertainty represents an expanded uncertainty expressed at approximately the 95%
confidence level using a coverage factor of k=2.
V1.0
Page 7 of 22
Report No.: CTL1705186011-WF
2. GENERAL INFORMATION
2.1. Environmental conditions
During the measurement the environmental conditions were within the listed ranges:
Normal Temperature:
25°C
Relative Humidity:
55 %
Air Pressure:
101 kPa
2.2. General Description of EUT
Product Name:
Remote control egg vibrator
Model/Type reference:
spw-td001
Power supply:
DC 12V from battery
2.4G wireless
Modulation:
GFSK
Operation frequency:
2450MHz
Channel number:
Antenna type:
Internal Antenna
Antenna gain:
0dBi
Note: For more details, please refer to the user’s manual of the EUT.
2.3. Description of Test Modes and Test Frequency
The Applicant provides communication tools software to control the EUT for staying in continuous
transmitting (Duty Cycle more than 98%) and receiving mode for testing.
V1.0
Page 8 of 22
Report No.: CTL1705186011-WF
2.4. Equipments Used during the Test
Test Equipment
Manufacturer
Model No.
Serial No.
Calibration
Date
Calibration
Due Date
LISN
R&S
ENV216
3560.6550.1
2017/05/20
2018/05/19
LISN
R&S
ESH2-Z5
860014/010
2017/05/20
2018/05/19
Bilog Antenna
Sunol Sciences
Corp.
JB1
A061713
2017/05/20
2018/05/19
EMI Test Receiver
R&S
ESCI
103710
2017/05/20
2018/05/19
Spectrum Analyzer
Agilent
E4407B
MY41440676
2017/05/20
2018/05/19
Spectrum Analyzer
Agilent
N9020
US46220290
2017/05/20
2018/05/19
Controller
EM Electronics
Controller EM
1000
N/A
2017/05/20
2018/05/19
Horn Antenna
Sunol Sciences
Corp.
DRH-118
A062013
2017/05/20
2018/05/19
Active Loop
Antenna
SCHWARZBE
CK
FMZB1519
1519-037
2017/05/20
2018/05/19
Amplifier
Agilent
8349B
3008A02306
2017/05/20
2018/05/19
Amplifier
Agilent
8447D
2944A10176
2017/05/20
2018/05/19
Temperature/Humi
dity Meter
Gangxing
CTH-608
02
2017/05/20
2018/05/19
High-Pass Filter
K&L
9SH10-2700/X1
2750-O/O
N/A
2017/05/20
2018/05/19
High-Pass Filter
K&L
41H10-1375/U1
2750-O/O
N/A
2017/05/20
2018/05/19
Coaxial Cables
HUBER+SUHN
ER
SUCOFLEX
104PEA-10M
10m
2017/05/20
2018/05/19
Coaxial Cables
HUBER+SUHN
ER
SUCOFLEX
104PEA-3M
3m
2017/05/20
2018/05/19
Coaxial Cables
HUBER+SUHN
ER
SUCOFLEX
104PEA-3M
3m
2017/05/20
2018/05/19
RF-A303
N/A
2017/05/20
2018/05/19
RF Cable
Megalon
The calibration interval was one year
2.5. Related Submittal(s) / Grant(s)
This submittal(s) (test report) is intended to comply with Section 15.249 of the FCC Part 15, Subpart C
Rules.
2.6. Modifications
No modifications were implemented to meet testing criteria.
V1.0
Page 9 of 22
Report No.: CTL1705186011-WF
3. TEST CONDITIONS AND RESULTS
3.1. Conducted Emissions Test
LIMIT
FCC CFR Title 47 Part 15 Subpart C Section 15.207
Frequency range (MHz)
Limit (dBuV)
Quasi-peak
Average
0.15-0.5
66 to 56*
56 to 46*
0.5-5
56
46
5-30
60
50
* Decreases with the logarithm of the frequency.
TEST CONFIGURATION
TEST PROCEDURE
1.
2.
3.
4.
5.
6.
7.
8.
The equipment was set up as per the test configuration to simulate typical actual usage per the
user’s manual. The EUT is a tabletop system; a wooden table with a height of 0.8 meters is used
and is placed on the ground plane as per ANSI C63.10:2013.
Support equipment, if needed, was placed as per ANSI C63.10:2013.
All I/O cables were positioned to simulate typical actual usage as per ANSI C63.10:2013.
If a EUT received DC power from the USB Port of Notebook PC, the PC’s adapter received
AC120V/60Hz power through a Line Impedance Stabilization Network (LISN) which supplied
power source and was grounded to the ground plane.
All support equipments received AC power from a second LISN, if any.
The EUT test program was started. Emissions were measured on each current carrying line of
the EUT using a spectrum Analyzer / Receiver connected to the LISN powering the EUT. The
LISN has two monitoring points: Line 1 (Hot Side) and Line 2 (Neutral Side). Two scans were
taken: one with Line 1 connected to Analyzer / Receiver and Line 2 connected to a 50 ohm load;
the second scan had Line 1 connected to a 50 ohm load and Line 2 connected to the Analyzer /
Receiver.
Analyzer / Receiver scanned from 150 KHz to 30MHz for emissions in each of the test modes.
During the above scans, the emissions were maximized by cable manipulation.
TEST RESULTS
Not applicable to this device.
V1.0
Page 10 of 22
Report No.: CTL1705186011-WF
3.2. Radiated Emissions and Band Edge
Limit
According 15.249, the field strength of emissions from intentional radiators operated within
2400MHz-2483.5 MHz shall not exceed 94dBμV/m (50mV/m):
FCC PART 15.249(d) Emissions radiated outside of the specified frequency bands, except for
harmonics, shall be attenuated by at least 50 dB below the level of the fundamental or to the general
radiated emission limits in §15.209, whichever is the lesser attenuation.
In addition, radiated emissions which fall in the restricted bands, as defined in §15.205(a), must also
comply with the radiated emission limits specified in §15.209(a)
Frequency (MHz)
Radiated emission limits
Distance (Meters)
Radiated (dBμV/m)
Radiated (μV/m)
0.009-0.49
20log(2400/F(KHz))+40log(300/3)
2400/F(KHz)
0.49-1.705
20log(24000/F(KHz))+ 40log(30/3)
24000/F(KHz)
1.705-30
20log(30)+ 40log(30/3)
30
30-88
40.0
100
88-216
43.5
150
216-960
46.0
200
Above 960
54.0
500
TEST CONFIGURATION
(A) Radiated Emission Test Set-Up, Frequency Below 30MHz
(B) Radiated Emission Test Set-Up, Frequency below 1000MHz
V1.0
Page 11 of 22
Report No.: CTL1705186011-WF
(C) Radiated Emission Test Set-Up, Frequency above 1000MHz
Test Procedure
1.
Below 1GHz measurement the EUT is placed on a turntable which is 0.8m above ground plane,
and above 1GHz measurement EUT was placed on a low permittivity and low loss tangent turn
table which is 1.5m above ground plane.
2.
Maximum procedure was performed by raising the receiving antenna from 1m to 4m and rotating
the turn table from 0℃ to 360℃ to acquire the highest emissions from EUT
3.
And also, each emission was to be maximized by changing the polarization of receiving antenna
both horizontal and vertical.
4.
Repeat above procedures until all frequency measurements have been completed.
TEST RESULTS
Remark: Radiated emission test from 9 KHz to 10th harmonic of fundamental was verified, and no
emission found except system noise floor in 9 KHz to 30MHz and not recorded in this
report.
V1.0
Page 12 of 22
For 30MHz-1GHz
Horizontal
Vertical
Note:
1. Margin = Limit - level
Report No.: CTL1705186011-WF
V1.0
Page 13 of 22
Report No.: CTL1705186011-WF
For 1GHz to 25GHz
Frequency(MHz):
2450
Polarity:
HORIZONTAL
Frequency
Emission
Limit
Margin
Raw
Antenna
Cable
(MHz)
Level
(dBuV/m)
57.33
PK
50.16
AV
42.39
PK
-AV
47.42
PK
-AV
(dBuV/m)
(dB)
74
54
74
54
74
54
16.67
3.84
31.61
-26.58
--
Value
(dBuV)
50.97
43.80
34.79
-35.72
--
Factor
(dB/m)
33.60
33.60
34.56
-37.46
--
Factor
(dB)
6.95
6.95
7.15
-9.23
--
4900.00
4900.00
5108.75
5108.75
7350.00
7350.00
Frequency(MHz):
2450
Polarity:
34.19
34.19
34.11
-35.00
--
Correction
Factor
(dB/m)
6.36
6.36
7.60
-11.70
--
VERTICAL
Frequency
Emission
Limit
Margin
Raw
Antenna
Cable
(MHz)
Level
(dBuV/m)
57.12
PK
50.69
AV
43.14
PK
-AV
48.06
PK
-AV
(dBuV/m)
(dB)
74
54
74
54
74
54
16.88
3.31
30.86
-25.94
--
Value
(dBuV)
50.76
44.33
35.54
-36.36
--
Factor
(dB/m)
33.60
33.60
34.56
-37.46
--
Factor
(dB)
6.95
6.95
7.15
-9.23
--
4900.00
4900.00
5108.75
5108.75
7350.00
7350.00
Preamplifier
(dB)
Preamplifier
(dB)
34.19
34.19
34.11
-35.00
--
Correction
Factor
(dB/m)
6.36
6.36
7.60
-11.70
--
V1.0
Page 14 of 22
Report No.: CTL1705186011-WF
Results of Band Edges Test (Radiated)
Frequency(MHz):
2450
Polarity:
HORIZONTAL
Frequency
Emission
Limit
Margin
Raw
Antenna
Cable
(MHz)
Level
(dBuV/m)
96.82
PK
90.47
AV
42.71
PK
-AV
43.02
PK
-AV
42.97
PK
-AV
(dBuV/m)
(dB)
--74
54
74
54
74
54
--31.29
-30.98
-31.03
--
Value
(dBuV)
63.43
57.08
9.63
-9.7
-9.58
--
Factor
(dB/m)
28.78
28.78
28.52
-28.72
-28.78
--
Factor
(dB)
4.61
4.61
4.56
-4.60
-4.61
--
2450.00
2450.00
2483.50
2483.50
2390.00
2390.00
2400.00
2400.00
Frequency(MHz):
2450
Polarity:
VERTICAL
Frequency
Emission
Limit
Margin
Raw
Antenna
Cable
(MHz)
Level
(dBuV/m)
97.03
PK
91.56
AV
42.67
PK
-AV
43.11
PK
-AV
43.34
PK
-AV
(dBuV/m)
(dB)
--74
54
74
54
74
54
--31.33
-30.89
-30.66
--
Value
(dBuV)
63.64
58.17
9.59
-9.79
-9.95
--
Factor
(dB/m)
28.78
28.78
28.52
-28.72
-28.78
--
Factor
(dB)
4.61
4.61
4.56
-4.60
-4.61
--
2450.00
2450.00
2483.50
2483.50
2390.00
2390.00
2400.00
2400.00
PreCorrection
amplifier
(dB)
Factor
(dB/m)
33.39
33.39
33.08
--0
33.32
--0
33.39
---
PreCorrection
amplifier
(dB)
Factor
(dB/m)
33.39
33.39
33.08
--0
33.32
--0
33.39
---
REMARKS:
1. Emission level (dBuV/m) =Raw Value (dBuV)+Correction Factor (dB/m)
2. Correction Factor (dB/m) = Antenna Factor (dB/m)+Cable Factor (dB)-Pre-amplifier Factor
3. Margin value = Limit value- Emission level.
4. -- Mean the PK detector measured value is below average limit.
5. The other emission levels were very low against the limit.
6. RBW1MHz VBW3MHz Peak detector is for PK value; RBW 1MHz VBW10Hz Peak
detector is for AV value.
7. For fundamental frequency, RBW 3MHz VBW 3MHz Peak detector is for PK Value; RMS
detector is for AV value.
V1.0
Page 15 of 22
Report No.: CTL1705186011-WF
3.3. Occupied Bandwidth Measurement
Limit
N/A
Test Configuration
EUT
SPECTRUM
ANALYZER
Test Procedure
The transmitter output was connected to the spectrum analyzer through an attenuator. The bandwidth
of the fundamental frequency was measured by spectrum analyzer with 30 KHz RBW and 100 KHz
VBW.
The 20dB bandwidth is defined as the total spectrum the power of which is higher than peak power
minus 20dB.
Test Results
Modulation
Frequency
(MHz)
99% OBW
(MHz)
20dB bandwidth
(MHz)
Result
GFSK
2450
1.2145
1.229
Pass
Test plot as follows:
V1.0
Page 16 of 22
Report No.: CTL1705186011-WF
3.4. Antenna Requirement
Standard Applicable
For intentional device, according to FCC 47 CFR Section 15.203, an intentional radiator shall be
designed to ensure that no antenna other than that furnished by the responsible party shall be used
with the device.
Refer to statement below for compliance.
The manufacturer may design the unit so that the user can replace a broken antenna, but the use of a
standard antenna jack or electrical connector is prohibited. Further, this requirement does not apply to
intentional radiators that must be professionally installed.
Antenna Connected Construction
The antenna used in this product is an internal Antenna, The directional gains of antenna used for
transmitting is 0dBi.
antenna
V1.0
Page 17 of 22
4. Test Setup Photos of the EUT
Report No.: CTL1705186011-WF
V1.0
Page 18 of 22
5. External and Internal Photos of the EUT
External Photos of EUT
Report No.: CTL1705186011-WF
V1.0
Page 19 of 22
Report No.: CTL1705186011-WF
V1.0
Page 20 of 22
Internal Photos of EUT
Report No.: CTL1705186011-WF
V1.0
Page 21 of 22
Report No.: CTL1705186011-WF
V1.0
Page 22 of 22
Report No.: CTL1705186011-WF
Antenna
********************** End of Report **********************
Download: SPW-TD001 Remote control egg vibrator Test Report CTL1705186011-WF FCC 15.249 Shenzhen Yoyo Technology Co., Ltd
Mirror Download [FCC.gov]SPW-TD001 Remote control egg vibrator Test Report CTL1705186011-WF FCC 15.249 Shenzhen Yoyo Technology Co., Ltd
Document ID3429766
Application IDsTxD7lWH+vGIP7SVLxoHKQ==
Document DescriptionTest report
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize102.26kB (1278270 bits)
Date Submitted2017-06-17 00:00:00
Date Available2017-06-17 00:00:00
Creation Date2017-06-09 11:16:12
Producing SoftwareAcrobat Distiller 9.0.0 (Windows)
Document Lastmod2017-06-09 11:16:12
Document TitleCTL1705186011-WF FCC 15.249
Document CreatorPScript5.dll Version 5.2.2
Document Author: Administrator

Source Exif Data:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.5
Linearized                      : Yes
Author                          : Administrator
Create Date                     : 2017:06:09 11:16:12+08:00
Modify Date                     : 2017:06:09 11:16:12+08:00
XMP Toolkit                     : Adobe XMP Core 4.2.1-c041 52.342996, 2008/05/07-20:48:00
Format                          : application/pdf
Title                           : Microsoft Word - CTL1705186011-WF FCC 15.249 .doc
Creator                         : Administrator
Creator Tool                    : PScript5.dll Version 5.2.2
Producer                        : Acrobat Distiller 9.0.0 (Windows)
Document ID                     : uuid:4bc39b04-01af-4bf0-998b-f13f2225ba37
Instance ID                     : uuid:c0a08d7d-1157-440e-9c0a-7b8b5a106ea2
Page Count                      : 22
EXIF Metadata provided by EXIF.tools

Facebook Twitter Google+ RSS © FCCID.io 2017
