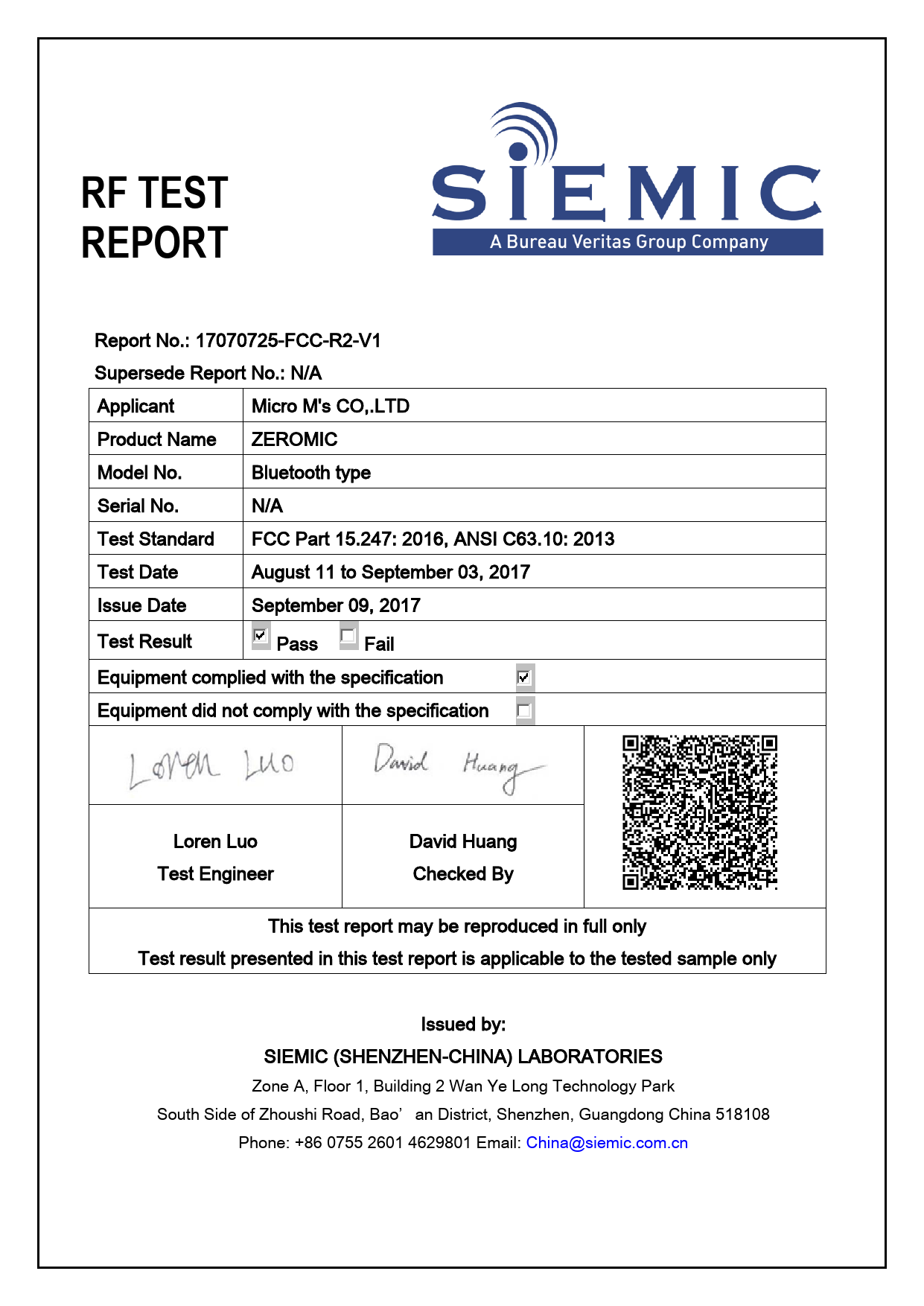

RF TEST
REPORT
Report No.: 17070725-FCC-R2-V1
Supersede Report No.: N/A
Applicant
Micro M's CO,.LTD
Product Name
ZEROMIC
Model No.
Bluetooth type
Serial No.
N/A
Test Standard
FCC Part 15.247: 2016, ANSI C63.10: 2013
Test Date
August 11 to September 03, 2017
Issue Date
September 09, 2017
Test Result
Pass
Fail
Equipment complied with the specification
Equipment did not comply with the specification
Loren Luo
David Huang
Test Engineer
Checked By
This test report may be reproduced in full only
Test result presented in this test report is applicable to the tested sample only
Issued by:
SIEMIC (SHENZHEN-CHINA) LABORATORIES
Zone A, Floor 1, Building 2 Wan Ye Long Technology Park
South Side of Zhoushi Road, Bao’ an District, Shenzhen, Guangdong China 518108
Phone: +86 0755 2601 4629801 Email: [email protected]
Test Report No.
17070725-FCC-R2-V1
Page
2 of 47
Laboratories Introduction
SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one
of the leading independent testing and certification facilities providing customers with one-stop
shop services for Compliance Testing and Global Certifications.
In addition to testing and certification, SIEMIC provides initial design reviews and compliance
management throughout a project. Our extensive experience with China, Asia Pacific, North
America, European, and International compliance requirements, assures the fastest, most cost
effective way to attain regulatory compliance for the global markets.
Accreditations for Conformity Assessment
Country/Region
Scope
USA
EMC, RF/Wireless, SAR, Telecom
Canada
EMC, RF/Wireless, SAR, Telecom
Taiwan
EMC, RF, Telecom, SAR, Safety
Hong Kong
RF/Wireless, SAR, Telecom
Australia
EMC, RF, Telecom, SAR, Safety
Korea
EMI, EMS, RF, SAR, Telecom, Safety
Japan
EMI, RF/Wireless, SAR, Telecom
Singapore
EMC, RF, SAR, Telecom
Europe
EMC, RF, SAR, Telecom, Safety
Test Report No.
17070725-FCC-R2-V1
Page
3 of 47
This page has been left blank intentionally.
Test Report No.
17070725-FCC-R2-V1
Page
4 of 47
CONTENTS
1.
REPORT REVISION HISTORY ............................................................................................................ 5
2.
CUSTOMER INFORMATION ................................................................................................................ 5
3.
TEST SITE INFORMATION .................................................................................................................. 5
4.
EQUIPMENT UNDER TEST (EUT) INFORMATION ............................................................................. 7
5.
TEST SUMMARY ................................................................................................................................. 8
6.
MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ............................................................ 9
6.1 ANTENNA REQUIREMENT ................................................................................................................... 9
6.2 DTS (6 DB) CHANNEL BANDWIDTH ................................................................................................... 10
6.3 MAXIMUM OUTPUT POWER............................................................................................................... 12
6.4 POWER SPECTRAL DENSITY ............................................................................................................ 14
6.5 BAND-EDGE & UNWANTED EMISSIONS INTO RESTRICTED FREQUENCY BANDS ....................... 16
6.6 AC POWER LINE CONDUCTED EMISSIONS...................................................................................... 19
6.7 RADIATED EMISSIONS & RESTRICTED BAND .................................................................................. 25
ANNEX A. TEST INSTRUMENT ................................................................................................................ 32
ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ............................................................................... 33
ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ..................................................................... 42
ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PARTLIST ........................................... 46
ANNEX E. DECLARATION OF SIMILARITY ............................................................................................. 47
Test Report No.
17070725-FCC-R2-V1
Page
5 of 47
1. Report Revision History
Report No.
Report Version
Description
Issue Date
17070725-FCC-R2
NONE
Original
September 04, 2017
17070725-FCC-R2-V1
V1
Updated the FCC ID and Max.
Output Power data
September 09, 2017
2. Customer information
Applicant Name
Micro M's CO,.LTD
Applicant Add
Toranomon KT Building 2F ,5 11 15
Manufacturer
Micro Ms , Inc
Manufacturer Add
105-0001 Toranomon KT Building 2F ,5-11-15 Toranomon, Minato-
Toranomon, Minato-Ku,Tokyo,JAPAN
Ku,Tokyo.JAPAN
3. Test site information
Test Lab A:
Lab performing tests
SIEMIC (Shenzhen-China) LABORATORIES
Zone A, Floor 1, Building 2 Wan Ye Long Technology Park
Lab Address
South Side of Zhoushi Road, Bao’ an District, Shenzhen, Guangdong China
518108
FCC Test Site No.
535293
IC Test Site No.
4842E-1
Test Software
Radiated Emission Program-To Shenzhen v2.0
Test Lab B:
Lab performing tests
Lab Address
SIEMIC (Nanjing-China) Laboratories
2-1 Longcang Avenue Yuhua Economic and
Technology Development Park, Nanjing, China
FCC Test Site No.
694825
IC Test Site No.
4842B-1
Test Software
EZ_EMC(ver.Icp-03A1)
Test Report No.
17070725-FCC-R2-V1
Page
6 of 47
Note: We just perform Radiated Spurious Emission above 18GHz in the test Lab. B
Test Report No.
17070725-FCC-R2-V1
Page
7 of 47
4. Equipment under Test (EUT) Information
Description of EUT:
ZEROMIC
Main Model:
Bluetooth type
Serial Model:
N/A
Date EUT received:
August 10, 2017
Test Date(s):
August 11 to September 03, 2017
Equipment Category:
DTS
Antenna Gain:
Bluetooth/BLE: -0.5dBi
Antenna Type:
Patch antenna
Type of Modulation:
Bluetooth: GFSK, π /4DQPSK, 8DPSK
BLE: GFSK
RF Operating Frequency (ies):
Bluetooth& BLE: 2402-2480 MHz
Max. Output Power:
-0.886dBm
Number of Channels:
Bluetooth: 79CH
BLE: 40CH
Port:
USB Port, Earphone Port
Trade Name :
N/A
Input Power:
FCC ID:
Battery:
Spec: 3.7V, 250mAh
2ANDG-ZEROMIC
Test Report No.
17070725-FCC-R2-V1
Page
8 of 47
5. Test Summary
The product was tested in accordance with the following specifications.
All testing has been performed according to below product classification:
FCC Rules
Description of Test
Result
§15.203
Antenna Requirement
Compliance
§15.247 (a)(2)
DTS (6 dB) CHANNEL BANDWIDTH
Compliance
§15.247(b)(3)
Conducted Maximum Output Power
Compliance
§15.247(e)
Power Spectral Density
Compliance
Band-Edge & Unwanted Emissions into Restricted
§15.247(d)
Frequency Bands
§15.207 (a),
AC Power Line Conducted Emissions
§15.205, §15.209,
Radiated Emissions & Unwanted Emissions
§15.247(d)
into Restricted Frequency Bands
Compliance
Compliance
Compliance
Measurement Uncertainty
Emissions
Test Item
Band-Edge
Description
Uncertainty
Unwanted
Emissions into Restricted
Frequency
Bands
Radiated
Emissions
and
Unwanted Emissions
Confidence level of approximately 95% (in the case
where distributions are normal), with a coverage
+5.6dB/-4.5dB
factor of 2 (for EUTs < 0.5m X 0.5m X 0.5m)
into Restricted Frequency
Bands
Test Report No.
17070725-FCC-R2-V1
Page
9 of 47
6. Measurements, Examination And Derived Results
6.1 Antenna Requirement
Applicable Standard
According to § 15.203, an intentional radiator shall be designed to ensure that no antenna other than that
furnished by the responsible party shall be used with the device. The use of a permanently attached antenna
or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to
comply with the provisions of this section. The manufacturer may design the unit so that a broken antenna
can be replaced by the user, but the user of a standard antenna jack or electrical connector is prohibited.
The structure and application of the EUT were analyzed to determine compliance with section §15.203 of the
rules. §15.203 state that the subject device must meet the following criteria:
a. Antenna must be permanently attached to the unit.
b. Antenna must use a unique type of connector to attach to the EUT.
Unit must be professionally installed, and installer shall be responsible for verifying that the correct antenna
is employed with the unit.
And according to FCC 47 CFR section 15.247 (b), if the transmitting antennas of directional gain greater than
6dBi are used, the power shall be reduced by the amount in dB that the directional gain of the antenna
exceeds 6 dBi.
Antenna Connector Construction
The EUT has 1 antenna:
A permanently attached Patch antenna for Bluetooth/BLE, the gain is -0.5dBi for Bluetooth/BLE.
The antenna meets up with the ANTENNA REQUIREMENT.
Result: Compliance.
Test Report No.
17070725-FCC-R2-V1
Page
10 of 47
6.2 DTS (6 dB) Channel Bandwidth
Temperature
26 oC
Relative Humidity
55%
Atmospheric Pressure
1017mbar
Test date :
August 18, 2017
Tested By :
Loren Luo
Spec
Item
Requirement
Applicable
§ 15.247(a)(2)
a)
6dB BW≥ 500kHz;
RSS Gen(4.6.1)
b)
99% BW: For FCC reference only; required by IC.
Test Setup
Spectrum Analyzer
EUT
558074 D01 DTS MEAS Guidance v03r03, 8.1 DTS bandwidth
6dB Emission bandwidth measurement procedure
Test Procedure
Set RBW = 100 kHz.
Set the video bandwidth (VBW) ≥ 3 RBW.
Detector = Peak.
Trace mode = max hold.
Sweep = auto couple.
Allow the trace to stabilize.
Measure the maximum width of the emission that is constrained by the
frequencies associated with the two outermost amplitude points (upper and
lower frequencies) that are attenuated by 6 dB relative to the maximum
level measured in the fundamental emission.
Remark
Result
Pass
Fail
Test Data
Yes
N/A
Test Plot
Yes (See below)
N/A
Test Report No.
17070725-FCC-R2-V1
Page
11 of 47
6dB Bandwidth measurement result
Test Data
99% Occupied Bandwidth
CH
Frequency (MHz)
6dB Bandwidth (kHz)
Low
2402
724.891
1.0561
Mid
2440
725.065
1.0552
High
2480
740.264
1.0557
(MHz)
Test Plots
6dB Bandwidth - Low CH 2402
6dB Bandwidth - High CH 2480
6dB Bandwidth - Mid CH 2440
Test Report No.
17070725-FCC-R2-V1
Page
12 of 47
6.3 Maximum Output Power
Temperature
26 oC
Relative Humidity
55%
Atmospheric Pressure
1017mbar
Test date :
August 18, 2017
Tested By :
Loren Luo
Requirement(s):
Spec
§15.247(b)
(3),RSS210
(A8.4)
Item
Requirement
a)
FHSS in 2400-2483.5MHz with ≥ 75 channels: ≤ 1 Watt
b)
FHSS in 5725-5850MHz: ≤ 1 Watt
c)
For all other FHSS in the 2400-2483.5MHz band: ≤ 0.125
Applicable
Watt.
d)
FHSS in 902-928MHz with ≥ 50 channels: ≤ 1 Watt
e)
FHSS in 902-928MHz with ≥ 25 & <50 channels: ≤ 0.25
Watt
f)
DTS in 902-928MHz, 2400-2483.5MHz: ≤ 1 Watt
Test Setup
Spectrum Analyzer
EUT
558074 D01 DTS MEAS Guidance v03r03, 9.1.2 Integrated band power method
Maximum output power measurement procedure
a) Set the RBW ≥ DTS bandwidth.
b) Set VBW ≥ 3 × RBW.
Test
c) Set span ≥ 3 x RBW
Procedure
d) Sweep time = auto couple.
e) Detector = peak.
f) Trace mode = max hold.
g) Allow trace to fully stabilize.
h) Use peak marker function to determine the peak amplitude level.
Remark
Result
Pass
Fail
Test Report No.
17070725-FCC-R2-V1
Page
13 of 47
Test Data
Yes
N/A
Test Plot
Yes (See below)
N/A
Output Power measurement result
Test Data
Type
Output
power
Frequency
Conducted
Limit
(MHz)
Power (dBm)
(dBm)
Low
2402
-0.886
30
Pass
Mid
2440
-1.971
30
Pass
High
2480
-1.093
30
Pass
CH
Result
Test Plots
AV Output power - Low CH 2402
AV Output power - High CH 2480
AV Output power - Mid CH 2440
Test Report No.
17070725-FCC-R2-V1
Page
14 of 47
6.4 Power Spectral Density
Temperature
25 oC
Relative Humidity
57%
Atmospheric Pressure
1018mbar
Test date :
August 19, 2017
Tested By :
Loren Luo
Spec
Item
Requirement
Applicable
The power spectral density conducted from the
§15.247(e)
a)
intentional radiator to the antenna shall not be greater
than 8 dBm in any 3 kHz band during any time
interval of continuous transmission.
Test Setup
Spectrum Analyzer
EUT
558074 D01 DTS MEAS Guidance v03r03, 10.2 power spectral density method
power spectral density measurement procedure
Test
Procedure
a) Set analyzer center frequency to DTS channel center frequency.
b) Set the span to 1.5 times the DTS bandwidth.
c) Set the RBW to: 3 kHz ≤ RBW ≤ 100 kHz.
d) Set the VBW ≥ 3 × RBW.
e) Detector = peak.
f) Sweep time = auto couple.
g) Trace mode = max hold.
h) Allow trace to fully stabilize.
i) Use the peak marker function to determine the maximum amplitude level within
the RBW.
j) If measured value exceeds limit, reduce RBW (no less than 3 kHz) and repeat.
Remark
Result
Pass
Fail
Test Data
Yes
N/A
Test Plot
Yes (See below)
N/A
Test Report No.
17070725-FCC-R2-V1
Page
15 of 47
Power Spectral Density measurement result
Test Data
Type
PSD
CH
Freq
(MHz)
Reading
Factor
(dBm)
(dB)
Result
Limit
(dBm)
(dBm)
Result
Low
2402
-11.23
-5.23
-16.46
Pass
Mid
2440
-9.40
-5.23
-14.63
Pass
High
2480
-8.61
-5.23
-13.84
Pass
Note: factor=10log(3/10)=-5.23
Test Plots
PSD - Low CH 2402
PSD - High CH 2480
PSD - Mid CH 2440
Test Report No.
17070725-FCC-R2-V1
Page
16 of 47
6.5 Band-Edge & Unwanted Emissions into Restricted Frequency Bands
Temperature
24 oC
Relative Humidity
54%
Atmospheric Pressure
1020mbar
Test date :
August 29, 2017
Tested By :
Loren Luo
Requirement(s):
Spec
Item
Requirement
Applicable
In any 100 kHz bandwidth outside the frequency band in
which the spread spectrum or digitally modulated intentional
radiator is operating, the radio frequency power that is
produced by the intentional radiator shall be at least 20 dB
§15.247(d)
a)
below that in the 100 kHz bandwidth within the band that
contains the highest level of the desired power, based on
either an RF conducted or a radiated measurement,
provided the transmitter demonstrates compliance with the
peak conducted power limits.
Test Setup
Radiated Method Only
Test
Procedure
1. Check the calibration of the measuring instrument using either an internal
calibrator or a known signal from an external generator.
2. Position the EUT without connection to measurement instrument. Put it on the
Rotated table and turn on the EUT and make it operate in transmitting mode. Then
set it to Low Channel and High Channel within its operating range, and make sure
the instrument is operated in its linear range.
-
Test Report No.
17070725-FCC-R2-V1
Page
17 of 47
3. First, set both RBW and VBW of spectrum analyzer to 100 kHz with a
convenient frequency span including 100kHz bandwidth from band edge, check
the emission of EUT, if pass then set Spectrum Analyzer as below:
a. The resolution bandwidth and video bandwidth of test receiver/spectrum
analyzer is 120 kHz for Quasiy Peak detection at frequency below 1GHz.
b. The resolution bandwidth of test receiver/spectrum analyzer is 1MHz and video
bandwidth is 3MHz with Peak detection for Peak measurement at frequency above
1GHz.
c. The resolution bandwidth of test receiver/spectrum analyzer is 1MHz and the
video bandwidth is 10Hz with Peak detection for Average Measurement as below
at frequency above 1GHz.
4. Measure the highest amplitude appearing on spectral display and set it as a
reference level. Plot the graph with marking the highest point and edge frequency.
5. Repeat above procedures until all measured frequencies were complete.
Remark
Result
Pass
Fail
Test Data
Yes
N/A
Test Plot
Yes (See below)
N/A
Test Report No.
17070725-FCC-R2-V1
Page
18 of 47
Test Plots
Band Edge measurement result
Band Edge, Left Side (Peak)
Note: F1 is frequency 2390MHz; F2 is frequency
2400MHz
Band Edge, Right Side (Peak)
Note: F1 is frequency 2483.5MHz
Note: (no need if PK value less than the AV limit)
Note: (no need if PK value less than the AV limit)
Band Edge, Left Side-AV
Band Edge, Right Side-AV
Note: Both Horizontal and vertical polarities were investigated.
Test Report No.
17070725-FCC-R2-V1
Page
19 of 47
6.6 AC Power Line Conducted Emissions
Temperature
23 oC
Relative Humidity
54%
Atmospheric Pressure
1014mbar
Test date :
August 11, 2017
Tested By :
Loren Luo
Requirement(s):
Spec
Item
Requirement
Applicable
For Low-power radio-frequency devices that is designed to be
connected to the public utility (AC) power line, the radio frequency
voltage that is conducted back onto the AC power line on any
frequency or frequencies, within the band 150 kHz to 30 MHz, shall
47CFR§15.
207,
RSS210
(A8.1)
not exceed the limits in the following table, as measured using a 50
a)
[mu] H/50 ohms line impedance stabilization network (LISN). The
lower limit applies at the boundary between the frequencies ranges.
Frequency ranges
Limit (dBµV)
(MHz)
QP
Average
0.15 ~ 0.5
66 – 56
56 – 46
0.5 ~ 5
56
46
5 ~ 30
60
50
Test Setup
1. The EUT and supporting equipment were set up in accordance with the requirements of
the standard on top of a 1.5m x 1m x 0.8m high, non-metallic table.
Procedure
2. The power supply for the EUT was fed through a 50W/50mH EUT LISN, connected to
filtered mains.
3. The RF OUT of the EUT LISN was connected to the EMI test receiver via a low-loss
Test Report No.
17070725-FCC-R2-V1
Page
20 of 47
coaxial cable.
4. All other supporting equipment were powered separately from another main supply.
5. The EUT was switched on and allowed to warm up to its normal operating condition.
6. A scan was made on the NEUTRAL line (for AC mains) or Earth line (for DC power)
over the required frequency range using an EMI test receiver.
7. High peaks, relative to the limit line, The EMI test receiver was then tuned to the
selected frequencies and the necessary measurements made with a receiver bandwidth
setting of 10 kHz.
8. Step 7 was then repeated for the LIVE line (for AC mains) or DC line (for DC power).
Remark
Result
Pass
Fail
Test Data
Yes
N/A
Test Plot
Yes (See below)
N/A
Test Mode:
Test Report No.
17070725-FCC-R2-V1
Page
21 of 47
Transmitting Mode
Test Data
Phase Line Plot at 120Vac, 60Hz
Frequency
Reading
Corrected
Result
Limit
Margin
(MHz)
(dBµV)
(dB)
(dBµV)
(dBµV)
(dB)
L1
0.3099
26.40
QP
10.02
36.42
59.97
-23.55
L1
0.3099
5.28
AVG
10.02
15.30
49.97
-34.67
L1
0.4659
33.64
QP
10.02
43.66
56.59
-12.93
L1
0.4659
13.39
AVG
10.02
23.41
46.59
-23.18
L1
1.2615
25.07
QP
10.03
35.10
56.00
-20.90
L1
1.2615
3.32
AVG
10.03
13.35
46.00
-32.65
L1
2.2287
25.36
QP
10.04
35.40
56.00
-20.60
L1
2.2287
1.52
AVG
10.04
11.56
46.00
-34.44
L1
4.2519
21.61
QP
10.06
31.67
56.00
-24.33
10
L1
4.2519
-0.02
AVG
10.06
10.04
46.00
-35.96
11
L1
15.5190
22.08
QP
10.21
32.29
60.00
-27.71
12
L1
15.5190
1.02
AVG
10.21
11.23
50.00
-38.77
No.
P/L
Detector
Test Mode:
Test Report No.
17070725-FCC-R2-V1
Page
22 of 47
Transmitting Mode
Test Data
Phase Neutral Plot at 120Vac, 60Hz
Frequency
Reading
Corrected
Result
Limit
Margin
(MHz)
(dBµV)
(dB)
(dBµV)
(dBµV)
(dB)
0.1695
18.25
QP
10.03
28.28
64.98
-36.70
0.1695
-2.61
AVG
10.03
7.42
54.98
-47.56
0.2358
18.21
QP
10.03
28.24
62.24
-34.00
0.2358
-1.85
AVG
10.03
8.18
52.24
-44.06
0.4620
27.95
QP
10.03
37.98
56.66
-18.68
0.4620
5.10
AVG
10.03
15.13
46.66
-31.53
0.9339
17.70
QP
10.03
27.73
56.00
-28.27
0.9339
-2.33
AVG
10.03
7.70
46.00
-38.30
2.2950
18.12
QP
10.05
28.17
56.00
-27.83
10
2.2950
-3.27
AVG
10.05
6.78
46.00
-39.22
11
15.1251
18.13
QP
10.23
28.36
60.00
-31.64
12
15.1251
-1.44
AVG
10.23
8.79
50.00
-41.21
No.
P/L
Detector
Test Mode:
Test Report No.
17070725-FCC-R2-V1
Page
23 of 47
Transmitting Mode
Test Data
Phase Line Plot at 240Vac, 60Hz
Frequency
Reading
Corrected
Result
Limit
Margin
(MHz)
(dBµV)
(dB)
(dBµV)
(dBµV)
(dB)
L1
0.2904
28.23
QP
10.02
38.25
60.51
-22.26
L1
0.2904
-0.03
AVG
10.02
9.99
50.51
-40.52
L1
0.4737
30.07
QP
10.02
40.09
56.45
-16.36
L1
0.4737
3.66
AVG
10.02
13.68
46.45
-32.77
L1
1.3356
25.41
QP
10.03
35.44
56.00
-20.56
L1
1.3356
-0.44
AVG
10.03
9.59
46.00
-36.41
L1
2.1819
24.21
QP
10.04
34.25
56.00
-21.75
L1
2.1819
-0.80
AVG
10.04
9.24
46.00
-36.76
L1
5.0748
21.29
QP
10.07
31.36
60.00
-28.64
10
L1
5.0748
-2.32
AVG
10.07
7.75
50.00
-42.25
11
L1
15.8427
30.53
QP
10.21
40.74
60.00
-19.26
12
L1
15.8427
1.24
AVG
10.21
11.45
50.00
-38.55
No.
P/L
Detector
Test Mode:
Test Report No.
17070725-FCC-R2-V1
Page
24 of 47
Transmitting Mode
Test Data
Phase Neutral Plot at 240Vac, 60Hz
Frequency
Reading
Corrected
Result
Limit
Margin
(MHz)
(dBµV)
(dB)
(dBµV)
(dBµV)
(dB)
0.4659
33.84
QP
10.02
43.86
56.59
-12.73
0.4659
13.70
AVG
10.02
23.72
46.59
-22.87
1.2576
26.60
QP
10.03
36.63
56.00
-19.37
1.2576
5.70
AVG
10.03
15.73
46.00
-30.27
2.1858
25.62
QP
10.04
35.66
56.00
-20.34
2.1858
3.85
AVG
10.04
13.89
46.00
-32.11
3.1209
24.97
QP
10.05
35.02
56.00
-20.98
3.1209
3.07
AVG
10.05
13.12
46.00
-32.88
6.8922
20.38
QP
10.10
30.48
60.00
-29.52
10
6.8922
0.11
AVG
10.10
10.21
50.00
-39.79
11
15.6204
23.51
QP
10.21
33.72
60.00
-26.28
12
15.6204
4.60
AVG
10.21
14.81
50.00
-35.19
No.
P/L
Detector
Test Report No.
17070725-FCC-R2-V1
Page
25 of 47
6.7 Radiated Emissions & Restricted Band
Temperature
25 oC
Relative Humidity
51%
Atmospheric Pressure
1020mbar
Test date :
August 14, 2017
Tested By :
Loren Luo
Requirement(s):
Spec
Item
Requirement
Applicable
Except higher limit as specified elsewhere in other section, the
emissions from the low-power radio-frequency devices shall not
exceed the field strength levels specified in the following table and
the level of any unwanted emissions shall not exceed the level of
the fundamental emission. The tighter limit applies at the band
edges
a)
Frequency range (MHz)
Field Strength (µV/m)
0.009~0.490
2400/F(KHz)
0.490~1.705
24000/F(KHz)
1.705~30.0
30
47CFR§15.
30 – 88
100
88 – 216
150
247(d),
216 960
200
RSS210
Above 960
500
For non-restricted band, In any 100 kHz bandwidth outside the
(A8.5)
frequency band in which the spread spectrum or digitally
modulated intentional radiator is operating, the radio frequency
power that is produced by the intentional radiator shall be at least
b)
20 dB or 30dB below that in the 100 kHz bandwidth within the
band that contains the highest level of the desired power,
determined by the measurement method on output power to be
used. Attenuation below the general limits specified in § 15.209(a)
is not required
20 dB down
c)
30 dB down
or restricted band, emission must also comply with the radiated
emission limits specified in 15.209
Test Report No.
17070725-FCC-R2-V1
Page
26 of 47
Test Setup
1.
The EUT was switched on and allowed to warm up to its normal operating condition.
2.
The test was carried out at the selected frequency points obtained from the EUT
characterization. Maximization of the emissions, was carried out by rotating the EUT,
changing the antenna polarization, and adjusting the antenna height in the following
manner:
a.
Vertical or horizontal polarization (whichever gave the higher emission level
over a full rotation of the EUT) was chosen.
b.
Procedure
The EUT was then rotated to the direction that gave the maximum
emission.
c.
Finally, the antenna height was adjusted to the height that gave the maximum
emission.
3.
The resolution bandwidth and video bandwidth of test receiver/spectrum analyzer is
120 kHz for Quasiy Peak detection at frequency below 1GHz.
4.
The resolution bandwidth of test receiver/spectrum analyzer is 1MHz and video
bandwidth is 3MHz with Peak detection for Peak measurement at frequency above
1GHz.
Test Report No.
17070725-FCC-R2-V1
Page
27 of 47
The resolution bandwidth of test receiver/spectrum analyzer is 1MHz and the video
bandwidth is 10Hz with Peak detection for Average Measurement as below at
frequency above 1GHz.
5.
Steps 2 and 3 were repeated for the next frequency point, until all selected frequency
points were measured.
Remark
Different RF configuration has been evaluated but not much difference was found. The data
presented here is the worst case data with EUT under 802.11n – HT20-2437MHz mode.
Result
Pass
Fail
Test Data
Yes
N/A
Test Plot
Yes (See below)
N/A
Test Result:
Test Mode:
Transmitting Mode
Frequency range: 9KHz - 30MHz
Freq.
Detection
Factor
Reading
Result
[email protected]
Margin
(MHz)
value
(dB/m)
(dBuV/m)
(dBuV/m)
(dBuV/m)
(dB)
--
--
--
--
--
--
>20
--
--
--
--
--
--
>20
Note:
The amplitude of spurious emissions which are attenuated by more than 20dB below the
permissible value has no need to be reported.
Distance extrapolation factor =40 log (specific distance/test distance)(dB);
Limit line = specific limits(dBuv) + distance extrapolation factor.
Test Mode:
Test Report No.
17070725-FCC-R2-V1
Page
28 of 47
Transmitting Mode
30MHz -1GHz
Test Data
Vertical Polarity Plot @3m
No.
P/L
Frequency
Reading
Detect
Ant_F
PA_G
Cab_L
Result
Limit
Margin
Height
or
(MHz)
(dBuV/m)
Degr
ee
(dB/m)
(dB)
(dB)
(dBuV/m)
(dBuV/m)
(dB)
(cm)
( º)
34.3964
29.53
peak
18.01
22.25
0.74
26.03
40.00
-13.97
100
353
66.0342
36.74
peak
7.60
22.39
0.90
22.85
40.00
-17.15
100
346
139.8508
30.71
peak
12.61
22.41
1.27
22.18
43.50
-21.32
100
292
205.6751
32.26
peak
12.02
22.37
1.56
23.47
43.50
-20.03
100
243
348.0274
38.33
peak
14.61
22.16
2.03
32.81
46.00
-13.19
100
283
38.0783
31.98
peak
15.30
22.27
0.78
25.79
40.00
-14.21
200
17
Test Report No.
17070725-FCC-R2-V1
Page
29 of 47
30MHz -1GHz
Test Data
Horizontal Polarity Plot @3m
P/
o.
Frequency
Reading
(MHz)
(dBuV/m)
Detect
Ant_F
PA_G
Cab_L
Result
Limit
Margin
Height
Degr
(dB/m)
(dB)
(dB)
(dBuV/m)
(dBuV/m)
(dB)
(cm)
( º)
or
ee
356.6758
41.10
peak
14.79
22.13
2.04
35.80
46.00
-10.20
100
252
202.8104
30.33
peak
12.06
22.37
1.55
21.57
43.50
-21.93
100
147
147.9214
29.82
peak
12.60
22.35
1.33
21.40
43.50
-22.10
200
80
79.5209
34.18
peak
7.61
22.42
1.04
20.41
40.00
-19.59
100
115
31.3992
24.02
peak
20.32
22.27
0.66
22.73
40.00
-17.27
100
13
43.0505
28.04
peak
11.89
22.29
0.77
18.41
40.00
-21.59
100
24
Test Report No.
17070725-FCC-R2-V1
Page
30 of 47
Above 1GHz
Test Mode:
Transmitting Mode
Low Channel (2402 MHz)
Frequency
(MHz)
S.A.
Reading
(dBµV)
Detector
Polarity
(PK/AV)
(H/V)
Ant.
Cable
Factor
Loss
(dB/m)
(dB)
PreAmp.
Gain
(dB)
Cord.
Amp.
(dBµV/m)
Limit
Margin
(dBµV/m)
(dB)
4804
38.39
AV
33.39
7.22
48.46
30.54
54
-23.46
4804
38.12
AV
33.39
7.22
48.46
30.27
54
-23.73
4804
48.23
PK
33.39
7.22
48.46
40.38
74
-33.62
4804
47.94
PK
33.39
7.22
48.46
40.09
74
-33.91
2415
24.43
AV
29.03
5.55
47.85
11.16
54
-42.84
2415
23.84
AV
29.03
5.55
47.85
10.57
54
-43.43
2415
40.36
PK
29.03
5.55
47.85
27.09
74
-46.91
2415
40.48
PK
29.03
5.55
47.85
27.21
74
-46.79
Limit
Margin
(dBµV/m)
(dB)
Middle Channel (2440 MHz)
Frequency
(MHz)
S.A.
Reading
(dBµV)
Detector
Polarity
(PK/AV)
(H/V)
Ant.
Cable
Factor
Loss
(dB/m)
(dB)
PreAmp.
Gain
(dB)
Cord.
Amp.
(dBµV/m)
4880
38.82
AV
33.62
7.53
48.36
31.61
54
-22.39
4880
38.24
AV
33.62
7.53
48.36
31.03
54
-22.97
4880
48.61
PK
33.62
7.53
48.36
41.4
74
-32.6
4880
47.76
PK
33.62
7.53
48.36
40.55
74
-33.45
5627
23.46
AV
34.35
8.41
48.37
17.85
54
-36.15
5627
23.66
AV
34.35
8.41
48.37
18.05
54
-35.95
5627
41.09
PK
34.35
8.41
48.37
35.48
74
-38.52
5627
40.68
PK
34.35
8.41
48.37
35.07
74
-38.93
Test Report No.
17070725-FCC-R2-V1
Page
31 of 47
High Channel (2480 MHz)
Frequency
(MHz)
S.A.
Reading
(dBµV)
Detector
Polarity
(PK/AV)
(H/V)
Ant.
Cable
Factor
Loss
(dB/m)
(dB)
PreAmp.
Gain
(dB)
Cord.
Amp.
(dBµV/m)
Limit
Margin
(dBµV/m)
(dB)
4960
39.09
AV
33.89
7.86
48.31
32.53
54
-21.47
4960
38.64
AV
33.89
7.86
48.31
32.08
54
-21.92
4960
48.42
PK
33.89
7.86
48.31
41.86
74
-32.14
4960
47.53
PK
33.89
7.86
48.31
40.97
74
-33.03
17859
24.71
AV
43.21
19.44
44.4
42.96
54
-11.04
17859
24.43
AV
43.21
19.44
44.4
42.68
54
-11.32
17859
40.65
PK
43.21
19.44
44.4
58.9
74
-15.1
17859
40.98
PK
43.21
19.44
44.4
59.23
74
-14.77
Note:
1, The testing has been conformed to 10*2480MHz=24,800MHz
2, All other emissions more than 30 dB below the limit
3, X-Axis, Y-Axis and Z-Axis were investigated. The results above show only the worst case.
4, The radiated spurious test above 18GHz is subcontracted to SIEMIC (Nanjing-China) Laboratories. and
found 30dB below the limit at least.
Test Report No.
17070725-FCC-R2-V1
Page
32 of 47
Annex A. TEST INSTRUMENT
Instrument
Model
Serial #
Cal Date
Cal Due
EMI
test receiver
Emissions
ESCS30
8471241027
09/16/2016
09/15/2017
Line Impedance
LI-125A
191106
09/24/2016
09/23/2017
Line Impedance
Stabilization
Network
LI-125A
191107
09/24/2016
09/23/2017
ISN Network
Stabilization
ISN T800
34373
09/24/2016
09/23/2017
Transient Limiter
LIT-153
531118
08/31/2016
08/30/2017
Agilent ESA-E SERIES
E4407B
MY45108319
09/16/2016
09/15/2017
Power Splitter
SPECTRUM
ANALYZER
1#
1#
08/31/2016
08/30/2017
DC Power Supply
E3640A
MY40004013
09/16/2016
09/15/2017
EMI test receiver
ESL6
100262
09/16/2016
09/15/2017
Positioning Controller
UC3000
MF780208282
11/18/2016
11/17/2017
8447E
2727A02430
08/31/2016
08/30/2017
BBHA9170
3145226D1
09/28/2016
09/27/2017
8449B
3008A02402
03/23/2017
03/22/2018
AL-130
121031
10/13/2016
10/12/2017
JB6
A110712
09/20/2016
09/19/2017
AH-118
71283
09/23/2016
09/22/2017
CMU200
121393
09/24/2016
09/23/2017
AC Line Conducted
RF conducted test
Radiated Emissions
OPT 010 AMPLIFIER
(0.1-1300MHz)
Horn Antenna
Microwave Preamplifier
(1~26.5GHz)
Active Antenna
(9kHz-30MHz)
Bilog Antenna
(30MHz~6GHz)
Double Ridge Horn
Antenna (1 ~18GHz)
Universal Radio
Communication Tester
In use
Test Report No.
17070725-FCC-R2-V1
Page
33 of 47
Annex B. EUT And Test Setup Photographs
Annex B.i.
Photograph: EUT External Photo
Whole Package View
EUT - Front View
Test Report No.
17070725-FCC-R2-V1
Page
34 of 47
EUT - Rear View
EUT - Top View
Test Report No.
17070725-FCC-R2-V1
Page
35 of 47
EUT - Bottom View
EUT - Left View
Test Report No.
17070725-FCC-R2-V1
Page
36 of 47
EUT - Right View
Annex B.ii.
Test Report No.
17070725-FCC-R2-V1
Page
37 of 47
Photograph: EUT Internal Photo
Cover Off - Top View 1
Cover Off - Top View 2
Test Report No.
17070725-FCC-R2-V1
Page
38 of 47
Battery - Front View
Battery - Rear View
Test Report No.
17070725-FCC-R2-V1
Page
39 of 47
Mainboard – Front View
Mainboard – Rear View
Test Report No.
17070725-FCC-R2-V1
Page
40 of 47
BT - Antenna View
Test Report No.
17070725-FCC-R2-V1
Page
41 of 47
Annex B.iii. Photograph: Test Setup Photo
Conducted Emissions Test Setup Front View
Radiated Spurious Emissions Test Setup Below 1GHz
Conducted Emissions Test Setup Side View
Radiated Spurious Emissions Test Setup Above
1GHz
Test Report No.
17070725-FCC-R2-V1
Page
42 of 47
Annex C. TEST SETUP AND SUPPORTING EQUIPMENT
Annex C.ii. TEST SET UP BLOCK
Block Configuration Diagram for AC Line Conducted Emissions
LISN 1
V=120V/240V AC
F=60Hz
Adapter
EUT
Phone
headset
Test Table
80cm above
ground plane
Test Report No.
17070725-FCC-R2-V1
Page
43 of 47
Block Configuration Diagram for Radiated Emissions (Below 1GHz).
headset
Laptop
EUT
Test Table
80cm above
ground plane
d=3meter
Receiving Antenna
Test Report No.
17070725-FCC-R2-V1
Page
44 of 47
Block Configuration Diagram for Radiated Emissions (Above 1GHz).
headset
Laptop
EUT
Test Table
150cm above
ground plane
d=3meter
Receiving Antenna
Test Report No.
17070725-FCC-R2-V1
Page
45 of 47
Annex C. iI. SUPPORTING EQUIPMENT DESCRIPTION
The following is a description of supporting equipment and details of cables used with the EUT.
Supporting Equipment:
Manufacturer
Equipment
Model
Description
Serial No
Cherry mobile
Adapter
CM-1000
N/A
Lenovo
Laptop
thinkpad e40
N/A
HUAWEI
Phone
FRD-AL00A
N/A
Micro Ms , Inc
headset
Bluetooth type
N/A
Supporting Cable:
Cable type
Shield Type
USB Cable
Un-shielding
Ferrite Core
Yes
Length
Serial No
0.8m
N/A
Test Report No.
17070725-FCC-R2-V1
Page
46 of 47
Annex D. User Manual / Block Diagram / Schematics / Partlist
Please see the attachment
Test Report No.
17070725-FCC-R2-V1
Page
47 of 47
Annex E. DECLARATION OF SIMILARITY
N/A
Download: ZEROMIC ZEROMIC Test Report  Micro M's CO,.LTD
Mirror Download [FCC.gov]ZEROMIC ZEROMIC Test Report  Micro M's CO,.LTD
Document ID3556596
Application IDkTD1k1+xVUGY7nk+9GUeyQ==
Document DescriptionRF Test Report
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize246.79kB (3084906 bits)
Date Submitted2017-09-12 00:00:00
Date Available2017-09-12 00:00:00
Creation Date2017-09-09 10:06:14
Producing SoftwareMicrosoft® Word 2010
Document Lastmod2017-09-09 10:07:01
Document TitleTEST REPORT
Document CreatorMicrosoft® Word 2010
Document Author: Dan Coronia

Source Exif Data:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.6
Linearized                      : No
Author                          : Dan Coronia
Create Date                     : 2017:09:09 10:06:14+08:00
Modify Date                     : 2017:09:09 10:07:01+08:00
Language                        : zh-CN
Tagged PDF                      : Yes
XMP Toolkit                     : Adobe XMP Core 4.2.1-c041 52.342996, 2008/05/07-20:48:00
Format                          : application/pdf
Creator                         : Dan Coronia
Title                           : TEST REPORT
Creator Tool                    : Microsoft® Word 2010
Metadata Date                   : 2017:09:09 10:07:01+08:00
Producer                        : Microsoft® Word 2010
Document ID                     : uuid:53df9b47-b4de-461d-ac5e-0aeafb0ee526
Instance ID                     : uuid:03fb5746-23df-4a44-a908-5acdffe8d877
Page Count                      : 47
EXIF Metadata provided by EXIF.tools

Facebook Twitter Google+ RSS © FCCID.io 2017
