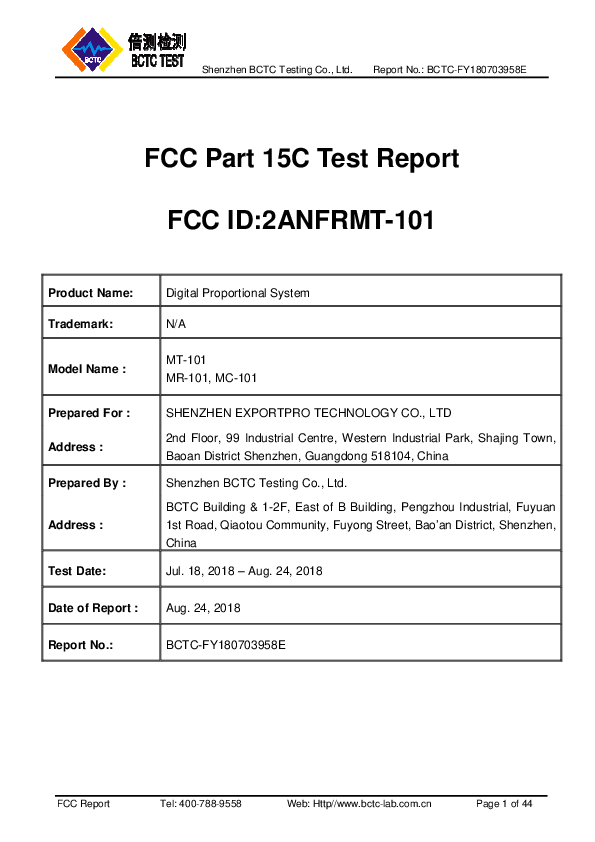

Shenzhen BCTC Testing Co., Ltd.
Report No.: BCTC-FY180703958E
FCC Part 15C Test Report
FCC ID:2ANFRMT-101
Product Name:
Digital Proportional System
Trademark:
N/A
Model Name :
MT-101
MR-101, MC-101
Prepared For :
SHENZHEN EXPORTPRO TECHNOLOGY CO., LTD
Address :
2nd Floor, 99 Industrial Centre, Western Industrial Park, Shajing Town,
Baoan District Shenzhen, Guangdong 518104, China
Prepared By :
Shenzhen BCTC Testing Co., Ltd.
Address :
BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan
1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen,
China
Test Date:
Jul. 18, 2018 – Aug. 24, 2018
Date of Report :
Aug. 24, 2018
Report No.:
BCTC-FY180703958E
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 1 of 44
Shenzhen BCTC Testing Co., Ltd.
Report No.: BCTC-FY180703958E
TEST RESULT CERTIFICATION
Applicant’s name ............. : SHENZHEN EXPORTPRO TECHNOLOGY CO., LTD
Address ............................. : 2nd Floor, 99 Industrial Centre, Western Industrial Park,
Shajing Town, Baoan District Shenzhen, Guangdong
518104, China
Manufacture's Name ........ : SHENZHEN EXPORTPRO TECHNOLOGY CO., LTD
Address ............................. : 2nd Floor, 99 Industrial Centre, Western Industrial Park,
Shajing Town, Baoan District Shenzhen, Guangdong
518104, China
Product description
Product name .................... : Digital Proportional System
Trademark ......................... : N/A
Model and/or type reference MT-101
.......................................... : MR-101, MC-101
Standards ......................... : FCC Part15.247
ANSI C63.10:2013
This device described above has been tested by BCTC, and the test results show that the
equipment under test (EUT) is in compliance with the FCC requirements. And it is
applicable only to the tested sample identified in the report.
This report shall not be reproduced except in full, without the written approval of BCTC,
this document may be altered or revised by BCTC, personal only, and shall be noted in the
revision of the document.
Prepared by(Engineer):
Lake Xie
Reviewer(Supervisor):
Eric Yang
Approved(Manager):
FCC Report
Carson Zhang
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 2 of 44
Shenzhen BCTC Testing Co., Ltd.
Report No.: BCTC-FY180703958E
Table of Contents
Page
Test Report Declaration
1.
2.
3.
4.
4.1
4.2
4.3
4.4
4.5
5.
5.1
5.2
6.
6.1
6.2
6.3
6.4
7.
7.1
7.2
7.3
7.4
8.
8.1
8.2
8.3
8.4
9.
9.1
9.2
9.3
9.4
10.
10.1
10.2
10.3
10.4
11.
11.1
11.2
11.3
FCC Report
TEST SUMMARY ...................................................... 5
TEST FACILITY ....................................................... 6
MEASUREMENT UNCERTAINTY........................................ 6
GENERAL INFORMATION.............................................. 7
GENERAL DESCRIPTION OF EUT ...................................... 7
Test Setup Configuration ................................................ 7
Support Equipment ..................................................... 8
Channel List ........................................................... 8
Test Mode ............................................................. 9
TEST FACILITY AND TEST INSTRUMENT USED ........................ 10
Test Facility ........................................................... 10
Test Instrument Used .................................................. 10
CONDUCTED EMISSIONS............................................. 12
Block Diagram Of Test Setup ........................................... 12
Limit ................................................................. 12
Test procedure ........................................................ 12
Test Result ........................................................... 13
RADIATED EMISSIONS ............................................... 14
Block Diagram Of Test Setup ........................................... 14
Limit ................................................................. 15
Test procedure ........................................................ 15
Test Result ........................................................... 17
CONDUCTED EMISSION .............................................. 22
Block Diagram Of Test Setup ........................................... 22
Limit ................................................................. 22
Test procedure ........................................................ 22
Test Result ........................................................... 23
20 DB BANDWIDTH .................................................. 27
Block Diagram Of Test Setup ........................................... 27
Limit ................................................................. 27
Test procedure ........................................................ 27
Test Result ........................................................... 28
MAXIMUM PEAK OUTPUT POWER .................................... 30
Block Diagram Of Test Setup .......................................... 30
Limit ................................................................ 30
Test procedure ....................................................... 30
Test Result .......................................................... 31
HOPPING CHANNEL SEPARATION .................................... 33
Block Diagram Of Test Setup .......................................... 33
Limit ................................................................ 33
Test procedure ....................................................... 33
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 3 of 44
Shenzhen BCTC Testing Co., Ltd.
11.4
12.
12.1
12.2
12.3
12.4
13.
13.1
13.2
13.3
13.4
14.
15.
16.
Report No.: BCTC-FY180703958E
Test Result .......................................................... 34
NUMBER OF HOPPING FREQUENCY .................................. 36
Block Diagram Of Test Setup .......................................... 36
Limit ................................................................ 36
Test procedure ....................................................... 36
Test Result .......................................................... 37
DWELL TIME ........................................................ 38
Block Diagram Of Test Setup .......................................... 38
Limit ................................................................ 38
Test procedure ....................................................... 38
Test Result .......................................................... 39
ANTENNA REQUIREMENT ............................................ 42
EUT PHOTOGRAPHS ................................................. 43
EUT TEST SETUP PHOTOGRAPHS .................................... 44
(Note: N/A means not applicable)
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 4 of 44
Shenzhen BCTC Testing Co., Ltd.
Report No.: BCTC-FY180703958E
1. TEST SUMMARY
Test procedures according to the technical standards:
FCC Part15 (15.247) , Subpart C
Standard
Section
Test Item
Judgment
15.205(a)
15.209
15.247(d)
Radiated Spurious Emissions
PASS
15.247(d)
Conducted Spurious emissions
N/A
15.247(d)
15.205(a)
Band edge
PASS
15.207
Conducted Emission
PASS
15.247(a)
20dB Bandwidth
PASS
15.247(b)
Maximum Peak Output Power
PASS
15.247(a)
Frequency Separation
PASS
15.247(a)
Number of Hopping Frequency
PASS
15.247(a)
Dwell time
PASS
15.203
Antenna Requirement
PASS
Remark
Note: (1)” N/A” denotes test is not applicable in this Test Report
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 5 of 44
Shenzhen BCTC Testing Co., Ltd.
Report No.: BCTC-FY180703958E
2. TEST FACILITY
Shenzhen BCTC Testing Co., Ltd.
Add. : BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st
Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China
Test Firm Registration Number: 712850
IC Registered No.: 23583
3. MEASUREMENT UNCERTAINTY
The reported uncertainty of measurement y ± U,where expended uncertainty U is based on
a standard uncertainty multiplied by a coverage factor of k=2,providing a level of
confidence of approximately 95 %。
FCC Report
No.
Item
Uncertainty
Conducted Emission Test
±1.38dB
RF power,conducted
±0.16dB
Spurious emissions,conducted
±0.21dB
All emissions,radiated(<1G)
±4.68dB
All emissions,radiated(>1G)
±4.89dB
Temperature
±0.5°C
Humidity
±2%
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 6 of 44
Shenzhen BCTC Testing Co., Ltd.
Report No.: BCTC-FY180703958E
4. GENERAL INFORMATION
4.1
GENERAL DESCRIPTION OF EUT
Equipment
Digital Proportional System
Trade Name
N/A
MT-101
MR-101, MC-101
Only for different Model name.
The EUT is a Digital Proportional System
Operation Frequency: 2405-2478 MHz
Modulation Type:
GFSK
Number Of Channel
74CH
Model Name
Model Difference
Product Description
Antenna Designation:
Channel List
Ratings
Based on the application, features, or specification exhibited in
User's Manual, the EUT is considered as an ITE/Computing
Device. More details of EUT technical specification, please refer
to the User's Manual.
Please refer to the Note 2.
DC 6V From Battery
Adapter
N/A
Connecting I/O Port(s)
Please refer to the User's Manual
Hardware Version:
N/A
Software Version:
N/A
4.2
Internal Antenna , 0dBi
Test Setup Configuration
See test photographs attached in EUT TEST SETUP PHOTOGRAPHS for the actual
Radiated Spurious Emission
E-1
EUT
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 7 of 44
Shenzhen BCTC Testing Co., Ltd.
4.3
Report No.: BCTC-FY180703958E
Support Equipment
No.
E-1
Device Type
Brand
Digital
Proportional
System
N/A
Model
Series No.
Note
MT-101
N/A
EUT
Notes:
1. All the equipment/cables were placed in the worst-case configuration to maximize the emission during
the test.
2. Grounding was established in accordance with the manufacturer’s requirements and conditions for the
intended use.
4.4
Channel List
CH
10
11
12
13
14
15
16
17
18
19
FCC Report
Frequency
(MHz)
2405
2406
2407
2408
2409
2410
2411
2412
2413
2414
2415
2416
2417
2418
2419
2420
2421
2422
2423
2424
CH
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
Frequency
(MHz)
2425
2426
2427
2428
2429
2430
2431
2432
2433
2434
2435
2436
2437
2438
2439
2440
2441
2442
2443
2444
Tel: 400-788-9558
CH
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
Frequency
(MHz)
2445
2446
2447
2448
2449
2450
2451
2452
2453
2454
2455
2456
2457
2458
2459
2460
2461
2462
2463
2464
CH
60
61
62
63
64
65
66
67
68
69
70
71
72
73
Web: Http//www.bctc-lab.com.cn
Frequency
(MHz)
2465
2466
2467
2468
2469
2470
2471
2472
2473
2474
2475
2476
2477
2478
Page 8 of 44
Shenzhen BCTC Testing Co., Ltd.
4.5
Report No.: BCTC-FY180703958E
Test Mode
All test mode(s) and condition(s) mentioned were considered and evaluated respectively
by performing full tests, the worst data were recorded and reported.
During testing, Channel and Power Controlling Software provided by the customer was
used to control the operating channel as well as the output power level. The RF output
power selection is for the setting of RF output power expected by the customer and is
going to be fixed on the firmware of the final end product.
The EUT is Continue Transmitting.
The software is installed in operation system, named “RFTestTool.apk” ,Version 1.0.
Test Mode
Test mode
Transmitting(GFSK)
FCC Report
Low channel Middle channel High channel
2405MHz
2441MHz
2478MHz
Normal Link (conducted emission and Radiated emission)
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 9 of 44
Shenzhen BCTC Testing Co., Ltd.
Report No.: BCTC-FY180703958E
5. TEST FACILITY AND TEST INSTRUMENT USED
5.1
Test Facility
All measurement facilities used to collect the measurement data are located at BCTC
Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou
Community, Fuyong Street, Bao’an District, Shenzhen, China. The site and apparatus are
constructed in conformance with the requirements of ANSI C63.4 and CISPR 16-1-1 other
equivalent standards.
5.2
Test Instrument Used
Radiation Test
Item Equipment
Spectrum
Analyzer
1 (9kHz-26.5GH
z)
Test Receiver
(9kHz-7GHz)
Bilog Antenna
3 (30MHz-1GHz)
Horn Antenna
4 (1GHz-18GHz)
Horn Antenna
5 (14GHz-40GH
z)
Amplifier
6 (9KHz-6GHz)
Amplifier
7 (1GHz-18GHz)
Amplifier
8 (18GHz-40GH
z)
Loop Antenna
9 (9KHz-30MHz)
RF cables1
10 (9kHz-1GHz)
RF cables2
11 (1GHz-40GHz)
Antenna
12
connector
13 Power Metter
Power Sensor
14
(AV)
Signal
Analyzer
15
9kHz-26.5GHz
Test Receiver
16 20kHz-40GHz
D.C. Power
17
Supply
FCC Report
Manufacturer
Type No.
Agilent
E4407B
R&S
ESPI
101318
Aug. 27, 2017 Aug.26, 2018
R&S
VULB
9168
VULB91
68-438
Aug. 27, 2017 Aug.26, 2018
SCHWARZB BBHA9120D
ECK
1201
Sep.03, 2017 Sep.02,2018
SCHWARZB BBHA 9170
ECK
9170-181
Sep.03, 2017 Sep.02,2018
SCHWARZB
ECK
SCHWARZB
ECK
BBV9744
9744-0037
Aug. 27, 2017 Aug.26, 2018
BBV9718
9718-309
Aug. 27, 2017 Aug.26, 2018
SCHWARZB
ECK
BBV 9721
9721-205
Aug. 27, 2017 Aug.26, 2018
00014
Sep.03, 2017 Sep.02,2018
SCHWARZB FMZB1519B
ECK
Serial No.
Cal.Date
Cal.Due date
MY45108040 Aug. 27, 2017 Aug.26, 2018
R&S
R203
R20X
Aug. 27, 2017 Aug.26, 2018
R&S
R204
R21X
Aug. 27, 2017 Aug.26, 2018
Florida RF
Labs
ANRITSU
N/A
RF 01#
Aug. 27, 2017 Aug.26, 2018
ML2487A
ANRITSU
ML2491A
Agilent
N9010A
R&S
ESU 40
100376
Aug. 27, 2017 Aug.26, 2018
LongWei
PS-305D
010964729
Aug. 27, 2017 Aug.26, 2018
Tel: 400-788-9558
6K00001568 Aug. 27, 2017 Aug.26, 2018
030989
Aug. 27, 2017 Aug.26, 2018
MY48030494 Aug. 27, 2017 Aug.26, 2018
Web: Http//www.bctc-lab.com.cn
Page 10 of 44
Shenzhen BCTC Testing Co., Ltd.
Conduction Test
Item Equipment
Manufacturer
Type No.
R&S
ESCI
Test Receiver
LISN
LISN
RF cables
R&S
Attenuator
R&S
FCC Report
SCHWARZB NSLK8127
ECK
R&S
NSLK8126
Tel: 400-788-9558
Report No.: BCTC-FY180703958E
Serial No.
Cal.Date
Cal.Due date
1166.5950K0 Aug. 27, 2017 Aug.26, 2018
3-101165-ha
8127739
Aug. 27, 2017 Aug.26, 2018
8126487
Aug. 27, 2017 Aug.26, 2018
R204
R20X
Sep.03, 2017 Sep.02,2018
ESH3-Z2
143206
Sep.03, 2017 Sep.02,2018
Web: Http//www.bctc-lab.com.cn
Page 11 of 44
Shenzhen BCTC Testing Co., Ltd.
Report No.: BCTC-FY180703958E
6. CONDUCTED EMISSIONS
6.1
Block Diagram Of Test Setup
V e r tic a l R e fe r e n c e
T e s t R e c e iv e r
G ro u n d P la n e
EUT
40cm
80cm
L IS N
H o r iz o n ta l R e fe r e n c e
G r o u n d P la n e
N o te : 1 .S u p p o r t u n its w e r e c o n n e c t e d t o s e c o n d L IS N .
2 .B o th o f L IS N s ( A M N ) a r e 8 0 c m f r o m E U T a n d a t le a s t 8 0
fr o m o th e r u n its a n d o th e r m e ta l p la n e s
6.2
Limit
FREQUENCY (MHz)
0.15 -0.5
0.50 -5.0
5.0 -30.0
6.3
Limit (dBuV)
Quasi-peak
66 - 56 *
56.00
60.00
Average
56 - 46 *
46.00
50.00
Standard
FCC
FCC
FCC
Test procedure
Receiver Parameters
Attenuation
Start Frequency
Stop Frequency
IF Bandwidth
Setting
10 dB
0.15 MHz
30 MHz
9 kHz
a. The EUT was placed 0.8 meters from the horizontal ground plane with EUT being
connected to the power mains through a line impedance stabilization network (LISN). All
other support equipments powered from additional LISN(s). The LISN provide 50 Ohm/ 50uH
of coupling impedance for the measuring instrument.
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 12 of 44
Shenzhen BCTC Testing Co., Ltd.
Report No.: BCTC-FY180703958E
b. Interconnecting cables that hang closer than 40 cm to the ground plane shall be folded
back and forth in the center forming a bundle 30 to 40 cm long.
c. I/O cables that are not connected to a peripheral shall be bundled in the center. The end of
the cable may be terminated, if required, using the correct terminating impedance. The
overall length shall not exceed 1 m.
d. LISN at least 80 cm from nearest part of EUT chassis.
e. For the actual test configuration, please refer to the related Item –EUT Test Photos.
6.4
Test Result
This EUT is powered by the DC battery only, this test item is not applicable.
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 13 of 44
Shenzhen BCTC Testing Co., Ltd.
Report No.: BCTC-FY180703958E
7. RADIATED EMISSIONS
7.1
Block Diagram Of Test Setup
(A)Radiated Emission Test-Up Frequency Below 30MHz
(B)Radiated Emission Test-Up Frequency 30MHz~1GHz
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 14 of 44
Shenzhen BCTC Testing Co., Ltd.
Report No.: BCTC-FY180703958E
(C)Radiated Emission Test-Up Frequency Above 1GHz
7.2
Limit
20dBc in any 100 kHz bandwidth outside the operating frequency band. In case the emission
fall within the restricted band specified on 15.205(a), then the 15.209(a) limit in the table
below has to be followed.
Frequency
Field Strength Distance
(MHz)
uV/m
0.009 ~ 0.490
0.490 ~ 1.705
2400/F(kHz)
24000/F(kHz)
1.705 ~ 30
7.3
30
(m)
300
30
30
Field Strength Limit at 3m Distance
uV/m
dBuV/m
10000 * 2400/F(kHz)
(2400/F(kHz))
+ 80
(24000/F(kHz))
+ 40
100 * 24000/F(kHz)
100 * 30
20log
20log
20log
(30)
+ 40
(100)
30 ~ 88
100
100
20log
88 ~ 216
150
150
20log(150)
216 ~ 960
200
200
20log(200)
Above 960
500
500
20log(500)
Test procedure
Receiver Parameter
Attenuation
9kHz~150kHz
150kHz~30MHz
30MHz~1000MHz
Setting
Auto
RBW 200Hz for QP
RBW 9kHz for QP
RBW 120kHz for QP
Spectrum Parameter
Setting
RBW 1 MHz /VBW 1 MHz for Peak,
RBW 1 MHz / VBW 10Hz for Average
1-25GHz
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 15 of 44
Shenzhen BCTC Testing Co., Ltd.
Report No.: BCTC-FY180703958E
Below 1GHz test procedure as below:
a. The EUT was placed on the top of a rotating table 0.8 meters above the ground at a 3
meter semi-anechoic camber. The table was rotated 360 degrees to determine the position
of the highest radiation.
b. The EUT was set 3 meters away from the interference-receiving antenna, which was
mounted on the top of a variable-height antenna tower.
c. The antenna height is varied from one meter to four meters above the ground to
determine the maximum value of the field strength. Both horizontal and vertical polarizations
of the antenna are set to make the measurement.
d. For each suspected emission, the EUT was arranged to its worst case and then the
antenna was tuned to heights from 1 meter to 4 meters (for the test frequency of below
30MHz, the antenna was tuned to heights 1 meter) and the rotatable table was turned from 0
degrees to 360 degrees to find the maximum reading.
e. The test-receiver system was set to Peak Detect Function and Specified Bandwidth with
Maximum Hold Mode.
f. If the emission level of the EUT in peak mode was 10dB lower than the limit specified,
then testing could be stopped and the peak values of the EUT would be reported. Otherwise
the emissions that did not have 10dB margin would be re-tested one by one using peak,
quasi-peak or average method as specified and then reported in a data sheet.
Above 1GHz test procedure as below:
g. Different between above is the test site, change from Semi- Anechoic Chamber to fully
Anechoic Chamber and change form table 0.8 metre to 1.5 metre( Above 18GHz the
distance is 1 meter and table is 1.5 metre).
h. Test the EUT in the lowest channel ,the middle channel ,the Highest channel.
Note:
Both horizontal and vertical antenna polarities were tested and performed pretest to three
orthogonal axis. The worst case emissions were reported.
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 16 of 44
Shenzhen BCTC Testing Co., Ltd.
7.4
Report No.: BCTC-FY180703958E
Test Result
Between 9KHz – 30MHz
Relative Humidtity: 54%
DC 6V
Test Voltage :
Polarization :
--
Temperature: 26℃
101 kPa
Pressure:
Test Mode : Mode 2
Freq.
Reading
Limit
Margin
State
(MHz)
(dBuV/m)
(dBuV/m)
(dB)
P/F
--
--
--
--
PASS
--
--
--
--
PASS
Note:
The amplitude of spurious emissions which are attenuated by more than 20dB below the
permissible value has no need to be reported.
Distance extrapolation factor =40 log (specific distance/test distance)(dB);
Limit line = specific limits(dBuv) + distance extrapolation factor.
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 17 of 44
Shenzhen BCTC Testing Co., Ltd.
Temperature: 26℃
101kPa
Pressure:
Test Mode : Mode 2
Report No.: BCTC-FY180703958E
Between 30MHz – 1GHz
Relative Humidtity: 54%
DC 6V
Test Voltage :
Polarization :
Horizontal
Remark:
Factor = Antenna Factor + Cable Loss – Pre-amplifier.
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 18 of 44
Shenzhen BCTC Testing Co., Ltd.
Temperature: 26℃
101kPa
Pressure:
Test Mode : Mode 2
Report No.: BCTC-FY180703958E
Relative Humidtity: 54%
DC 6V
Test Voltage :
Polarization :
Vertical
Remark:
Factor = Antenna Factor + Cable Loss – Pre-amplifier.
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 19 of 44
Shenzhen BCTC Testing Co., Ltd.
Report No.: BCTC-FY180703958E
Between 1-25GHz
Polar
(H/V)
Frequency
Meter
Reading
(MHz)
(dBuV)
4810.00
4810.00
7215.00
7215.00
15450.00
4810.00
4810.00
7215.00
7215.00
15450.00
52.48
43.63
51.03
43.39
54.77
54.66
43.79
50.85
43.01
50.18
Pre-ampli
fier
Cable
Loss
Antenna
Factor
Emission
Level
Limits
Margin
(dB)
(dB)
(dB)
(dBuV/m)
(dBuV/m)
(dB)
74.00
54.00
74.00
54.00
74.00
74.00
54.00
74.00
54.00
74.00
-27.56
-16.41
-29.23
-16.87
-21.12
-25.38
-16.25
-30.41
-18.58
-24.64
PK
AV
PK
AV
PK
PK
AV
PK
AV
PK
Detector
Type
GFSK Low Channel:2405MHz
39.55
7.85
25.66
46.44
39.55
7.85
25.66
37.59
38.33
7.52
24.55
44.77
38.33
7.52
24.55
37.13
35.23
6.75
26.59
52.88
39.55
7.85
25.66
48.62
39.55
7.85
25.66
37.75
38.33
7.52
23.55
43.59
38.33
7.52
23.22
35.42
35.45
6.75
27.88
49.36
Detector
Type
Polar
(H/V)
Frequency
Meter
Reading
Pre-ampli
fier
Cable
Loss
Antenna
Factor
Emission
Level
Limits
Margin
(MHz)
(dBuV)
(dB)
(dB)
(dB)
(dBuV/m)
(dBuV/m)
(dB)
4882.00
4882.00
7323.00
7323.00
15450.00
4882.00
4882.00
7323.00
7323.00
15450.00
52.58
43.88
53.10
43.41
50.17
50.62
43.36
54.86
43.58
50.94
74.00
54.00
74.00
54.00
74.00
74.00
54.00
74.00
54.00
74.00
-27.46
-16.16
-27.16
-16.85
-25.72
-29.42
-16.68
-26.40
-18.01
-23.88
PK
AV
PK
AV
PK
PK
AV
PK
AV
PK
Detecto
r Type
Polar
(H/V)
GFSK Middle Channel:2441MHz
39.55
7.85
25.66
46.54
39.55
7.85
25.66
37.84
38.33
7.52
24.55
46.84
38.33
7.52
24.55
37.15
35.23
6.75
26.59
48.28
39.55
7.85
25.66
44.58
39.55
7.85
25.66
37.32
38.33
7.52
23.55
47.60
38.33
7.52
23.22
35.99
35.45
6.75
27.88
50.12
Frequency
Meter
Reading
Pre-ampli
fier
Cable
Loss
Antenna
Factor
Emission
Level
Limits
Margin
(MHz)
(dBuV)
(dB)
(dB)
(dB)
(dBuV/m)
(dBuV/m)
(dB)
GFSK High Channel:2478MHz
4956.00
51.02
39.55
7.85
25.66
44.98
74.00
-29.02
PK
4956.00
43.25
39.55
7.85
25.66
37.21
54.00
-16.79
AV
7434.00
53.03
38.33
7.52
24.55
46.77
74.00
-27.23
PK
7434.00
43.11
38.33
7.52
24.55
36.85
54.00
-17.15
AV
15450.00
50.74
35.23
6.75
26.59
48.85
74.00
-25.15
PK
4956.00
53.61
39.55
7.85
25.66
47.57
74.00
-26.43
PK
4956.00
43.96
39.55
7.85
25.66
37.92
54.00
-16.08
AV
7434.00
52.20
38.33
7.52
23.55
44.94
74.00
-29.06
PK
7434.00
43.70
38.33
7.52
23.22
36.11
54.00
-17.89
AV
15450.00
54.28
35.45
6.75
27.88
53.46
74.00
-20.54
PK
Remark:
1. Emission Level = Meter Reading + Antenna Factor + Cable Loss – Pre-amplifier,
Margin= Emission Level - Limit
2. If peak below the average limit, the average emission was no test.
3. The amplitude of spurious emissions which are attenuated by more than 20dB below the permissible value
has no need to be reported.
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 20 of 44
Shenzhen BCTC Testing Co., Ltd.
Report No.: BCTC-FY180703958E
Radiated Band edge Emission
Temperature:
Pressure:
Test Mode :
Relative Humidtity: 54%
DC 6V
Test Voltage :
Polarization :
26℃
101kPa
Mode 1
Radiated Bandedge Emission
Modulation
GFSK
Polar
(H/V)
Frequency
(MHz)
Meter
Reading
(dBuV)
2390.00
2400.00
2390.00
2400.00
50.14
59.86
53.56
51.45
2483.50
2485.50
2483.50
2485.50
53.15
59.34
54.75
53.45
Preamplifier
(dB)
Cable
Loss
(dB)
Antenna
Factor
(dB/m)
Low Channel 2405MHz
38.06
7.42
20.15
38.06
7.42
20.15
38.06
7.42
20.15
38.06
7.42
20.15
High Channel 2478MHz
38.17
7.45
20.54
38.17
7.45
20.54
38.20
7.45
20.54
38.20
7.45
20.54
Emission
evel
(dBuV/m)
PK
Limits
(dBuV/m)
PK
Result
AV
39.65
49.37
43.07
40.96
74.00
74.00
74.00
74.00
54.00
54.00
54.00
54.00
PASS
PASS
PASS
PASS
42.97
49.16
44.54
43.24
74.00
74.00
74.00
74.00
54.00
54.00
54.00
54.00
PASS
PASS
PASS
PASS
Remark:
1.Emission Level = Meter Reading + Antenna Factor + Cable Loss – Pre-amplifier,
Margin= Emission Level - Limit
2. If the PK measured levels comply with average limit, then the average level were deemed to comply with
average limit.
All the modulation modes have been tested, and the worst result was report as below:
Note: (1) All other emissions more than 20dB below the limit.
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 21 of 44
Shenzhen BCTC Testing Co., Ltd.
Report No.: BCTC-FY180703958E
8. CONDUCTED EMISSION
8.1
Block Diagram Of Test Setup
Radio Test System
8.2
EUT
Limit
Regulation 15.247 (d),In any 100 kHz bandwidth outside the frequency band in which the
spread spectrum or digitally modulated intentional radiator is operating, the radio frequency
power that is produced by the intentional radiator shall be at least 20 dB below that in the 100
kHz bandwidth within the band that contains the highest level of the desired power, based on
either an RF conducted or a radiated measurement, provided the transmitter demonstrates
compliance with the peak conducted power limits. If the transmitter complies with the
conducted power limits based on the use of RMS averaging over a time interval, as permitted
under paragraph (b)(3) of this section, the attenuation required under this paragraph shall be
30 dB instead of 20 dB. Attenuation below the general limits specified in §15.209(a) is not
required. In addition, radiated emissions which fall in the restricted bands, as defined in
§15.205(a), must also comply with the radiated emission limits specified in §15.209(a) (see
§15.205(c)).
8.3
Test procedure
1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port
to the spectrum;
2. Set the spectrum analyzer:
Blow 30MHz:
RBW = 100kHz, VBW = 300kHz, Sweep = auto
Detector function = peak, Trace = max hold
Above 30MHz:
RBW = 100KHz, VBW = 300KHz, Sweep = auto
Detector function = peak, Trace = max hold
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 22 of 44
Shenzhen BCTC Testing Co., Ltd.
8.4
Report No.: BCTC-FY180703958E
Test Result
30MHz – 25GHz
GFSK Low Channel
GFSK Middle Channel
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 23 of 44
Shenzhen BCTC Testing Co., Ltd.
Report No.: BCTC-FY180703958E
GFSK High Channel
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 24 of 44
Shenzhen BCTC Testing Co., Ltd.
Report No.: BCTC-FY180703958E
GFSK Transmitting Band edge-left side
GFSK Hopping Band edge-left side
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 25 of 44
Shenzhen BCTC Testing Co., Ltd.
Report No.: BCTC-FY180703958E
GFSK Transmitting Band edge-right side
GFSK Hopping Band edge-right side
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 26 of 44
Shenzhen BCTC Testing Co., Ltd.
Report No.: BCTC-FY180703958E
9. 20 DB BANDWIDTH
9.1
Block Diagram Of Test Setup
Radio Test System
9.2
EUT
Limit
N/A
9.3
Test procedure
1. Set RBW = 100 kHz.
2. Set the video bandwidth (VBW) ≥ 3 x RBW.
3. Detector = Peak.
4. Trace mode = max hold.
5. Sweep = auto couple.
6. Allow the trace to stabilize.
7. Measure the maximum width of the emission that is constrained by the frequencies
associated with the two outermost amplitude points (upper and lower frequencies) that are
attenuated by 6 dB relative to the maximum level measured in the fundamental emission.
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 27 of 44
Shenzhen BCTC Testing Co., Ltd.
9.4
Report No.: BCTC-FY180703958E
Test Result
Modulation
Test Channel
Bandwidth(MHz)
GFSK
Low
1.231
GFSK
GFSK
Middle
High
1.250
1.304
Test plots
GFSK Low Channel
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 28 of 44
Shenzhen BCTC Testing Co., Ltd.
Report No.: BCTC-FY180703958E
GFSK Middle Channel
GFSK High Channel
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 29 of 44
Shenzhen BCTC Testing Co., Ltd.
10.
MAXIMUM PEAK OUTPUT POWER
10.1
Block Diagram Of Test Setup
Radio Test System
10.2
Report No.: BCTC-FY180703958E
EUT
Limit
For frequency hopping systems operating in the 2400-2483.5 MHz band employing at least
75 non-overlapping hopping channels, and all frequency hopping systems in the 5725-5850
MHz band: 1 watt. For all other frequency hopping systems in the 2400-2483.5 MHz band:
0.125 watts.
10.3
Test procedure
1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port
to the spectrum.
2. Set the spectrum analyzer: RBW = 3MHz. VBW = 3MHz. Sweep = auto; Detector Function
= Peak.
3. Keep the EUT in transmitting at lowest, medium and highest channel individually. Record
the max value.
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 30 of 44
Shenzhen BCTC Testing Co., Ltd.
10.4
Report No.: BCTC-FY180703958E
Test Result
Modulation
Test Channel
GFSK
Low
Output Power
(dBm)
7.599
GFSK
Middle
7.579
21
GFSK
High
8.205
21
Limit (dBm)
21
Test plots
GFSK Low Channel
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 31 of 44
Shenzhen BCTC Testing Co., Ltd.
Report No.: BCTC-FY180703958E
GFSK Middle Channel
GFSK High Channel
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 32 of 44
Shenzhen BCTC Testing Co., Ltd.
11.
HOPPING CHANNEL SEPARATION
11.1
Block Diagram Of Test Setup
Radio Test System
11.2
Report No.: BCTC-FY180703958E
EUT
Limit
Frequency hopping systems shall have hopping channel carrier frequencies separated by a
minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater.
Alternatively, frequency hopping systems operating in the 2400-2483.5 MHz band may have
hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB
bandwidth of the hopping channel, whichever is greater, provided the systems operate with
an output power no greater than 0.125W.
11.3
Test procedure
1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port
to the spectrum.
2. Set the spectrum analyzer: RBW = 30kHz. VBW = 100kHz , Span = 3.0MHz. Sweep =
auto; Detector Function = Peak. Trace = Max hold.
3. Allow the trace to stabilize. Use the marker-delta function to determine the separation
between the peaks of the adjacent channels. The limit is specified in one of the
subparagraphs of this Section Submit this plot.
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 33 of 44
Shenzhen BCTC Testing Co., Ltd.
11.4
Report No.: BCTC-FY180703958E
Test Result
Modulation
Test Channel
GFSK
GFSK
Low
Separation
(MHz)
1.000
Middle
GFSK
High
Limit(MHz)
Result
0.821
PASS
1.000
0.833
PASS
1.000
0.869
PASS
Test plots
GFSK Low Channel
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 34 of 44
Shenzhen BCTC Testing Co., Ltd.
Report No.: BCTC-FY180703958E
GFSK Middle Channel
GFSK High Channel
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 35 of 44
Shenzhen BCTC Testing Co., Ltd.
Report No.: BCTC-FY180703958E
12.
NUMBER OF HOPPING FREQUENCY
12.1
Block Diagram Of Test Setup
Radio Test System
12.2
EUT
Limit
Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels.
12.3
Test procedure
1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port
to the spectrum.
2. Set the spectrum analyzer: RBW = 100kHz. VBW = 300kHz. Sweep = auto; Detector
Function = Peak. Trace = Max hold.
3. Allow the trace to stabilize. It may prove necessary to break the span up to sections. in
order to clearly show all of the hopping frequencies. The limit is specified in one of the
subparagraphs of
this Section.
4. Set the spectrum analyzer: Start Frequency = 2.4GHz, Stop Frequency = 2.4835GHz.
Sweep=auto;
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 36 of 44
Shenzhen BCTC Testing Co., Ltd.
12.4
Report No.: BCTC-FY180703958E
Test Result
Test Plots:
74 Channels in total
GFSK
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 37 of 44
Shenzhen BCTC Testing Co., Ltd.
13.
DWELL TIME
13.1
Block Diagram Of Test Setup
Radio Test System
13.2
Report No.: BCTC-FY180703958E
EUT
Limit
Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels.
The average time of occupancy on any channel shall not be greater than 0.4 seconds within
a period of 0.4 seconds multiplied by the number of hopping channels employed. Frequency
hopping systems may avoid or suppress transmissions on a particular hopping frequency
provided that a minimum of 15 channels are used.
13.3
Test procedure
1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port
to the spectrum.
2. Set spectrum analyzer span = 0. Centred on a hopping channel;
3. Set RBW = 1MHz and VBW = 3MHz.Sweep = as necessary to capture the entire dwell
time per hopping channel. Set the EUT for DH1 packet transmitting.
4. Use the marker-delta function to determine the dwell time. If this value varies with different
modes of operation (e.g.. data rate. modulation format. etc.). repeat this test for each
variation. The limit is specified in one of the subparagraphs of this Section. Submit this
plot(s).
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 38 of 44
Shenzhen BCTC Testing Co., Ltd.
13.4
Report No.: BCTC-FY180703958E
Test Result
DH1 Packet permit maximum 1600 / 74 /2 hops per second in each channel
(1 time slot RX, 1 time slot TX). So, the Dwell Time can be calculated as follows:
DH1:1600/74/2*0.4*74*(MkrDelta)/1000
Remark: Mkr Delta is once pulse time.
Modulation
GFSK
GFSK
GFSK
FCC Report
Channel
Data
Low
Middle
High
Tel: 400-788-9558
Packet
DH1
DH1
DH1
pulse
time(ms)
1.2
1.2
1.2
Dwell
Time(s)
0.384
0.384
0.384
Web: Http//www.bctc-lab.com.cn
Limits(s)
0.4
0.4
0.4
Page 39 of 44
Shenzhen BCTC Testing Co., Ltd.
Report No.: BCTC-FY180703958E
Test Plots
GFSK DH1 Low Channel
GFSK DH1 Middle Channel
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 40 of 44
Shenzhen BCTC Testing Co., Ltd.
Report No.: BCTC-FY180703958E
GFSK DH1 High Channel
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 41 of 44
Shenzhen BCTC Testing Co., Ltd.
14.
Report No.: BCTC-FY180703958E
ANTENNA REQUIREMENT
An intentional radiator shall be designed to ensure that no antenna other than that furnished
by the responsible party shall be used with the device. The use of a permanently attached
antenna or of an antenna that uses a unique coupling to the intentional radiator shall be
considered sufficient to comply with the provisions of this section. The manufacturer may
design the unit so that a broken antenna can be replaced by the user, but the use of a
standard antenna jack or electrical connector is prohibited. This requirement does not apply
to carrier current devices or to devices operated under the provisions of §15.211, §15.213,
§15.217, §15.219, or §15.221. Further, this requirement does not apply to intentional
radiators that must be professionally installed, such as perimeter protection systems and
some field disturbance sensors, or to other intentional radiators which, in accordance with
§15.31(d), must be measured at the installation site. However, the installer shall be
responsible for ensuring that the proper antenna is employed so that the limits in this part are
not exceeded.
For intentional device, according to FCC 47 CFR Section 15.203, an intentional radiator shall
be designed to ensure that no antenna other than that furnished by the responsible party
shall be used with the device.
The EUT antenna is Internal Antenna, antenna Gain 0dBi, meets the requirements of FCC
15.203.
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 42 of 44
Shenzhen BCTC Testing Co., Ltd.
15.
Report No.: BCTC-FY180703958E
EUT PHOTOGRAPHS
EUT Photo 1
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 43 of 44
Shenzhen BCTC Testing Co., Ltd.
16.
Report No.: BCTC-FY180703958E
EUT TEST SETUP PHOTOGRAPHS
Spurious emissions
※※※※※ END OF REPORT ※※※※※
FCC Report
Tel: 400-788-9558
Web: Http//www.bctc-lab.com.cn
Page 44 of 44
