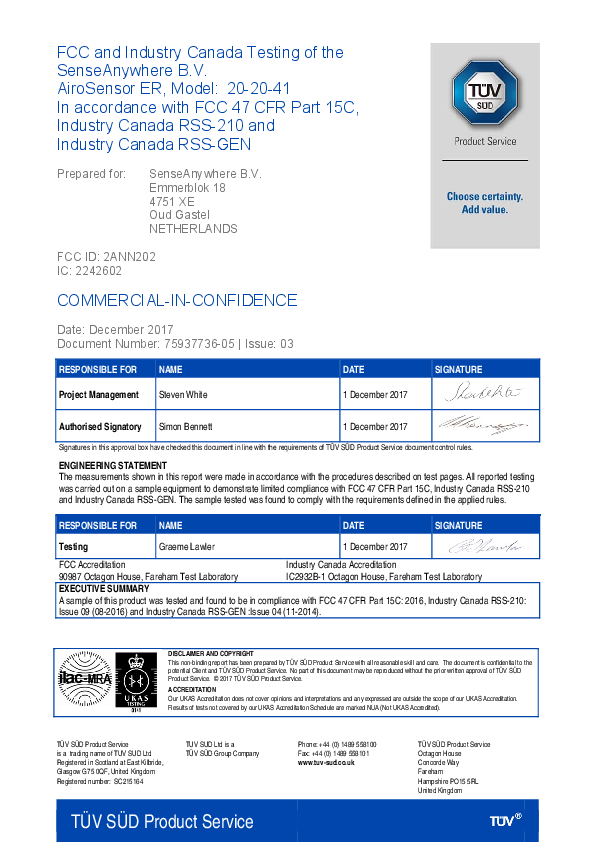

FCC and Industry Canada Testing of the
SenseAnywhere B.V.
AiroSensor ER, Model: 20-20-41
In accordance with FCC 47 CFR Part 15C,
Industry Canada RSS-210 and
Industry Canada RSS-GEN
Prepared for:
SenseAnywhere B.V.
Emmerblok 18
4751 XE
Oud Gastel
NETHERLANDS
FCC ID: 2ANN202
IC: 2242602
COMMERCIAL-IN-CONFIDENCE
Date: December 2017
Document Number: 75937736-05 | Issue: 03
RESPONSIBLE FOR
NAME
DATE
Project Management
Steven White
1 December 2017
Authorised Signatory
Simon Bennett
1 December 2017
SIGNATURE
Signatures in this approval box have checked this document in line with the requirements of TÜV SÜD Product Service document control rules.
ENGINEERING STATEMENT
The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing
was carried out on a sample equipment to demonstrate limited compliance with FCC 47 CFR Part 15C, Industry Canada RSS-210
and Industry Canada RSS-GEN. The sample tested was found to comply with the requirements defined in the applied rules.
RESPONSIBLE FOR
NAME
DATE
Testing
Graeme Lawler
1 December 2017
SIGNATURE
FCC Accreditation
Industry Canada Accreditation
90987 Octagon House, Fareham Test Laboratory
IC2932B-1 Octagon House, Fareham Test Laboratory
EXECUTIVE SUMMARY
A sample of this product was tested and found to be in compliance with FCC 47 CFR Part 15C: 2016, Industry Canada RSS-210:
Issue 09 (08-2016) and Industry Canada RSS-GEN :Issue 04 (11-2014).
DISCLAIMER AND COPYRIGHT
This non-binding report has been prepared by TÜV SÜD Product Service with all reasonable skill and care. The document is confidential to the
potential Client and TÜV SÜD Product Service. No part of this document may be reproduced without the prior written approval of TÜV SÜD
Product Service. © 2017 TÜV SÜD Product Service.
ACCREDITATION
Our UKAS Accreditation does not cover opinions and interpretations and any expressed are outside the scope of our UKAS Accreditation.
Results of tests not covered by our UKAS Accreditation Schedule are marked NUA (Not UKAS Accredited).
TÜV SÜD Product Service
is a trading name of TUV SUD Ltd
Registered in Scotland at East Kilbride,
Glasgow G75 0QF, United Kingdom
Registered number: SC215164
TUV SUD Ltd is a
TÜV SÜD Group Company
TÜV SÜD Product Service
Phone: +44 (0) 1489 558100
Fax: +44 (0) 1489 558101
www.tuv-sud.co.uk
TÜV SÜD Product Service
Octagon House
Concorde Way
Fareham
Hampshire PO15 5RL
United Kingdom
Document Number: 75937736-05 | Issue: 03
COMMERCIAL-IN-CONFIDENCE
Contents
Report Summary .........................................................................................................................2
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
Report Modification Record...........................................................................................................2
Introduction....................................................................................................................................2
Brief Summary of Results .............................................................................................................3
Application Form ...........................................................................................................................4
Product Information .......................................................................................................................6
Deviations from the Standard........................................................................................................6
EUT Modification Record ..............................................................................................................6
Test Location .................................................................................................................................6
Test Details ..................................................................................................................................7
2.1
2.2
2.3
Field Strength of Fundamental ......................................................................................................7
Field Strength of Emissions ..........................................................................................................9
Authorised Band Edges ..............................................................................................................16
Measurement Uncertainty ........................................................................................................20
COMMERCIAL-IN-CONFIDENCE
Page 1 of 20
Document Number: 75937736-05 | Issue: 03
COMMERCIAL-IN-CONFIDENCE
Report Summary
1.1
Report Modification Record
Alterations and additions to this report will be issued to the holders of each copy in the form of a
complete document.
Issue
Description of Change
Date of Issue
First Issue
06 November 2017
Updated Application form
17 November 2017
Further updates to Application form
01 December 2017
Table 1
1.2
Introduction
Applicant
SenseAnywhere B.V.
Manufacturer
SenseAnywhere B.V.
Model Number(s)
20-20-41
Serial Number(s)
10:0F:CE:01:66 and 10:0F:CD:E4:03
Hardware Version(s)
Software Version(s)
0.1
Number of Samples Tested
Test Specification/Issue/Date
FCC 47 CFR Part 15C: 2016
Industry Canada RSS-210: Issue 09 (08-2016)
Industry Canada RSS-GEN: Issue 04 (11-2014)
Order Number
Date
Proforma
27-January-2017
Date of Receipt of EUT
24-February-2017 and 12-April-2017
Start of Test
08-March-2017
Finish of Test
23-April-2017
Name of Engineer(s)
Graeme Lawler
Related Document(s)
ANSI C63.10 (2013)
COMMERCIAL-IN-CONFIDENCE
Page 2 of 20
Document Number: 75937736-05 | Issue: 03
COMMERCIAL-IN-CONFIDENCE
1.3
Brief Summary of Results
A brief summary of the tests carried out in accordance with FCC 47 CFR Part 15C, Industry Canada RSS-210 and Industry Canada RSSGEN is shown below.
Section
Specification Clause
Part 15C
RSS-210
Test Description
Result
Comments/Base Standard
RSS-GEN
Configuration: Continuous Transmit
2.1
15.249
(a)
B.10(a)
Field Strength of Fundamental
Pass
ANSI C63.10
2.2
15.249
(a)(d)
B.10
Field Strength of Emissions
Pass
ANSI C63.10
2.3
15.249
(a)
B.10(b)
Authorised Band Edges
Pass
ANSI C63.10
Table 2
COMMERCIAL-IN-CONFIDENCE
Page 3 of 20
Document Number: 75937736-05 | Issue: 03
COMMERCIAL-IN-CONFIDENCE
1.4
Application Form
EQUIPMENT DESCRIPTION
Model Name/Number
Asset / AiroSensor ER (extended range)
Part Number
20-10-21 / 20-20-21 / 20-20-31 / 20-20-41 / 20-20-43 / 20-20-25
Hardware Version
Software Version
0.1
FCC ID (if applicable)
2ANN202
Industry Canada ID (if applicable)
2242602
Technical Description (Please provide a brief
description of the intended use of the equipment)
Wireless sensor with 3-axis accelerometer, temperature/humidity, magnetic
reed and/or external switch contact
INTENTIONAL RADIATORS
Technology
Sense
Anywhere
SWP
(ISM SRD
proprietary)
Frequency
Band
(MHz)
902 – 928
Conducted
Declared
Output
Power
(dBm)
+12dBm
peak, <1%
duty cycle,
<-8dBm
avg
Antenna
Gain
(dBi)
Supported
Bandwidth (s)
(MHz)
4dBi
0.1
Modulation
Scheme(s)
ITU
Emission
Designator
GFSK
19K2F1D
Test Channels (MHz)
Bottom
Middle
Top
915.3
19.2 kbaud
UN-INTENTIONAL RADIATOR
Highest frequency generated or used in the device or on which
the device operates or tunes
COMMERCIAL-IN-CONFIDENCE
Page 4 of 20
Document Number: 75937736-05 | Issue: 03
COMMERCIAL-IN-CONFIDENCE
Power Source
Single Phase
AC
External DC
Battery
Three Phase
Nominal Voltage
Nominal Voltage
Maximum Current
Nominal Voltage
Battery Operating End Point Voltage
3.0V (fixed, non-rechargeable)
2.0V
Can EUT transmit whilst being charged?
Yes
No
EXTREME CONDITIONS
Maximum temperature
+85
°C
Minimum temperature
-40
°C
Ancillaries
Please list all ancillaries which will be used with the device.
I hereby declare that the information supplied is correct and complete.
Name:
Position held:
W.E.S. Couzijn
Designer
COMMERCIAL-IN-CONFIDENCE
Date:
Feb. 11th 2017
Page 5 of 20
Document Number: 75937736-05 | Issue: 03
COMMERCIAL-IN-CONFIDENCE
1.5
Product Information
1.5.1
Technical Description
Wireless sensor with 3-axis accelerometer, temperature/humidity, magnetic reed and/or external
switch contact and external Antenna.
1.6
Deviations from the Standard
No deviations from the applicable test standard were made during testing.
1.7
EUT Modification Record
The table below details modifications made to the EUT during the test programme.
The modifications incorporated during each test are recorded on the appropriate test pages.
Modification State
Description of Modification still fitted to EUT
Modification Fitted By
Date Modification
Fitted
Not Applicable
Not Applicable
Not Applicable
Not Applicable
Serial Number: 10:0F:CE:01:66
As supplied by the customer
Serial Number: 10:0F:CD:E4:03
As supplied by the customer
Table 3
1.8
Test Location
TÜV SÜD Product Service conducted the following tests at our Fareham Test Laboratory.
Test Name
Name of Engineer(s)
Accreditation
Field Strength of Fundamental
Graeme Lawler
UKAS
Field Strength of Emissions
Graeme Lawler
UKAS
Authorised Band Edges
Graeme Lawler
UKAS
Configuration: Continuous Transmit
Table 4
Office Address:
Octagon House
Concorde Way
Segensworth North
Fareham
Hampshire
PO15 5RL
United Kingdom
COMMERCIAL-IN-CONFIDENCE
Page 6 of 20
Document Number: 75937736-05 | Issue: 03
COMMERCIAL-IN-CONFIDENCE
Test Details
2.1
Field Strength of Fundamental
2.1.1
Specification Reference
FCC 47 CFR Part 15C, Clause 15.249 (a)
Industry Canada RSS-210, Clause B.10 (a)
2.1.2
Equipment Under Test and Modification State
Airo Sensor, Model: 20-20-41, S/N: 10:0F:CE:01:66 - Modification State 0
2.1.3
Date of Test
08-March-2017
2.1.4
Test Method
The test was performed in accordance with ANSI C63.10, clause 6.3 and 6.5.
The following procedure was applied as per the PAG (Tracking Number 891445):
A duty cycle correction factor was applied to the peak value of the fundamental, which was used in
lieu of the Quasi-Peak detector as the emission duty cycle over a 100 ms is very short as specified
in FCC 47 CFR Part 15.35. The maximum transmit period was calculated in accordance with ANSI
C63.10, clause 7.5.
The duty cycle correction factor was calculated using the following formula:
-20LOG10(5/100) where 5 is the maximum transmit time within any 100 ms period.
The following conversion can be applied to convert from dBµV/m to µV/m:
10^(Field Strength in dBμV/m/20).
2.1.5
Environmental Conditions
Ambient Temperature
Relative Humidity
2.1.6
17.2 °C
50.0 %
Test Results
Continuous Transmit
Frequency (MHz)
Field Strength (dBµv/m)
915.3
81.58
Table 5 - 915.3 MHz
COMMERCIAL-IN-CONFIDENCE
Page 7 of 20
Document Number: 75937736-05 | Issue: 03
COMMERCIAL-IN-CONFIDENCE
FCC 47 CFR Part 15, Limit Clause 15.249 (a)
Fundamental Frequency (MHz)
Field Strength of Fundamental (mV/m)
902 to 928
50
2400 to 2483.5
50
5725 to 5875
50
24000 to 24250
250
Table 6
Industry Canada RSS-210, Limit Clause B.10(a)
The field strength of fundamental, measured at 3 m, shall not exceed 50 mV/m.
Note: Measurements are reported in dBµV/m, the formula for conversion of the limit to
dBµV/m = 20log(V /m) + 120.
e.g. 20log(0.050) + 120 = 94 dBµV/m
2.1.7
Test Location and Test Equipment Used
This test was carried out in EMC Chamber 5.
Instrument
Manufacturer
Type No
TE No
Calibration
Period
(months)
Calibration Due
Screened Room (5)
Rainford
Rainford
1545
36
20-Dec-2017
Turntable Controller
Inn-Co GmbH
CO 1000
1606
TU
Hygromer
Rotronic
A1
2138
12
02-Feb-2018
Hygrometer
Rotronic
HYGROPALM 1
2338
12
21-Sep-2017
Antenna (Bilog)
Chase
CBL6143
2904
24
11-Jun-2017
Cable (N-N, 8m)
Rhophase
NPS-2302-8000NPS
3248
12
O/P Mon
EMI Test Receiver
Rohde & Schwarz
ESU40
3506
12
12-Nov-2017
Tilt Antenna Mast
maturo Gmbh
TAM 4.0-P
3916
TU
Mast Controller
maturo Gmbh
NCD
3917
TU
Cable (Yellow, Rx, Km-Km
2m)
Scott Cables
KPS-1501-2000KPS
4527
O/P Mon
Table 7
O/P Mon - Output Monitored Using Calibrated Equipment
TU - Traceability Unscheduled
COMMERCIAL-IN-CONFIDENCE
Page 8 of 20
Document Number: 75937736-05 | Issue: 03
COMMERCIAL-IN-CONFIDENCE
2.2
Field Strength of Emissions
2.2.1
Specification Reference
FCC 47 CFR Part 15C, Clause 15.249 (a)(d)
Industry Canada RSS-210, Clause B.10
2.2.2
Equipment Under Test and Modification State
Airo Sensor, Model: 20-20-41, S/N: 10:0F:CD:E4:03 - Modification State 0
2.2.3
Date of Test
20-April-2017
2.2.4
Test Method
The test was performed in accordance with ANSI C63.10, clause 6.3, 6.5 and 6.6.
To determine the average level of transmitter harmonics and spurious emissions that exhibit the
same pulse timing as the transmitter, a duty cycle correction factor was applied to the peak value of
the harmonic or spurious emission in accordance with ANSI C63.10-2013 clause 7.5.
Duty cycle correction, was also applied to measurements made against the quasi peak limit below
1GHz, which exhibit the same pulse timing as the transmitter, in line with the response to FCC
enquiry (Tracking Number 891445)
The duty cycle correction factor was calculated using the following formula:
-20LOG10(5/100) where 5 is the maximum transmit time within any 100 ms period.
2.2.5
Environmental Conditions
Ambient Temperature
Relative Humidity
2.2.6
17.8 - 19.3 °C
33.0 - 39.0 %
Test Results
Continuous Transmit
Frequency
(MHz)
QP Level
(dBuV/m)
QP Limit
(dBuV/m)
QP Margin
(dBuV/m)
Angle(Deg)
Height(m)
Polarity
759.269
15.68
46.0
-30.32
261
1.00
Vertical
811.331
24.48
46.0
-21.52
79
1.00
Vertical
837.272
17.98
46.0
-28.02
90
1.08
Vertical
850.303
15.78
46.0
-30.22
101
1.00
Vertical
863.285
23.18
46.0
-22.82
278
1.00
Vertical
902.275
13.98
46.0
-32.02
258
1.00
Horizontal
967.266
18.88
54.0
-35.12
258
1.00
Horizontal
Table 8 - 915.3 MHz - 30 MHz to 1 GHz
COMMERCIAL-IN-CONFIDENCE
Page 9 of 20
Document Number: 75937736-05 | Issue: 03
COMMERCIAL-IN-CONFIDENCE
120
Radiated Emissions (Field Strength)
100
80
60
40
Level (dBuV/m)
20
-20 FCC 3m 15.209
30M
Frequency (Hz)
100M
1G
Figure 1 - 915.3 MHz - 30 MHz to 1 GHz
NOTE: The emissions which appear to exceed the limit on the plot above does not include the
duty cycle correction factor which was applied as per the PAG (Tracking Number 891445). The
corrected results are recorded in table 8.
COMMERCIAL-IN-CONFIDENCE
Page 10 of 20
Document Number: 75937736-05 | Issue: 03
COMMERCIAL-IN-CONFIDENCE
Frequency
(MHz)
Final Peak
(dBµV/m)
Final
Average
(dBµV/m)
Final Peak
(µV/m)
Final
Average
(µV/m)
Angle (°)
Height (m)
Polarisation
1019.287
54.87
50.90
553.99
350.75
237
1.00
Vertical
2745.785
71.91
45.91
3940.03
197.47
062
1.40
Horizontal
3661.178
70.87
44.87
3495.43
175.19
138
3.85
Horizontal
4576.448
73.11
47.11
4523.76
226.73
327
1.63
Horizontal
6406.937
64.07
38.07
1597.72
80.08
337
117
Horizontal
Table 9 - 915.3 MHz - 1 GHz to 10 GHz
No other emissions were detected within 10 dB of the limit.
Figure 2 - 915.3 MHz - 1 GHz to 3 GHz
*The emission shown by the marker on the plot above is the 3rd harmonic of the fundamental
frequency. Therefore in order to demonstrate compliance with the average emission limit, the peak
value of 58.41 dBµV/m + 20*LOG(5/100) = 32.39 dBµV/m, where 5 ms is the maximum transmit
time within a 100 ms period.
The calculated peak value of 32.39 dBµV/m, can therefore be shown to comply with both the peak
and average test limits.
COMMERCIAL-IN-CONFIDENCE
Page 11 of 20
Document Number: 75937736-05 | Issue: 03
COMMERCIAL-IN-CONFIDENCE
Figure 3 - 915.3 MHz - 3 GHz to 8 GHz
*The emission shown on the above plot are harmonics of the fundamental, therefore in order to
demonstrate compliance with the average emission limit, the peak value of is used but reduced by -20*LOG(5/100) = 26.02 dBµV/m, where 5 ms is the maximum transmit time within a 100 ms
period.
The calculated peak value of 26.02 dBµV/m, can therefore be shown to comply with both the peak
and average test limits.
COMMERCIAL-IN-CONFIDENCE
Page 12 of 20
Document Number: 75937736-05 | Issue: 03
COMMERCIAL-IN-CONFIDENCE
Figure 4 - 915.3 MHz - 8 GHz to 10 GHz
FCC 47 CFR Part 15, Limit Clause 15.249 (d)
Emissions radiated outside of the specified frequency bands, except for harmonics, shall be
attenuated by at least 50 dB below the level of the fundamental or to the general radiated emission
limits in § 15.209, whichever is the lesser attenuation.
FCC 47 CFR Part 15, Limit Clause 15.209
Frequency (MHz)
Field Strength (µV/m at 3 m)
30 to 88
100
88 to 216
150
216 to 960
200
Above 960
500
Table 10
COMMERCIAL-IN-CONFIDENCE
Page 13 of 20
Document Number: 75937736-05 | Issue: 03
COMMERCIAL-IN-CONFIDENCE
Industry Canada RSS-210, Limit Clause B.10
The field strength of fundamental and harmonic emissions, measured at 3 m, shall not exceed 50
mV/m and 0.5 mV/m respectively.
The field strength limits shall be measured using an average detector, except for the fundamental
emission in the frequency band 902-928 MHz, which is based on measurements using an
International Special Committee on Radio Interference (CISPR) quasi-peak detector.
Emissions radiated outside of the specified frequency bands, except for harmonic emissions, shall
be attenuated by at least 50 dB below the level of the fundamental emissions or to the general field
strength limits listed in RSS-Gen, whichever is less stringent.
Industry Canada RSS-GEN, Limit Clause 8.9
Frequency (MHz)
Field Strength (µV/m at 3 m)
30 to 88
100
88 to 216
150
216 to 960
200
Above 960
500
Table 11
COMMERCIAL-IN-CONFIDENCE
Page 14 of 20
Document Number: 75937736-05 | Issue: 03
COMMERCIAL-IN-CONFIDENCE
2.2.7
Test Location and Test Equipment Used
This test was carried out in EMC Chamber 5.
Instrument
Manufacturer
Type No
TE No
Calibration
Period
(months)
Calibration Due
Hygrometer
Rotronic
A1
1388
12
13-Apr-2017
Pre-Amplifier
Phase One
PS04-0086
1533
12
29-Jul-2017
Screened Room (5)
Rainford
Rainford
1545
36
20-Dec-2017
Turntable Controller
Inn-Co GmbH
CO 1000
1606
TU
Hygromer
Rotronic
A1
2138
12
02-Feb-2018
Hygrometer
Rotronic
HYGROPALM 1
2338
12
21-Sep-2017
Filter
Daden Anthony Ass
MH-1500-7SS
2778
12
06-Feb-2018
Antenna (Bilog)
Chase
CBL6143
2904
24
11-Jun-2017
Cable (N-N, 8m)
Rhophase
NPS-2302-8000NPS
3248
12
O/P Mon
EMI Test Receiver
Rohde & Schwarz
ESU40
3506
12
12-Nov-2017
Multimeter
Fluke
177
3813
12
14-Sep-2017
Tilt Antenna Mast
maturo Gmbh
TAM 4.0-P
3916
TU
Mast Controller
maturo Gmbh
NCD
3917
TU
TRUE RMS
MULTIMETER
Fluke
179
4006
12
13-Dec-2017
1GHz to 8GHz Low Noise
Amplifier
Wright Technologies
APS04-0085
4365
12
17-Oct-2017
Suspended Substrate
Highpass Filter
Advance Power
Components
11SH103000/X18000-O/O
4412
12
23-Mar-2017
Cable (Yellow, Rx, Km-Km
2m)
Scott Cables
KPS-1501-2000KPS
4527
O/P Mon
Cable (Rx, SMAm-SMAm
0.5m)
Scott Cables
SLSLL18-SMSM00.50M
4528
03-Feb-2017
Double Ridged
Waveguide Horn Antenna
ETS-Lindgren
3117
4722
12
17-Feb-2018
Double Ridge Broadband
Horn Antenna
Schwarzbeck
BBHA 9120 B
4848
12
17-Feb-2018
Table 12
O/P Mon - Output Monitored Using Calibrated Equipment
TU - Traceability Unscheduled
COMMERCIAL-IN-CONFIDENCE
Page 15 of 20
Document Number: 75937736-05 | Issue: 03
COMMERCIAL-IN-CONFIDENCE
2.3
Authorised Band Edges
2.3.1
Specification Reference
FCC 47 CFR Part 15C, Clause 15.249 (a)
Industry Canada RSS-210, Clause B.10(b)
2.3.2
Equipment Under Test and Modification State
Airo Sensor, Model: 20-20-41 S/N: 10:0F:CD:E4:03 - Modification State 0
2.3.3
Date of Test
23-April-2017
2.3.4
Test Method
Testing was performed in accordance with ANSI C63.10-2013 clause 6.10.4
2.3.5
Environmental Conditions
Ambient Temperature
Relative Humidity
2.3.6
19.2 - 19.3 °C
24.0 - 37.0 %
Test Results
Continuous Transmit
Frequency (MHz)
Measured Frequency (MHz)
Peak Level (dBµV/m)
915.3
902
38.06
915.3
928
37.47
Table 13 - Authorised Band Edge Results
COMMERCIAL-IN-CONFIDENCE
Page 16 of 20
Document Number: 75937736-05 | Issue: 03
COMMERCIAL-IN-CONFIDENCE
Figure 5 - 915.3 MHz, Measured Frequency: 902 MHz
Figure 6 - 915.3 MHz, Measured Frequency: 928 MHz
COMMERCIAL-IN-CONFIDENCE
Page 17 of 20
Document Number: 75937736-05 | Issue: 03
COMMERCIAL-IN-CONFIDENCE
FCC 47 CFR Part 15, Limit Clause 15.249 (d)
Emissions radiated outside of the specified frequency bands, except for harmonics, shall be
attenuated by at least 50 dB below the level of the fundamental or to the general radiated emission
limits in § 15.209, whichever is the lesser attenuation.
FCC 47 CFR Part 15, Limit Clause 15.209
Frequency (MHz)
Field Strength (µV/m at 3 m)
30 to 88
100
88 to 216
150
216 to 960
200
Above 960
500
Table 14
Industry Canada RSS-210, Limit Clause B.10 (b)
Emissions radiated outside of the specified frequency bands, except for harmonic emissions, shall
be attenuated by at least 50 dB below the level of the fundamental emissions or to the general field
strength limits listed in RSS-Gen, whichever is less stringent.
Industry Canada RSS-GEN, Limit Clause 8.9
Frequency (MHz)
Field Strength (µV/m at 3 m)
30 to 88
100
88 to 216
150
216 to 960
200
Above 960
500
Table 15
COMMERCIAL-IN-CONFIDENCE
Page 18 of 20
Document Number: 75937736-05 | Issue: 03
COMMERCIAL-IN-CONFIDENCE
2.3.7
Test Location and Test Equipment Used
This test was carried out in EMC Chamber 5.
Instrument
Manufacturer
Type No
TE No
Calibration
Period
(months)
Calibration Due
Screened Room (5)
Rainford
Rainford
1545
36
20-Dec-2017
Turntable Controller
Inn-Co GmbH
CO 1000
1606
TU
Hygromer
Rotronic
A1
2138
12
02-Feb-2018
Hygrometer
Rotronic
HYGROPALM 1
2338
12
21-Sep-2017
Antenna (Bilog)
Chase
CBL6143
2904
24
11-Jun-2017
Cable (N-N, 8m)
Rhophase
NPS-2302-8000NPS
3248
12
O/P Mon
EMI Test Receiver
Rohde & Schwarz
ESU40
3506
12
12-Nov-2017
Tilt Antenna Mast
maturo Gmbh
TAM 4.0-P
3916
TU
Mast Controller
maturo Gmbh
NCD
3917
TU
TRUE RMS
MULTIMETER
Fluke
179
4006
12
13-Dec-2017
Cable (Yellow, Rx, Km-Km
2m)
Scott Cables
KPS-1501-2000KPS
4527
O/P Mon
Table 16
O/P Mon - Output Monitored Using Calibrated Equipment
TU - Traceability Unscheduled
COMMERCIAL-IN-CONFIDENCE
Page 19 of 20
Document Number: 75937736-05 | Issue: 03
COMMERCIAL-IN-CONFIDENCE
Measurement Uncertainty
For a 95% confidence level, the measurement uncertainties for defined systems are:
Test Name
Measurement Uncertainty
Field Strength of Fundamental
30 MHz to 1 GHz: ± 5.1 dB
1 GHz to 40 GHz: ± 6.3 dB
Field Strength of Emissions
30 MHz to 1 GHz: ± 5.1 dB
1 GHz to 40 GHz: ± 6.3 dB
Authorised Band Edges
Conducted: ± 3.08 dB
Radiated: 30 MHz to 1 GHz: ± 5.1 dB
Radiated: 1 GHz to 40 GHz: ± 6.3 dB
Table 17
COMMERCIAL-IN-CONFIDENCE
Page 20 of 20
Download: 02 Asset AiroSensor ER Test Report 2ANN202 75937736-05 Issue 03 SenseAnywhere B.V.
Mirror Download [FCC.gov]02 Asset AiroSensor ER Test Report 2ANN202 75937736-05 Issue 03 SenseAnywhere B.V.
Document ID3946286
Application IDgQwHAeuTuTBy55AO7df7bA==
Document Description2ANN202 75937736-05 Issue 03
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize22.35kB (279383 bits)
Date Submitted2018-08-01 00:00:00
Date Available2018-08-03 00:00:00
Creation Date2017-12-01 09:36:28
Producing SoftwareAcrobat Distiller 18.0 (Windows)
Document Lastmod2017-12-01 09:36:28
Document Title2ANN202 75937736-05 Issue 03
Document CreatorPScript5.dll Version 5.2.2
Document Author: baile-na

Source Exif Data [exif.tools]:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.5
Linearized                      : No
Author                          : baile-na
Create Date                     : 2017:12:01 09:36:28Z
Modify Date                     : 2017:12:01 09:36:28Z
XMP Toolkit                     : Adobe XMP Core 5.6-c015 84.159810, 2016/09/10-02:41:30
Format                          : application/pdf
Creator                         : baile-na
Title                           : Microsoft Word - Document 75937736-05 Issue 03.docx
Creator Tool                    : PScript5.dll Version 5.2.2
Producer                        : Acrobat Distiller 18.0 (Windows)
Document ID                     : uuid:96cc9d7d-f155-4047-965f-236955bc6350
Instance ID                     : uuid:b3c909b6-b7c3-4fbe-8a5d-eea50d442056
Page Count                      : 21
