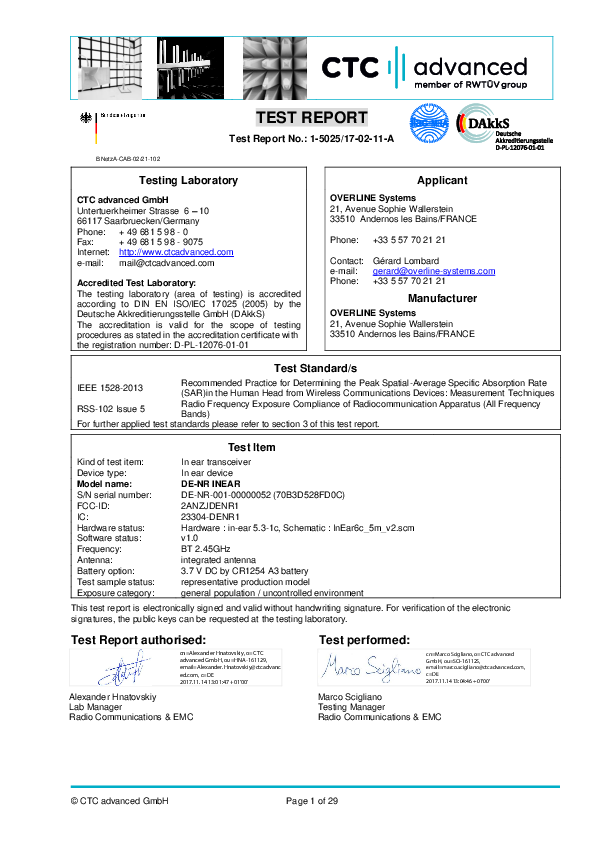

TEST REPORT
Test Report No.: 1-5025/17-02-11-A
BNetzA-CAB-02/21-102
Testing Laboratory
Applicant
OVERLINE Systems
21, Avenue Sophie Wallerstein
33510 Andernos les Bains/FRANCE
CTC advanced GmbH
Untertuerkheimer Strasse 6 – 10
66117 Saarbruecken/Germany
Phone:
+ 49 681 5 98 - 0
Fax:
+ 49 681 5 98 - 9075
Internet: http://www.ctcadvanced.com
e-mail:
mail@ctcadvanced.com
Accredited Test Laboratory:
The testing laboratory (area of testing) is accredited
according to DIN EN ISO/IEC 17025 (2005) by the
Deutsche Akkreditierungsstelle GmbH (DAkkS)
The accreditation is valid for the scope of testing
procedures as stated in the accreditation certificate with
the registration number: D-PL-12076-01-01
Phone:
+33 5 57 70 21 21
Contact:
e-mail:
Phone:
Gérard Lombard
gerard@overline-systems.com
+33 5 57 70 21 21
Manufacturer
OVERLINE Systems
21, Avenue Sophie Wallerstein
33510 Andernos les Bains/FRANCE
Test Standard/s
Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate
(SAR)in the Human Head from Wireless Communications Devices: Measurement Techniques
Radio Frequency Exposure Compliance of Radiocommunication Apparatus (All Frequency
RSS-102 Issue 5
Bands)
For further applied test standards please refer to section 3 of this test report.
IEEE 1528-2013
Test Item
Kind of test item:
Device type:
Model name:
S/N serial number:
FCC-ID:
IC:
Hardware status:
Software status:
Frequency:
Antenna:
Battery option:
Test sample status:
Exposure category:
In ear transceiver
In ear device
DE-NR INEAR
DE-NR-001-00000052 (70B3D528FD0C)
2ANZJDENR1
23304-DENR1
Hardware : in-ear 5.3-1c, Schematic : InEar6c_5m_v2.scm
v1.0
BT 2.45GHz
integrated antenna
3.7 V DC by CR1254 A3 battery
representative production model
general population / uncontrolled environment
This test report is electronically signed and valid without handwriting signature. For verification of the electronic
signatures, the public keys can be requested at the testing laboratory.
Test Report authorised:
Test performed:
cn=Alexander Hnatovskiy, o=CTC
advanced GmbH, ou=HNA-161129,
email=Alexander.Hnatovskiy@ctcadvanc
ed.com, c=DE
2017.11.14 13:01:47 +01'00'
Alexander Hnatovskiy
Lab Manager
Radio Communications & EMC
© CTC advanced GmbH
cn=Marco Scigliano, o=CTC advanced
GmbH, ou=SCI-161125,
email=marco.scigliano@ctcadvanced.com,
c=DE
2017.11.14 13:04:46 +01'00'
Marco Scigliano
Testing Manager
Radio Communications & EMC
Page 1 of 29
Test report no.: 1-5025/17-02-11-A
Table of contents
Table of contents .......................................................................................................................................2
General information ..................................................................................................................................3
2.1
2.2
2.3
2.4
Notes and disclaimer .....................................................................................................................3
Application details .........................................................................................................................3
Statement of compliance ...............................................................................................................3
Technical details ............................................................................................................................4
Test standards/ procedures references ..................................................................................................5
3.1
RF exposure limits .........................................................................................................................6
Summary of Measurement Results .........................................................................................................7
Test Environment ......................................................................................................................................7
Test Set-up .................................................................................................................................................8
6.1
Measurement system .....................................................................................................................8
6.1.1
System Description ................................................................................................................8
6.1.2
Test environment ...................................................................................................................9
6.1.3
Probe description ...................................................................................................................9
6.1.4
Phantom description ............................................................................................................10
6.1.5
Device holder description ....................................................................................................11
6.1.6
Scanning procedure ............................................................................................................12
6.1.7
Spatial Peak SAR Evaluation ..............................................................................................13
6.1.8
Data Storage and Evaluation...............................................................................................14
6.1.9
Tissue simulating liquids: dielectric properties ....................................................................16
6.1.10 Tissue simulating liquids: parameters .................................................................................16
6.1.11 Measurement uncertainty evaluation for SAR test ..............................................................17
6.1.12 Measurement uncertainty evaluation for System Check .....................................................20
6.1.13 System check ......................................................................................................................21
6.1.14 System check procedure .....................................................................................................21
6.1.15 System validation ................................................................................................................22
Detailed Test Results ..............................................................................................................................22
7.1
Conducted power measurements...............................................................................................22
7.1.1
Conducted average power measurements Bluetooth Classic 2.4 GHz ..............................22
7.1.2
Conducted average power measurements Bluetooth LE 2.4 GHz .....................................22
7.2
SAR test results ............................................................................................................................23
7.2.1
General description of test procedures ...............................................................................23
7.2.2
Results overview .................................................................................................................23
Test equipment and ancillaries used for tests .....................................................................................24
Observations ...........................................................................................................................................24
Annex A:
System performance check .....................................................................................................25
Annex B:
DASY5 measurement results...................................................................................................26
Annex B.1: BT LE 2450MHz ....................................................................................................................26
Annex B.2: Liquid depth .........................................................................................................................27
Annex C:
Photo documentation ...............................................................................................................28
Annex D:
Calibration parameters .............................................................................................................28
Annex E:
RSS-102 Annex A and B ...........................................................................................................28
Annex F:
Document History .....................................................................................................................29
Annex G:
Further Information ..................................................................................................................29
© CTC advanced GmbH
Page 2 of 29
Test report no.: 1-5025/17-02-11-A
General information
2.1
Notes and disclaimer
The test results of this test report relate exclusively to the test item specified in this test report. CTC advanced
GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with
regard to other specimens or samples of the type of the equipment represented by the test item. The test
report may only be reproduced or published in full. Reproduction or publication of extracts from the report
requires the prior written approval of CTC advanced GmbH.
This test report is electronically signed and valid without handwriting signature. For verification of the electronic
signatures, the public keys can be requested at the testing laboratory.
The testing service provided by CTC advanced GmbH has been rendered under the current "General Terms
and Conditions for CTC advanced GmbH".
CTC advanced GmbH will not be liable for any loss or damage resulting from false, inaccurate, inappropriate
or incomplete product information provided by the customer.
Under no circumstances does the CTC advanced GmbH test report include any endorsement or warranty
regarding the functionality, quality or performance of any other product or service provided.
Under no circumstances does the CTC advanced GmbH test report include or imply any product or service
warranties from CTC advanced GmbH, including, without limitation, any implied warranties of merchantability,
fitness for purpose, or non-infringement, all of which are expressly disclaimed by CTC advanced GmbH.
All rights and remedies regarding vendor’s products and services for which CTC advanced GmbH has
prepared this test report shall be provided by the party offering such products or services and not by CTC
advanced GmbH.
In no case this test report can be considered as a Letter of Approval.
2.2
Application details
Date of receipt of order:
Date of receipt of test item:
Start of test:
End of test:
Person(s) present during the test:
2.3
2017-09-04
2017-10-16
2017-10-16
2017-10-16
Mr. Domora
Mr. Jumeline
Statement of compliance
The SAR values found for the DE-NR INEAR In ear transceiver are below the maximum recommended levels
of 1.6 W/Kg as averaged over any 1 g tissue according to the FCC rule §2.1093, the ANSI/IEEE C 95.1:1992,
the NCRP Report Number 86 for uncontrolled environment, according to the Health Canada’s Safety Code 6
and the Industry Canada Radio Standards Specification RSS-102 for General Population/Uncontrolled
exposure.
© CTC advanced GmbH
Page 3 of 29
Lowest transmit frequency/MHz
Highest transmit frequency/MHz
Lowest receive Frequency/MHz
Highest receive Frequency/MHz
Kind of modulation
Power Class
Tested power control level
Test channel low
Test channel middle
Test channel high
Max. averaged output power /dBm
2.4
Technology
Band tested for this test report
Test report no.: 1-5025/17-02-11-A
Technical details
BT EDR
2402
2480
2402
2480
GFSK
max
39
78
5.2
BT LE
2402
2480
2402
2480
GFSK
max
19
39
7.4
© CTC advanced GmbH
Page 4 of 29
Test report no.: 1-5025/17-02-11-A
Test standards/ procedures references
Test Standard
Version
Test Standard Description
IEEE 1528-2013
2013-06
Recommended Practice for Determining the Peak SpatialAverage Specific Absorption Rate (SAR) in the Human
Head from Wireless Communications Devices:
Measurement Techniques
RSS-102 Issue 5
2015-03
Radio Frequency Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands)
Canada’s Safety
Code No. 6
2015-06
Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz
IEEE Std. C95-3
2002
IEEE Recommended Practice for the Measurement of
Potentially Hazardous Electromagnetic Fields – RF and
Microwave
IEEE Std. C95-1
2005
IEEE Standard for Safety Levels with Respect to Human
Exposure to Radio Frequency Electromagnetic Fields, 3
kHz to 300 GHz.
IEC 62209-2
2010
Human exposure to radio frequency fields from hand-held
and bodymounted wireless communication devices.
Human models, instrumentation, and procedures.
Procedure to determine the specific absorption rate (SAR)
for wireless communication devices used in close
proximity to the human body (frequency range of 30 MHz
to 6 GHz)
FCC KDBs:
KDB 865664D01v01
KDB 865664D02v01
KDB 447498D01v06
© CTC advanced GmbH
August 7,
2015
October 23,
2015
October 23,
2015
FCC OET SAR measurement requirements 100 MHz to 6 GHz
RF Exposure Compliance Reporting and Documentation
Considerations
Mobile and Portable Devices RF Exposure Procedures and
Equipment Authorization Policies
Page 5 of 29
Test report no.: 1-5025/17-02-11-A
3.1
RF exposure limits
Human Exposure
Spatial Peak SAR*
(Brain and Trunk)
Spatial Average SAR**
(Whole Body)
Spatial Peak SAR***
(Hands/Feet/Ankle/Wrist)
Uncontrolled Environment
General Population
Controlled Environment
Occupational
1.60 mW/g
8.00 mW/g
0.08 mW/g
0.40 mW/g
4.00 mW/g
20.00 mW/g
Table 1: RF exposure limits
The limit applied in this test report is shown in bold letters
Notes:
The Spatial Peak value of the SAR averaged over any 1 gram of tissue (defined as a tissue volume
in the shape of a cube) and over the appropriate averaging time
**
The Spatial Average value of the SAR averaged over the whole body.
***
The Spatial Peak value of the SAR averaged over any 10 grams of tissue (defined as a tissue
volume in the shape of a cube) and over the appropriate averaging time.
Uncontrolled Environments are defined as locations where there is the exposure of individuals who have no
knowledge or control of their exposure.
Controlled Environments are defined as locations where there is exposure that may be incurred by persons
who are aware of the potential for exposure, (i.e. as a result of employment or occupation).
© CTC advanced GmbH
Page 6 of 29
Test report no.: 1-5025/17-02-11-A
Summary of Measurement Results
No deviations from the technical specifications ascertained
Deviations from the technical specifications ascertained
Maximum SAR value reported for 1g (W/kg)
BT LE 2450MHz
head
0.245
Test Environment
Ambient temperature:
Tissue Simulating liquid:
20 – 24 °C
20 – 24 °C
Relative humidity content:
Air pressure:
Power supply:
40 – 50 %
not relevant for this kind of testing
230 V / 50 Hz
Exact temperature values for each test are shown in the table(s) under 7.1 and/or on the measurement plots.
© CTC advanced GmbH
Page 7 of 29
Test report no.: 1-5025/17-02-11-A
Test Set-up
6.1
Measurement system
6.1.1 System Description

The DASY system for performing compliance tests consists of the following items:

A standard high precision 6-axis robot (Stäubli RX/TX family) with controller and software. An arm
extension for accommodating the data acquisition electronics (DAE).

A dosimetric probe, i.e. an isotropic E-field probe optimized and calibrated for usage in tissue
simulating liquid.

A data acquisition electronic (DAE) which performs the signal amplification, signal multiplexing, ADconversion, offset measurements, mechanical surface detection, collision detection, etc. The unit is
battery powered with standard or rechargeable batteries. The signal is optically transmitted to the
EOC.
The Electro-Optical Coupler (EOC) performs the conversion from the optical into a digital electric
signal of the DAE. The EOC is connected to the DASY measurement server.
The DASY measurement server, which performs all real-time data evaluation for field measurements
and surface detection, controls robot movements and handles safety operation. A computer operating
Windows 7.
DASY software and SEMCAD data evaluation software.
Remote control with teach panel and additional circuitry for robot safety such as warning lamps, etc.
The generic twin phantom enabling the testing of left-hand and right-hand usage.
The triple flat and eli phantom for the testing of handheld and body-mounted wireless devices.
The device holder for handheld mobile phones and mounting device adaptor for laptops
Tissue simulating liquid mixed according to the given recipes.
System check dipoles allowing to validate the proper functioning of the system.









© CTC advanced GmbH
Page 8 of 29
Test report no.: 1-5025/17-02-11-A
6.1.2 Test environment
The DASY measurement system is placed in a laboratory room within an environment which avoids influence
on SAR measurements by ambient electromagnetic fields and any reflection from the environment. The
pictures at the beginning of the photo documentation show a complete view of the test environment. The
system allows the measurement of SAR values larger than 0.005 mW/g.
6.1.3 Probe description
Isotropic E-Field Probe ES3DV3 for Dosimetric Measurements
Technical data according to manufacturer information
Construction
Calibration
Frequency
Directivity
Dynamic range
Dimensions
Application
© CTC advanced GmbH
Symmetrical design with triangular core
Interleaved sensors
Built-in shielding against static charges
PEEK enclosure material (resistant to organic solvents,
e.g., butyl diglycol)
Calibration certificate in Appendix D
10 MHz to 3 GHz (dosimetry); Linearity: ± 0.2 dB (30 MHz to 3
GHz)
± 0.2 dB in HSL (rotation around probe axis)
± 0.3 dB in HSL (rotation normal to probe axis)
5 µW/g to > 100 mW/g; Linearity: ± 0.2 dB
Overall length: 330 mm
Tip length: 20 mm
Body diameter: 12 mm
Tip diameter: 3.9 mm
Distance from probe tip to dipole centers: 2.0 mm
General dosimetry up to 3 GHz
Compliance tests of mobile phones
Fast automatic scanning in arbitrary phantoms (ES3DV3)
Page 9 of 29
Test report no.: 1-5025/17-02-11-A
6.1.4 Phantom description
The used SAM Phantom meets the requirements specified in FCC KDB865664 D01 for Specific Absorption
Rate (SAR) measurements.
The phantom consists of a fibreglass shell integrated in a wooden table. It allows left-hand and right-hand head
as well as body-worn measurements with a maximum liquid depth of 18 cm in head position and 22 cm in
planar position (body measurements). The thickness of the Phantom shell is 2 mm +/- 0.1 mm.
ear reference point right hand side
ear reference point left hand side
reference point flat position
Triple Modular Phantom consists of three identical
modules which can be installed and removed
separately without emptying the liquid. It includes three
reference points for phantom installation. Covers
prevent evaporation of the liquid. Phantom material is
resistant to DGBE based tissue simulating liquids.
© CTC advanced GmbH
Page 10 of 29
Test report no.: 1-5025/17-02-11-A
6.1.5 Device holder description
The DASY device holder has two scales for device rotation (with respect to the body axis) and the device
inclination (with respect to the line between the ear openings). The plane between the ear openings and the
mouth tip has a rotation angle of 65°. The bottom plate contains three pair of bolts for locking the device
holder. The device holder positions are adjusted to the standard measurement positions in the three
sections. This device holder is used for standard mobile phones or PDA’s only. If necessary an additional
support of polystyrene material is used.
Larger DUT’s (e.g. notebooks) cannot be tested using this device holder.
Instead a support of bigger polystyrene cubes and thin polystyrene plates is
used to position the DUT in all relevant positions to find and measure spots with
maximum SAR values.
Therefore those devices are normally only tested at the flat part of the SAM.
© CTC advanced GmbH
Page 11 of 29
Test report no.: 1-5025/17-02-11-A
6.1.6 Scanning procedure




The DASY installation includes predefined files with recommended procedures for measurements and
system check. They are read-only document files and destined as fully defined but unmeasured
masks. All test positions (head or body-worn) are tested with the same configuration of test steps
differing only in the grid definition for the different test positions.
The „reference“ and „drift“ measurements are located at the beginning and end of the batch process.
They measure the field drift at one single point in the liquid over the complete procedure. The indicated
drift is mainly the variation of the DUT’s output power and should vary max. +/- 5 %.
The highest integrated SAR value is the main concern in compliance test applications. These values
can mostly be found at the inner surface of the phantom and cannot be measured directly due to the
sensor offset in the probe. To extrapolate the surface values, the measurement distances to the
surface must be known accurately. A distance error of 0.5mm could produce SAR errors of 6% at 1800
MHz. Using predefined locations for measurements is not accurate enough. Any shift of the phantom
(e.g., slight deformations after filling it with liquid) would produce high uncertainties. For an automatic
and accurate detection of the phantom surface, the DASY5 system uses the mechanical surface
detection. The detection is always at touch, but the probe will move backward from the surface the
indicated distance before starting the measurement.
The „area scan“ measures the SAR above the DUT or verification dipole on a parallel plane to the
surface. It is used to locate the approximate location of the peak SAR with 2D spline interpolation. The
robot performs a stepped movement along one grid axis while the local electrical field strength is
measured by the probe. The probe is touching the surface of the SAM during acquisition of
measurement values. The scan uses different grid spacings for different frequency measurements.
Standard grid spacing for head measurements in frequency ranges ≤ 2GHz is 15 mm in x- and ydimension. For higher frequencies a finer resolution is needed, thus for the grid spacing is reduced
according the following table:
Area scan grid spacing for different frequency ranges
Frequency range
Grid spacing
≤ 2 GHz
≤ 15 mm
2 – 4 GHz
≤ 12 mm
4 – 6 GHz
≤ 10 mm

Grid spacing and orientation have no influence on the SAR result. For special applications where the
standard scan method does not find the peak SAR within the grid, e.g. mobile phones with flip cover,
the grid can be adapted in orientation. Results of this coarse scan are shown in annex B.
A „zoom scan” measures the field in a volume around the 2D peak SAR value acquired in the previous
„coarse“ scan. It uses a fine meshed grid where the robot moves the probe in steps along all the 3
axis (x, y and z-axis) starting at the bottom of the Phantom. The grid spacing for the cube measurement
is varied according to the measured frequency range, the dimensions are given in the following table:
Zoom scan grid spacing and volume for different frequency ranges
Frequency range Grid spacing for x, y axis Grid spacing for z axis Minimum zoom scan volume
≤ 2 GHz
≤ 8 mm
≤ 5 mm
≥ 30 mm
2 – 3 GHz
≤ 5 mm*
≤ 5 mm
≥ 28 mm
3 – 4 GHz
≤ 5 mm*
≤ 4 mm
≥ 28 mm
4 – 5 GHz
≤ 4 mm*
≤ 3 mm
≥ 25 mm
5 – 6 GHz
≤ 4 mm*
≤ 2 mm
≥ 22 mm
* When zoom scan is required and the reported SAR from the area scan based 1-g SAR estimation procedures
of KDB Publication 447498 is ≤ 1.4 W/kg, ≤ 8 mm, ≤ 7 mm and ≤ 5 mm zoom scan resolution may be applied,
respectively, for 2 GHz to 3 GHz, 3 GHz to 4 GHz and 4 GHz to 6 GHz.
DASY is also able to perform repeated zoom scans if more than 1 peak is found during area scan. In
this document, the evaluated peak 1g and 10g averaged SAR values are shown in the 2D-graphics in
annex B. Test results relevant for the specified standard (see section 3) are shown in table form in
section 7.
© CTC advanced GmbH
Page 12 of 29
Test report no.: 1-5025/17-02-11-A
6.1.7 Spatial Peak SAR Evaluation
The spatial peak SAR - value for 1 and 10 g is evaluated after the Cube measurements have been done. The
basis of the evaluation are the SAR values measured at the points of the fine cube grid consisting of all points
in the three directions x, y and z. The algorithm that finds the maximal averaged volume is separated into three
different stages.

The data between the dipole center of the probe and the surface of the phantom are extrapolated.
This data cannot be measured since the center of the dipole is 1 to 2.7 mm away from the tip of the
probe and the distance between the surface and the lowest measuring point is about 1 mm (see probe
calibration sheet). The extrapolated data from a cube measurement can be visualized by selecting
‘Graph Evaluated’.

The maximum interpolated value is searched with a straight-forward algorithm. Around this maximum
the SAR - values averaged over the spatial volumes (1g or 10 g) are computed using the 3d-spline
interpolation algorithm. If the volume cannot be evaluated (i.e., if a part of the grid was cut off by the
boundary of the measurement area) the evaluation will be started on the corners of the bottom plane
of the cube.

All neighbouring volumes are evaluated until no neighbouring volume with a higher average value is
found.
Extrapolation
The extrapolation is based on a least square algorithm [W. Gander, Computermathematik, p.168-180].
Through the points in the first 3 cm along the z-axis, polynomials of order four are calculated. These
polynomials are then used to evaluate the points between the surface and the probe tip. The points, calculated
from the surface, have a distance of 1 mm from each other.
Interpolation
The interpolation of the points is done with a 3d-Spline. The 3d-Spline is composed of three one-dimensional
splines with the "Not a knot"-condition [W. Gander, Computermathematik, p.141-150] (x, y and z -direction)
[Numerical Recipes in C, Second Edition, p.123ff ].
Volume Averaging
At First the size of the cube is calculated. Then the volume is integrated with the trapezoidal algorithm. 8000
points (20x20x20) are interpolated to calculate the average.
Advanced Extrapolation
DASY uses the advanced extrapolation option which is able to compensate boundary effects on E-field probes.
© CTC advanced GmbH
Page 13 of 29
Test report no.: 1-5025/17-02-11-A
6.1.8 Data Storage and Evaluation
Data Storage
The DASY software stores the acquired data from the data acquisition electronics as raw data (in microvolt
readings from the probe sensors), together with all necessary software parameters for the data evaluation
(probe calibration data, liquid parameters and device frequency and modulation data) in measurement files
with the extension ".DA4", “.DA5x”. The software evaluates the desired unit and format for output each time
the data is visualized or exported. This allows verification of the complete software setup even after the
measurement and allows correction of incorrect parameter settings. For example, if a measurement has been
performed with a wrong crest factor parameter in the device setup, the parameter can be corrected afterwards
and the data can be re-evaluated.
The measured data can be visualized or exported in different units or formats, depending on the selected
probe type ([V/m], [A/m], [°C], [mW/g], [mW/cm²], [dBrel], etc.). Some of these units are not available in certain
situations or show meaningless results, e.g., a SAR output in a lossless media will always be zero. Raw data
can also be exported to perform the evaluation with other software packages.
Data Evaluation by SEMCAD
The SEMCAD software automatically executes the following procedures to calculate the field units from the
microvolt readings at the probe connector. The parameters used in the evaluation are stored in the
configuration modules of the software:
Probe parameters:
Device parameters:
Media parameters:
- Sensitivity
- Conversion factor
- Diode compression point
- Frequency
- Crest factor
- Conductivity
- Density
Normi, ai0, ai1, ai2
ConvFi
Dcpi
cf


These parameters must be set correctly in the software. They can be found in the component documents or
they can be imported into the software from the configuration files issued for the DASY components. In the
direct measuring mode of the multimeter option, the parameters of the actual system setup are used. In the
scan visualization and export modes, the parameters stored in the corresponding document files are used.
The first step of the evaluation is a linearization of the filtered input signal to account for the compression
characteristics of the detector diode. The compensation depends on the input signal, the diode type and the
DC-transmission factor from the diode to the evaluation electronics.
© CTC advanced GmbH
Page 14 of 29
Test report no.: 1-5025/17-02-11-A
If the exciting field is pulsed, the crest factor of the signal must be known to correctly compensate for peak
power. The formula for each channel can be given as:
Vi = Ui + Ui2 cf/dcpi

with
Vi
Ui
cf
dcpi
= compensated signal of channel i
= input signal of channel i
= crest factor of exciting field
= diode compression point
(i = x, y, z)
(i = x, y, z)
(DASY parameter)
(DASY parameter)
From the compensated input signals the primary field data for each channel can be
evaluated:
E-field probes:
Ei = (Vi / Normi ConvF)1/2
H-field probes:

with
Vi
Normi
Hi = (Vi)1/2 (ai0 + ai1f + ai2f2)/f
ConvF
aij
Ei
Hi


= compensated signal of channel i
= sensor sensitivity of channel i
[mV/(V/m)2] for E-field Probes
= sensitivity enhancement in solution
= sensor sensitivity factors for H-field probes
= carrier frequency [GHz]
= electric field strength of channel i in V/m
= magnetic field strength of channel i in A/m
(i = x, y, z)
(i = x, y, z)
The RSS value of the field components gives the total field strength (Hermitian magnitude):
Etot = (Ex2 + EY2 + Ez2)1/2
The primary field data are used to calculate the derived field units.
SAR = (Etot2 ) / ( 1000)


with
SAR
Etot

= local specific absorption rate in mW/g
= total field strength in V/m
= conductivity in [mho/m] or [Siemens/m]
= equivalent tissue density in g/cm 3


Note that the density is normally set to 1 (or 1.06), to account for actual brain density rather than the density
of the simulation liquid.The power flow density is calculated assuming the excitation field to be a free space
field.
Ppwe = Etot2 / 3770
with
or
Ppwe = Htot2 37.7
Ppwe = equivalent power density of a plane wave in mW/cm 2
Etot = total electric field strength in V/m
Htot = total magnetic field strength in A/m
© CTC advanced GmbH
Page 15 of 29

Test report no.: 1-5025/17-02-11-A
6.1.9 Tissue simulating liquids: dielectric properties
The following materials are used for producing the tissue-equivalent materials.
(Liquids used for tests described in section 7. are marked with
Ingredients
(% of weight)
frequency
450
750
835
band
Water
38.56
41.1
41.45
Salt (NaCl)
3.95
1.4
1.45
Sugar
56.32
57.0
56.0
HEC
0.98
0.2
1.0
Bactericide
0.19
0.2
0.1
Tween 20
0.0
0.0
0.0
Emulsifiers
0.0
0.0
0.0
Mineral Oil
0.0
0.0
0.0
Table 2: Head tissue dielectric properties
):
Frequency (MHz)
900
40.92
1.48
56.5
1.0
0.1
0.0
0.0
0.0
1450
54.37
0.63
0.0
0.0
0.1
44.90
0.0
0.0
1750
55.35
0.38
0.0
0.0
0.1
44.17
0.0
0.0
1900
55.19
0.19
0.0
0.0
0.1
44.52
0.0
0.0
2450
54.7
0.0
0.0
0.0
0.1
45.2
0.0
0.0
5000
64 - 78
2-3
0.0
0.0
0.0
0.0
9 - 15
11 - 18
Salt: 99+% Pure Sodium Chloride
Water: De-ionized, 16M+ resistivity
Sugar: 98+% Pure Sucrose
HEC: Hydroxyethyl Cellulose
Tween 20: Polyoxyethylene (20) sorbitan monolaurate
6.1.10 Tissue simulating liquids: parameters
Target head tissue
Measurement head tissue
Freq.
Measurement
Conductivity
Conductivity
(MHz) Permittivity
Permittivity Dev.
Dev.
date
(S/m)
ε''
(S/m)
2450
2402
39.29
1.76
39.3
0.1%
13.37
1.79
1.7%
2017-10-16
2440
39.22
1.79
39.2
0.0%
13.52
1.83
2.4%
2450
39.20
1.80
39.2
-0.1% 13.16
1.79
-0.4%
2480
39.16
1.83
39.1
-0.1% 13.65
1.88
2.7%
Table 3: Parameter of the head tissue simulating liquid
Note: The dielectric properties have been measured using the contact probe method at 22°C.
Liquid
HSL
© CTC advanced GmbH
Page 16 of 29
Test report no.: 1-5025/17-02-11-A
6.1.11 Measurement uncertainty evaluation for SAR test
DASY5 Uncertainty Budget
According to IEEE 1528/2003 and IEC 62209-1 for the 300 MHz - 3 GHz range
Uncertainty Value
Divisor ci
Standard Uncertainty v2 or
ci
Source of
Probability
uncertainty
Distribution
±%
(1g) (10g) ± %, (1g) ± %, (10g) veff
Measurement System
Probe calibration
Axial isotropy
Hemispherical isotropy
Boundary effects
Probe linearity
System detection limits
Readout electronics
Response time
Integration time
RF ambient noise
RF ambient reflections
Probe positioner
Probe positioning
Max.SAR evaluation
Test Sample Related
Device positioning
Device holder uncertainty
Power drift
Phantom and Set-up
Phantom uncertainty
Liquid conductivity (target)
Liquid conductivity (meas.)
Liquid permittivity (target)
Liquid permittivity (meas.)
Combined Std.
Expanded Std.
±
±
±
±
±
±
±
±
±
±
±
±
±
±
6.0
4.7
9.6
1.0
4.7
1.0
0.3
0.8
2.6
3.0
3.0
0.4
2.9
1.0
Normal
Rectangular
Rectangular
Rectangular
Rectangular
Rectangular
Normal
Rectangular
Rectangular
Rectangular
Rectangular
Rectangular
Rectangular
Rectangular
± 2.9 %
± 3.6 %
± 5.0 %
Normal
Normal
Rectangular
√ 3
±
±
±
±
±
Rectangular
Rectangular
Rectangular
Rectangular
Rectangular
√
√
√
√
√
4.0
5.0
5.0
5.0
5.0
√
√
√
√
√
√
√
√
√
√
√
√
0.7
0.7
0.7
0.7
0.64
0.64
0.6
0.6
0.43
0.43
0.49
0.49
±
±
±
±
±
±
±
±
±
±
±
±
±
±
6.0
1.9
3.9
0.6
2.7
0.6
0.3
0.5
1.5
1.7
1.7
0.2
1.7
0.6
±
±
±
±
±
±
±
±
±
±
±
±
±
±
6.0
1.9
3.9
0.6
2.7
0.6
0.3
0.5
1.5
1.7
1.7
0.2
1.7
0.6
± 2.9 %
± 3.6 %
± 2.9 %
±
±
±
2.9 % 145
3.6 %
2.9 % ∞
±
±
±
±
±
±
±
± 2.3 % ∞
± 1.2 % ∞
± 1.2 % ∞
± 1.4 % ∞
± 1.4 % ∞
± 10.8 % 387
± 21.6 %
2.3
1.8
1.8
1.7
1.7
11.1
22.1
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
Table 4: Measurement uncertainties
Worst-Case uncertainty budget for DASY5 assessed according to IEEE 1528/2003.
The budget is valid for 2G and 3G communication signals and frequency range 300MHz - 3 GHz.
For these conditions it represents a worst-case analysis. For specifc tests and configurations, the uncertainty
could be considerable smaller.
© CTC advanced GmbH
Page 17 of 29
Test report no.: 1-5025/17-02-11-A
Relative DASY5 Uncertainty Budget for SAR Tests
According to IEEE 1528/2013 and IEC62209/2011 for the 0.3 - 3GHz range
Uncertainty Value
Divisor ci
Standard Uncertainty v2 or
ci
Probability
Error Description
Distribution
±%
(1g) (10g) ± %, (1g) ± %, (10g) veff
Measurement System
Probe calibration
Axial isotropy
Hemispherical isotropy
Boundary effects
Probe linearity
System detection limits
Modulation Response
Readout electronics
Response time
Integration time
RF ambient noise
RF ambient reflections
Probe positioner
Probe positioning
Max. SAR evaluation
Test Sample Related
Device positioning
Device holder uncertainty
Power drift
Phantom and Set-up
Phantom uncertainty
SAR correction
Liquid conductivity (meas.)
Liquid permittivity (meas.)
Temp. Unc. - Conductivity
Temp. Unc. - Permittivity
Combined Uncertainty
Expanded Std.
Uncertainty
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
6.0
4.7
9.6
1.0
4.7
1.0
2.4
0.3
0.8
2.6
3.0
3.0
0.4
2.9
2.0
Normal
Rectangular
Rectangular
Rectangular
Rectangular
Rectangular
Rectangular
Normal
Rectangular
Rectangular
Rectangular
Rectangular
Rectangular
Rectangular
Rectangular
± 2.9 %
± 3.6 %
± 5.0 %
Normal
Normal
Rectangular
√ 3
±
±
±
±
±
±
Rectangular
Rectangular
Rectangular
Rectangular
Rectangular
Rectangular
√
√
√
√
√
√
6.1
1.9
5.0
5.0
3.4
0.4
√
√
√
√
√
√
√
√
√
√
√
√
√
0.7
0.7
0.7
0.7
0.78
0.26
0.78
0.23
0.84
0.71
0.26
0.71
0.26
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
6.0
1.9
3.9
0.6
2.7
0.6
1.4
0.3
0.5
1.5
1.7
1.7
0.2
1.7
1.2
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
6.0
1.9
3.9
0.6
2.7
0.6
1.4
0.3
0.5
1.5
1.7
1.7
0.2
1.7
1.2
± 2.9 %
± 3.6 %
± 2.9 %
±
±
±
2.9 % 145
3.6 %
2.9 % ∞
±
±
±
±
±
±
±
± 3.5
± 0.9
± 2.0
± 0.8
± 1.4
± 0.1
± 11.3
3.5
1.1
2.3
0.8
1.5
0.1
11.3
± 22.7 %
Page 18 of 29
% ∞
% ∞
% ∞
% ∞
% ∞
% ∞
% 330
± 22.5 %
Table 5: Measurement uncertainties
Worst-Case uncertainty budget for DASY5 assessed according to IEEE 1528/2013
and IEC 62209-1/2011 standards. The budget is valid for the frequency range 300MHz -3 GHz and
represents a worst-case analysis. For specific tests and configurations, the uncertainty could be
considerable smaller.
© CTC advanced GmbH
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
Test report no.: 1-5025/17-02-11-A
DASY5 Uncertainty Budget
According to IEC 62209-2/2010 for the 300 MHz - 6 GHz range
Divisor ci
Standard Uncertainty 2
ci
vi or
Source of
Uncertainty Probability
uncertainty
Value
Distribution
(1g) (10g) ± %, (1g) ± %, (10g) veff
Measurement System
Probe calibration
Axial isotropy
Hemispherical isotropy
Boundary effects
Probe linearity
System detection limits
Modulation Response
Readout electronics
Response time
Integration time
RF ambient noise
RF ambient reflections
Probe positioner
Probe positioning
Post-processing
Test Sample Related
Device positioning
Device holder uncertainty
Power drift
Phantom and Set-up
Phantom uncertainty
SAR correction
Liquid conductivity (meas.)
Liquid permittivity (meas.)
Temp. Unc. - Conductivity
Temp. Unc. - Permittivity
Combined Uncertainty
Expanded Std.
Uncertainty
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
6.6
4.7
9.6
2.0
4.7
1.0
2.4
0.3
0.8
2.6
3.0
3.0
0.8
6.7
4.0
Normal
Rectangular
Rectangular
Rectangular
Rectangular
Rectangular
Rectangular
Normal
Rectangular
Rectangular
Rectangular
Rectangular
Rectangular
Rectangular
Rectangular
± 2.9 %
± 3.6 %
± 5.0 %
Normal
Normal
Rectangular
√ 3
±
±
±
±
±
±
Rectangular
Rectangular
Rectangular
Rectangular
Rectangular
Rectangular
√
√
√
√
√
√
7.9
1.9
5.0
5.0
3.4
0.4
√
√
√
√
√
√
√
√
√
√
√
√
√
0.7
0.7
0.7
0.7
0.78
0.26
0.78
0.23
0.84
0.71
0.26
0.71
0.26
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
6.6
1.9
3.9
1.2
2.7
0.6
1.4
0.3
0.5
1.5
1.7
1.7
0.5
3.9
2.3
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
6.6
1.9
3.9
1.2
2.7
0.6
1.4
0.3
0.5
1.5
1.7
1.7
0.5
3.9
2.3
± 2.9 %
± 3.6 %
± 2.9 %
±
±
±
2.9 % 145
3.6 %
2.9 % ∞
±
±
±
±
±
±
±
± 4.6
± 0.9
± 2.0
± 0.8
± 1.4
± 0.1
± 12.6
4.6
1.1
2.3
0.8
1.5
0.1
12.7
± 25.4 %
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
% ∞
% ∞
% ∞
% ∞
% ∞
% ∞
% 330
± 25.3 %
Table 6: Measurement uncertainties.
Worst-Case uncertainty budget for DASY5 assessed according to according to IEC 62209-2/2010 standard.
The budget is valid for the frequency range 300MHz - 6 GHz and represents a worst-case analysis. For
specific tests and configurations, the uncertainty could be considerable smaller.
© CTC advanced GmbH
Page 19 of 29
Test report no.: 1-5025/17-02-11-A
6.1.12 Measurement uncertainty evaluation for System Check
Uncertainty of a System Performance Check with DASY5 System
for the 0.3 - 3 GHz range
Source of
uncertainty
Measurement System
Probe calibration
Axial isotropy
Hemispherical isotropy
Boundary effects
Probe linearity
System detection limits
Readout electronics
Response time
Integration time
RF ambient conditions
Probe positioner
Probe positioning
Max. SAR evaluation
Test Sample Related
Dev. of experimental dipole
Source to liquid distance
Power drift
Phantom and Set-up
Phantom uncertainty
SAR correction
Liquid conductivity (meas.)
Liquid permittivity (meas.)
Temp. unc. - Conductivity
Temp. unc. - Permittivity
Combined Uncertainty
Expanded Std.
Uncertainty
ci Standard Uncertainty vi2 or
Uncertainty Probability Divisor ci
Value
Distribution
(1g) (10g) ± %, (1g) ± %, (10g) veff
±
±
±
±
±
±
±
±
±
±
±
±
±
6.0
4.7
0.0
1.0
4.7
1.0
0.3
0.0
0.0
3.0
0.4
2.9
1.0
Normal
Rectangular
Rectangular
Rectangular
Rectangular
Rectangular
Normal
Rectangular
Rectangular
Rectangular
Rectangular
Rectangular
Rectangular
√
√
√
√
√
√
√
√
√
√
√
0.7
0.7
0.7
0.7
± 0.0 % Rectangular
± 2.0 % Rectangular
± 3.4 % Rectangular
√ 3
√ 3
√ 3
±
±
±
±
±
±
√ 3
√ 3
√ 3
√ 3
0.78
0.26
0.78
0.23
0.84
0.71
0.26
0.71
0.26
4.0
1.9
5.0
5.0
1.7
0.3
Rectangular
Rectangular
Normal
Normal
Rectangular
Rectangular
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
± 0.0 % ± 0.0 %
± 1.2 % ± 1.2 %
± 2.0 % ± 2.0 %
∞
∞
∞
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
6.0
1.9
0.0
0.6
2.7
0.6
0.3
0.0
0.0
1.7
0.2
1.7
0.6
2.3
1.1
3.9
1.3
0.8
0.0
9.1
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
2.3
0.9
3.6
1.3
0.7
0.0
8.9
± 18.2 % ± 17.9 %
Table 7: Measurement uncertainties of the System Check with DASY5 (0.3-3GHz)
Note: Worst case probe calibration uncertainty has been applied for all probes used during the
measurements.
© CTC advanced GmbH
6.0
1.9
0.0
0.6
2.7
0.6
0.3
0.0
0.0
1.7
0.2
1.7
0.6
Page 20 of 29
∞
∞
∞
∞
∞
∞
330
Test report no.: 1-5025/17-02-11-A
6.1.13 System check
The system check is performed for verifying the accuracy of the complete measurement system and
performance of the software. The system check is performed with tissue equivalent material according to IEEE
1528. The following table shows system check results for all frequency bands and tissue liquids used during
the tests (plot(s) see annex A).
System performence check (1000 mW)
Target
Target
System
Measured
Measured
SAR1g
SAR10g
SAR1g
SAR10g Measured
validation
Probe
Frequency
SAR1g /
SAR10g /
/mW/g
/mW/g
dev.
dev.
date
Kit
mW/g
mW/g
(+/- 10%) (+/- 10%)
D2450V2 ES3DV3 2450 MHz
52.60
24.80
51.90
-1.3%
24.10
-2.8% 2017-10-16
S/N: 710 S/N: 3320
HSL
Table 8: Results system check
6.1.14 System check procedure
The system check is performed by using a validation dipole which is positioned parallel to the planar part of
the SAM phantom at the reference point. The distance of the dipole to the SAM phantom is determined by a
plexiglass spacer. The dipole is connected to the signal source consisting of signal generator and amplifier via
a directional coupler, N-connector cable and adaption to SMA. It is fed with a power of 1000 mW for frequencies
below 2 GHz or 100 mW for frequencies above 2 GHz. To adjust this power a power meter is used. The power
sensor is connected to the cable before the system check to measure the power at this point and do
adjustments at the signal generator. At the outputs of the directional coupler both return loss as well as forward
power are controlled during the validation to make sure that emitted power at the dipole is kept constant. This
can also be checked by the power drift measurement after the test (result on plot).
System check results have to be equal or near the values determined during dipole calibration (target SAR in
table above) with the relevant liquids and test system.
© CTC advanced GmbH
Page 21 of 29
Test report no.: 1-5025/17-02-11-A
6.1.15 System validation
The system validation is performed in a similar way as a system check. It needs to be performed once a SAR
measurement system has been established and allows an evaluation of the system accuracy with all
components used together with the specified system. It has to be repeated at least once a year or when new
system components are used (DAE, probe, phantom, dipole, liquid type).
In addition to the procedure used during system check a system validation also includes checks of probe
isotropy, probe modulation factor and RF signal.
The following table lists the system validations relevant for this test report:
Frequency
(MHz)
DASY
SW
Dipole
Type /SN
Probe
Type /
SN
2450
V52.8.7
D2450V2
/ 710
ES3DV3
/ 3320
Calibrated
DAE unit
signal
Type / SN
type(s)
CW
DAE3 /
413
head
validation
2017-02-10
Detailed Test Results
7.1 Conducted power measurements
7.1.1 Conducted average power measurements Bluetooth Classic 2.4 GHz
Channel Frequency (MHz)
39
78
2402
2441
2480
GFSK
3.9
5.2
5.2
Average power (dBm)
π/4 DQPSK
8-DPSK
1.6
2.0
3.4
3.8
3.4
3.7
Table 9: Test results conducted average power measurement BLUETOOTH CLASSIC 2.4 GHz
7.1.2 Conducted average power measurements Bluetooth LE 2.4 GHz
Channel
Frequency (MHz)
19
39
2402
2440
2480
Average power (dBm)
GFSK
6.0
7.4
7.2
Table 10: Test results conducted average power measurement BLUETOOTH LE 2.4 GHz
© CTC advanced GmbH
Page 22 of 29
Test report no.: 1-5025/17-02-11-A
7.2 SAR test results
7.2.1 General description of test procedures





The DUT is tested with a software provided by the manufacturer to set different test modes for radiated
and conducted testing. Test positions as described in the tables above are in accordance with the
specified test standard.
Tests in body position were performed in that configuration, which generates the highest time based
averaged output power (see conducted power results).
According to IEEE 1528 the SAR test shall be performed at middle channel. Testing of top and bottom
channel is optional.
According to KDB 447498 D01 testing of other required channels within the operating mode of a
frequency band is not required when the reported 1-g or 10-g SAR for the mid-band or highest
output power channel is:
 ≤ 0.8 W/kg or 2.0 W/kg, for 1-g or 10-g respectively, when the transmission band is ≤ 100 MHz
 ≤ 0.6 W/kg or 1.5 W/kg, for 1-g or 10-g respectively, when the transmission band is between 100
MHz and 200 MHz
 ≤ 0.4 W/kg or 1.0 W/kg, for 1-g or 10-g respectively, when the transmission band is ≥ 200 MHz
IEEE 1528-2013 requires the middle channel to be tested first. This generally applies to wireless
devices that are designed to operate in technologies with tight tolerances for maximum output power
variations across channels in the band. When the maximum output power variation across the required
test channels is > ½ dB, instead of the middle channel, the highest output power channel must be
used.
7.2.2 Results overview
measured / extrapolated SAR numbers - HSL - Bluetooth 2450 MHz
cond. Pmax
SAR1g (W/kg)
SAR10g (W/kg) Power
Freq.
(dBm)
Ch.
Position
Drift
(MHz)
(dBm)
decl.** meas.
meas.
extrap.
measured
19 2440
front
7.50
7.40
0.142
0.145
0.050
0.130
2402
rear
7.50
6.00
0.130
0.184
0.040
-0.190
19 2440
rear
7.50
7.40
0.207
0.212
0.062
0.160
0.229
0.245
0.070
39 2480
rear
7.50
7.20
-0.190
ant
19 2440
7.50
7.40
0.069
0.071
0.017
-0.170
edge
Table 11: Test results head SAR BT LE 2450MHz
© CTC advanced GmbH
Page 23 of 29
liquid
(°C)
21.9
21.9
21.9
21.9
21.9
Test report no.: 1-5025/17-02-11-A
Test equipment and ancillaries used for tests
To simplify the identification of the test equipment and/or ancillaries which were used, the reporting of the
relevant test cases only refer to the test item number as specified in the table below.
Frequency
Equipment
Type
Manufacturer
Serial No.
Last Calibration
(months)
Dosimetric E-Field Probe
ES3DV3 Schmid & Partner 3320
January 12, 2017 12
Engineering AG
2450 MHz System Validation D2450V2 Schmid & Partner 710
August 15, 2016 36
Dipole
Engineering AG
Data acquisition electronics DAE3V1 Schmid & Partner 413
January 11, 2017 12
Engineering AG
Software
DASY52 Schmid & Partner --N/A
-52.8.7
Engineering AG
SAM Twin Phantom V5.0
QD 000 Schmid & Partner 1813
N/A
-P40 C
Engineering AG
Bluetooth Tester
CBT
Rohde & Schwarz 100313
September 22,
24
2016
Network Analyser
8753ES Hewlett Packard)* US39174436 January 28, 2016 24
300 kHz to 6 GHz
Dielectric Probe Kit
85070C Hewlett Packard
US99360146 N/A
12
Signal Generator
8671B
Hewlett Packard
2823A00656 January 31, 2017 24
Amplifier
25S1G4 Amplifier
20452
N/A
-(25 Watt) Reasearch
Power Meter
NRP
Rohde & Schwarz 101367
January 31, 2017 24
Power Meter Sensor
NRP Z22 Rohde & Schwarz 100227
January 31, 2017 12
Power Meter Sensor
NRP Z22 Rohde & Schwarz 100234
January 31, 2017 12
Directional Coupler
778D
Hewlett Packard
19171
January 31, 2017 12
)* : Network analyzer probe calibration against air, distilled water and a shorting block performed before measuring liquid
parameters.
Observations
No observations exceeding those reported with the single test cases have been made.
© CTC advanced GmbH
Page 24 of 29
Test report no.: 1-5025/17-02-11-A
Annex A: System performance check
Date/Time: 16.10.2017 13:18:54
SystemPerformanceCheck-D2450 HSL 2017-10-16
DUT: Dipole 2450 MHz; Type: D2450V2; Serial: 710
Communication System: UID 0, CW (0); Communication System Band: D2450 (2450.0 MHz); Frequency:
2450 MHz; Communication System PAR: 0 dB; PMF: 1
Medium parameters used: f = 2450 MHz; σ = 1.845 S/m; εr = 39.163; ρ = 1000 kg/m3
Phantom section: Flat Section
Measurement Standard: DASY5
DASY5 Configuration:
- Probe: ES3DV3 - SN3320; ConvF(4.67, 4.67, 4.67); Calibrated: 12.01.2017;
- Sensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0
- Electronics: DAE3 Sn413; Calibrated: 11.01.2017
- Phantom: SAM; Type: SAM; Serial: 1043
- DASY52 52.8.7(1137); SEMCAD X 14.6.10(7164)
HSL2450/d=10mm, Pin=100 mW, dist=3.0mm/Area Scan (81x81x1): Interpolated
grid: dx=1.000 mm, dy=1.000 mm
Maximum value of SAR (interpolated) = 6.89 W/kg
HSL2450/d=10mm, Pin=100 mW, dist=3.0mm/Zoom Scan (7x7x7)/Cube 0:
Measurement grid: dx=5mm, dy=5mm, dz=5mm
Reference Value = 63.725 V/m; Power Drift = -0.05 dB
Peak SAR (extrapolated) = 10.6 W/kg
SAR(1 g) = 5.19 W/kg; SAR(10 g) = 2.41 W/kg
Maximum value of SAR (measured) = 6.84 W/kg
0 dB = 6.84 W/kg = 8.35 dBW/kg
Additional information:
ambient temperature: 22.7°C; liquid temperature: 21.9°C
© CTC advanced GmbH
Page 25 of 29
Test report no.: 1-5025/17-02-11-A
Annex B: DASY5 measurement results
SAR plots for the highest measured SAR in each exposure configuration, wireless mode and frequency
band combination according to FCC KDB 865664 D02.
Annex B.1: BT LE 2450MHz
Date/Time: 16.10.2017 19:02:08
FCC-BT HSL earpiece
DUT: OVERLINE; Type: DE-NR INEAR; Serial: DE-NR-001-00000052 (70B3D528FD0C)
Communication System: UID 0, Bluetooth LE (0); Communication System Band: BTle; Frequency: 2480
MHz; Communication System PAR: 1.67 dB; PMF: 1.21199
Medium parameters used: f = 2480 MHz; σ = 1.883 S/m; εr = 39.108; ρ = 1000 kg/m3
Phantom section: Flat Section
Measurement Standard: DASY5
DASY5 Configuration:
- Probe: ES3DV3 - SN3320; ConvF(4.67, 4.67, 4.67); Calibrated: 12.01.2017;
- Sensor-Surface: 3mm (Mechanical Surface Detection (Locations From Previous Scan Used)), SensorSurface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0
- Electronics: DAE3 Sn413; Calibrated: 11.01.2017
- Phantom: SAM; Type: SAM; Serial: 1043
- DASY52 52.8.7(1137); SEMCAD X 14.6.10(7164)
HSL2450/Rear High/Area Scan (41x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.423 W/kg
HSL2450/Rear High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm,
dz=5mm
Reference Value = 13.709 V/m; Power Drift = -0.19 dB
Peak SAR (extrapolated) = 0.586 W/kg
SAR(1 g) = 0.229 W/kg; SAR(10 g) = 0.070 W/kg
Maximum value of SAR (measured) = 0.358 W/kg
0 dB = 0.358 W/kg = -4.46 dBW/kg
Additional information:
position or distance of DUT to SAM: 0 mm
ambient temperature: 22.7°C; liquid temperature: 21.9°C
© CTC advanced GmbH
Page 26 of 29
Test report no.: 1-5025/17-02-11-A
Annex B.2: Liquid depth
Photo 1: Liquid depth 2450 MHz head simulating liquid
© CTC advanced GmbH
Page 27 of 29
Test report no.: 1-5025/17-02-11-A
Annex C: Photo documentation
Photo documentation is described in the additional document:
Appendix to test report no. 1-5025/17-02-11-A Photo documentation
Annex D: Calibration parameters
Calibration parameters are described in the additional document:
Appendix to test report no. 1-5025/17-02-11-A
Calibration data, Phantom certificate
and detail information of the DASY5 System
Annex E:
RSS-102 Annex A and B
ICRF documents are described in the additional document:
Appendix to test report no. 1-5025/17-02-11-A_ICRF
RF Technical Brief Cover Sheet acc. To RSS-102 Annex A and
Declaration of RX Exposure Compliance Annex B
© CTC advanced GmbH
Page 28 of 29
Test report no.: 1-5025/17-02-11-A
Annex F:
Version
-A
Document History
Applied Changes
Date of Release
Initial Release
2017-10-25
Corrected test item data on page 1 and 3
2017-11-14
Annex G: Further Information
Glossary
BW
DTS
DUT
EUT
FCC
FCC ID
HW
IC
Inv. No.
N/A
PCE
OET
SAR
S/N
SW
Bandwidth
Distributed Transmission System
Device under Test
Equipment under Test
Federal Communication Commission
Company Identifier at FCC
Hardware
Industry Canada
Inventory number
not applicable
Personal Consumption Expenditure
Office of Engineering and Technology
Specific Absorption Rate
Serial Number
Software
© CTC advanced GmbH
Page 29 of 29
Download: DENR1 In ear transceiver RF Exposure Info SAR test report Overline Systems SARL
Mirror Download [FCC.gov]DENR1 In ear transceiver RF Exposure Info SAR test report Overline Systems SARL
Document ID3707811
Application IDGudj0CznXa1nvLNdJ2iFzw==
Document DescriptionSAR Evaluation
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeRF Exposure Info
Display FormatAdobe Acrobat PDF - pdf
Filesize81.38kB (1017240 bits)
Date Submitted2018-01-10 00:00:00
Date Available2018-01-10 00:00:00
Creation Date2017-11-14 13:01:24
Producing SoftwareMicrosoft® Word 2013
Document Lastmod2017-11-14 13:04:46
Document TitleSAR test report
Document CreatorMicrosoft® Word 2013
Document Author: Thomas Vogler

Source Exif Data:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.6
Linearized                      : No
Author                          : Thomas Vogler
Create Date                     : 2017:11:14 13:01:24+01:00
Modify Date                     : 2017:11:14 13:04:46+01:00
Has XFA                         : No
Language                        : de-DE
Tagged PDF                      : Yes
XMP Toolkit                     : Adobe XMP Core 4.2.1-c043 52.372728, 2009/01/18-15:08:04
Format                          : application/pdf
Creator                         : Thomas Vogler
Title                           : SAR test report
Creator Tool                    : Microsoft® Word 2013
Metadata Date                   : 2017:11:14 13:04:46+01:00
Producer                        : Microsoft® Word 2013
Document ID                     : uuid:5a2d4fb8-d965-4e8c-a062-8ac978507a40
Instance ID                     : uuid:c2501725-5707-42da-a291-62c968badc05
Page Count                      : 29
EXIF Metadata provided by EXIF.tools

Facebook Twitter Google+ RSS © FCCID.io 2018
