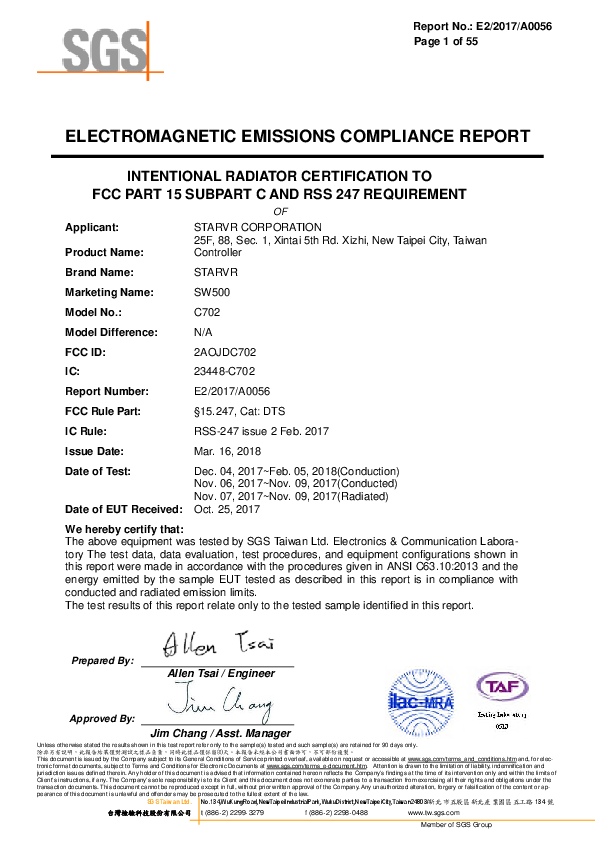

Report No.: E2/2017/A0056
Page 1 of 55
ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT
INTENTIONAL RADIATOR CERTIFICATION TO
FCC PART 15 SUBPART C AND RSS 247 REQUIREMENT
OF
Applicant:
Product Name:
STARVR CORPORATION
25F, 88, Sec. 1, Xintai 5th Rd. Xizhi, New Taipei City, Taiwan
Controller
Brand Name:
STARVR
Marketing Name:
SW500
Model No.:
C702
Model Difference:
N/A
FCC ID:
2AOJDC702
IC:
23448-C702
Report Number:
E2/2017/A0056
FCC Rule Part:
§15.247, Cat: DTS
IC Rule:
RSS-247 issue 2 Feb. 2017
Issue Date:
Mar. 16, 2018
Date of Test:
Dec. 04, 2017~Feb. 05, 2018(Conduction)
Nov. 06, 2017~Nov. 09, 2017(Conducted)
Nov. 07, 2017~Nov. 09, 2017(Radiated)
Oct. 25, 2017
Date of EUT Received:
We hereby certify that:
The above equipment was tested by SGS Taiwan Ltd. Electronics & Communication Laboratory The test data, data evaluation, test procedures, and equipment configurations shown in
this report were made in accordance with the procedures given in ANSI C63.10:2013 and the
energy emitted by the sample EUT tested as described in this report is in compliance with
conducted and radiated emission limits.
The test results of this report relate only to the tested sample identified in this report.
Prepared By:
Allen Tsai / Engineer
Approved By:
Jim Chang / Asst. Manager
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 2 of 55
Revision History
Report Number
E2/2017/A0056
Revision
Rev.00
Description
Initial creation of document
Issue Date
Mar. 16, 2018
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 3 of 55
Table of Contents
GENERAL INFORMATION .......................................................................................................... 4
SYSTEM TEST CONFIGURATION .............................................................................................. 6
SUMMARY OF TEST RESULTS.................................................................................................. 8
DESCRIPTION OF TEST MODES ............................................................................................... 8
MEASUREMENT UNCERTAINTY ............................................................................................. 10
CONDUCTED EMISSION TEST ................................................................................................ 11
PEAK OUTPUT POWER MEASUREMENT............................................................................... 17
6dB & 99% BANDWIDTH MEASUREMENT ............................................................................. 20
CONDUCTED BAND EDGES AND SPURIOUS EMISSION MEASUREMENT ......................... 23
10 RADIATED BANDEDGE AND SPURIOUS EMISSION MEASUREMENT ................................. 31
11 PEAK POWER SPECTRAL DENSITY....................................................................................... 52
12 ANTENNA REQUIREMENT....................................................................................................... 55
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 4 of 55
1 GENERAL INFORMATION
1.1 Product Description
General:
Product Name:
Controller
Brand Name:
STARVR
Marketing Name:
SW500
Model No.:
C702
Model difference:
N/A
Hardware Version:
N/A
Software Version:
N/A
3.7Vdc from Rechargeable Battery or 5.2V / 5.35V from AC/DC
Adapter
Battery:
Model No.:ID864,Supplier: N/A
1.Model No.: PA-1100-25,Supplier: LITE-ON
Adapter:
2.Model No.: ADP-10HW A, Supplier: DELTA
Power Supply:
2.4GHz:
Channel number:
80 channels
Modulation type:
GFSK
Transmit Power:
1.38 dBm
Frequency Range:
2401 – 2480MHz
Antenna Designation
Antenna Type
Part Number
Supplier
Peak Gain (dBi)
FPC
N/A
N/A
1.61
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 5 of 55
1.2 Test Methodology of Applied Standards
FCC Part 15, Subpart C §15.247
FCC KDB 558074 D01 DTS Meas. Guidance
RSS-247 issue 2 Feb. 2017
Canada RSS-Gen issue 4: 2014
ANSI C63.10:2013
Note: All test items have been performed and record as per the above standards.
1.3 Test Facility
SGS Taiwan Ltd. Electronics & Communication Laboratory No.2, Keji 1st Rd.,
Guishan District, Taoyuan City, Taiwan 333 (TAF code 0513)
FCC Registration Numbers are: 735305 / TW0002
Canada Registration Number: 4620A-5
1.4 Special Accessories
There are no special accessories used while test was conducted.
1.5 Equipment Modifications
There was no modification incorporated into the EUT.
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 6 of 55
2 SYSTEM TEST CONFIGURATION
2.1 EUT Configuration
The EUT configuration for testing is installed on RF field strength measurement to
meet the Commissions requirement and operating in a manner which intends to
maximize its emission characteristics in a continuous normal application.
2.2 EUT Exercise
An engineering test mode (software/firmware) that applicant provided was utilized to
manipulate the EUT into transmit, selection of the test channel, and modulation
scheme.
2.3 Test Procedure
2.3.1 Conducted Emissions
The EUT is a placed on as turn table which is 0.8 m above ground plan. Conducted emissions from the EUT measured in the frequency range between 0.15 MHz
and 30MHz,. The CISPR Quasi-Peak and Average detector mode is employed
according to §15.207. The two LISNs provide 50 ohm/ 50uH of coupling impedance for the measuring instrument. Both lines of the power mains connected to the
EUT were checked for maximum conducted interference.
2.3.2 Radiated Emissions
The EUT is a placed on as turn table. For emissions testing at or below 1 GHz, the
table height shall be 0.8 m above the reference ground plan. For emission measurements above 1 GHz, the table height shall be 1.5 m. The turn table shall rotate
360 degrees to determine the position of maximum emission level. EUT is set 3m
away from the receiving antenna which varied from 1m to 4m to find out the highest emission. And also, each emission was to be maximized by changing the polarization of receiving antenna both horizontal and vertical. In order to find out the
max. emission, the relative positions of this transmitter (EUT) was rotated through
three orthogonal axes and measurement procedures for electric field radiated
emissions above 1 GHz the EUT measurement is to be made “while keeping the
antenna in the ‘cone of radiation’ from that area and pointed at the area both in
azimuth and elevation, with polarization oriented for maximum response.” is still
within the 3dB illumination BW of the measurement antenna.
2.4 Measurement Results Explanation Example
For all conducted test items:
The offset level is set in the spectrum analyzer to compensate the RF cable loss
and attenuation factor between EUT conducted port and spectrum analyzer. With
the offset compensation, the spectrum analyzer reading level is exactly EUT RF
output level.
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 7 of 55
2.5 Configuration of Tested System
Fig. 2-1 Radiated Emission Conducted (Antenna Port) Configuration
Fig 2-2 Conducted (AC power line)
Configuration
Table 2-1 Equipment Used in Tested System
Item
3.
Equipment
2.4G Test
Software
Notebook
Test Tool Kit
Mfr/Brand Model/Type No.
Series No.
Data Cable Power Cord
N/A
N/A
N/A
N/A
N/A
Lenovo
N/A
L430
N/A
PK-OCGFF
N/A
Shielded
N/A
Un-shielded
N/A
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 8 of 55
3 SUMMARY OF TEST RESULTS
FCC Rules
IC Rules
Description Of Test
Result
§15.207(a)
RSS-Gen §8.8
AC Power Line Conducted Emission
Compliant
§15.247(b) (3)
RSS-247 §5.4(4)
Peak Output Power
Compliant
§15.247(a)(2)
RSS-247 §5.2 (1)
RSS-Gen §6.6
6dB & 99% Bandwidth
Compliant
§15.247(d)
RSS-247 §5.5
§15.247(d)
RSS-247 §5.5
§15.247(e)
RSS-247 §5.2(2)
Peak Power Density
Compliant
§15.203
§15.247(b)
RSS- Gen §8.3
Antenna Requirement
Compliant
Conducted Band Edge
and Spurious Emission
Radiated Band Edge
and Spurious Emission
Compliant
Compliant
4 DESCRIPTION OF TEST MODES
4.1 The Worst Test Modes and Channel Details
1. The EUT has been tested under operating condition.
2. Test program used to control the EUT for staying in continuous transmitting and receiving
mode is programmed.
RADIATED EMISSION TEST:
RADIATED EMISSION TEST (BELOW 1 GHz)
MODE
AVAILABLE
CHANNEL
TESTED
CHANNEL
MODULATION
DATA RATE
(Mbps)
2.4GHz
01 to 80
01, 41, 80
GFSK
RADIATED EMISSION TEST (ABOVE 1 GHz)
MODE
AVAILABLE
CHANNEL
TESTED
CHANNEL
MODULATION
DATA RATE
(Mbps)
2.4GHz
01 to 80
01, 41, 80
GFSK
Note:
The field strength of radiation emission was measured as EUT stand-up position (H mode) and
lie down position (E1, E2 mode) for Bluetooth LE Transmitter for channel Low, Mid and High,
the worst case E2 position was reported.
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 9 of 55
ANTENNA PORT CONDUCTED MEASUREMENT:
CONDUCTED TEST
MODE
AVAILABLE
CHANNEL
TESTED
CHANNEL
MODULATION
DATA RATE
(Mbps)
2.4GHz
01 to 80
01, 41, 80
GFSK
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 10 of 55
5 MEASUREMENT UNCERTAINTY
Test Items
Uncertainty
AC Power Line Conducted Emission
+/- 2.586 dB
Peak Output Power
+/- 0.84 dB
6dB Bandwidth
+/- 51.33 Hz
100 KHz Bandwidth Of
Frequency Band Edges
+/- 0.84 dB
Peak Power Density
+/- 1.3 dB
Temperature
+/- 0.65 °C
Humidity
+/- 4.6 %
DC / AC Power Source
DC= +/- 0.13%, AC= +/- 0.2%
Radiated Spurious Emission:
Measurement uncertainty
(Polarization : Vertical)
9kHz – 30MHz: +/- 2.87 dB
30MHz - 180MHz: +/- 3.37dB
180MHz -417MHz: +/- 3.19dB
0.417GHz-1GHz: +/- 3.19dB
1GHz - 18GHz: +/- 4.04dB
18GHz - 40GHz: +/- 4.04dB
9kHz – 30MHz: +/- 2.87 dB
30MHz - 167MHz: +/- 4.22dB
Measurement uncertainty
167MHz -500MHz: +/- 3.44dB
(Polarization : Horizontal)
0.5GHz-1GHz: +/- 3.39dB
1GHz - 18GHz: +/- 4.08dB
18GHz - 40GHz: +/- 4.08dB
This uncertainty represents an expanded uncertainty expressed at approximately the
95% confidence level using a coverage factor of k=2.
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 11 of 55
6 CONDUCTED EMISSION TEST
6.1 Standard Applicable:
Frequency range within 150kHz to 30MHz shall not exceed the Limit table as below.
Limits
Frequency range
dB(uV)
MHz
Quasi-peak
Average
0.15 to 0.50
66 to 56
56 to 46
0.50 to 5
56
46
5 to 30
60
50
Note
1.The lower limit shall apply at the transition frequencies
2.The limit decreases linearly with the logarithm of the frequency in the range 0.15 MHz to 0.50
MHz.
6.2 Measurement Equipment Used:
Conducted Emission Test Site
MFR
MODEL
SERIAL
NUMBER
NUMBER
EQUIPMENT
TYPE
EMI Test Receiver
Coaxial Cables
R&S
N/A
ESCI 7
N30N30-1042-150cm
LISN
Schwarzbeck
NSLK 8127
Test Software
Farad
EZ-EMC
EQUIPMENT
TYPE
MFR
EMI Test Receiver
R&S
100950
N/A
CAL DUE.
12/24/2016 12/23/2017
08/30/2017 08/29/2018
8127-648 06/18/2017 06/17/2018
Ver.
N.C.R.
N.C.R.
SGS-03A2
Conducted Emission Test Site
MODEL
SERIAL
NUMBER
NUMBER
ESCI 7
LAST
CAL.
100950
LAST
CAL.
CAL DUE.
12/24/2017 12/23/2018
Note: The measurement was taken place with the long duration of the time, and additional
equipment list as shown above indicate those equipment of which has been subject to undertake the calibration in intermediate period of time of the measurement.
6.3 EUT Setup:
1. The conducted emission tests were performed in the test site, using the setup in accordance
with the ANSI C63.10:2013.
2. The AC/DC Power adaptor of EUT was plug-in LISN. The EUT was placed flushed with the
rear of the table.
3. The LISN was connected with 120Vac/60Hz power source.
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 12 of 55
6.4 Test SET-UP (Block Diagram of Configuration)
6.5 Measurement Procedure:
1. The EUT was placed on a table which is 0.8m above ground plan.
2. Maximum procedure was performed on the six highest emissions to ensure EUT compliance.
3. Repeat above procedures until all phases of power being supplied by given UE are completed
6.6 Measurement Result:
Note: Refer to next page for measurement data and plots.
Note2: The * reveals the worst-case results that closet to the limit
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 13 of 55
Model No.: PA-1100-25
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 14 of 55
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 15 of 55
Model No.: ADP-10HW A
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 16 of 55
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 17 of 55
7 PEAK OUTPUT POWER MEASUREMENT
7.1 Standard Applicable:
For systems using digital modulation in the 2400-2483.5 MHz bands, the limit for peak output
power is 1Watt and the e.i.r.p. shall not exceed 4 W.
If the transmitting antenna of directional gain greater than 6dBi are used the peak output power
form the intentional radiator shall be reduced below the above stated value by the amount in dB
that the directional gain of the Antenna exceeds 6dBi.
In case of point-to-point operation, the limit has to be reduced by 1dB for every 3dB that the directional gain of Antenna exceeds 6dBi.
7.2 Measurement Equipment Used:
EQUIPMENT
TYPE
Conducted Emission Test Site
MFR
MODEL
SERIAL
NUMBER
NUMBER
Power Meter
Anritsu
ML2496A
Power Sensor
Anritsu
MA2411B
Power Sensor
Anritsu
MA2411B
Coaxial Cable 30cm
WOKEN
00100A1F1A195C
DC Block
PASTERNACK
PE8210
Attenuator
WOKEN
218FS-10
1326001
1315048
1315049
RF01
RF29
RF23
LAST
CAL.
CAL DUE.
06/23/2017
06/23/2017
06/23/2017
12/12/2016
12/12/2016
12/12/2016
06/22/2018
06/22/2018
06/22/2018
12/11/2017
12/11/2017
12/11/2017
7.3 Test Set-up:
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 18 of 55
7.4 Measurement Procedure:
1. Place the EUT on the table and set it in transmitting mode.
2. The testing follows the Measurement Procedure of FCC KDB 558074 D01 DTS Meas. Guidance .
3. Remove the antenna from the EUT and then connect a low loss RF cable from the antenna
port to the power meter.
Power Meter:
It is used as the auxiliary test equipment to conduct the output power measurement.
4. Record the max. Reading as observed from Power Meter.
5. Repeat above procedures until all test default channel measured was complete.
Duty Factor:
Duty Cycle (%)
Duty Factor
(dB)
100.00
0.00
2.4G
Duty Cycle Factor:10*log(1/(100/100))=0
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 19 of 55
7.5
Measurement Result:
2.4G mode:
CH
Frequency
(MHz)
Peak Power Output
(dBm)
Required Limit
0x01 (ch1)
2401
0.04
1 Watt = 30 dBm
0x29 (ch41)
2441
0.88
1 Watt = 30 dBm
0x50 (ch80)
2480
1.38
1 Watt = 30 dBm
CH
Frequency
(MHz)
Max. Avg. Output include
tune up tolerance Power
(dBm)
Required Limit
0x01 (ch1)
2401
-0.03
1 Watt = 30 dBm
0x29 (ch41)
2441
0.81
1 Watt = 30 dBm
0x50 (ch80)
2480
1.33
1 Watt = 30 dBm
2.4G mode:
*Note: Measured by power meter, cable loss as 0.4 dB that offsets on the power meter in Peak
*Note: Measured by power meter, as cable loss+ Duty cycle factor that offsets on the power meter
*Note: Max. Output include tune up tolerance Power is average power
EIRP
CH
Frequency
(MHz)
Max. Avg. Output include
tune up tolerance Power
(dBm)
Antenna
Gain
(dBi)
EIRP
(dBm)
Limit
0x01 (ch1)
2401
-0.03
1.61
1.58
4W= 36 dBm
0x29 (ch41)
2441
0.81
1.61
2.42
4W= 36 dBm
0x50 (ch80)
2480
1.33
1.61
2.94
4W= 36 dBm
* Note: EIRP = Average Power + Gain
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 20 of 55
8 6DB & 99% BANDWIDTH MEASUREMENT
8.1 Standard Applicable
The minimum 6 dB bandwidth shall be at least 500 kHz .
8.2 Measurement Equipment Used
Conducted Emission Test Site
MFR
MODEL
SERIAL
NUMBER
NUMBER
EQUIPMENT
TYPE
LAST
CAL.
CAL DUE.
06/20/2017
06/19/2018
Spectrum Analyzer
KEYSIGHT
N9010A
MY51440113
Coaxial Cable 30cm
WOKEN
00100A1F1A195C
RF01
12/12/2016 12/11/2017
DC Block
PASTERNACK
PE8210
RF29
12/12/2016 12/11/2017
Attenuator
WOKEN
218FS-10
RF23
12/12/2016 12/11/2017
8.3 Test Set-up:
8.4 Measurement Procedure:
1. Place the EUT on the table and set it in transmitting mode.
2. The testing follows the Measurement Procedure of FCC KDB 558074 D01 DTS Meas. Guidance .
3. Remove the antenna from the EUT and then connect a low loss RF cable from the antenna
port to the spectrum analyzer.
4. Set the spectrum analyzer as RBW=100 kHz, VBW= 3*RBW, Span = 5MHz, Detector=Peak,
Sweep=auto.
5. Mark the peak frequency and –6dB (upper and lower) frequency.
6. Turn on the 99% bandwidth function, max reading.
7. Repeat above procedures until all test default channel is completed
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 21 of 55
8.5 Measurement Result:
2.4G mode
Frequency
(MHz)
6dB
BW
(MHz)
BW
(MHz)
Result
2401
0.7225
> 0.5
PASS
2441
0.7054
> 0.5
PASS
2480
0.7405
> 0.5
PASS
* Cable loss as 0.4dB that offsets on the spectrum.
2.4G mode
Frequency (MHz)
99%Bandwidth (MHz)
2401
1.0168
2441
1.0093
2480
1.0801
Note: Refer to next page for plots.
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 22 of 55
6dB Band Width Test Data CH-Low
99% Band Width Test Data CH-Low
6dB Band Width Test Data CH-Mid
99% Band Width Test Data CH-Mid
6dB Band Width Test Data CH-High
99% Band Width Test Data CH-High
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format
documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined
therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be
reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be
prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 23 of 55
CONDUCTED BAND EDGES AND SPURIOUS EMISSION MEASUREMENT
9.1 Standard Applicable
As per KDB 558074 D01 11.1 a)
If the maximum peak conducted output power procedure was used to demonstrate compliance
as described in 9.1, then the peak output power measured in any 100 kHz bandwidth outside of
the authorized frequency band shall be attenuated by at least 20 dB relative to the maximum
in-band peak PSD level in 100 kHz (i.e., 20 dBc)
In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally
modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. In
addition, radiated emissions which fall in the restricted bands, as defined in §15.205(a), must also
comply with the radiated emission limits specified in §15.209(a) & RSS-Gen §8.10 Table 6.
9.2 Measurement Equipment Used:
Conducted Emission Test Site
MFR
MODEL
SERIAL
NUMBER
NUMBER
EQUIPMENT
TYPE
LAST
CAL.
CAL DUE.
Spectrum Analyzer
KEYSIGHT
N9010A
MY51440113 06/20/2017 06/19/2018
DC Block
PASTERNACK
PE8210
RF29
12/12/2016 12/11/2017
Coaxial Cable
30cm
WOKEN
00100A1F1A1
95C
RF01
12/12/2016 12/11/2017
Attenuator
WOKEN
218FS-10
RF23
12/12/2016 12/11/2017
9.3 Test SET-UP:
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 24 of 55
9.4 Measurement Procedure
Conducted Band Edge Limit
1. Set analyzer center frequency to DTS channel center frequency.
2. The testing follows the Measurement Procedure of FCC KDB 558074 D01 DTS Meas.
Guidance .
3. Set the span to 1.5 times the DTS channel bandwidth.
4. Set the RBW = 100kHz & VBW = 300 kHz.
5. Detector = peak.
6. Sweep time = auto couple.
7. Trace mode = max hold.
8. Allow trace to fully stabilize.
Use the peak marker function to determine the maximum amplitude level.
Conducted Band Edge:
1. To connect Antenna Port of EUT to Spectrum.
2. The testing follows the Measurement Procedure of FCC KDB 558074 D01 DTS Meas.
Guidance .
3. Remove the antenna from the EUT and then connect a low loss RF cable from the antenna
port to the spectrum analyzer.
4. Set start to edge frequency, and stop frequency of spectrum analyzer so as to encompass
the spectrum to be examined.
5. Set the spectrum analyzer as RBW=100 kHz, VBW=300 kHz, Detector = Peak, Sweep =
auto
6. Mark the highest reading of the emission as the reference level measurement.
7. Set DL as the limit = reading on marker 1 – 20dBm
8. Marker on frequency, 2.3999GHz and 2.4836GHz, and examine shall 100 kHz immediately
outside the authorized (2400~2483.5) be attenuated by 20dB at least relative to the maximum emission of power.
9. Repeat above procedures until all default test channel (low, middle, and high) was complete.
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 25 of 55
Conducted Spurious Emission:
1. To connect Antenna Port of EUT to Spectrum.
2. The testing follows the Measurement Procedure of FCC KDB 558074 D01 DTS Meas.
Guidance .
3. Set RBW = 100 kHz & VBW=300 kHz, Detector =Peak, Sweep = Auto
4. Allow trace to fully stabilize.
5. Use the peak marker function to determine the maximum power level in any 100 kHz band
segment within the fundamental EBW.
6. Repeat above procedures until all default test channel measured were complete.
9.5 Measurement Result
Band Edge Limit
Frequency
(MHz)
RF Power
Density (dBm)
Bandedge Limit
= PSD - 20dB
(dBm)
2401
-0.81
-20.81
2480
0.24
-19.76
NOTE: cable loss as dB that offsets in the
spectrum
NOTE: Refer to next page for plots.
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 26 of 55
Power Spectral Density for Band edge Limit (CH-Low)
Power Spectral Density for Band edge Limit (CH-High)
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 27 of 55
Band Edges Test Data CH-Low
Band Edges Test Data CH-High
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 28 of 55
Conducted Spurious Emission Measurement Result
CH-Low
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 29 of 55
CH-Mid
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 30 of 55
CH-High
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 31 of 55
10 RADIATED BANDEDGE AND SPURIOUS EMISSION MEASUREMENT
10.1
Standard Applicable
In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally
modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that
contains the highest level of the desired power, based on either an RF conducted or a radiated
measurement, provided the transmitter demonstrates compliance with the peak conducted power
limits. In addition, radiated emissions which fall in the restricted bands must also comply with the
§15.209 & RSS-Gen §8.10 Table 6 limit as below.
And according to §15.33(a) (1) & RSS-Gen §8.9 Table 4 & 5, for an intentional radiator operates
below 10GHz, the frequency range of measurements: to the tenth harmonic of the highest fundamental frequency or to 40GHz, whichever is lower.
Frequency
(MHz)
Field strength
(microvolts/meter)
Distance
(meters)
0.009-0.490
2400/F(kHz)
300
0.490-1.705
24000/F(kHz)
30
1.705-30
30
30
30-88
100
88-216
150
216-960
200
Above 960
500
Note:
1. The lower limit shall apply at the transition frequencies.
2. Emission level (dBµV/m) = 20 log Emission level (dBµV/m)
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 32 of 55
10.2 Measurement Equipment Used
966 Chamber
EQUIPMENT
MFR
TYPE
EMI Test Receiver
R&S
Loop Antenna
ETS-Lindgren
Broadband Antenna
TESEQ
Horn Antenna
ETS-Lindgren
Horn Antenna
Schwarzbeck
Pre Amplifier
EMC Instruments
Pre Amplifier
EMC Instruments
Pre Amplifier
R&S
Pre Amplifier
R&S
MODEL
NUMBER
ESU 40
6502
CBL 6112D
3117
BBHA9170
EMC330
EMC0011830
SCU-18
SCU-26
Coaxial Cable
Huber+Suhner
RG 214/U
Coaxial Cable
Huber+Suhner
RG 214/U
SUCOFLEX 104
Coaxial Cable
Huber+Suhner
SUCOFLEX 104
Coaxial Cable
Huber+Suhner
mini 141-12
SUCOFLEX 104
Coaxial Cable
Huber+Suhner
SUCOFLEX 104
Coaxial Cable
Huber+Suhner
SUCOFLEX 102
Attenuator
Site NSA
Site VSWR
DC Power Supply
Controller
Antenna Master
Turn Table
Test Software
WOKEN
SGS
SGS
HOLA
MF
MF
MF
World-Pallas
218FS-10
966 Chamber C
966 Chamber C
DP-3003
MF-7802
N/A
N/A
Dr. E
SERIAL
NUMBER
100363
00143303
35240
00143272
185
980096
980199
10204
100780
966Rx
9K-30M
966Rx
30M-3G
966Rx
1G-18G
966Rx
18G-40G
966Tx
30M-18G
966Tx
18G-40G
RF27
SAC-C
SAC-C
D7070035
N/A
N/A
N/A
V 3.0 Lite
LAST
CAL.
04/18/2017
12/23/2017
11/03/2017
12/15/2016
08/01/2017
12/12/2016
12/12/2016
12/12/2016
12/12/2016
CAL DUE.
04/17/2018
12/22/2018
11/02/2018
12/16/2017
07/31/2018
12/11/2017
12/11/2017
12/11/2017
12/11/2017
12/12/2016 12/11/2017
12/12/2016 12/11/2017
12/12/2016 12/11/2017
12/12/2016 12/11/2017
12/12/2016 12/11/2017
12/12/2016 12/11/2017
12/12/2016
03/02/2017
03/02/2017
05/04/2017
N.C.R.
N.C.R.
N.C.R.
N.C.R.
12/11/2017
03/01/2018
03/01/2018
05/03/2018
N.C.R.
N.C.R.
N.C.R.
N.C.R.
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 33 of 55
10.3
Test SET-UP
(A) Radiated Emission Test Set-UP Frequency Below 30MHz.
(B) Radiated Emission Test Set-Up, Frequency form 30MHz to 1000MHz
(C) Radiated Emission Test Set-UP Frequency Over 1 GHz
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 34 of 55
10.4 Measurement Procedure
1.
The testing follows the Measurement Procedure of FCC KDB 558074 D01 DTS Meas.
Guidance .
2.
The EUT was placed on a turn table with 0.8m for frequency< 1GHz and 0.8m for frequency> 1GHz above ground plan.
3.
The turn table shall rotate 360 degrees to determine the position of maximum emission level.
4.
EUT is set 3m away from the receiving antenna which varied from 1m to 4m to find out the
highest emissions.
5.
Set the spectrum analyzer as RBW=120 kHz and VBW=300 kHz for Peak Detector (PK)
and Quasi-peak (QP) at frequency below 1 GHz.
6.
Set the spectrum analyzer as RBW=1 MHz, VBW=3 MHz for Peak Detector at frequency
above 1 GHz.
7.
Set the spectrum analyzer as RBW=1 MHz, VBW=10 Hz (Duty cycle > 98%) or VBW ≥ 1/T
(Duty cycle < 98%) for Average Detector at frequency above 1 GHz.
8.
When measurement procedures for electric field radiated emissions above 1 GHz the EUT
measurement is to be made “while keeping the antenna in the ‘cone of radiation’ from that
area and pointed at the area both in azimuth and elevation, with polarization oriented for
maximum response.” is still within the 3dB illumination BW of the measurement antenna.
9.
Maximum procedure was performed on the six highest emissions to ensure EUT compliance.
10. And also, each emission was to be maximized by changing the polarization of receiving antenna both horizontal and vertical. On spectrum, change spectrum mode in linear display
mode, and reduce VBW = 10Hz if average reading is measured.
11. Repeat above procedures until all default test channel measured were complete.
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 35 of 55
10.5
Field Strength Calculation
The field strength is calculated by adding the Antenna Factor and Cable Factor and
subtracting the Amplifier Gain and Duty Cycle Correction Factor (if any) from the measured
reading. The basic equation with a sample calculation is as follows:
FS = RA + AF + CL - AG
Where
FS = Field Strength
CL = Cable Attenuation Factor (Cable
Loss)
AG = Amplifier Gain
RA = Reading Amplitude
AF = Antenna Factor
Actual FS(dBµV/m) = SPA. Reading level(dBµV) + Factor(dB)
Factor(dB) = Antenna Factor(dBµV/m) + Cable Loss(dB) – Pre_Amplifier Gain(dB)
Note :
“F” : denotes Fundamental Frequency. ; “H” : denotes Harmonic Frequency.
“E” : denotes Band Edge Frequency. ; “S” : denotes Spurious Frequency.
10.6
Test Results of Radiated Spurious Emissions form 9 kHz to 30 MHz
The low frequency, which started from 9 kHz to 30MHz, was pre-scanned and the result which
was 20dB lower than the limit per 15.31(o) was not reported.
10.7
Measurement Result:
Note: Refer to next page spectrum analyzer data chart and tabular data sheets.
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 36 of 55
Radiated Band Edge Measurement Result
Operation Mode :
Fundamental Frequency :
Operation Band :
EUT Pol. :
Freq.
Note
MHz
2390.00
2390.00
F/H/E/S
2.4G
2401 MHz
BE CH LOW
E2
Detector
Mode
PK/QP/AV
Peak
Average
Test Date :
Temp. / Humi. :
Test Engineer :
Measurement Antenna Pol. :
Spectum
Reading Level
dBμV
43.60
32.63
Factor
dB
0.92
0.92
Actual
FS
dBμV/m
44.53
33.55
2017/11/7
22.7deg_C/57RH
Enzo
Vertical
Limit
@3m
dBμV/m
74
54
Margin
dB
-29.47
-20.45
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 37 of 55
Operation Mode :
Fundamental Frequency :
Operation Band :
EUT Pol. :
Freq.
Note
MHz
2390.00
2390.00
F/H/E/S
2.4G
2401 MHz
BE CH LOW
E2
Detector
Mode
PK/QP/AV
Peak
Average
Test Date :
Temp. / Humi. :
Test Engineer :
Measurement Antenna Pol. :
Spectum
Reading Level
dBμV
43.68
32.47
Factor
dB
0.92
0.92
Actual
FS
dBμV/m
44.60
33.39
2017/11/7
22.7deg_C/57RH
Enzo
Horizontal
Limit
@3m
dBμV/m
74
54
Margin
dB
-29.40
-20.61
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 38 of 55
Operation Mode :
Fundamental Frequency :
Operation Band :
EUT Pol. :
Freq.
Note
MHz
2483.50
2483.50
F/H/E/S
2.4G
2480 MHz
BE CH HIGH
E2
Detector
Mode
PK/QP/AV
Peak
Average
Test Date :
Temp. / Humi. :
Test Engineer :
Measurement Antenna Pol. :
Spectum
Reading Level
dBμV
49.00
44.21
Factor
dB
1.16
1.16
Actual
FS
dBμV/m
50.16
45.37
2017/11/7
22.7deg_C/57RH
Enzo
Vertical
Limit
@3m
dBμV/m
74
54
Margin
dB
-23.84
-8.63
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 39 of 55
Operation Mode :
Fundamental Frequency :
Operation Band :
EUT Pol. :
Freq.
Note
MHz
2483.50
2483.50
F/H/E/S
2.4G
2480 MHz
BE CH HIGH
E2
Detector
Mode
PK/QP/AV
Peak
Average
Test Date :
Temp. / Humi. :
Test Engineer :
Measurement Antenna Pol. :
Spectum
Reading Level
dBμV
49.93
45.17
Factor
dB
1.16
1.16
Actual
FS
dBμV/m
51.09
46.33
2017/11/7
22.7deg_C/57RH
Enzo
Horizontal
Limit
@3m
dBμV/m
74
54
Margin
dB
-22.91
-7.67
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 40 of 55
Radiated Spurious Emission Measurement Result
For Frequency form 30MHz to 1000MHz
Operation Mode :
Fundamental Frequency :
Operation Band :
EUT Pol. :
Freq.
Note
MHz
95.96
131.85
154.16
616.85
694.45
729.37
F/H/E/S
2.4G
2401 MHz
TX CH LOW
E2
Detector
Mode
PK/QP/AV
Peak
Peak
Peak
Peak
Peak
Peak
Test Date :
Temp. / Humi. :
Test Engineer :
Measurement Antenna Pol. :
Spectum
Reading Level
dBμV
42.88
43.84
44.86
42.06
38.99
35.48
Factor
dB
-18.44
-15.71
-16.97
-6.58
-5.28
-4.64
Actual
FS
dBμV/m
24.44
28.14
27.89
35.48
33.71
30.84
2017/11/7
22.7deg_C/57RH
Enzo
Vertical
Limit
@3m
dBμV/m
43.5
43.5
43.5
46
46
46
Margin
dB
-19.06
-15.36
-15.61
-10.52
-12.29
-15.16
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 41 of 55
Operation Mode :
Fundamental Frequency :
Operation Band :
EUT Pol. :
Freq.
Note
MHz
31.94
230.79
400.54
462.62
616.85
694.45
F/H/E/S
2.4G
2401 MHz
TX CH LOW
E2
Detector
Mode
PK/QP/AV
Peak
Peak
Peak
Peak
Peak
Peak
Test Date :
Temp. / Humi. :
Test Engineer :
Measurement Antenna Pol. :
Spectum
Reading Level
dBμV
33.78
43.78
40.47
40.04
35.75
34.34
Factor
dB
-8.22
-16.17
-9.76
-8.14
-6.58
-5.28
Actual
FS
dBμV/m
25.56
27.62
30.71
31.90
29.17
29.06
2017/11/7
22.7deg_C/57RH
Enzo
Horizontal
Limit
@3m
dBμV/m
40
46
46
46
46
46
Margin
dB
-14.44
-18.38
-15.29
-14.10
-16.83
-16.94
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 42 of 55
Operation Mode :
Fundamental Frequency :
Operation Band :
EUT Pol. :
Freq.
Note
MHz
131.85
230.79
540.22
616.85
694.45
848.68
F/H/E/S
2.4G
2441 MHz
TX CH MID
E2
Detector
Mode
PK/QP/AV
Peak
Peak
Peak
Peak
Peak
Peak
Test Date :
Temp. / Humi. :
Test Engineer :
Measurement Antenna Pol. :
Spectum
Reading Level
dBμV
41.99
52.52
34.76
38.19
36.68
38.71
Factor
dB
-15.71
-16.17
-7.19
-6.58
-5.28
-3.21
Actual
FS
dBμV/m
26.28
36.36
27.57
31.61
31.40
35.50
2017/11/7
22.7deg_C/57RH
Enzo
Vertical
Limit
@3m
dBμV/m
43.5
46
46
46
46
46
Margin
dB
-17.22
-9.64
-18.43
-14.39
-14.60
-10.50
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 43 of 55
Operation Mode :
Fundamental Frequency :
Operation Band :
EUT Pol. :
Freq.
Note
MHz
50.37
131.85
191.99
230.79
347.19
433.52
F/H/E/S
2.4G
2441 MHz
TX CH MID
E2
Detector
Mode
PK/QP/AV
Peak
Peak
Peak
Peak
Peak
Peak
Test Date :
Temp. / Humi. :
Test Engineer :
Measurement Antenna Pol. :
Spectum
Reading Level
dBμV
48.41
46.65
45.43
52.95
45.27
41.42
Factor
dB
-19.55
-15.71
-18.13
-16.17
-11.64
-9.55
Actual
FS
dBμV/m
28.86
30.94
27.30
36.78
33.63
31.87
2017/11/7
22.7deg_C/57RH
Enzo
Horizontal
Limit
@3m
dBμV/m
40
43.5
43.5
46
46
46
Margin
dB
-11.14
-12.56
-16.20
-9.22
-12.37
-14.13
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 44 of 55
Operation Mode :
Fundamental Frequency :
Operation Band :
EUT Pol. :
Freq.
Note
MHz
141.55
230.79
385.99
462.62
772.05
926.28
F/H/E/S
2.4G
2480 MHz
TX CH HIGH
E2
Detector
Mode
PK/QP/AV
Peak
Peak
Peak
Peak
Peak
Peak
Test Date :
Temp. / Humi. :
Test Engineer :
Measurement Antenna Pol. :
Spectum
Reading Level
dBμV
49.05
52.54
42.83
41.38
42.11
41.14
Factor
dB
-16.25
-16.17
-10.18
-8.14
-4.41
-1.58
Actual
FS
dBμV/m
32.80
36.38
32.65
33.23
37.70
39.56
2017/11/7
22.7deg_C/57RH
Enzo
Vertical
Limit
@3m
dBμV/m
43.5
46
46
46
46
46
Margin
dB
-10.70
-9.62
-13.35
-12.77
-8.30
-6.44
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 45 of 55
Operation Mode :
Fundamental Frequency :
Operation Band :
EUT Pol. :
Freq.
Note
MHz
50.37
131.85
308.39
385.99
462.62
772.05
F/H/E/S
2.4G
2480 MHz
TX CH HIGH
E2
Detector
Mode
PK/QP/AV
Peak
Peak
Peak
Peak
Peak
Peak
Test Date :
Temp. / Humi. :
Test Engineer :
Measurement Antenna Pol. :
Spectum
Reading Level
dBμV
47.96
46.56
52.53
52.16
45.88
41.89
Factor
dB
-19.55
-15.71
-12.74
-10.18
-8.14
-4.41
Actual
FS
dBμV/m
28.41
30.85
39.78
41.99
37.74
37.48
2017/11/7
22.7deg_C/57RH
Enzo
Horizontal
Limit
@3m
dBμV/m
40
43.5
46
46
46
46
Margin
dB
-11.59
-12.65
-6.22
-4.01
-8.26
-8.52
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 46 of 55
Radiated Spurious Emission Measurement Result
For Frequency above 1GHz
Operation Mode :
Fundamental Frequency :
Operation Band :
EUT Pol. :
Freq.
Note
MHz
4802.00
4802.00
F/H/E/S
2.4G
2401 MHz
TX CH LOW
E2
Detector
Mode
PK/QP/AV
Peak
Average
Test Date :
Temp. / Humi. :
Test Engineer :
Measurement Antenna Pol. :
Spectum
Reading Level
dBμV
43.31
40.71
Factor
dB
7.65
7.65
Actual
FS
dBμV/m
50.96
48.36
2017/11/9
22.7deg_C/57RH
Enzo
Vertical
Limit
@3m
dBμV/m
74
54
Margin
dB
-23.04
-5.64
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 47 of 55
Operation Mode :
Fundamental Frequency :
Operation Band :
EUT Pol. :
Freq.
Note
MHz
4802.00
4802.00
F/H/E/S
2.4G
2401 MHz
TX CH LOW
E2
Detector
Mode
PK/QP/AV
Peak
Average
Test Date :
Temp. / Humi. :
Test Engineer :
Measurement Antenna Pol. :
Spectum
Reading Level
dBμV
42.40
39.24
Factor
dB
7.65
7.65
Actual
FS
dBμV/m
50.04
46.89
2017/11/9
22.7deg_C/57RH
Enzo
Horizontal
Limit
@3m
dBμV/m
74
54
Margin
dB
-23.96
-7.11
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 48 of 55
Operation Mode :
Fundamental Frequency :
Operation Band :
EUT Pol. :
Freq.
Note
MHz
4882.00
4882.00
F/H/E/S
2.4G
2441 MHz
TX CH MID
E2
Detector
Mode
PK/QP/AV
Peak
Average
Test Date :
Temp. / Humi. :
Test Engineer :
Measurement Antenna Pol. :
Spectum
Reading Level
dBμV
39.54
35.81
Factor
dB
7.58
7.70
Actual
FS
dBμV/m
47.12
43.51
2017/11/7
22.7deg_C/57RH
Enzo
Vertical
Limit
@3m
dBμV/m
74
54
Margin
dB
-26.88
-10.49
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 49 of 55
Operation Mode :
Fundamental Frequency :
Operation Band :
EUT Pol. :
Freq.
Note
MHz
4882.00
4882.00
F/H/E/S
2.4G
2441 MHz
TX CH MID
E2
Detector
Mode
PK/QP/AV
Peak
Average
Test Date :
Temp. / Humi. :
Test Engineer :
Measurement Antenna Pol. :
Spectum
Reading Level
dBμV
36.62
30.49
Factor
dB
7.58
7.70
Actual
FS
dBμV/m
44.20
38.19
2017/11/7
22.7deg_C/57RH
Enzo
Horizontal
Limit
@3m
dBμV/m
74
54
Margin
dB
-29.80
-15.81
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 50 of 55
Operation Mode :
Fundamental Frequency :
Operation Band :
EUT Pol. :
Freq.
Note
MHz
4960.00
4960.00
F/H/E/S
2.4G
2480 MHz
TX CH HIGH
E2
Detector
Mode
PK/QP/AV
Peak
Average
Test Date :
Temp. / Humi. :
Test Engineer :
Measurement Antenna Pol. :
Spectum
Reading Level
dBμV
36.90
31.52
Factor
dB
7.68
7.69
Actual
FS
dBμV/m
44.58
39.21
2017/11/7
22.7deg_C/57RH
Enzo
Vertical
Limit
@3m
dBμV/m
74
54
Margin
dB
-29.42
-14.79
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 51 of 55
Operation Mode :
Fundamental Frequency :
Operation Band :
EUT Pol. :
Freq.
Note
MHz
4960.00
4960.00
F/H/E/S
2.4G
2480 MHz
TX CH HIGH
E2
Detector
Mode
PK/QP/AV
Peak
Average
Test Date :
Temp. / Humi. :
Test Engineer :
Measurement Antenna Pol. :
Spectum
Reading Level
dBμV
34.84
24.79
Factor
dB
7.68
7.69
Actual
FS
dBμV/m
42.52
32.48
2017/11/7
22.7deg_C/57RH
Enzo
Horizontal
Limit
@3m
dBμV/m
74
54
Margin
dB
-31.48
-21.52
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 52 of 55
11 PEAK POWER SPECTRAL DENSITY
11.1
Standard Applicable:
The power spectral density conducted from the intentional radiator to the antenna shall not be
greater than 8dBm in any 3 kHz band during any time interval of continuous transmission.
11.2
Measurement Equipment Used:
Conducted Emission Test Site
MFR
MODEL
SERIAL
NUMBER
NUMBER
EQUIPMENT
TYPE
Spectrum Analyzer
Coaxial Cable 30cm
DC Block
KEYSIGHT
WOKEN
PASTERNACK
Attenuator
WOKEN
11.3
Test Set-up:
11.4
Measurement Procedure:
N9010A
MY51440113
00100A1F1A195C
RF01
PE8210
RF29
218FS-10
RF23
LAST
CAL.
CAL DUE.
06/20/2017
12/12/2016
12/12/2016
06/19/2018
12/11/2017
12/11/2017
12/12/2016
12/11/2017
1. Set analyzer center frequency to DTS channel center frequency.
2. The testing follows the Measurement Procedure of FCC KDB 558074 D01 DTS Meas.
Guidance .
3. Set the span to 1.5 times the DTS channel bandwidth.
4. Set the RBW = 3 kHz. & the VBW = 10 kHz
5. Detector = peak.
6. Sweep time = auto couple.
7. Trace mode = max hold.
8. Allow trace to fully stabilize.
9. Use the peak marker function to determine the maximum amplitude level.
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 53 of 55
11.5 Measurement Result:
2.4G mode
Frequency
(MHz)
RF Power Density (dBm)
Maximum Limit
(dBm)
Result
2401
-11.95
PASS
2441
-12.25
PASS
2480
-11.22
PASS
NOTE: cable loss as 0.4dB that offsets in the spectrum
Power Spectral Density Test Plot (CH-Low)
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 54 of 55
Power Spectral Density Test Plot (CH-Mid)
Power Spectral Density Test Plot (CH-High)
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Report No.: E2/2017/A0056
Page 55 of 55
12 ANTENNA REQUIREMENT
12.1
Standard Applicable:
For intentional device, according to §15.203, an intentional radiator shall be designed to ensure
that no antenna other than furnished by the responsible party shall be used with the device.
If the transmitting antenna is greater than 6dBi, the power shall be reduced by the same level in dB
comparing to gain minus 6dBi.
In case of point-to-point operation, the power shall be reduced by the one dB for every 3 dB that
the directional gain of antenna exceeds 6dBi.
12.2
Antenna Connected Construction:
An embedded-in antenna design is used.
The antenna is designed as permanently attached and has no consideration of replacement.
Please see EUT photo and antenna spec. for details.
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.
除非另有說明,此報告結果僅對測試之樣品負責,同時此樣品僅保留90天。本報告未經本公司書面許可,不可部份複製。
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and
jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of
Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the
transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
SGS Taiwan Ltd.
台灣檢驗科技股份有限公司
No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號
t (886-2) 2299-3279
f (886-2) 2298-0488
www.tw.sgs.com
Member of SGS Group
Download: C702 Controller Test Report - 2.4G STARVR CORPORATION
Mirror Download [FCC.gov]C702 Controller Test Report - 2.4G STARVR CORPORATION
Document ID3887190
Application IDR/KItY5k3PGlOkv9Fs/27g==
Document DescriptionTest Report - 2.4G
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize390.57kB (4882102 bits)
Date Submitted2018-06-13 00:00:00
Date Available2018-06-14 00:00:00
Creation Date2018-06-13 10:21:40
Producing SoftwareGaaiho PDF
Document Lastmod2018-06-13 10:26:13
Document TitleTest Report - 2.4G
Document CreatorMicrosoft Word - E2-2017-A0056 P15.247+RSS 247 2.4GHz.doc
Document Author: elle_chang

Source Exif Data [exif.tools]:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.5
Linearized                      : Yes
Encryption                      : Standard V2.3 (128-bit)
User Access                     : Print, Copy, Extract, Print high-res
Page Count                      : 55
Page Mode                       : UseNone
XMP Toolkit                     : 3.1-701
Producer                        : Gaaiho PDF
Creator Tool                    : Microsoft Word - E2-2017-A0056 P15.247+RSS 247 2.4GHz.doc
Create Date                     : 2018:06:13 10:21:40+08:00
Modify Date                     : 2018:06:13 10:26:13+08:00
Title                           : Microsoft Word - E2-2017-A0056 P15.247+RSS 247 2.4GHz.doc
Creator                         : elle_chang
Author                          : elle_chang
