5WFC Wireless charger Teardown Internal Photos - FCC ID 2AOLW5WFC
FCC ID 2AOLW5WFC
Internal Photos
Wireless charger
Document preview loads when visible.
Document Details
| FCC ID | 2AOLW5WFC |
|---|---|
| Document ID | 3712527 |
| Document Type | Internal Photos |
| Description | Internal Photos |

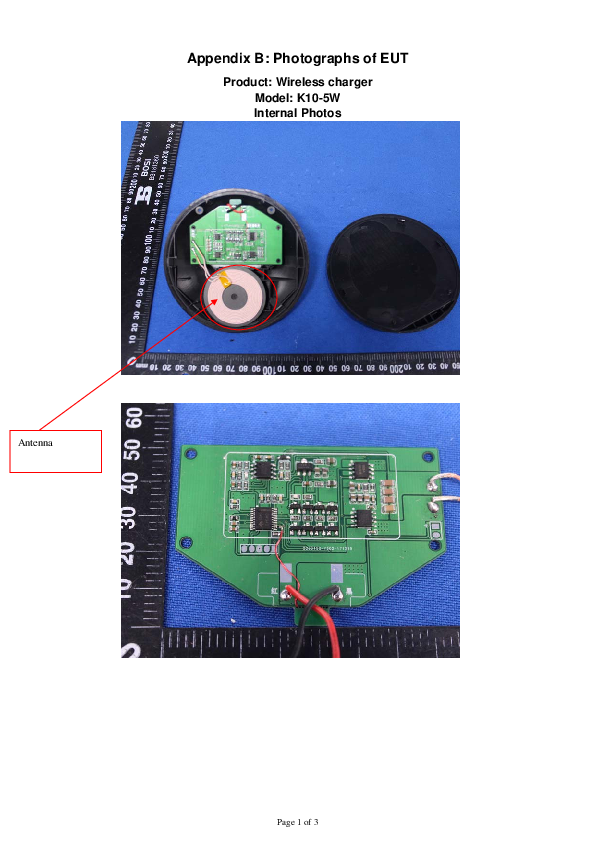

| Document Title | Appendix B Photographs of EUT Internal Photos |
| Applicant | Shenzhen MHLL Technology Co., Limited |
| Equipment Class | Wireless charger |
| Product Code | 5WFC |
| Application ID | vrp8YLvUqJFW43Eyu3jCwQ== |
| Application Purpose | Original Equipment |
| Application Date | 2018-01-12 |
| Frequency Range | 0.11-0.205 MHz |
| FRN | 0027087576 |
| Test Firm | SHENZHEN TONGCE TESTING LAB |
| Certified By | Joe Zhou EMC manager, Shenzhen Tongce Testing Lab |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2018-01-12 |
| Available | 2018-01-12 |
| Created | 2018-01-12 |
| Modified | 2018-01-12 |
| Pages | 3 |
| File Type | Adobe Acrobat PDF |
| File Size | 305412 |
| File SHA-256 | 9e611d02b376b54c2293c3fe8c01bf391658fd2f356affdfc8fc6f5e1fd85d0f |
| PDF Metadata Author | Administrator |
| PDF Metadata Producer | Acrobat Distiller 7.0 (Windows) Administrator |
| FCC.gov Sources | FCC.gov 3712527 |
