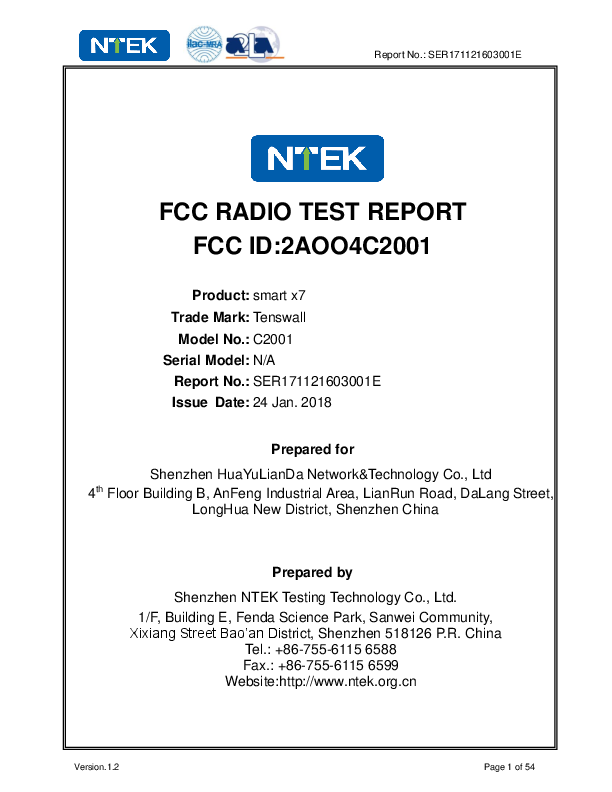

Report No.: SER171121603001E
FCC RADIO TEST REPORT
FCC ID:2AOO4C2001
Product: smart x7
Trade Mark: Tenswall
Model No.: C2001
Serial Model: N/A
Report No.: SER171121603001E
Issue Date: 24 Jan. 2018
Prepared for
Shenzhen HuaYuLianDa Network&Technology Co., Ltd
4 Floor Building B, AnFeng Industrial Area, LianRun Road, DaLang Street,
LongHua New District, Shenzhen China
th
Prepared by
Shenzhen NTEK Testing Technology Co., Ltd.
1/F, Building E, Fenda Science Park, Sanwei Community,
Xixiang Street Bao’an District, Shenzhen 518126 P.R. China
Tel.: +86-755-6115 6588
Fax.: +86-755-6115 6599
Website:http://www.ntek.org.cn
Version.1.2
Page 1 of 54
Report No.: SER171121603001E
TABLE OF CONTENTS
TEST RESULT CERTIFICATION ...................................................................................................................... 3
SUMMARY OF TEST RESULTS ......................................................................................................................... 4
FACILITIES AND ACCREDITATIONS ............................................................................................................. 5
3.1 FACILITIES ........................................................................................................................................................... 5
3.2 LABORATORY ACCREDITATIONS AND LISTINGS ........................................................................................ 5
3.3
MEASUREMENT UNCERTAINTY ............................................................................................................... 5
GENERAL DESCRIPTION OF EUT .................................................................................................................. 6
DESCRIPTION OF TEST MODES ..................................................................................................................... 8
SETUP OF EQUIPMENT UNDER TEST ......................................................................................................... 10
6.1
6.2
6.3
BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ..................................................................... 10
SUPPORT EQUIPMENT............................................................................................................................... 11
EQUIPMENTS LIST FOR ALL TEST ITEMS.............................................................................................. 12
TEST REQUIREMENTS .................................................................................................................................... 14
7.1
7.2
7.3
7.4
7.5
7.6
7.7
7.8
7.9
CONDUCTED EMISSIONS TEST ............................................................................................................... 14
RADIATED SPURIOUS EMISSION ............................................................................................................ 19
6DB BANDWIDTH....................................................................................................................................... 28
DUTY CYCLE ............................................................................................................................................... 32
MAXIMUM OUTPUT POWER .................................................................................................................... 34
POWER SPECTRAL DENSITY ................................................................................................................... 36
CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 40
SPURIOUS RF CONDUCTED EMISSIONS................................................................................................ 44
ANTENNA APPLICATION .......................................................................................................................... 54
Version.1.2
Page 2 of 54
Report No.: SER171121603001E
TEST RESULT CERTIFICATION
Applicant’s name ......................... : Shenzhen HuaYuLianDa Network&Technology Co., Ltd
Address ....................................... : 4th Floor Building B, AnFeng Industrial Area, LianRun Road, DaLang
Street, LongHua New District, Shenzhen China
Manufacturer's Name .................. : Shenzhen HuaYuLianDa Network&Technology Co., Ltd
Address ....................................... : 4th Floor Building B, AnFeng Industrial Area, LianRun Road, DaLang
Street, LongHua New District, Shenzhen China
Product description
Product name .............................. : smart x7
Model and/or type reference ..... : C2001
Serial Model ................................ : N/A
Measurement Procedure Used:
APPLICABLE STANDARDS
APPLICABLE STANDARD/ TEST PROCEDURE
TEST RESULT
FCC 47 CFR Part 2, Subpart J
FCC 47 CFR Part 15, Subpart C
KDB 174176 D01 Line Conducted FAQ v01r01
Complied
ANSI C63.10-2013
FCC KDB 558074 D01 DTS Meas Guidance v04
This device described above has been tested by Shenzhen NTEK Testing Technology Co., Ltd., and the test
results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is
applicable only to the tested sample identified in the report.
This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK Testing
Technology Co., Ltd., this document may be altered or revised by Shenzhen NTEK Testing Technology Co.,
Ltd., personnel only, and shall be noted in the revision of the document.
The test results of this report relate only to the tested sample identified in this report.
Date of Test
Testing Engineer
22 Nov. 2017 ~ 24 Jan. 2018
(Allen Liu)
Technical Manager
(Jason Chen)
Authorized Signatory
(Sam Chen)
Version.1.2
Page 3 of 54
Report No.: SER171121603001E
SUMMARY OF TEST RESULTS
FCC Part15 (15.247), Subpart C
Standard Section
Test Item
Verdict
15.207
Conducted Emission
PASS
15.247 (a)(2)
6dB Bandwidth
PASS
15.247 (b)
Maximum Output Power
PASS
15.247 (c)
Radiated Spurious Emission
PASS
15.247 (d)
Power Spectral Density
PASS
15.205
Band Edge Emission
PASS
15.203
Antenna Requirement
PASS
Remark
Remark:
1. “N/A” denotes test is not applicable in this Test Report.
2. All test items were verified and recorded according to the standards and without any deviation during
the test.
Version.1.2
Page 4 of 54
Report No.: SER171121603001E
FACILITIES AND ACCREDITATIONS
3.1 FACILITIES
All measurement facilities used to collect the measurement data are located at
1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen 518126
P.R. China.
The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.10 and CISPR
Publication 22.
3.2 LABORATORY ACCREDITATIONS AND LISTINGS
Site Description
CNAS-Lab.
: The Laboratory has been assessed and proved to be in compliance with
CNAS-CL01:2006 (identical to ISO/IEC 17025:2005)
The Certificate Registration Number is L5516.
IC-Registration
The Certificate Registration Number is 9270A-1.
FCC- Accredited
Test Firm Registration Number: 463705.
Designation Number: CN1184
The Certificate Registration Number is 4298.01
This laboratory is accredited in accordance with the recognized
International Standard ISO/IEC 17025:2005 General requirements for
the competence of testing and calibration laboratories.
This accreditation demonstrates technical competence for a defined
scope and the operation of a laboratory quality management system
(refer to joint ISO-ILAC-IAF Communiqué dated 8 January 2009).
Shenzhen NTEK Testing Technology Co., Ltd.
1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang
Street, Bao’an District, Shenzhen 518126 P.R. China.
A2LA-Lab.
Name of Firm
Site Location
2.3 MEASUREMENT UNCERTAINTY
The reported uncertainty of measurement y±U, where expended uncertainty U is based on a standard
uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %.
No.
Item
Uncertainty
Conducted Emission Test
±2.80dB
RF power, conducted
±0.16dB
Spurious emissions, conducted
±0.21dB
All emissions, radiated(30MHz~1GHz)
±2.64dB
All emissions, radiated(1GHz~6GHz)
±2.40dB
All emissions, radiated(>6GHz)
±2.52dB
Temperature
±0.5°C
Humidity
±2%
Version.1.2
Page 5 of 54
Report No.: SER171121603001E
GENERAL DESCRIPTION OF EUT
Product Feature and Specification
Equipment
smart x7
Trade Mark
Tenswall
FCC ID
2AOO4C2001
Model No.
C2001
Serial Model
N/A
Model Difference
N/A
Operating Frequency
2412-2462MHz for 802.11b/g/11n(HT20);
Modulation
DSSS with DBPSK/DQPSK/CCK for 802.11b;
OFDM with BPSK/QPSK/16QAM/64QAM for 802.11g/n;
Number of Channels
11 channels for 802.11b/g/11n(HT20);
Antenna Type
PCB Antenna
Antenna Gain
1dBi
Power supply
AC supply:
AC100-250V 10A 60HZ
Adapter supply:
HW Version
V1.0
Firmware
V1.0
SW Version
V1.0
Note: Based on the application, features, or specification exhibited in User's Manual, the EUT is considered
as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual.
Version.1.2
Page 6 of 54
Report No.: SER171121603001E
Revision History
Report No.
Version
Description
Issued Date
SER171121603001E
Rev.01
Initial issue of report
Jan 24, 2018
Version.1.2
Page 7 of 54
Report No.: SER171121603001E
DESCRIPTION OF TEST MODES
To investigate the maximum EMI emission characteristics generates from EUT, the test system was
pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode
which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration
mode(s) mentioned above was evaluated respectively.
The Transmitter was operated in the normal operating mode. The TX frequency was fixed which was for the
purpose of the measurements.
Test of channel included the lowest and middle and highest frequency to perform the test, then record on this
report.
Those data rates (802.11b: 1 Mbps; 802.11g: 6 Mbps; 802.11n (HT20): MCS0; were used for all test.
The EUT was pretested with 3 orientations placed on the table for the radiated emission measurement –X, Y,
and Z-plane. The Y-plane results were found as the worst case and were shown in this report.
Frequency and Channel list for 802.11b/g/n (HT20):
Channel
…
…
10
11
Note: fc=2412MHz+(k-1)×5MHz k=1 to 11
Frequency(MHz)
2412
2417
…
2432
2437
…
2457
2462
AC power line Conducted Emission was tested under maximum output power.
Version.1.2
Page 8 of 54
Report No.: SER171121603001E
Test Mode:
Test Items
Mode
AC Power Line Conducted
Emissions
Normal Link
Data Rate
Channel
Ant
11b/CCK
11g/BPSK
1 Mbps
6 Mbps
1/6/11
1/6/11
11n HT20
MCS0
1/6/11
Power Spectral Density
11b/CCK
11g/BPSK
11n HT20
1 Mbps
6 Mbps
MCS0
1/6/11
1/6/11
1/6/11
6dB Spectrum Bandwidth
11b/CCK
1 Mbps
1/6/11
11g/BPSK
11n HT20
Normal Link
6 Mbps
MCS0
1/6/11
1/6/11
Radiated Emissions Above
1GHz
11b/CCK
1 Mbps
1/6/11
11g/BPSK
11n HT20
6 Mbps
MCS0
1/6/11
1/6/11
Band Edge Emissions
11b/CCK
11g/BPSK
11n HT20
1 Mbps
6 Mbps
MCS0
1/6/11
1/6/11
1/6/11
Maximum Conducted Output
Power
Radiated Emissions Below
1GHz
Version.1.2
Page 9 of 54
Report No.: SER171121603001E
SETUP OF EQUIPMENT UNDER TEST
6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM
For AC Conducted Emission Mode
C-1
AC PLUG
E-1
EUT
E-3
Light
For Radiated Test Cases
AC PLUG
E-1
EUT
For Conducted Test Cases
AC PLUG
C2
Measurement
Instrument
EUT
Note:The temporary antenna connector is soldered on the PCB board in order to perform conducted tests and
this temporary antenna connector is listed in the equipment list.
Version.1.2
Page 10 of 54
Report No.: SER171121603001E
6.2 SUPPORT EQUIPMENT
The EUT has been tested as an independent unit together with other necessary accessories or support units.
The following support units or accessories were used to form a representative test configuration during the
tests.
Item
Equipment
Mfr/Brand
Model/Type No.
FCC ID
Note
E-1.
smart x7
Tenswall
C2001
2AOO4C2001
EUT
E-2
Light
N/A
N/A
Peripherals
N/A
Item
Cable Type
Shielded Type
Ferrite Core
Length
C-1
Power Cable
NO
NO
1.2m
C-2
RF Cable
NO
NO
0.5m
Notes:
(1)
(2)
(3)
The support equipment was authorized by Declaration of Confirmation.
For detachable type I/O cable should be specified the length in cm in『Length』column.
“YES” is means “shielded” “with core”; “NO” is means “unshielded” “without core”.
Version.1.2
Page 11 of 54
Report No.: SER171121603001E
6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS
Radiation Test equipment
Kind of
Equipment
Item
Manufacturer
Type No.
Serial No.
Last
calibration
Calibrated
until
Calibrati
on
period
Spectrum
Analyzer
Spectrum
Analyzer
EMI Test
Receiver
Aglient
E4407B
MY45108040
2017.06.06
2018.06.05
1 year
Agilent
N9020A
MY49100060 2017.11.10
2018.11.09
1 year
Agilent
N9038A
MY53227146 2017.06.06
2018.06.05 1 year
Test Receiver
R&S
ESPI
101318
2017.06.06
2018.06.05
1 year
Bilog Antenna
TESEQ
CBL6111D
31216
2017.04.09
2018.04.08
1 year
50Ω Coaxial
Switch
Anritsu
MP59B
6200983705
2017.06.06
2018.06.05
1 year
Horn Antenna
EM
EM-AH-1018
2011071402
2017.04.09
2018.04.08
1 year
Horn Ant
Schwarzbeck
BBHA 9170
9170-181
2017.07.06
2018.07.05
1 year
Amplifier
EMC
980246
2017.08.09
2018.08.08
1 year
10
Amplifier
MITEQ
177156
2017.06.06
2018.06.05
1 year
11
Loop Antenna
ARA
PLA-1030/B
1029
2017.06.06
2018.06.05
1 year
12
Power Meter
DARE
RPR3006W
15I00041SN
O84
2017.08.07
2018.08.06
1 year
N/A
R-01
N/A
2017.04.21
2020.04.20
3 year
N/A
R-02
N/A
2017.04.21
2020.04.20
3 year
N/A
R-03
N/A
2017.04.21
2020.04.20
3 year
N/A
R-04
N/A
2017.04.21
2020.04.20
3 year
NTS
R001
N/A
N/A
N/A
N/A
13
14
15
16
17
Test Cable
(9KHz-30MHz)
Test Cable
(30MHz-1GHz)
High Test
Cable(1G-40G
Hz)
High Test
Cable(1G-40G
Hz)
temporary
antenna
connector
(Note)
EMC051835
SE
TTA1840-35HG
Note:
We will use the temporary antenna connector (soldered on the PCB board) When conducted test
And this temporary antenna connector is listed within the instrument list
Version.1.2
Page 12 of 54
Report No.: SER171121603001E
Conduction Test equipment
Kind of
Item
Manufacturer
Equipment
Type No.
Serial No.
Last
calibration
Calibrated
until
Calibration
period
Test Receiver
R&S
ESCI
101160
2017.06.06
2018.06.05
1 year
LISN
R&S
ENV216
101313
2017.04.19
2018.04.18
1 year
8129245
2017.06.06
2018.06.05
1 year
6200983704
2017.06.06
2018.06.05
1 year
N/A
2017.04.21
2020.04.20
3 year
N/A
2017.04.21
2020.04.20
3 year
N/A
2017.04.21
2020.04.20
3 year
29
2017.04.19
SCHWARZBE
NNLK 8129
CK
ANRITSU
50Ω Coaxial
MP59B
CORP
Switch
Test Cable
(9KHz-30MH
N/A
C01
z)
Test Cable
(9KHz-30MH
N/A
C02
z)
Test Cable
(9KHz-30MH
N/A
C03
z)
LISN
Filter
TRILTHIC
2400MHz
2018.04.18
1 year
Note: Each piece of equipment is scheduled for calibration once a year except the Test Cable which is
scheduled for calibration every 3 years.
Version.1.2
Page 13 of 54
Report No.: SER171121603001E
TEST REQUIREMENTS
7.1 CONDUCTED EMISSIONS TEST
7.1.1
Applicable Standard
According to FCC Part 15.207(a) and KDB 174176 D01 Line Conducted FAQ v01r01
7.1.2
Conformance Limit
Conducted Emission Limit
Quasi-peak
Average
0.15-0.5
66-56*
56-46*
0.5-5.0
56
46
5.0-30.0
60
50
Note: 1. *Decreases with the logarithm of the frequency
2. The lower limit shall apply at the transition frequencies
3. The limit decreases in line with the logarithm of the frequency in the range of 0.15 to 0.50MHz.
Frequency(MHz)
7.1.3
Measuring Instruments
The Measuring equipment is listed in the section 6.3 of this test report.
7.1.4
Test Configuration
Reference
Ground
EMI Receiver
EUT
Auxiliary
Equipment
80cm
Reference
Ground
50Ω
80cm
LISN
7.1.5
LISN
Test Procedure
According to the requirements in Section 13.1.4.1 of ANSI C63.10-2013 Conducted emissions the EUT
measured in the frequency range between 0.15 MHz and 30 MHz using CISPR Quasi-Peak and average
detector mode.
1. The EUT was placed 0.4 meter from the conducting wall of the shielding room.
2. The EUT was placed on a table which is 0.8m above ground plane.
3. Connect EUT to the power mains through a line impedance stabilization network (LISN). All other
support equipments powered from additional LISN(s). The LISN provide 50 Ohm/ 50uH of coupling
impedance for the measuring instrument.
4. Interconnecting cables that hang closer than 40 cm to the ground plane shall be folded back and forth in
the center forming a bundle 30 to 40cm long.
5. I/O cables that are not connected to a peripheral shall be bundled in the center. The end of the cable
may be terminated, if required, using the correct terminating impedance. The overall length shall not
exceed 1 m.
6. LISN at least 80 cm from nearest part of EUT chassis.
7. The frequency range from 150KHz to 30MHz was searched.
8. Set the test-receiver system to Peak Detect Function and specified bandwidth(IF bandwidth=9KHz) with
Maximum Hold Mode
9. For the actual test configuration, please refer to the related Item –EUT Test Photos.
Version.1.2
Page 14 of 54
Report No.: SER171121603001E
7.1.6
Test Results
EUT:
Temperature:
smart x7
23 ℃
Model Name :
C2001
Relative Humidity: 46%
Pressure:
Test Voltage :
1010hPa
AC 120V/60Hz
Phase :
Test Mode:
Frequency
Reading Level Correct Factor
Measure-ment
Normal Link
Limits
Margin
Remark
(MHz)
(dBμV)
(dB)
(dBμV)
(dBμV)
(dB)
0.170
39.04
9.82
48.86
64.96
-16.10
QP
0.170
25.51
9.82
35.33
54.96
-19.63
AVG
0.218
39.36
9.82
49.18
62.89
-13.71
QP
0.218
24.07
9.82
33.89
52.89
-19.00
AVG
0.314
36.49
9.82
46.31
59.86
-13.55
QP
0.314
14.82
9.82
24.64
49.86
-25.22
AVG
0.362
35.13
9.83
44.96
58.68
-13.72
QP
0.362
25.53
9.83
35.36
48.68
-13.32
AVG
0.850
27.41
9.88
37.29
56.00
-18.71
QP
0.850
20.34
9.88
30.22
46.00
-15.78
AVG
1.474
25.07
9.88
34.95
56.00
-21.05
QP
1.474
18.14
9.88
28.02
46.00
-17.98
AVG
Remark:
1. All readings are Quasi-Peak and Average values.
2. Factor = Insertion Loss + Cable Loss.
Version.1.2
Page 15 of 54
Report No.: SER171121603001E
EUT:
Temperature:
smart x7
23 ℃
Model Name :
Relative Humidity:
C2001
46%
Pressure:
Test Voltage :
1010hPa
AC 120V/60Hz
Phase :
Test Mode:
Normal Link
Frequency
Reading Level Correct Factor
Measure-ment
Limits
Margin
Remark
(MHz)
(dBμV)
(dB)
(dBμV)
(dBμV)
(dB)
0.170
38.30
9.92
48.22
64.96
-16.74
QP
0.170
27.47
9.92
37.39
54.96
-17.57
AVG
0.222
37.77
9.92
47.69
62.74
-15.05
QP
0.222
22.44
9.92
32.36
52.74
-20.38
AVG
0.290
36.06
9.92
45.98
60.52
-14.54
QP
0.290
25.10
9.92
35.02
50.52
-15.50
AVG
0.386
31.80
9.93
41.73
58.15
-16.42
QP
0.386
24.32
9.93
34.25
48.15
-13.90
AVG
0.898
29.98
9.93
39.91
56.00
-16.09
QP
0.898
25.88
9.93
35.81
46.00
-10.19
AVG
1.526
28.87
9.94
38.81
56.00
-17.19
QP
1.526
22.39
9.94
32.33
46.00
-13.67
AVG
Remark:
1. All readings are Quasi-Peak and Average values.
2. Factor = Insertion Loss + Cable Loss.
Version.1.2
Page 16 of 54
Report No.: SER171121603001E
EUT:
Temperature:
smart x7
23 ℃
Model Name :
C2001
Relative Humidity: 46%
Pressure:
Test Voltage :
1010hPa
AC 240V/60Hz
Phase :
Test Mode:
Frequency
Reading Level Correct Factor
Measure-ment
Normal Link
Limits
Margin
Remark
(MHz)
(dBμV)
(dB)
(dBμV)
(dBμV)
(dB)
0.258
41.02
9.82
50.84
61.49
-10.65
QP
0.258
26.25
9.82
36.07
51.49
-15.42
AVG
0.310
40.43
9.82
50.25
59.97
-9.72
QP
0.310
28.20
9.82
38.02
49.97
-11.95
AVG
0.426
40.06
9.83
49.89
57.33
-7.44
QP
0.426
25.86
9.83
35.69
47.33
-11.64
AVG
0.542
39.37
9.83
49.20
56.00
-6.80
QP
0.542
27.39
9.83
37.22
46.00
-8.78
AVG
0.638
37.39
9.83
47.22
56.00
-8.78
QP
0.638
26.86
9.83
36.69
46.00
-9.31
AVG
1.766
39.54
9.86
49.40
56.00
-6.60
QP
1.766
20.59
9.86
30.45
46.00
-15.55
AVG
Remark:
1. All readings are Quasi-Peak and Average values.
2. Factor = Insertion Loss + Cable Loss.
Version.1.2
Page 17 of 54
Report No.: SER171121603001E
EUT:
Temperature:
smart x7
23 ℃
Model Name :
Relative Humidity:
C2001
46%
Pressure:
Test Voltage :
1010hPa
AC 240V/60Hz
Phase :
Test Mode:
Normal Link
Frequency
Reading Level Correct Factor
Measure-ment
Limits
Margin
Remark
(MHz)
(dBμV)
(dB)
(dBμV)
(dBμV)
(dB)
0.166
39.75
9.92
49.67
65.15
-15.48
QP
0.166
22.44
9.92
32.36
55.15
-22.79
AVG
0.206
38.87
9.92
48.79
63.36
-14.57
QP
0.206
35.21
9.92
45.13
53.36
-8.23
AVG
0.398
37.23
9.93
47.16
57.89
-10.73
QP
0.398
34.97
9.93
44.90
47.89
-2.99
AVG
0.542
36.92
9.93
46.85
56.00
-9.15
QP
0.542
28.22
9.93
38.15
46.00
-7.85
AVG
0.654
36.33
9.93
46.26
56.00
-9.74
QP
0.654
27.09
9.93
37.02
46.00
-8.98
AVG
1.694
36.93
9.94
46.87
56.00
-9.13
QP
1.694
33.29
9.94
43.23
46.00
-2.77
AVG
Remark:
1. All readings are Quasi-Peak and Average values.
2. Factor = Insertion Loss + Cable Loss.
Version.1.2
Page 18 of 54
Report No.: SER171121603001E
7.2 RADIATED SPURIOUS EMISSION
7.2.1
Applicable Standard
According to FCC Part 15.247(d) and 15.209 and ANSI C63.10-2013
7.2.2
Conformance Limit
According to FCC Part 15.247(d): radiated emissions which fall in the restricted bands, as defined in
§15.205(a), must also comply with the radiated emission limits specified in §15.209(a) (see §15.205(c)).
According to FCC Part15.205, Restricted bands
MHz
MHz
MHz
GHz
0.090-0.110
16.42-16.423
399.9-410
4.5-5.15
10.495-0.505
16.69475-16.69525
608-614
5.35-5.46
2.1735-2.1905
16.80425-16.80475
960-1240
7.25-7.75
4.125-4.128
25.5-25.67
1300-1427
8.025-8.5
4.17725-4.17775
37.5-38.25
1435-1626.5
9.0-9.2
4.20725-4.20775
73-74.6
1645.5-1646.5
9.3-9.5
6.215-6.218
74.8-75.2
1660-1710
10.6-12.7
6.26775-6.26825
123-138
2200-2300
14.47-14.5
8.291-8.294
149.9-150.05
2310-2390
15.35-16.2
8.362-8.366
156.52475-156.52525
2483.5-2500
17.7-21.4
8.37625-8.38675
156.7-156.9
2690-2900
22.01-23.12
8.41425-8.41475
162.0125-167.17
3260-3267
23.6-24.0
12.29-12.293
167.72-173.2
3332-3339
31.2-31.8
12.51975-12.52025
240-285
3345.8-3358
36.43-36.5
12.57675-12.57725
322-335.4
3600-4400
(2)
13.36-13.41
20dBc in any 100 kHz bandwidth outside the operating frequency band. In case the emission fall within the
restricted band specified on 15.205(a), then the 15.209(a) limit in the table below has to be followed.
Restricted
Field Strength (μV/m)
Field Strength (dBμV/m) Measurement Distance
Frequency(MHz)
0.009~0.490
2400/F(KHz)
20 log (uV/m)
300
0.490~1.705
2400/F(KHz)
20 log (uV/m)
30
1.705~30.0
30
29.5
30
30-88
100
40
88-216
150
43.5
216-960
200
46
Above 960
500
54
Limits of Radiated Emission Measurement(Above 1000MHz)
Class B (dBuV/m) (at 3M)
Frequency(MHz)
PEAK
AVERAGE
Above 1000
74
54
Remark :1. Emission level in dBuV/m=20 log (uV/m)
2. Measurement was performed at an antenna to the closed point of EUT distance of meters.
3. Distance extrapolation factor =40log(Specific distance/ test distance)( dB);
Limit line=Specific limits(dBuV) + distance extrapolation factor.
7.2.3
Measuring Instruments
The Measuring equipment is listed in the section 6.3 of this test report.
Version.1.2
Page 19 of 54
Report No.: SER171121603001E
7.2.4
Test Configuration
(a) For radiated emissions below 30MHz
Turntable
3m
EUT
0.8 m
Test
Receiver
1.0m
Ground Plane
Coaxial Cable
(b) For radiated emissions from 30MHz to 1000MHz
3m
Turntable
1m to 4m
EUT
Test
Receiver
0.8m
Ground Plane
Coaxial Cable
(c) For radiated emissions above 1000MHz
3m
4m
Turntable
EUT
1.5m
1.5m
Amplifie
Version.1.2
Test Receiver
Page 20 of 54
Report No.: SER171121603001E
7.2.5
Test Procedure
The test site semi-anechoic chamber has met the requirement of NSA tolerance 4 dB according to the
standards: ANSI C63.10-2013. The test distance is 3m.The setup is according to the requirements in Section
13.1.4.1 of ANSI C63.10-2013 and CAN/CSA-CEI/IEC CISPR 22.
This test is required for any spurious emission that falls in a Restricted Band, as defined in Section 15.205.
It must be performed with the highest gain of each type of antenna proposed for use with the EUT.
Use the following spectrum analyzer settings:
Spectrum Parameter
Setting
Attenuation
Auto
Start Frequency
1000 MHz
Stop Frequency
10th carrier harmonic
RB / VB (emission in restricted band)
1 MHz / 1 MHz for Peak, 1 MHz / 10Hz for Average
Receiver Parameter
Attenuation
Start ~ Stop Frequency
Start ~ Stop Frequency
Start ~ Stop Frequency
Setting
Auto
9kHz~150kHz / RB 200Hz for QP
150kHz~30MHz / RB 9kHz for QP
30MHz~1000MHz / RB 120kHz for QP
a. The measuring distance of at 3 m shall be used for measurements at frequency up to 1GHz and
frequencies above 1GHz,
b. The EUT was placed on the top of a rotating table 0.8 m for below 1GHz and 1.5m for above 1GHz the
ground at a 3 meter. The table was rotated 360 degrees to determine the position of the highest
radiation.
c. The height of the equipment or of the substitution antenna shall be 0.8 m for below 1GHz and 1.5m for
above 1GHz; the height of the test antenna shall vary between 1 m to 4 m. Both horizontal and vertical
polarizations of the antenna are set to make the measurement.
d. For the radiated emission test above 1GHz:
Place the measurement antenna away from each area of the EUT determined to be a source of
emissions at the specified measurement distance, while keeping the measurement antenna aimed at
the source of emissions at each frequency of significant emissions, with polarization oriented for
maximum response. The measurement antenna may have to be higher or lower than the EUT,
depending on the radiation pattern of the emission and staying aimed at the emission source for
receiving the maximum signal. The final measurement antenna elevation shall be that which maximizes
the emissions. The measurement antenna elevation for maximum emissions shall be restricted to a
range of heights of from 1 m to 4 m above the ground or reference ground plane.
e. The initial step in collecting conducted emission data is a spectrum analyzer peak detector mode
pre-scanning the measurement frequency range. Significant peaks are then marked and then Quasi
Peak detector mode re-measured.
f. If the Peak Mode measured value compliance with and lower than Quasi Peak Mode Limit, the EUT
shall be deemed to meet QP Limits and then no additional QP Mode measurement performed.
g For the actual test configuration, please refer to the related Item –EUT Test Photos.
Note:
Both horizontal and vertical antenna polarities were tested
and performed pretest to three orthogonal axis. The worst case emissions were reported
During the radiated emission test, the Spectrum Analyzer was set with the following configurations:
For peak measurement:
Set RBW=100 kHz for f < 1 GHz; VBW≥RBW; Sweep = auto; Detector function = peak; Trace = max hold;
Set RBW = 1 MHz, VBW= 3MHz for f≥1 GHz
For average measurement:
VBW = 10 Hz, when duty cycle is no less than 98 percent.
VBW ≥ 1/T, when duty cycle is less than 98 percent where T is the minimum transmission duration over
which the transmitter is on and is transmitting at its maximum power control level for the tested mode of
operation.
Version.1.2
Page 21 of 54
Report No.: SER171121603001E
Note: for the frequency ranges below 30 MHz, a narrower RBW is used for these ranges but the measured
value should add a RBW correction factor (RBWCF) where RBWCF [dB] =10*lg(100 [kHz]/narrower RBW
[kHz]). , the narrower RBW is 1 kHz and RBWCF is 20 dB for the frequency 9 kHz to 150 kHz, and the
narrower RBW is 10 kHz and RBWCF is 10 dB for the frequency 150 kHz to 30 MHz.
7.2.6
Test Results
 Spurious Emission below 30MHz (9KHz to 30MHz)
EUT:
smart x7
Model No.:
Temperature:
20 ℃
Test Mode:
Mode2/Mode3/Mode4/Mode5 Test By:
Relative Humidity:
C2001
48%
Allen Liu
Ant.Pol.
Emission Level(dBuV/m)
Limit 3m(dBuV/m)
Over(dB)
Freq.
(MHz)
H/V
PK
AV
PK
AV
PK
AV
--------Note: the amplitude of spurious emission that is attenuated by more than 20dB below the permissible
limit has no need to be reported.
Distance extrapolation factor =20log(Specific distance/ test distance)( dB);
Limit line=Specific limits(dBuV) + distance extrapolation factor
Version.1.2
Page 22 of 54
Report No.: SER171121603001E

Spurious Emission below 1GHz (30MHz to 1GHz)
All the modulation modes have been tested, and the worst result was report as below:
EUT:
Temperature:
smart x7
25 ℃
Model Name :
Relative Humidity:
C2001
41%
Pressure:
Test Voltage :
1010hPa
AC 120V/60Hz
Test Mode:
Normal Link
Polar
(H/V)
Frequency
(MHz)
Meter
Reading
Factor
(dBuV)
(dB)
Emission
Level
Limits
(dBuV/m)
(dBuV/m)
Remark
31.7313
6.15
20.46
26.61
40.00
68.1514
14.14
9.89
24.03
40.00
146.3735
7.23
11.33
18.56
43.50
295.1469
6.05
14.60
20.65
46.00
420.5803
5.34
16.74
22.08
46.00
875.2469
6.73
25.93
32.66
46.00
Remark:
Absolute Level= ReadingLevel+ Factor, Margin= Absolute Level - Limit
Version.1.2
Margin
(dB)
-13.39
-15.97
-24.94
-25.35
-23.92
-13.34
QP
QP
QP
QP
QP
QP
Page 23 of 54
Report No.: SER171121603001E
Polar
(H/V)
Frequency
Meter
Reading
Factor
Emission
Level
Limits
Margin
(MHz)
(dBuV)
(dB)
(dBuV/m)
(dBuV/m)
(dB)
Remark
30.000
5.50
21.20
26.70
40.00
34.517
6.75
19.14
25.89
40.00
87.112
6.45
11.50
17.95
40.00
199.986
6.11
13.76
19.87
43.50
440.196
6.99
15.96
22.95
46.00
851.035
7.41
25.71
33.12
46.00
Remark:
Absolute Level= ReadingLevel+ Factor, Margin= Absolute Level - Limit
Version.1.2
-13.30
-14.11
-22.05
-23.63
-23.05
-12.88
QP
QP
QP
QP
QP
QP
Page 24 of 54
Report No.: SER171121603001E
 Spurious Emission Above 1GHz (1GHz to 27GHz)
EUT:
smart x7
Model No.:
20 ℃
Temperature:
C2001
Relative Humidity:
48%
Test Mode:
802.11b/g/n20
Test By:
Allen Liu
All the modulation modes have been tested, and the worst result was report as below:
Frequency
Read
Level
Cable
loss
Antenna
Factor
Preamp
Factor
Emission
Level
Limits
Margin
(MHz)
(dBμV)
(dB)
dB/m
(dB)
(dBμV/m)
(dBμV/m)
(dB)
Remark
Comment
Low Channel (2412 MHz)(802.11 b)--Above 1G
4824.282
64.05
5.21
35.59
44.30
60.55
74.00
-13.45
Pk
Vertical
4824.282
42.26
5.21
35.59
44.30
38.76
54.00
-15.24
AV
Vertical
7236.757
63.3
6.48
36.27
44.60
61.45
74.00
-12.55
Pk
Vertical
7236.757
46.09
6.48
36.27
44.60
44.24
54.00
-9.76
AV
Vertical
4824.187
63.96
5.21
35.55
44.30
60.42
74.00
-13.58
Pk
Horizontal
4824.187
43.48
5.21
35.55
44.30
39.94
54.00
-14.06
AV
Horizontal
7236.278
65.29
6.48
36.27
44.52
63.52
74.00
-10.48
Pk
Horizontal
7236.278
45.41
6.48
36.27
44.52
43.64
54.00
-10.36
Middle Channel (2437 MHz)(802.11 b)--Above 1G
AV
Horizontal
4873.353
59.94
5.21
35.66
44.20
56.61
74.00
-17.39
Pk
Vertical
4873.353
38.8
5.21
35.66
44.20
35.47
54.00
-18.53
AV
Vertical
7320.32
57.02
7.10
36.50
44.43
56.19
74.00
-17.81
Pk
Vertical
7320.32
39.59
7.10
36.50
44.43
38.76
54.00
-15.24
AV
Vertical
4873.336
57.66
5.21
35.66
44.20
54.33
74.00
-19.67
Pk
Horizontal
4873.336
40.46
5.21
35.66
44.20
37.13
54.00
-16.87
AV
Horizontal
7310.586
57.88
7.10
36.50
44.43
57.05
74.00
-16.95
Pk
Horizontal
7310.586
40.56
7.10
36.50
44.43
39.73
54.00
-14.27
High Channel (2462 MHz)(802.11 b)--Above 1G
AV
Horizontal
4926.366
62.67
5.21
35.52
44.21
59.19
74.00
-14.81
Pk
Vertical
4926.366
44.1
5.21
35.52
44.21
40.62
54.00
-13.38
AV
Vertical
7388.424
66.11
7.10
36.53
44.60
65.14
74.00
-8.86
Pk
Vertical
7388.424
43.92
7.10
36.53
44.60
42.95
54.00
-11.05
AV
Vertical
4925.894
66.78
5.21
35.52
44.21
63.30
74.00
-10.70
Pk
Horizontal
4925.894
45.71
5.21
35.52
44.21
42.23
54.00
-11.77
AV
Horizontal
7329.893
63.81
7.10
36.53
44.60
62.84
74.00
-11.16
Pk
Horizontal
7329.893
44.92
7.10
36.53
44.60
43.95
54.00
-10.05
AV
Horizontal
Note: (1) All Readings are Peak Value (VBW=3MHz) and Peak Value (VBW=10Hz).
(2) Emission Level= Antenna Factor + Cable Loss + Read Level - Preamp Factor
(3) Data of measurement within this frequency range shown “ -- ” in the table above means the
reading of emissions are attenuated more than 20dB below the permissible limits or the field
strength is too small to be measured.
(4)”802.11b” mode is the worst mode. When PK value is lower than the Average value limit, average
don't record.
Version.1.2
Page 25 of 54
Report No.: SER171121603001E
 Spurious Emission in Restricted Band 2310MHz -18000MHz
All the modulation modes have been tested, and the worst result was report as below:
Frequenc
(MHz)
Meter
Reading
(dBμV)
Cable
Loss
(dB)
Antenna
Factor
dB/m
2310.00
2310.00
2310.00
2310.00
2390.00
2390.00
2390.00
2390.00
2483.50
2483.50
2483.50
2483.50
59.15
39.49
57.38
40.38
58.38
40.24
56.48
39.28
58.45
39.57
60.15
38.38
2.97
2.97
2.97
2.97
3.14
3.14
3.14
3.14
3.58
3.58
3.58
3.58
27.80
27.80
27.80
27.80
27.21
27.21
27.21
27.21
27.70
27.70
27.70
27.70
2310.00
2310.00
2310.00
2310.00
2390.00
2390.00
2390.00
2390.00
2483.50
2483.50
2483.50
2483.50
64.72
44.52
66.42
45.63
64.72
45.52
64.86
48.29
65.71
46.63
66.82
48.29
2.97
2.97
2.97
2.97
3.14
3.14
3.14
3.14
3.58
3.58
3.58
3.58
27.80
27.80
27.80
27.80
27.21
27.21
27.21
27.21
27.70
27.70
27.70
27.70
2310.00
2310.00
2310.00
2310.00
2390.00
2390.00
2390.00
2390.00
2483.50
2483.50
2483.50
58.24
37.71
60.38
38.38
61.15
40.36
59.38
42.28
58.17
41.46
57.71
2.97
2.97
2.97
2.97
3.14
3.14
3.14
3.14
3.58
3.58
3.58
27.80
27.80
27.80
27.80
27.21
27.21
27.21
27.21
27.70
27.70
27.70
Version.1.2
Preamp Emission
Limits
Factor
Level
(dB)
(dBμV/m) (dBμV/m)
802.11b
43.80
46.12
74
43.80
26.46
54
43.80
44.35
74
43.80
27.35
54
43.80
44.93
74
43.80
26.79
54
43.80
43.03
74
43.80
25.83
54
44.00
45.73
74
44.00
26.85
54
44.00
47.43
74
44.00
25.66
54
802.11g
43.80
51.69
74
43.80
31.49
54
43.80
53.39
74
43.80
32.60
54
43.80
51.27
74
43.80
32.07
54
43.80
51.41
74
43.80
34.84
54
44.00
52.99
74
44.00
33.91
54
44.00
54.10
74
44.00
35.57
54
802.11n20
43.80
45.21
74
43.80
24.68
54
43.80
47.35
74
43.80
25.35
54
43.80
47.70
74
43.80
26.91
54
43.80
45.93
74
43.80
28.83
54
44.00
45.45
74
44.00
28.74
54
44.00
44.99
74
Margin
Detector
(dB)
Type
-27.88
-27.54
-29.65
-26.65
-29.07
-27.21
-30.97
-28.17
-28.27
-27.15
-26.57
-28.34
Pk
AV
Pk
AV
Pk
AV
Pk
AV
Pk
AV
Pk
AV
Horizontal
Horizontal
Vertical
Vertical
Vertical
Vertical
Horizontal
Horizontal
Vertical
Vertical
Horizontal
Horizontal
-22.31
-22.51
-20.61
-21.4
-22.73
-21.93
-22.59
-19.16
-21.01
-20.09
-19.9
-18.43
Pk
AV
Pk
AV
Pk
AV
Pk
AV
Pk
AV
Pk
AV
Horizontal
Horizontal
Vertical
Vertical
Vertical
Vertical
Horizontal
Horizontal
Vertical
Vertical
Horizontal
Horizontal
-28.79
-29.32
-26.65
-28.65
-26.3
-27.09
-28.07
-25.17
-28.55
-25.26
-29.01
Pk
AV
Pk
AV
Pk
AV
Pk
AV
Pk
AV
Pk
Horizontal
Horizontal
Vertical
Vertical
Vertical
Vertical
Horizontal
Horizontal
Vertical
Vertical
Horizontal
Comment
Page 26 of 54
Report No.: SER171121603001E
Spurious Emission in Restricted Bands 3260MMHz- 18000MHz
All the modulation modes have been tested, the worst result was report as below:
Frequenc Reading
Level
(MHz)
(dBμV)
Cable
Loss
(dB)
Antenna
Factor
dB/m
Preamp
Factor
(dB)
Emission
Limits
Level
(dBμV/m) (dBμV/m)
Margin
Detector
(dB)
Type
Comment
3260
63.61
4.04
29.57
44.70
52.52
74
-21.48
Pk
Vertical
3260
50.47
4.04
29.57
44.70
39.38
54
-14.62
AV
Vertical
3260
64.4
4.04
29.57
44.70
53.31
74
-20.69
Pk
Horizontal
3260
52.5
4.04
29.57
44.70
41.41
54
-12.59
AV
Horizontal
3332
61.94
4.26
29.87
44.40
51.67
74
-22.33
Pk
Vertical
3332
52.03
4.26
29.87
44.40
41.76
54
-12.24
AV
Vertical
3332
60.69
4.26
29.87
44.40
50.42
74
-23.58
Pk
Horizontal
3332
49.6
4.26
29.87
44.40
39.33
54
-14.67
AV
Horizontal
17797
42.3
10.99
43.95
43.50
53.74
74
-20.26
Pk
Vertical
17797
30.4
10.99
43.95
43.50
41.84
54
-12.16
AV
Vertical
17788
44.9
11.81
43.69
44.60
55.80
74
-18.20
Pk
Horizontal
17788
30.99
11.81
43.69
44.60
41.89
54
-12.11
AV
Horizontal
“802.11b” mode is the worst mode. When PK value is lower than the Average value limit, average
don't record.
Version.1.2
Page 27 of 54
Report No.: SER171121603001E
7.3 6DB BANDWIDTH
7.3.1
Applicable Standard
According to FCC Part 15.247(a)(2) and KDB 558074 DTS 01 Meas. Guidance v04
7.3.2
Conformance Limit
The minimum permissible 6dB bandwidth is 500 kHz.
7.3.3
Measuring Instruments
The Measuring equipment is listed in the section 6.3 of this test report.
7.3.4
Test Setup
Please refer to Section 6.1 of this test report.
7.3.5
Test Procedure
The testing follows KDB 558074 DTS 01 Meas. Guidance v04
The RF output of EUT was connected to the spectrum analyzer by RF cable and attenuator.
The path loss was compensated to the results for each measurement.
Set to the maximum power setting and enable the EUT transmit continuously.
The EUT was operating in controlled its channel.
Use the following spectrum analyzer settings:
Span = the frequency band of operation
RBW = 100KHz
VBW  3*RBW
Sweep = auto
Detector function = peak
Trace = max hold
Version.1.2
Page 28 of 54
Report No.: SER171121603001E
7.3.6
Test Results
EUT:
smart x7
Model No.:
C2001
Temperature:
20 ℃
Relative Humidity:
48%
Test Mode:
802.11b/g/n20
Test By:
Allen Liu
Mode
802.11b
802.11g
802.11n20
Version.1.2
Channel
Low
Middle
High
Low
Middle
High
Low
Middle
High
Frequency
(MHz)
6dB bandwidth
2412
2437
2462
2412
2437
2462
2412
2437
2462
Result
(MHz)
Limit
(kHz)
8.124
8.102
8.115
16.404
16.404
16.413
17.615
17.642
17.627
500
500
500
500
500
500
500
500
500
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Page 29 of 54
Report No.: SER171121603001E
Test plot
(802.11b) 6dB Bandwidth plot on channel 1
(802.11g) 6dB Bandwidth plot on channel 1
(802.11b) 6dB Bandwidth plot on channel 6
(802.11g) 6dB Bandwidth plot on channel 6
(802.11b) 6dB Bandwidth plot on channel 11
(802.11g) 6dB Bandwidth plot on channel 11
Version.1.2
Page 30 of 54
Report No.: SER171121603001E
Test plot
(802.11 N20) 6dB Bandwidth plot on channel 1
(802.11 N20) 6dB Bandwidth plot on channel 6
(802.11N20) 6dB Bandwidth plot on channel 11
Version.1.2
Page 31 of 54
Report No.: SER171121603001E
7.4 DUTY CYCLE
7.4.1
Applicable Standard
According to KDB 558074)6)b), issued April 5, 2017
7.4.2
Conformance Limit
No limit requirement.
7.4.3
Measuring Instruments
The Measuring equipment is listed in the section 6.3 of this test report.
7.4.4
Test Setup
Please refer to Section 6.1 of this test report.
7.4.5
Test Procedure
The zero-span mode on a spectrum analyzer or EMI receiver if the response time and spacing between bins
on the sweep are sufficient to permit accurate measurements of the on and off times of the transmitted signal.
Set the center frequency of the instrument to the center frequency of the transmission. Set RBW ≥ OBW if
possible; otherwise, set RBW to the largest available value. Set VBW ≥ RBW. Set detector = peak or
average. The zero-span measurement method shall not be used unless both RBW and VBW are > 50/T and
the number of sweep points across duration T exceeds 100. (For example, if VBW and/or RBW are limited to
3 MHz, then the zero-span method of measuring duty cycle shall not be used if T ≤ 16.7 microseconds.)
The transmitter output is connected to the Spectrum Analyzer. We tested accroding to the zero-span
measurement method, 6.0)b) in KDB 558074
The largest availble value of RBW is 8 MHz and VBW is 50 MHz. The zero-span method of measuring duty
cycle shall not be used if T ≤ 6.25 microseconds. (50/6.25 = 8)
The zero-span method was used because all measured T data are > 6.25 microseconds and both RBW and
VBW are > 50/T.
The RF output of EUT was connected to the spectrum analyzer by RF cable and attenuator.
The path loss was compensated to the results for each measurement.
Set to the maximum power setting and enable the EUT transmit continuously.
The EUT was operating in controlled its channel.
Use the following spectrum analyzer settings:
Span = Zero Span
RBW = 8MHz(the largest available value)
VBW = 8MHz ( RBW)
Number of points in Sweep >100
Detector function = peak
Trace = Clear write
Measure Ttotal and Ton
Calculate Duty Cycle = Ton / Ttotal
Version.1.2
Page 32 of 54
Report No.: SER171121603001E
7.4.6
Test Results
EUT:
smart x7
Model No.:
C2001
Temperature:
20 ℃
Relative Humidity:
48%
Test Mode:
802.11b/g/n20
Test By:
Allen Liu
Duty
Cycle
VBW
Mode
Channel
Ton
Ttotal
Duty Cycle
Factor
Setting
(dB)
802.11b
1Mbps
100%
10Hz
802.11g
6Mbps
100%
1KHz
802.11n HT20
MCS0
100%
1KHz
Note: All the modulation modes were tested, the data of the worst mode are described in the following table.
Data
rate
Version.1.2
Page 33 of 54
Report No.: SER171121603001E
7.5 MAXIMUM OUTPUT POWER
7.5.1
Applicable Standard
According to FCC Part 15.247(b)(3) and KDB 558074 DTS 01 Meas. Guidance v04
7.5.2
Conformance Limit
The maximum peak conducted output power of the intentional radiator for systems using digital modulation
in the 2400 - 2483.5 MHz bands shall not exceed: 1 Watt (30dBm). If transmitting antenna of directional gain
greater than 6dBi is used, the peak output power from the intentional radiator shall be reduced below the
above stated value by the amount in dB that the directional gain of the antenna exceeds 6 dBi. In case of
point-to-point operation, the limit has to be reduced by 1dB for every 3dB that the directional gain of the
antenna exceeds 6dBi.
7.5.3
Measuring Instruments
The following table is the setting of the power meter.
Power meter parameter
Detector
7.5.4
Test Setup
7.5.5
Test Procedure
Setting
Peak
The maximum peak conducted output power may be measured using a broadband peak RF power meter.
The power meter shall have a video bandwidth that is greater than or equal to the DTS bandwidth and shall
utilize a fast-responding diode detector.
7.5.6
EUT opration during Test
The EUT was programmed to be in continuously transmitting mode.
Version.1.2
Page 34 of 54
Report No.: SER171121603001E
7.5.7
Test Results
EUT:
smart x7
Model No.:
C2001
Temperature:
20 ℃
Relative Humidity:
48%
Test Mode:
802.11b/g/n20
Test By:
Allen Liu
Test Channel
Frequency
(MHz)
Power
Setting
Duty Cycle
Factor
(dB)
11
2412
2437
2462
Default
Default
Default
11
2412
2437
2462
Default
Default
Default
11
2412
2437
2462
Default
Default
Default
Version.1.2
Peak Output
Power
(dBm)
802.11b
13.5
13.4
13.7
802.11g
13.6
13.3
13.2
802.11n HT20
13.1
13.5
13.3
Maximum
Output
Power(dBm)
LIMIT
(dBm)
Verdict
13.5
13.4
13.7
30
30
30
PASS
PASS
PASS
13.6
13.3
13.2
30
30
30
PASS
PASS
PASS
13.1
13.5
13.3
30
30
30
PASS
PASS
PASS
Page 35 of 54
Report No.: SER171121603001E
7.6 POWER SPECTRAL DENSITY
7.6.1
Applicable Standard
According to FCC Part 15.247(e) and KDB 558074 DTS 01 Meas. Guidance v04
7.6.2
Conformance Limit
The transmitter power spectral density conducted from the transmitter to the antenna shall not be greater
than 8 dBm in any 3 kHz band during any time interval of continuous transmission.
7.6.3
Measuring Instruments
The Measuring equipment is listed in the section 6.3 of this test report.
7.6.4
Test Setup
Please refer to Section 6.1 of this test report.
7.6.5
Test Procedure
This procedure shall be used if maximum peak conducted output power was used to demonstrate
compliance, and is optional if the maximum conducted (average) output power was used to demonstrate
compliance.
a) Set analyzer center frequency to DTS channel center frequency.
b) Set the span to 1.5 times the DTS bandwidth.
c) Set the RBW to: 3 kHz ≤ RBW ≤ 100 kHz.
d) Set the VBW ≥ 3 *RBW.
e) Detector = peak.
f) Sweep time = auto couple.
g) Trace mode = max hold.
h) Allow trace to fully stabilize.
i) Use the peak marker function to determine the maximum amplitude level within the RBW.
j) If measured value exceeds limit, reduce RBW (no less than 3 kHz) and repeat.
Version.1.2
Page 36 of 54
Report No.: SER171121603001E
7.6.6
Test Results
EUT:
smart x7
Model No.:
C2001
Temperature:
20 ℃
Relative Humidity:
48%
Test Mode:
802.11b/g/n20
Test By:
Allen Liu
Duty Cycle
Factor(dB)
Test Channel
Frequency
(MHz)
11
2412
2437
2462
11
2412
2437
2462
11
2412
2437
2462
Version.1.2
Peak Power
Density
(dBm/3KHz)
802.11b
-8.08
-7.79
-7.94
802.11g
-8.82
-8.68
-8.88
802.11n HT20
-10.25
-10.09
-10.21
Limit
(dBm/3KHz)
Verdict
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
Page 37 of 54
Report No.: SER171121603001E
Test plot
Version.1.2
(802.11b) PSD plot on channel 1
(802.11g) PSD plot on channel 1
(802.11b) PSD plot on channel 6
(802.11g) PSD plot on channel 6
(802.11b) PSD plot on channel 11
(802.11g) PSD plot on channel 11
Page 38 of 54
Report No.: SER171121603001E
Test plot
(802.11n20) PSD plot on channel 1
(802.11n20) PSD plot on channel 6
(802.11n20) PSD plot on channel 11
Version.1.2
Page 39 of 54
Report No.: SER171121603001E
7.7 CONDUCTED BAND EDGE MEASUREMENT
7.7.1
Applicable Standard
According to FCC Part 15.247(d) and KDB 558074 DTS 01 Meas. Guidance v04
7.7.2
Conformance Limit
In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated
intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall
be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the
desired power, based on either an RF conducted or a radiated measurement, provided the transmitter
demonstrates compliance with the peak conducted power limits. If the transmitter complies with the
conducted power limits based on the use of RMS averaging over a time interval, as permitted under
paragraph (b)(3) of this section, the attenuation required under this paragraph shall be 30 dB instead of 20
dB.
7.7.3
Measuring Instruments
The Measuring equipment is listed in the section 6.3 of this test report.
7.7.4
Test Setup
Please refer to Section 6.1 of this test report.
7.7.5
Test Procedure
The testing follows FCC KDB Publication No. 558074 D01 DTS Meas. Guidance v04.
The RF output of EUT was connected to the spectrum analyzer by RF cable and attenuator.
The path loss was compensated to the results for each measurement.
Set to the maximum power setting and enable the EUT transmit continuously.
The EUT was operating in controlled its channel.
Set RBW to 100 kHz and VBW of spectrum analyzer to 300 kHz with a convenient frequency span including
100 kHz bandwidth from band edge.
Measure the highest amplitude appearing on spectral display and set it as a reference level. Plot the graph
with marking the highest point and edge frequency.
Repeat above procedures until all measured frequencies were complete.
Version.1.2
Page 40 of 54
Report No.: SER171121603001E
7.7.6
Test Results
EUT:
smart x7
Model No.:
C2001
Temperature:
20 ℃
Relative Humidity:
48%
Test Mode:
802.11b/g/n20
Test By:
Allen Liu
Version.1.2
Page 41 of 54
Report No.: SER171121603001E
Test plot For
802.11b: Band Edge-Low Channel
802.11g: Band Edge-Low Channel
802.11b: Band Edge-High Channel
802.11g: Band Edge-High Channel
Version.1.2
Page 42 of 54
Report No.: SER171121603001E
Test plot For
802.11n20: Band Edge-Low Channel
802.11n20: Band Edge-High Channel
Version.1.2
Page 43 of 54
Report No.: SER171121603001E
7.8 SPURIOUS RF CONDUCTED EMISSIONS
7.8.1
Conformance Limit
1. Below -20dB of the highest emission level in operating band.
2. Fall in the restricted bands listed in section 15.205. The maximum permitted average field strength is
listed in section 15.209.
7.8.2
Measuring Instruments
The Measuring equipment is listed in the section 6.3 of this test report.
7.8.3
Test Setup
Please refer to Section 6.1 of this test report.
7.8.4
Test Procedure
The Spurious RF conducted emissions compliance of RF radiated emission should be measured by
following the guidance in ANSI C63.10-2013 with respect to maximizing the emission by rotating the EUT,
measuring the emission while the EUT is situated in three orthogonal planes (if appropriate), adjusting the
measurement antenna height and polarization etc. Set RBW=100kHz and VBW= 300KHz to measure the
peak field strength , and measure frequency range from 9KHz to 26.5GHz.
7.8.5
Test Results
Remark: The measurement frequency range is from 9KHz to the 10th harmonic of the fundamental
frequency. The lowest, middle and highest channels are tested to verify the spurious emissions and bandege
measurement data.
Version.1.2
Page 44 of 54
Report No.: SER171121603001E
Test Plot
Version.1.2
802.11b on channel 01
802.11b on channel 01
802.11b on channel 01
802.11b on channel 01
Page 45 of 54
Report No.: SER171121603001E
Test Plot
Version.1.2
802.11b on channel 06
802.11b on channel 06
802.11b on channel 06
802.11b on channel 06
Page 46 of 54
Report No.: SER171121603001E
Test Plot
Version.1.2
802.11b on channel 11
802.11b on channel 11
802.11b on channel 11
802.11b on channel 11
Page 47 of 54
Report No.: SER171121603001E
Test Plot
Version.1.2
802.11g on channel 01
802.11g on channel 01
802.11g on channel 01
802.11g on channel 01
Page 48 of 54
Report No.: SER171121603001E
Test Plot
Version.1.2
802.11g on channel 06
802.11g on channel 06
802.11g on channel 06
802.11g on channel 06
Page 49 of 54
Report No.: SER171121603001E
Test Plot
Version.1.2
802.11g on channel 11
802.11g on channel 11
802.11g on channel 11
802.11g on channel 11
Page 50 of 54
Report No.: SER171121603001E
Test Plot
Version.1.2
802.11n20 on channel 01
802.11n20 on channel 01
802.11 n20 on channel 01
802.11 n20 on channel 01
Page 51 of 54
Report No.: SER171121603001E
Test Plot
Version.1.2
802.11 n20 on channel 06
802.11 n20 on channel 06
802.11 n20 on channel 06
802.11 n20 on channel 06
Page 52 of 54
Report No.: SER171121603001E
Test Plot
Version.1.2
802.11 n20 on channel 11
802.11 n20 on channel 11
802.11 n20 on channel 11
802.11 n20 on channel 11
Page 53 of 54
Report No.: SER171121603001E
7.9 ANTENNA APPLICATION
7.9.1
Antenna Requirement
15.203 requirement: For intentional device, according to 15.203: an intentional radiator shall be designed to
ensure that no antenna other than that furnished by the responsible party shall be used with the device.
7.9.2
Result
The EUT antenna is permanent attached PCB antenna(Gain:1 dBi). It comply with the standard
requirement.
END OF REPORT
Version.1.2
Page 54 of 54
