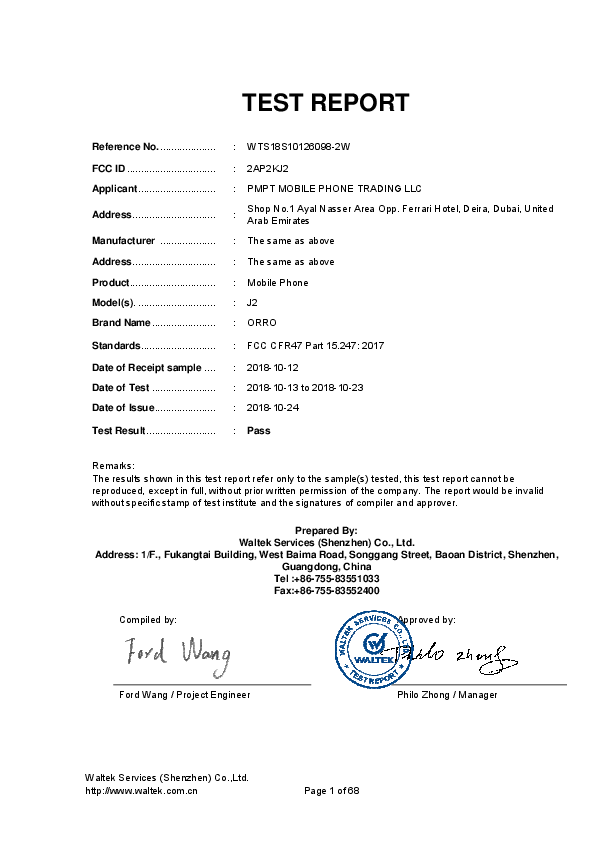

TEST REPORT
Reference No. ....................
WTS18S10126098-2W
FCC ID ................................
2AP2KJ2
Applicant ............................
PMPT MOBILE PHONE TRADING LLC
Address ..............................
Shop No.1 Ayal Nasser Area Opp. Ferrari Hotel, Deira, Dubai, United
Arab Emirates
Manufacturer ....................
The same as above
Address ..............................
The same as above
Product...............................
Mobile Phone
Model(s). ............................
J2
Brand Name .......................
ORRO
Standards...........................
FCC CFR47 Part 15.247: 2017
Date of Receipt sample ....
2018-10-12
Date of Test .......................
2018-10-13 to 2018-10-23
Date of Issue ......................
2018-10-24
Test Result .........................
Pass
Remarks:
The results shown in this test report refer only to the sample(s) tested, this test report cannot be
reproduced, except in full, without prior written permission of the company. The report would be invalid
without specific stamp of test institute and the signatures of compiler and approver.
Prepared By:
Waltek Services (Shenzhen) Co., Ltd.
Address: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen,
Guangdong, China
Tel :+86-755-83551033
Fax:+86-755-83552400
Compiled by:
Approved by:
Ford Wang / Project Engineer
Philo Zhong / Manager
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Page 1 of 68
Reference No.: WTS18S10126098-2W
Page 2 of 68
Laboratories Introduction
Waltek Services (Shenzhen) Co., Ltd is a professional third-party testing and certification laboratory with
multi-year product testing and certification experience, established strictly in accordance with ISO/IEC 17025
requirements, and accredited by ILAC (International Laboratory Accreditation Cooperation) member. A2LA
(American Association for Laboratory Accreditation, the certification number is 4243.01) of USA, CNAS
(China National Accreditation Service for Conformity Assessment, the registration number is L3110) of China.
Meanwhile, Waltek has got recognition as registration and accreditation laboratory from EMSD (Electrical
and Mechanical Services Department), and American Energy star, FCC (The Federal Communications
Commission), CEC (California energy efficiency), ISED (Innovation, Science and Economic Development
Canada). It’s the strategic partner and data recognition laboratory of international authoritative organizations,
such as Intertek (ETL-SEMKO), TÜV Rheinland, TÜV SÜD, etc.
Waltek Services (Shenzhen) Co., Ltd is one of the largest and the most comprehensive third party testing
laboratory in China. Our test capability covered four large fields: safety test. Electro Magnetic Compatibility
(EMC), and energy performance, wireless radio. As a professional, comprehensive, justice international test
organization, we still keep the scientific and rigorous work attitude to help each client satisfy the international
standards and assist their product enter into globe market smoothly.
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 3 of 68
Test Facility:
A. Accreditations for Conformity Assessment (International)
Country/Region
Scope
Note
USA
FCC ID \ DOC \ VOC
Canada
IC ID \ VOC
Japan
MIC-T \ MIC-R
Europe
EMCD \ RED
NCC
OFCA
Australia
RCM
India
WPC
Thailand
NTC
Singapore
IDA
Taiwan
Hong Kong
Scope Covered By
ISO/IEC 17025
Note:
1.
FCC Designation No.: CN1201. Test Firm Registration No.: 523476.
2.
ISED Canada Registration No.: 7760A
B. TCBs and Notify Bodies Recognized Testing Laboratory.
Recognized Testing Laboratory of …
Notify body number
TUV Rheinland
Intertek
TUV SUD
Optional.
SGS
Phoenix Testlab GmbH
0700
Element Materials Technology Warwick Ltd
0891
Timco Engineering, Inc.
1177
Eurofins Product Service GmbH
0681
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 4 of 68
Contents
Page
COVER PAGE ...................................................................................................................................... 1
LABORATORIES INTRODUCTION ................................................................................................................... 2
CONTENTS ............................................................................................................................................................ 4
REVISION HISTORY ............................................................................................................................................ 6
GENERAL INFORMATION .................................................................................................................................. 7
5.1
5.2
5.3
5.4
5.5
GENERAL DESCRIPTION OF E.U.T. ............................................................................................................... 7
DETAILS OF E.U.T. ......................................................................................................................................... 7
SUBCONTRACTED............................................................................................................................................ 7
CHANNEL LIST ................................................................................................................................................. 8
TEST MODE ..................................................................................................................................................... 8
TEST SUMMARY .................................................................................................................................................. 9
EQUIPMENT USED DURING TEST ................................................................................................................ 10
7.1
7.2
7.3
7.4
CONDUCTED EMISSION .................................................................................................................................. 12
8.1
8.2
8.3
8.4
TEST PROCEDURE .................................................................................................................................... 40
TEST RESULT ........................................................................................................................................... 40
MAXIMUM PEAK OUTPUT POWER ............................................................................................................... 46
13.1
13.2
14
TEST PROCEDURE .................................................................................................................................... 33
TEST RESULT ........................................................................................................................................... 34
20 DB BANDWIDTH MEASUREMENT ........................................................................................................... 40
12.1
12.2
13
TEST PROCEDURE .................................................................................................................................... 22
TEST RESULT ........................................................................................................................................... 23
BAND EDGE MEASUREMENT ........................................................................................................................ 33
11.1
11.2
12
EUT OPERATION........................................................................................................................................... 15
TEST SETUP .................................................................................................................................................. 16
SPECTRUM ANALYZER SETUP ...................................................................................................................... 17
TEST PROCEDURE ........................................................................................................................................ 18
CORRECTED AMPLITUDE & MARGIN CALCULATION ..................................................................................... 18
SUMMARY OF TEST RESULTS ....................................................................................................................... 19
CONDUCTED SPURIOUS EMISSIONS .......................................................................................................... 22
10.1
10.2
11
E.U.T. OPERATION ....................................................................................................................................... 12
EUT SETUP ................................................................................................................................................... 12
MEASUREMENT DESCRIPTION ...................................................................................................................... 12
CONDUCTED EMISSION TEST RESULT ......................................................................................................... 13
RADIATED SPURIOUS EMISSIONS ............................................................................................................... 15
9.1
9.2
9.3
9.4
9.5
9.6
10
EQUIPMENTS LIST ......................................................................................................................................... 10
DESCRIPTION OF SUPPORT UNITS ............................................................................................................... 11
MEASUREMENT UNCERTAINTY ..................................................................................................................... 11
TEST EQUIPMENT CALIBRATION ................................................................................................................... 11
TEST PROCEDURE .................................................................................................................................... 46
TEST RESULT ........................................................................................................................................... 46
HOPPING CHANNEL SEPARATION .............................................................................................................. 52
14.1
14.2
TEST PROCEDURE .................................................................................................................................... 52
TEST RESULT ........................................................................................................................................... 52
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
15
NUMBER OF HOPPING FREQUENCY ........................................................................................................... 58
15.1
15.2
16
Page 5 of 68
TEST PROCEDURE .................................................................................................................................... 58
TEST RESULT ........................................................................................................................................... 58
DWELL TIME ....................................................................................................................................................... 60
16.1
16.2
TEST PROCEDURE .................................................................................................................................... 60
TEST RESULT ........................................................................................................................................... 60
17
ANTENNA REQUIREMENT .............................................................................................................................. 66
18
RF EXPOSURE .................................................................................................................................................... 67
19
PHOTOGRAPHS OF TEST SETUP AND EUT. ............................................................................................. 68
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 6 of 68
Revision History
Test report No.
WTS18S10126
098-2W
Date of
Receipt
sample
Date of Test
Date of
Issue
Purpose
Comment
Approved
2018-10-12
2018-10-13
to 2018-1023
2018-10-24
original
Valid
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
General Information
5.1
General Description of E.U.T.
Product:
Mobile Phone
Model(s):
J2
Model Description:
N/A
GSM Band(s):
GSM 850/900/1800/1900MHz
GPRS Class:
12
Bluetooth Version:
Bluetooth v2.1+EDR
GPS:
N/A
NFC:
N/A
Hardware Version:
HA001_MAIN_V1.2
Software Version:
SC6533_HA001_128160_DLG_D285_ORRO_SpEnFrPo_TIO_3021_IV
O_DUAL_LED_R79817_release_flash
Highest frequency
(Exclude Radio):
5.2
Page 7 of 68
208MHz
Storage Location:
Internal Storage
Note:
N/A
Details of E.U.T.
Operation Frequency:
Bluetooth: 2402~2480MHz
Max. RF output power:
Bluetooth: 4.77dBm
Type of Modulation:
Bluetooth: GFSK, Pi/4 DQPSK, 8DPSK
Antenna installation:
Bluetooth: internal permanent antenna
Antenna Gain:
Bluetooth: 2.2dBi
Ratings:
Battery DC 3.7V, 1050mAh
DC 5V, 0.5A, charging from adapter
(Adapter Input: 100-240V~50/60Hz 0.15A)
Adapter:
Manufacturer: SHENZHEN GUANGYUANSHENG TECHNOLOGY
CO., LTD.
Model No.: J2
5.3
Subcontracted
Whether parts of tests for the product have been subcontracted to other labs:
Yes
No
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 8 of 68
Channel List
5.4
Normal
Channel
No.
Frequency
(MHz)
2402
Channel
No.
Frequency
(MHz)
2403
Channel
No.
Frequency
(MHz)
2404
Channel
No.
Frequency
(MHz)
2405
2406
2407
2408
2409
2410
2411
10
2412
11
2413
12
2414
13
2415
14
2416
15
2417
16
2418
17
2419
18
2420
19
2421
20
2422
21
2423
22
2424
23
2425
24
2426
25
2427
26
2428
27
2429
28
2430
29
2431
30
2432
31
2433
32
2434
33
2435
34
2436
35
2437
36
2438
37
2439
38
2440
39
2441
40
2442
41
2443
42
2444
43
2445
44
2446
45
2447
46
2448
47
2449
48
2450
49
2451
50
2452
51
2453
52
2454
53
2455
54
2456
55
2457
56
2458
57
2459
58
2460
59
2461
60
2462
61
2463
62
2464
63
2465
64
2466
65
2467
66
2468
67
2469
68
2470
69
2471
70
2472
71
2473
72
2474
73
2475
74
2476
75
2477
76
2478
77
2479
78
2480
5.5
Test Mode
All test mode(s) and condition(s) mentioned were considered and evaluated respectively by
performing full tests; the worst data were recorded and reported.
Test mode
Low channel
Middle channel
High channel
Transmitting
2402MHz
2441MHz
2480MHz
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 9 of 68
Test Summary
Test Items
Test Requirement
Result
15.205(a)
Radiated Spurious Emissions
15.209
PASS
15.247(d)
Conducted Spurious emissions
Band edge
15.247(d)
15.247(d)
15.205(a)
PASS
PASS
Conducted Emission
15.207
PASS
20dB Bandwidth
15.247(a)(1)
PASS
Maximum Peak Output Power
15.247(b)(1)
PASS
Frequency Separation
15.247(a)(1)
PASS
Number of Hopping Frequency
15.247(a)(1)(iii)
PASS
Dwell time
15.247(a)(1)(iii)
PASS
Antenna Requirement
15.203
Complies
1.1307(b)(1)
PASS
Maximum Permissible Exposure
(Exposure of Humans to RF Fields)
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 10 of 68
Equipment Used during Test
7.1
Equipments List
Conducted Emissions Test Site 1#
Item
Equipment
Manufacturer
Model No.
Serial No.
1.
EMI Test Receiver
R&S
ESCI
100947
Last
Calibration
Date
2018-09-12
2.
LISN
R&S
ENV216
101215
2018-09-12
2019-09-11
3.
Cable
Top
TYPE16(3.5M)
2018-09-12
2019-09-11
Calibration
Due Date
2019-09-11
Conducted Emissions Test Site 2#
Item
Equipment
Manufacturer
Model No.
Serial No.
Last
Calibration
Date
Calibration
Due Date
1.
EMI Test Receiver
R&S
ESCI
101155
2018-09-12
2019-09-11
2.
LISN
SCHWARZBECK
NSLK 8128
8128-289
2018-09-12
2019-09-11
3.
Limiter
York
MTS-IMP-136
261115-0010024
2018-09-12
2019-09-11
4.
Cable
LARGE
RF300
2018-09-12
2019-09-11
3m Semi-anechoic Chamber for Radiation Emissions Test site 1#
Item
Equipment
Manufacturer
Model No.
Serial No.
Spectrum Analyzer
R&S
FSP
100091
Last
Calibration
Date
2018-04-29
Active Loop Antenna
Trilog Broadband
Antenna
Coaxial Cable
(below 1GHz)
Broad-band Horn
Antenna
Broad-band Horn
Antenna
Broadband
Preamplifier
Coaxial Cable
(above 1GHz)
Beijing Dazhi
ZN30900A
2018-04-09
2019-04-08
SCHWARZBECK
VULB9163
336
2018-04-09
2019-04-08
Top
TYPE16(13M)
2018-09-12
2019-09-11
SCHWARZBECK
BBHA 9120 D
667
2018-04-09
2019-04-08
SCHWARZBECK
BBHA 9170
335
2018-04-09
2019-04-08
COMPLIANCE
DIRECTION
PAP-1G18
2004
2018-04-13
2019-04-12
Top
1GHz-25GHz
EW02014-7
2018-04-13
2019-04-12
Calibration
Due Date
2019-04-28
3m Semi-anechoic Chamber for Radiation Emissions Test site 2#
Item
Equipment
Manufacturer
Model No.
Serial No
Test Receiver
Trilog Broadband
Antenna
R&S
ESCI
101296
Last
Calibration
Date
2018-04-13
SCHWARZBECK
VULB9160
9160-3325
2018-04-09
2019-04-08
PAP-0203
22024
2018-04-13
2019-04-12
CBL2
525178
2018-04-13
2019-04-12
Amplifier
Cable
Compliance
pirection
systems inc
HUBER+SUHNER
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Calibration
Due Date
2019-04-12
Reference No.: WTS18S10126098-2W
Page 11 of 68
3m Semi-anechoic Chamber for Radiation Emissions Test site (balun)
Spectrum Analyzer
R&S
FSV-40
101544
2018-02-17
2019-02-16
Antenna-Hom
A-INFO
LB-180400KF
J211060273
2018-01-05
2019-01-04
Amplifier
COM-MV
ZLNA-18-40G021
1608001
2018-02-17
2019-02-16
Cable
Top
18-40GHz
2018-02-17
2019-02-16
Manufacturer
Model No.
Serial No.
Last
Calibration
Date
Calibration
Due Date
Agilent
E7405A
MY45114943
2018-09-12
2019-09-11
R&S
FSL6
100959
2018-09-12
2019-09-11
Agilent
N9010A
MY50520207
2018-09-12
2019-09-11
RF Conducted Testing
Item
1.
2.
3.
7.2
7.3
Equipment
EMC Analyzer
(9k~26.5GHz)
Spectrum Analyzer
(9k-6GHz)
Signal Analyzer
(9k~26.5GHz)
Description of Support Units
Equipment
Manufacturer
Model No.
Series No.
Measurement Uncertainty
Parameter
Uncertainty
Conducted Emission
± 3.64 dB(AC mains 150KHz~30MHz)
± 5.08 dB (Bilog antenna 30M~1000MHz)
Radiated Spurious Emissions
± 4.99 dB (Horn antenna 1000M~25000MHz)
Radio Frequency
± 1 x 10-7Hz
RF Power
± 0.42 dB
Dwell time
1.0%
Conducted Spurious Emissions
± 2.76 dB (9kHz~26500MHz)
Confidence interval:95%. Confidence factor:k=2
7.4
Test Equipment Calibration
All the test equipments used are valid and calibrated by CEPREI Certification Body that
address is No.110 Dongguan Zhuang RD. Guangzhou, P.R.China.
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 12 of 68
Conducted Emission
Test Requirement:
FCC CFR 47 Part 15 Section 15.207
Test Method:
ANSI C63.10:2013
Test Result:
PASS
Frequency Range:
150kHz to 30MHz
Class/Severity:
Class B
Frequency (MHz)
Limit:
0.15 to 0.5
0.5 to 5
5 to 30
8.1
Limit (dBμV)
Quasi-peak
Average
66 to 6*
56 to 46*
56
46
60
50
E.U.T. Operation
Operating Environment :
Temperature:
22.8 C
Humidity:
52.6 % RH
Atmospheric Pressure:
101.2kPa
EUT Operation :
The test was performed in TX Transmitting mode, the test data were shown in the report.
8.2
EUT Setup
The conducted emission tests were performed using the setup accordance with the ANSI C63.10: 2013.
0.4m
EUT
Receiver
PC System
0.8m
0.8m
LISN
:50 Terminator
8.3
Measurement Description
The maximised peak emissions from the EUT was scanned and measured for both the Live and
Neutral Lines. Quasi-peak & average measurements were performed if peak emissions were within
6dB of the average limit line.
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
8.4
Page 13 of 68
Conducted Emission Test Result
Remark: only the worst data (GFSK modulation Low channel mode) were reported
Live line:
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Neutral line:
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Page 14 of 68
Reference No.: WTS18S10126098-2W
Page 15 of 68
Radiated Spurious Emissions
Test Requirement:
FCC CFR47 Part 15 Section 15.205 &15.209 & 15.247
Test Method:
ANSI C63.10: 2013
Test Result:
PASS
Measurement Distance:
3m
Limit:
Field Strength
Field Strength Limit at 3m Measurement Dist
Frequency
(MHz)
9.1
Distance
uV/m
(m)
uV/m
dBuV/m
0.009 ~ 0.490
2400/F(kHz)
300
10000 * 2400/F(kHz)
20log(2400/F(kHz)) + 80
0.490 ~ 1.705
24000/F(kHz)
30
100 * 24000/F(kHz)
20log(24000/F(kHz)) + 40
1.705 ~ 30
30
30
100 * 30
20log(30) + 40
30 ~ 88
100
100
20log(100)
88 ~ 216
150
150
20log(150)
216 ~ 960
200
200
20log(200)
Above 960
500
500
20log(500)
EUT Operation
Operating Environment :
Temperature:
23.5 C
Humidity:
51.1 % RH
Atmospheric Pressure:
101.2kPa
EUT Operation :
The test was performed in TX Transmitting mode, the test data were shown in the report.
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
9.2
Page 16 of 68
Test Setup
The radiated emission tests were performed in the 3m Semi- Anechoic Chamber test site, using the
setup accordance with the ANSI C63.10: 2013.
The test setup for emission measurement below 30MHz.
Semi-anechoic 3m Chamber
Turn Table From 0°to 360°
3m
EUT
0.8m
Turn Table
PC
System
Spectrum
Analyzer
AMP
Combining
Network
The test setup for emission measurement from 30 MHz to 1 GHz.
Semi-anechoic 3m Chamber
Antenna Elevation Varies From 1 to 4 m
Turn Table From 0°to 360°
3m
EUT
0.8m
Turn Table
PC
System
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Spectrum
Analyzer
AMP
Combining
Network
Reference No.: WTS18S10126098-2W
Page 17 of 68
The test setup for emission measurement above 1 GHz.
Anechoic 3m Chamber
bore‐sight antenna
Antenna Elevation Varies From 1 to 4 m
Turn Table From 0°to 360°
3m
EUT
1.5m
Turn Table
PC
System
9.3
Absorbers
Spectrum
Analyzer
AMP
Spectrum Analyzer Setup
Below 30MHz
Sweep Speed .............................................. Auto
IF Bandwidth ................................................ 10kHz
Video Bandwidth.......................................... 10kHz
Resolution Bandwidth.................................. 10kHz
30MHz ~ 1GHz
Sweep Speed .............................................. Auto
Detector ....................................................... PK
Resolution Bandwidth .................................. 100kHz
Video Bandwidth.......................................... 300kHz
Above 1GHz
Sweep Speed .............................................. Auto
Detector ....................................................... PK
Resolution Bandwidth .................................. 1MHz
Video Bandwidth.......................................... 3MHz
Detector ....................................................... Ave.
Resolution Bandwidth .................................. 1MHz
Video Bandwidth.......................................... 10Hz
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Combining
Network
Reference No.: WTS18S10126098-2W
9.4
Page 18 of 68
Test Procedure
1. The EUT is placed on a turntable, which is 0.8m above ground plane for below 1GHz and 1.5m for
above 1GHz.
2. The turntable shall be rotated for 360 degrees to determine the position of maximum emission level.
3. EUT is set 3m away from the receiving antenna, which is moved from 1m to 4m to find out the
maximum emissions. The spectrum was investigated from the lowest radio frequency signal
generated in the device, without going below 9 kHz, up to the tenth harmonic of the highest
fundamental frequency or to 40 GHz, whichever is lower.
4. Maximum procedure was performed on the six highest emissions to ensure EUT compliance.
5. And also, each emission was to be maximized by changing the polarization of receiving antenna
both horizontal and vertical.
6. Repeat above procedures until the measurements for all frequencies are complete.
7. The radiation measurements are tested under 3-axes(X,Y,Z) position(X denotes lying on the table,
Y denotes side stand and Z denotes vertical stand), After pre-test, It was found that the worse
radiation emission was get at the Z position. So the data shown was the Z position only.
9.5
Corrected Amplitude & Margin Calculation
The Corrected Amplitude is calculated by adding the Antenna Factor and Cable Factor, and
subtracting the Amplifier Gain from the Amplitude reading. The basic equation is as follows:
Corr. Ampl. = Indicated Reading + Antenna Factor + Cable Factor - Amplifier Gain
The “Margin” column of the following data tables indicates the degree of compliance with the
applicable limit. For example, a margin of -7dB means the emission is 7dB below the maximum limit
for Class B. The equation for margin calculation is as follows:
Margin = Corr. Ampl. – Limit
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
9.6
Page 19 of 68
Summary of Test Results
Test Frequency: 9KHz~30MHz
Remark: only the worst data (GFSK modulation Low channel mode) were reported
Measurement
Frequency
Detector
results dBμV
PK/QP
@3m
Measurement
(MHz)
Detector
results
Correct
Extrapolatio
Measurement
Limits
Margi
factor
n factor
results (calculated)
dBμV/m
dB/m
dB
dBμV/m @30m
@30m
dB
Correct
Extrapolatio
Measurement
factor
n factor
results (calculated)
Limits
Margi
6.021
25.12
QP
21.84
40.00
6.96
29.54
-22.58
15.730
25.47
QP
21.35
40.00
6.82
29.54
-22.72
25.19
QP
20.67
40.00
5.86
29.54
-23.68
25.680
Test Frequency: 30MHz ~ 18GHz
Remark: only the worst data (GFSK modulation mode) were reported.
Frequency
(MHz)
Receiver
Reading
(dBμV)
Turn
Detector
(PK/QP/Ave)
RX Antenna
table
Angle
Height
Polar
Degree
(m)
(H/V)
Corrected
Corrected
Factor
Amplitude
(dB)
Limit
Margin
(dBμV/m)
(dBμV/m)
(dB)
GFSK Low Channel
268.32
36.01
QP
219
1.7
-13.35
22.66
46.00
-23.34
268.32
40.46
QP
88
1.9
-13.35
27.11
46.00
-18.89
4804.00
45.29
PK
148
1.2
-1.06
44.23
74.00
-29.77
4804.00
44.45
Ave
148
1.2
-1.06
43.39
54.00
-10.61
7206.00
41.56
PK
125
1.8
1.33
42.89
74.00
-31.11
7206.00
35.10
Ave
125
1.8
1.33
36.43
54.00
-17.57
2313.71
46.89
PK
41
1.5
-13.19
33.70
74.00
-40.30
2313.71
39.33
Ave
41
1.5
-13.19
26.14
54.00
-27.86
2356.93
44.83
PK
235
1.6
-13.14
31.69
74.00
-42.31
2356.93
37.78
Ave
235
1.6
-13.14
24.64
54.00
-29.36
2494.06
43.12
PK
126
1.3
-13.08
30.04
74.00
-43.96
2494.06
37.58
Ave
126
1.3
-13.08
24.50
54.00
-29.50
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Frequency
(MHz)
Receiver
Reading
(dBμV)
Page 20 of 68
Turn
Detector
(PK/QP/Ave)
RX Antenna
table
Angle
Height
Polar
Degree
(m)
(H/V)
Corrected
Corrected
Factor
Amplitude
(dB)
Limit
Margin
(dBμV/m)
(dBμV/m)
(dB)
GFSK Middle Channel
268.32
35.77
QP
68
1.9
-13.35
22.42
46.00
-23.58
268.32
40.06
QP
158
1.2
-13.35
26.71
46.00
-19.29
4882.00
44.03
PK
313
1.1
-0.62
43.41
74.00
-30.59
4882.00
43.22
Ave
313
1.1
-0.62
42.60
54.00
-11.40
7323.00
40.71
PK
354
1.9
2.21
42.92
74.00
-31.08
7323.00
34.23
Ave
354
1.9
2.21
36.44
54.00
-17.56
2311.76
46.98
PK
225
1.3
-13.19
33.79
74.00
-40.21
2311.76
39.46
Ave
225
1.3
-13.19
26.27
54.00
-27.73
2383.89
42.27
PK
252
1.1
-13.14
29.13
74.00
-44.87
2383.89
36.46
Ave
252
1.1
-13.14
23.32
54.00
-30.68
2492.89
44.18
PK
66
1.2
-13.08
31.10
74.00
-42.90
2492.89
38.40
Ave
66
1.2
-13.08
25.32
54.00
-28.68
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Frequency
(MHz)
Receiver
Reading
(dBμV)
Page 21 of 68
Turn
Detector
(PK/QP/Ave)
RX Antenna
table
Angle
Height
Polar
Degree
(m)
(H/V)
Corrected
Corrected
Factor
Amplitude
(dB)
Limit
Margin
(dBμV/m)
(dBμV/m)
(dB)
GFSK High Channel
268.32
36.51
QP
88
1.1
-13.35
23.16
46.00
-22.84
268.32
39.90
QP
259
1.8
-13.35
26.55
46.00
-19.45
4960.00
43.56
PK
147
1.7
-0.24
43.32
74.00
-30.68
4960.00
44.05
Ave
147
1.7
-0.24
43.81
54.00
-10.19
7440.00
40.05
PK
44
1.7
2.84
42.89
74.00
-31.11
7440.00
33.08
Ave
44
1.7
2.84
35.92
54.00
-18.08
2345.97
46.11
PK
41
1.8
-13.19
32.92
74.00
-41.08
2345.97
39.90
Ave
41
1.8
-13.19
26.71
54.00
-27.29
2354.32
43.08
PK
240
2.0
-13.14
29.94
74.00
-44.06
2354.32
37.73
Ave
240
2.0
-13.14
24.59
54.00
-29.41
2484.59
43.74
PK
29
1.3
-13.08
30.66
74.00
-43.34
2484.59
38.54
Ave
29
1.3
-13.08
25.46
54.00
-28.54
Test Frequency: 18GHz~25GHz
The measurements were more than 20 dB below the limit and not recorded
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
10
Page 22 of 68
Conducted Spurious Emissions
Test Requirement:
FCC CFR47 Part 15 Section 15.247
Test Method:
ANSI C63.10: 2013
Test Result:
PASS
Limit:
In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally
modulated intentional radiator is operating, the radio frequency power that is produced by the
intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that
contains the highest level of the desired power, based on either an RF conducted or a radiated
measurement, provided the transmitter demonstrates compliance with the peak conducted power
limits. If the transmitter complies with the conducted power limits based on the use of RMS averaging
over a time interval, as permitted under paragraph (b)(3) of this section, the attenuation required under
this paragraph shall be 30 dB instead of 20 dB. Attenuation below the general limits specified in
Section 15.209(a) is not required. In addition, radiated emissions which fall in the restricted bands, as
defined in Section 15.205(a), must also comply with the radiated emission limits specified in Section
15.209(a) (see Section 15.205(c)).
10.1 Test Procedure
1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the
spectrum;
2. Set the spectrum analyzer:
Blow 30MHz:
RBW = 100kHz, VBW = 300kHz, Sweep = auto
Detector function = peak, Trace = max hold
Above 30MHz:
RBW = 100kHz, VBW = 300kHz, Sweep = auto
Detector function = peak, Trace = max hold
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 23 of 68
10.2 Test Result
9KHz - 30MHz
GFSK
Low Channel
Middle Channel
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 24 of 68
High Channel
Pi/4DQPSK
Low Channel
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 25 of 68
Middle Channel
High Channel
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 26 of 68
8DPSK
Low Channel
Middle Channel
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 27 of 68
High Channel
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 28 of 68
30MHz – 25GHz
GFSK Low Channel
Fundamental
GFSK Middle Channel
Fundamental
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 29 of 68
GFSK High Channel
Fundamental
Pi/4 DQPSK Low Channel
Fundamental
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 30 of 68
Pi/4 DQPSK Middle Channel
Fundamental
Pi/4 DQPSK High Channel
Fundamental
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 31 of 68
8DPSK Low Channel
Fundamental
8DPSK Middle Channel
Fundamental
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 32 of 68
8DPSK High Channel
Fundamental
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
11
Page 33 of 68
Band Edge Measurement
Test Requirement:
Section 15.247(d) In addition, radiated emissions which fall in the
restricted bands. as defined in Section 15.205(a), must also comply
with the radiated emission limits specified in Section 15.209(a) (see
Section 15.205(c)).
Test Method:
ANSI C63.10: 2013
Test Limit:
Regulation 15.247 (d),In any 100 kHz bandwidth outside the
frequency band in which the
spread spectrum or digitally
modulated intentional radiator is operating, the radio frequency
power that is produced by the intentional radiator shall be at least 20
dB below that in the 100 kHz bandwidth within the band that contains
the highest level of the desired power, based on either an RF
conducted or a radiated measurement, provided the transmitter
demonstrates compliance with the peak conducted power limits. If
the transmitter complies with the conducted power limits based on
the use of RMS averaging over a time interval, as permitted under
paragraph (b)(3) of this section, the attenuation required under this
paragraph shall be 30 dB instead of 20 dB. Attenuation below the
general limits specified in §15.209(a) is not required. In addition,
radiated emissions which fall in the restricted bands, as defined in
§15.205(a), must also comply with the radiated emission limits
specified in §15.209(a) (see §15.205(c)).
Test Mode:
Transmitting
11.1 Test Procedure
1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the
spectrum;
2. Set the spectrum analyzer: RBW = 100kHz, VBW = 300kHz, Sweep = auto
Detector function = peak, Trace = max hold
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 34 of 68
11.2 Test Result
GFSK Transmitting Band edge-left side
GFSK Hopping Band edge-left side
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 35 of 68
GFSK Transmitting Band edge-right side
GFSK Hopping Band edge-right side
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 36 of 68
Pi/4 DQPSK Transmitting Band edge-left side
Pi/4 DQPSK Hopping Band edge-left side
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 37 of 68
Pi/4 DQPSK Transmitting Band edge-right side
Pi/4 DQPSK Hopping Band edge-right side
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 38 of 68
8DPSK Transmitting Band edge-left side
8DPSK Hopping Band edge-left side
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 39 of 68
8DPSK Transmitting Band edge-right side
8DPSK Hopping Band edge-right side
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
12
Page 40 of 68
20 dB Bandwidth Measurement
Test Requirement:
FCC CFR47 Part 15 Section 15.247
Test Method:
ANSI C63.10: 2013
Test Mode:
Test in fixing operating frequency at low, Middle, high channel.
12.1 Test Procedure
1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the
spectrum;
2. Set the spectrum analyzer: RBW = 30kHz, VBW = 100kHz
12.2 Test Result
Modulation
Test Channel
Bandwidth(MHz)
GFSK
Low
1.042
GFSK
Middle
1.042
GFSK
High
1.042
Pi/4 DQPSK
Low
1.299
Pi/4 DQPSK
Middle
1.299
Pi/4 DQPSK
High
1.305
8DPSK
Low
1.287
8DPSK
Middle
1.293
8DPSK
High
1.287
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 41 of 68
Test plots
GFSK Low Channel
GFSK Middle Channel
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 42 of 68
GFSK High Channel
Pi/4 DQPSK Low Channel
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 43 of 68
Pi/4 DQPSK Middle Channel
Pi/4 DQPSK High Channel
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 44 of 68
8DPSK Low Channel
8DPSK Middle Channel
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 45 of 68
8DPSK High Channel
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
13
Page 46 of 68
Maximum Peak Output Power
Test Requirement:
FCC CFR47 Part 15 Section 15.247
Test Method:
ANSI C63.10: 2013
Test Limit:
Regulation 15.247 (a)(1), For frequency hopping systems
operating in the 2400-2483.5 MHz band by a minimum of 25
kHz or the 20 dB bandwidth of the hopping channel, whichever
is greater.: 1 watt. For all other frequency hopping systems in
the 2400-2483.5 MHz band that are separated by 25 kHz or
two-thirds of the 20 dB bandwidth of the hopping channel,
whichever is greater: 0.125 watts..
Test mode:
Test in fixing frequency transmitting mode.
13.1 Test Procedure
1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the
spectrum.
2. Set the spectrum analyzer: RBW = 3MHz. VBW = 3MHz. Sweep = auto; Detector Function = Peak.
3. Keep the EUT in transmitting at lowest, medium and highest channel individually. Record the max
value.///
13.2 Test Result
Output Power
Modulation
Test Channel
GFSK
Low
4.77
21
GFSK
Middle
4.27
21
GFSK
High
4.51
21
Pi/4 DQPSK
Low
3.83
21
Pi/4 DQPSK
Middle
3.32
21
Pi/4 DQPSK
High
3.69
21
8DPSK
Low
3.96
21
8DPSK
Middle
3.42
21
8DPSK
High
3.78
21
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
(dBm)
Limit (dBm)
Reference No.: WTS18S10126098-2W
Page 47 of 68
Test plots
GFSK Low Channel
GFSK Middle Channel
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 48 of 68
GFSK High Channel
Pi/4 DQPSK Low Channel
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 49 of 68
Pi/4 DQPSK Middle Channel
Pi/4 DQPSK High Channel
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 50 of 68
8DPSK Low Channel
8DPSK Middle Channel
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 51 of 68
8DPSK High Channel
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
14
Page 52 of 68
Hopping Channel Separation
Test Requirement:
FCC CFR47 Part 15 Section 15.247
Test Method:
ANSI C63.10: 2013
Test Limit:
Regulation 15.247(a)(1) Frequency hopping systems shall have
hopping channel carrier frequencies separated by a minimum of 25
kHz or the 20 dB bandwidth of the hopping channel, whichever is
greater. Alternatively, frequency hopping systems operating in the
2400-2483.5
MHz
band
may
have
hopping
channel
carrier
frequencies that are separated by 25 kHz or two-thirds of the 20 dB
bandwidth of the hopping channel, whichever is greater, provided the
systems operate with an output power no greater than 0.125W.
Test Mode:
Test in hopping transmitting operating mode.
14.1 Test Procedure
1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port
to the spectrum.
2. Set the spectrum analyzer: RBW = 30kHz. VBW = 100kHz , Span = 3.0MHz. Sweep = auto;
Detector Function = Peak. Trace = Max hold.
3. Allow the trace to stabilize. Use the marker-delta function to determine the separation between the
peaks of the adjacent channels. The limit is specified in one of the subparagraphs of this Section
Submit this plot.
14.2 Test Result
Modulation
Test Channel
GFSK
Low
GFSK
Separation
Limit(MHz)
Result
0.994
0.695
PASS
Middle
1.000
0.695
PASS
GFSK
High
0.994
0.695
PASS
Pi/4 DQPSK
Low
1.000
0.866
PASS
Pi/4 DQPSK
Middle
1.000
0.866
PASS
Pi/4 DQPSK
High
1.000
0.870
PASS
8DPSK
Low
1.138
0.858
PASS
8DPSK
Middle
0.994
0.862
PASS
8DPSK
High
1.006
0.858
PASS
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
(MHz)
Reference No.: WTS18S10126098-2W
Page 53 of 68
Test plots
GFSK Low Channel
GFSK Middle Channel
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 54 of 68
GFSK High Channel
Pi/4 DQPSK Low Channel
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 55 of 68
Pi/4 DQPSK Middle Channel
Pi/4 DQPSK High Channel
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 56 of 68
8DPSK Low Channel
8DPSK Middle Channel
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 57 of 68
8DPSK High Channel
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
15
Page 58 of 68
Number of Hopping Frequency
Test Requirement:
FCC CFR47 Part 15 Section 15.247
Test Method:
ANSI C63.10: 2013
Test Limit:
Regulation 15.247 (a)(1)(iii) Frequency hopping systems in the
2400-2483.5 MHz band shall use at least 15 channels.
Test Mode:
Test in hopping transmitting operating mode.
15.1 Test Procedure
1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the
spectrum.
2. Set the spectrum analyzer: RBW = 100kHz. VBW = 300kHz. Sweep = auto; Detector Function =
Peak. Trace = Max hold.
3. Allow the trace to stabilize. It may prove necessary to break the span up to sections. in order to
clearly show all of the hopping frequencies. The limit is specified in one of the subparagraphs of
this Section.
4. Set the spectrum analyzer: Start Frequency = 2.4GHz, Stop Frequency = 2.4835GHz. Sweep=auto;
15.2 Test Result
Test Plots:
79 Channels in total
GFSK
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 59 of 68
Pi/4 DQPSK
8DPSK
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
16
Page 60 of 68
Dwell Time
Test Requirement:
FCC CFR47 Part 15 Section 15.247
Test Method:
ANSI C63.10: 2013
Test Limit:
Regulation 15.247(a)(1)(iii) Frequency hopping systems in
the 2400-2483.5 MHz band shall use at least 15 channels. The
average time of occupancy on any channel shall not be greater
than 0.4 seconds within a period of 0.4 seconds multiplied by
the number of hopping channels employed. Frequency hopping
systems may avoid or suppress transmissions on a particular
hopping frequency provided that a minimum of 15 channels are
used.
Test Mode:
Test in hopping transmitting operating mode.
16.1 Test Procedure
1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the
spectrum.
2. Set spectrum analyzer span = 0. Centred on a hopping channel;
3. Set RBW = 1MHz and VBW = 3MHz.Sweep = as necessary to capture the entire dwell time per
hopping channel. Set the EUT for DH5, DH3 and DH1 packet transmitting.
4. Use the marker-delta function to determine the dwell time. If this value varies with different modes of
operation (e.g.. data rate. modulation format. etc.). repeat this test for each variation. The limit is
specified in one of the subparagraphs of this Section. Submit this plot(s).
16.2 Test Result
DH5 Packet permit maximum 1600 / 79 / 6 hops per second in each channel (5 time slots RX, 1 time
slot TX).
DH3 Packet permit maximum 1600 / 79 / 4 hops per second in each channel (3 time slots RX, 1 time
slot TX).
DH1 Packet permit maximum 1600 / 79 /2 hops per second in each channel (1 time slot RX, 1 time slot
TX). So, the Dwell Time can be calculated as follows:
Data Packet
Dwell Time(s)
DH5
1600/79/6*0.4*79*(MkrDelta)/1000
DH3
1600/79/4*0.4*79*(MkrDelta)/1000
DH1
1600/79/2*0.4*79*(MkrDelta)/1000
Remark: Mkr Delta is once pulse time.
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Modulation
GFSK
Pi/4DQPSK
8DPSK
Data Packet
DH5
DH5
DH5
Page 61 of 68
Channel
pulse
time(ms)
Dwell
Time(s)
Limits(s)
Low
3.740
0.399
0.4
middle
3.740
0.399
0.4
High
3.740
0.399
0.4
Low
3.740
0.399
0.4
middle
3.740
0.399
0.4
High
3.740
0.399
0.4
Low
3.740
0.399
0.4
middle
3.740
0.399
0.4
High
3.740
0.399
0.4
Remark: Only the worst-case mode DH5 is recorded.
Test Plots
GFSK DH5 Low Channel
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 62 of 68
GFSK DH5 Middle Channel
GFSK DH5 High Channel
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 63 of 68
Pi/4DQPSK DH5 Low Channel
Pi/4DQPSK DH5 Middle Channel
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 64 of 68
Pi/4DQPSK DH5 High Channel
8DPSK DH5 Low Channel
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
Page 65 of 68
8DPSK DH5 Middle Channel
8DPSK DH5 High Channel
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
17
Page 66 of 68
Antenna Requirement
According to the FCC Part 15 Paragraph 15.203, an intentional radiator shall be designed to ensure
that no antenna other than that furnished by the responsible party shall be used with the device. This
product has an integrated antenna, fulfil the requirement of this section.
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
18
Page 67 of 68
RF Exposure
Remark: refer to SAR test report: WTS18S10126098-1W.
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Reference No.: WTS18S10126098-2W
19
Page 68 of 68
Photographs of test setup and EUT.
Note: Please refer to appendix: WTS18S10126098W_Photo.
======End of Report======
Waltek Services (Shenzhen) Co.,Ltd.
http://www.waltek.com.cn
Download: J2 Mobile Phone Test Report BT PMPT MOBILE PHONE TRADING LLC
Mirror Download [FCC.gov]J2 Mobile Phone Test Report BT PMPT MOBILE PHONE TRADING LLC
Document ID4058540
Application IDtun2RsFXTcq8jzWrOmctqw==
Document DescriptionTest Report BT
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize182.09kB (2276112 bits)
Date Submitted2018-11-02 00:00:00
Date Available2018-11-02 00:00:00
Creation Date2018-10-25 13:55:31
Producing SoftwareAcrobat Distiller 10.0.0 (Windows)
Document Lastmod2018-10-29 17:30:44
Document TitleTest Report BT
Document CreatorPScript5.dll Version 5.2.2
Document Author: Administrator

Source Exif Data [exif.tools]:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.6
Linearized                      : No
Author                          : Administrator
Create Date                     : 2018:10:25 13:55:31+08:00
Modify Date                     : 2018:10:29 17:30:44+08:00
XMP Toolkit                     : Adobe XMP Core 5.4-c005 78.147326, 2012/08/23-13:03:03
Creator Tool                    : PScript5.dll Version 5.2.2
Metadata Date                   : 2018:10:29 17:30:44+08:00
Format                          : application/pdf
Title                           : Microsoft Word - WTS18S10126098-2W_FCC Test Report BT
Creator                         : Administrator
Producer                        : Acrobat Distiller 10.0.0 (Windows)
Document ID                     : uuid:e0136330-49f4-4a54-971f-26e6de257d99
Instance ID                     : uuid:7d403634-00de-4a32-bb72-a66a6cf85277
Page Count                      : 68
