MTB1801 MatataBot Teardown Internal Photos - FCC ID 2APCMMTB1801
FCC ID 2APCMMTB1801
Internal Photos
MatataBot
Document preview loads when visible.
Document Details
| FCC ID | 2APCMMTB1801 |
|---|---|
| Document ID | 5603092 |
| Document Type | Internal Photos |
| Description | Internal Photos |

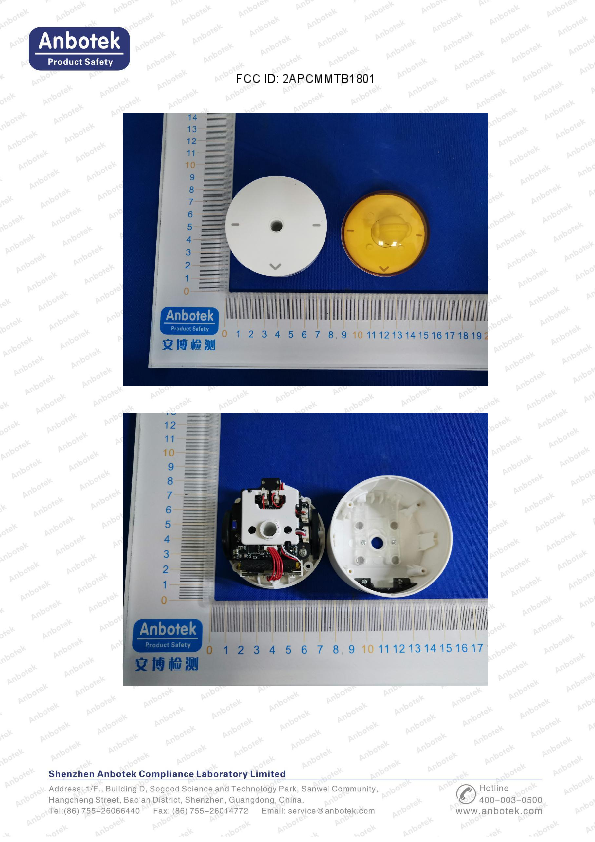

| Document Title | Figure 5 |
| Applicant | MATATALAB CO.,LTD |
| Equipment Class | MatataBot |
| Product Code | MTB1801 |
| Application ID | rsa7rJYCb8QJamyGq9WCIw== |
| Application Purpose | Original Equipment |
| Application Date | 2021-12-23 |
| Frequency Range | 2402-2480 MHz |
| FRN | 0027359843 |
| Test Firm | Shenzhen Anbotek Compliance Laboratory Limited |
| Certified By | TOM CHEN |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2021-12-23 |
| Available | 2021-12-23 |
| Created | 2021-12-21 |
| Modified | 2021-12-21 |
| Pages | 8 |
| File Type | Adobe Acrobat PDF |
| File Size | 2798789 |
| File SHA-256 | 4b40b2fc50179ed9afedf8aebb72d380a7e3e4f24bc444cd22d29f9d64ef9b6c |
| PDF Metadata Author | anbotek |
| PDF Metadata Producer | WPS 文字 |
| FCC.gov Sources | FCC.gov 5603092 |
