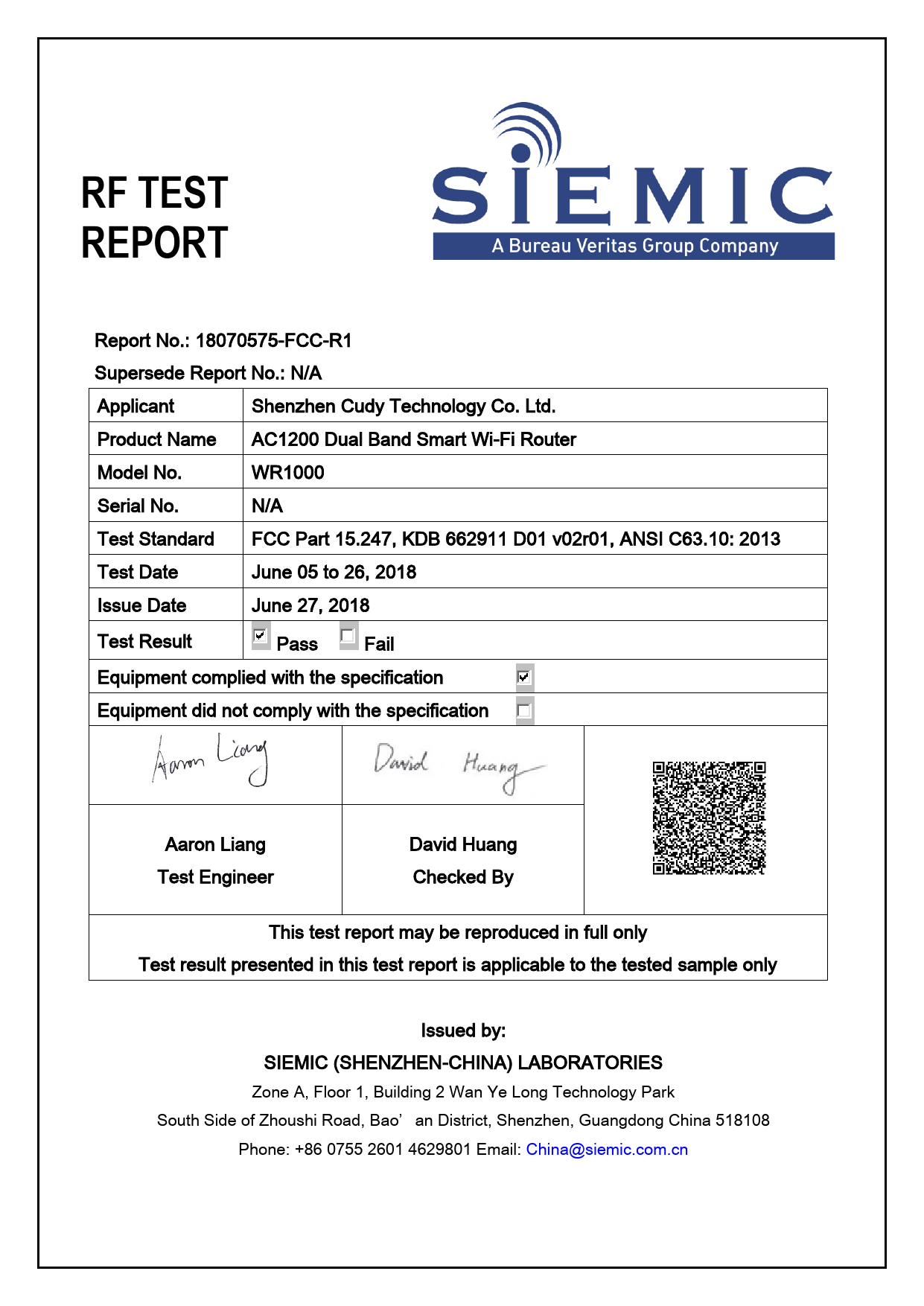

RF TEST
REPORT
Report No.: 18070575-FCC-R1
Supersede Report No.: N/A
Applicant
Shenzhen Cudy Technology Co. Ltd.
Product Name
AC1200 Dual Band Smart Wi-Fi Router
Model No.
WR1000
Serial No.
N/A
Test Standard
FCC Part 15.247, KDB 662911 D01 v02r01, ANSI C63.10: 2013
Test Date
June 05 to 26, 2018
Issue Date
June 27, 2018
Test Result
Pass
Fail
Equipment complied with the specification
Equipment did not comply with the specification
Aaron Liang
David Huang
Test Engineer
Checked By
This test report may be reproduced in full only
Test result presented in this test report is applicable to the tested sample only
Issued by:
SIEMIC (SHENZHEN-CHINA) LABORATORIES
Zone A, Floor 1, Building 2 Wan Ye Long Technology Park
South Side of Zhoushi Road, Bao’ an District, Shenzhen, Guangdong China 518108
Phone: +86 0755 2601 4629801 Email: China@siemic.com.cn
Test Report No.
18070575-FCC-R1
Page
2 of 58
Laboratories Introduction
SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one
of the leading independent testing and certification facilities providing customers with one-stop
shop services for Compliance Testing and Global Certifications.
In addition to testing and certification, SIEMIC provides initial design reviews and compliance
management throughout a project. Our extensive experience with China, Asia Pacific, North
America, European, and International compliance requirements, assures the fastest, most cost
effective way to attain regulatory compliance for the global markets.
Accreditations for Conformity Assessment
Country/Region
Scope
USA
EMC, RF/Wireless, SAR, Telecom
Canada
EMC, RF/Wireless, SAR, Telecom
Taiwan
EMC, RF, Telecom, SAR, Safety
Hong Kong
RF/Wireless, SAR, Telecom
Australia
EMC, RF, Telecom, SAR, Safety
Korea
EMI, EMS, RF, SAR, Telecom, Safety
Japan
EMI, RF/Wireless, SAR, Telecom
Singapore
EMC, RF, SAR, Telecom
Europe
EMC, RF, SAR, Telecom, Safety
Test Report No.
18070575-FCC-R1
Page
3 of 58
This page has been left blank intentionally.
Test Report No.
18070575-FCC-R1
Page
4 of 58
CONTENTS
1.
REPORT REVISION HISTORY.............................................................................................................................5
2.
CUSTOMER INFORMATION ................................................................................................................................5
3.
TEST SITE INFORMATION ...................................................................................................................................5
4.
EQUIPMENT UNDER TEST (EUT) INFORMATION .........................................................................................6
5.
TEST SUMMARY ....................................................................................................................................................8
6.
MEASUREMENTS, EXAMINATION AND DERIVED RESULTS .....................................................................9
6.1 ANTENNA REQUIREMENT.....................................................................................................................................9
6.2 DTS (6 DB&20 DB) CHANNEL BANDWIDTH..................................................................................................... 10
6.3 MAXIMUM OUTPUT POWER ............................................................................................................................... 21
6.4 POWER SPECTRAL DENSITY............................................................................................................................. 27
6.5 BAND-EDGE & UNWANTED EMISSIONS INTO RESTRICTED FREQUENCY BANDS ........................... 33
6.6 AC POWER LINE CONDUCTED EMISSIONS ................................................................................................... 39
6.7 RADIATED SPURIOUS EMISSIONS & RESTRICTED BAND ........................................................................ 45
ANNEX A. TEST INSTRUMENT ................................................................................................................................. 53
ANNEX B. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 54
ANNEX C. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PARTLIST/ DECLARATION OF
SIMILARITY..................................................................................................................................................................... 58
Test Report No.
18070575-FCC-R1
Page
5 of 58
1. Report Revision History
Report No.
Report Version
Description
Issue Date
18070575-FCC-R1
NONE
Original
June 27, 2018
2. Customer information
Applicant Name
Shenzhen Cudy Technology Co. Ltd.
Applicant Add
Room A606, Gaoxinqi Industrial Park, Liuxianyi Road, Baoan District,Shenzhen
China 518101
Manufacturer
Shenzhen Cudy Technology Co. Ltd.
Manufacturer Add
Room A606, Gaoxinqi Industrial Park, Liuxianyi Road, Baoan District,Shenzhen
China 518101
3. Test site information
Test Lab A:
Lab performing tests
SIEMIC (Shenzhen-China) LABORATORIES
Zone A, Floor 1, Building 2 Wan Ye Long Technology Park
Lab Address
South Side of Zhoushi Road, Bao’ an District, Shenzhen, Guangdong China
518108
FCC Test Site No.
535293
IC Test Site No.
4842E-1
Test Software
Radiated Emission Program-To Shenzhen v2.0
Test Lab B:
Lab performing tests
Lab Address
SIEMIC (Nanjing-China) Laboratories
2-1 Longcang Avenue Yuhua Economic and
Technology Development Park, Nanjing, China
FCC Test Site No.
694825
IC Test Site No.
4842B-1
Test Software
EZ_EMC(ver.Icp-03A1)
Note: We just perform Radiated Spurious Emission above 18GHz in the test Lab. B.
Test Report No.
18070575-FCC-R1
Page
6 of 58
4. Equipment under Test (EUT) Information
Description of EUT:
AC1200 Dual Band Smart Wi-Fi Router
Main Model:
WR1000
Serial Model:
N/A
Date EUT received:
June 04, 2018
Test Date(s):
June 05 to 26, 2018
Equipment Category：
DTS
Antenna Gain:
Antenna Type:
Type of Modulation:
WIFI(2.4G): 5dBi
WIFI(5150-5250MHz):5dBi
Cable Antenna
802.11b: DSSS
802.11g/n20/n40/a/ac20/ac40/ac80: OFDM
802.11b/g: 2412-2462 MHz (TX/RX)
802.11n20: 2412-2462MHz;
802.11n40: 2422-2452 MHz (TX/RX); 5190-5230 MHz( TX/RX)
RF Operating Frequency (ies):
802.11 a: 5180-5240 MHz (TX/RX)
802.11ac 20: 5180-5240 MHz; (TX/RX)
802.11ac 40: 5190-5230 MHz; ( TX/RX)
802.11ac 80: 5210 MHz; (TX/RX)
802.11b: 9.46dBm
Max. Output Power:
802.11g: 9.14dBm
802.11n(20M): 11.42dBm
802.11n(40M): 10.72dBm
Test Report No.
18070575-FCC-R1
Page
7 of 58
WIFI :802.11b/g: 11CH
WIFI :802.11a/ac20: 24CH
Number of Channels:
WIFI :802.11ac40: 12CH
WIFI :802.11ac80: 6CH
WIFI :802.11n20: 11CH(2.4GHz);
WIFI :802.11n40: 9CH(2.4GHz); 12CH(5GHz)
Port:
Please refer to the user manual
Adapter:
Input Power:
Model: S12A12-120A100-CJ
Input:AC 100-240V~50/60Hz 0.5A
Output:DC 12V, 1A
Trade Name :
N/A
FCC ID:
2APRGWR1000V1
Test Report No.
18070575-FCC-R1
Page
8 of 58
5. Test Summary
The product was tested in accordance with the following specifications.
All testing has been performed according to below product classification:
FCC Rules
Description of Test
Result
§15.203
Antenna Requirement
Compliance
§15.247 (a)(2)
DTS (6 dB&20 dB) CHANNEL BANDWIDTH
Compliance
§15.247(b)(3)
Conducted Maximum Output Power
Compliance
§15.247(e)
Power Spectral Density
Compliance
Band-Edge
§15.247(d)
Unwanted
Emissions
into
Restricted
Frequency Bands
§15.207 (a),
AC Power Line Conducted Emissions
§15.205, §15.209,
Radiated Emissions & Unwanted Emissions
§15.247(d)
into Restricted Frequency Bands
Compliance
Compliance
Compliance
Measurement Uncertainty
Emissions
Test Item
Band-Edge
Description
Uncertainty
Unwanted
Emissions into Restricted
Frequency
Bands
Radiated
Emissions
and
Unwanted Emissions
Confidence level of approximately 95% (in the case
where distributions are normal), with a coverage
+5.6dB/-4.5dB
factor of 2 (for EUTs < 0.5m X 0.5m X 0.5m)
into Restricted Frequency
Bands
Test Report No.
18070575-FCC-R1
Page
9 of 58
6. Measurements, Examination And Derived Results
6.1 Antenna Requirement
Applicable Standard
According to § 15.203, an intentional radiator shall be designed to ensure that no antenna other than that
furnished by the responsible party shall be used with the device. The use of a permanently attached antenna
or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to
comply with the provisions of this section. The manufacturer may design the unit so that a broken antenna
can be replaced by the user, but the user of a standard antenna jack or electrical connector is prohibited.
The structure and application of the EUT were analyzed to determine compliance with section §15.203 of the
rules. §15.203 state that the subject device must meet the following criteria:
a. Antenna must be permanently attached to the unit.
b. Antenna must use a unique type of connector to attach to the EUT.
Unit must be professionally installed, and installer shall be responsible for verifying that the correct antenna
is employed with the unit.
And according to FCC 47 CFR section 15.247 (b), if the transmitting antennas of directional gain greater than
6dBi are used, the power shall be reduced by the amount in dB that the directional gain of the antenna
exceeds 6 dBi.
Antenna Connector Construction
The EUT has 2 antennas:
A permanently attached cable antenna for 2.4G/5G WIFI, the gain is 5dBi for 2.4G/5G WIFI.
The antenna meets up with the ANTENNA REQUIREMENT.
Result: Compliance.
Test Report No.
18070575-FCC-R1
Page
10 of 58
6.2 DTS (6 dB&20 dB) Channel Bandwidth
Temperature
24℃
Relative Humidity
55%
Atmospheric Pressure
1017mbar
Test date :
June 13, 2018
Tested By :
Aaron Liang
Spec
Item
Requirement
Applicable
§ 15.247(a)(2)
a)
6dB BW≥ 500kHz;
RSS Gen(4.6.1)
b)
99% BW: For FCC reference only; required by IC.
Test Setup
Spectrum Analyzer
EUT
558074 D01 DTS MEAS Guidance v03r03, 8.1 DTS bandwidth
6dB bandwidth
a) Set RBW = 100 kHz.
b) Set the video bandwidth (VBW) ≥ 3 × RBW.
c) Detector = Peak.
d) Trace mode = max hold.
e) Sweep = auto couple.
f) Allow the trace to stabilize.
g) Measure the maximum width of the emission that is constrained by the freq
Test Procedure
uencies associated with the two outermost amplitude points (upper and lower fr
equencies) that are attenuated by 6 dB relative to the maximum level measure
d in the fundamental emission.
20dB bandwidth
C63.10 Occupied Bandwidth (OBW=20dB bandwidth)
1.
Set RBW = 1%-5% OBW.
2.
Set the video bandwidth (VBW) ≥ 3 x RBW.
3.
Set the span range between 2 times and 5 times of the OBW.
4.
Sweep time=Auto, Detector=PK, Trace=Max hold.
5.
Once the reference level is established, the equipment is conditioned with t
ypical modulating signals to produce the worst-
Test Report No.
18070575-FCC-R1
Page
11 of 58
case (i.e., the widest) bandwidth. Unless otherwise specified for an unlicensed
wireless device, measure the bandwidth at the 20 dB levels with respect to the
reference level.
Remark
Result
Pass
Fail
Test Data
Yes
N/A
Test Plot
Yes (See below)
N/A
Measurement result
Ant.0
Test mode
CH
Freq (MHz)
6dB Bandwidth
(MHz)
802.11b
802.11g
802.11n
(20M)
802.11n
(40M)
Ant.1
6dB
Bandwidth
Limit (MHz)
(MHz)
Low
2412
10.09
10.00
≥ 0.5
Mid
2437
10.05
9.124
≥ 0.5
High
2462
10.08
9.998
≥ 0.5
Low
2412
15.12
15.11
≥ 0.5
Mid
2437
15.11
15.10
≥ 0.5
High
2462
15.11
15.12
≥ 0.5
Low
2412
15.07
15.14
≥ 0.5
Mid
2437
15.10
15.12
≥ 0.5
High
2462
15.11
15.11
≥ 0.5
Low
2422
32.60
35.12
≥ 0.5
Mid
2437
35.08
35.09
≥ 0.5
High
2452
35.08
35.09
≥ 0.5
Test mode
802.11b
802.11g
802.11n
(20M)
802.11n
(40M)
CH
Test Report No.
18070575-FCC-R1
Page
12 of 58
Freq (MHz)
Ant.0
Ant.1
20dB Bandwidth
20dB Bandwidth
(MHz)
(MHz)
Low
2412
16.08
16.17
Mid
2437
16.12
16.12
High
2462
16.16
16.12
Low
2412
17.25
17.51
Mid
2437
17.27
17.31
High
2462
17.33
17.36
Low
2412
18.34
18.23
Mid
2437
18.36
18.35
High
2462
18.33
18.29
Low
2422
37.12
37.13
Mid
2437
37.13
37.15
High
2452
37.11
37.12
Test Report No.
18070575-FCC-R1
Page
13 of 58
Test Plots
Ant.0
6dB Bandwidth measurement result
802.11b 6dB Bandwidth - Low CH 2412
802.11b 6dB Bandwidth - Mid CH 2437
802.11b 6dB Bandwidth - High CH 2462
802.11g 6dB Bandwidth - Low CH 2412
802.11g 6dB Bandwidth - Mid CH 2437
802.11g 6dB Bandwidth - High CH 2462
Test Report No.
18070575-FCC-R1
Page
14 of 58
802.11n20 6dB Bandwidth - Low CH 2412
802.11n20 6dB Bandwidth - Mid CH 2437
802.11n20 6dB Bandwidth - High CH 2462
802.11n40 6dB Bandwidth - Low CH 2422
802.11n40 6dB Bandwidth - Mid CH 2437
802.11n40 6dB Bandwidth - High CH 2452
Test Report No.
18070575-FCC-R1
Page
15 of 58
Ant.1
6dB Bandwidth measurement result
802.11b 6dB Bandwidth - Low CH 2412
802.11b 6dB Bandwidth - Mid CH 2437
802.11b 6dB Bandwidth - High CH 2462
802.11g 6dB Bandwidth - Low CH 2412
802.11g 6dB Bandwidth - Mid CH 2437
802.11g 6dB Bandwidth - High CH 2462
Test Report No.
18070575-FCC-R1
Page
16 of 58
802.11n20 6dB Bandwidth - Low CH 2412
802.11n20 6dB Bandwidth - Mid CH 2437
802.11n20 6dB Bandwidth - High CH 2462
802.11n40 6dB Bandwidth - Low CH 2422
802.11n40 6dB Bandwidth - Mid CH 2437
802.11n40 6dB Bandwidth - High CH 2452
Test Report No.
18070575-FCC-R1
Page
17 of 58
Ant.0
20 dB Bandwidth measurement result
802.11b 20dB Bandwidth - Low CH 2412
802.11b 20dB Bandwidth - Mid CH 2437
802.11b 20dB Bandwidth - High CH 2462
802.11g 20dB Bandwidth - Low CH 2412
802.11g 20dB Bandwidth - Mid CH 2437
802.11g 20dB Bandwidth - High CH 2462
Test Report No.
18070575-FCC-R1
Page
18 of 58
802.11n20 20dB Bandwidth - Low CH 2412
802.11n20 20dB Bandwidth - Mid CH 2437
802.11n20 20dB Bandwidth - High CH 2462
802.11n40 20dB Bandwidth - Low CH 2422
802.11n40 20dB Bandwidth - Mid CH 2437
802.11n40 20dB Bandwidth - High CH 2452
Test Report No.
18070575-FCC-R1
Page
19 of 58
Ant.1
20 dB Bandwidth measurement result
802.11b 20dB Bandwidth - Low CH 2412
802.11b 20dB Bandwidth - Mid CH 2437
802.11b 20dB Bandwidth - High CH 2462
802.11g 20dB Bandwidth - Low CH 2412
802.11g 20dB Bandwidth - Mid CH 2437
802.11g 20dB Bandwidth - High CH 2462
Test Report No.
18070575-FCC-R1
Page
20 of 58
802.11n20 20dB Bandwidth - Low CH 2412
802.11n20 20dB Bandwidth - Mid CH 2437
802.11n20 20dB Bandwidth - High CH 2462
802.11n40 20dB Bandwidth - Low CH 2422
802.11n40 20dB Bandwidth - Mid CH 2437
802.11n40 20dB Bandwidth - High CH 2452
Test Report No.
18070575-FCC-R1
Page
21 of 58
6.3 Maximum Output Power
Temperature
23℃
Relative Humidity
52%
Atmospheric Pressure
1020mbar
Test date :
June 26, 2018
Tested By :
Aaron Liang
Requirement(s):
Spec
§15.247(b)
(3),RSS210
(A8.4)
Ite
Requirement
Applicable
a)
FHSS in 2400-2483.5MHz with ≥ 75 channels: ≤ 1 Watt
b)
FHSS in 5725-5850MHz: ≤ 1 Watt
c)
For all other FHSS in the 2400-2483.5MHz band: ≤ 0.125
Watt.
d)
FHSS in 902-928MHz with ≥ 50 channels: ≤ 1 Watt
e)
FHSS in 902-928MHz with ≥ 25 & <50 channels: ≤ 0.25
Watt
DTS in 902-928MHz, 2400-2483.5MHz: ≤ 1 Watt
f)
Test Setup
Spectrum Analyzer
EUT
558074 D01 DTS MEAS Guidance v03r03, 9.1.2 Integrated band power method
Maximum output power measurement procedure
Test
a) Set span to at least 1.5 times the OBW.
b) Set RBW = 1-5% of the OBW, not to exceed 1 MHz.
c) Set VBW ≥ 3 x RBW.
d) Number of points in sweep ≥ 2 × span / RBW. (This gives bin-to-bin spacing
≤ RBW/2, so that narrowband signals are not lost between frequency bins.)
Procedure
e) Sweep time = auto.
f) Detector = RMS (i.e., power averaging), if available. Otherwise, use sample
detector mode.
g) If transmit duty cycle < 98 %, use a sweep trigger with the level set to enable
triggering only on full power pulses. The transmitter shall operate at maximum
Test Report No.
18070575-FCC-R1
Page
22 of 58
power control level for the entire duration of every sweep. If the EUT transmits
continuously (i.e., with no off intervals) or at duty cycle ≥ 98 %, and if each
transmission is entirely at the maximum power control level, then the trigger shall
be set to “ free run” .
h) Trace average at least 100 traces in power averaging (i.e., RMS) mode.
i) Compute power by integrating the spectrum across the OBW of the signal
using the instrument’ s band power measurement function, with band limits set
equal to the OBW band edges. If the instrument does not have a band power
function, sum the spectrum levels (in power units) at intervals equal to the RBW
extending across the entire OBW of the spectrum.
Remark
Result
Pass
Fail
Test Data
Yes
N/A
Test Plot
Yes (See below)
N/A
Output Power measurement result
Conducted
Type
Modulati
on
CH
Frequenc
y(MHz)
Power(dBm)
Total
Conducted
Ant 0
Ant 1
Power(dB
Limit(d
Bm)
Result
m)
802.11b
802.11g
Output
Power
802.11n(
20M)
802.11n(
40M)
Low
2412
8.17
9.46
30
Pass
Mid
2437
7.43
8.95
30
Pass
High
2462
7.74
9.23
30
Pass
Low
2412
8.38
9.14
30
Pass
Mid
2437
7.99
8.36
30
Pass
High
2462
8.41
9.04
30
Pass
Low
2412
8.08
8.71
11.42
28
Pass
Mid
2437
7.42
8.06
10.76
28
Pass
High
2462
8.06
8.52
11.31
28
Pass
Low
2422
7.36
8.04
10.72
28
Pass
Mid
2437
6.56
7.18
9.89
28
Pass
High
2452
6.26
7.15
9.74
28
Pass
Test Report No.
18070575-FCC-R1
Page
23 of 58
Test Plots
PK Power
Ant.0
802.11b - PK Output power - Low CH 2412
802.11b - PK Output power - Mid CH 2437
802.11b - PK Output power - High CH 2462
802.11g - PK Output power - Low CH 2412
802.11g - PK Output power - Mid CH 2437
802.11g - PK Output power - High CH 2462

File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.6
Linearized                      : No
Author                          : Dan Coronia
Create Date                     : 2018:08:02 15:13:23+08:00
Modify Date                     : 2018:08:02 15:23:41+08:00
Has XFA                         : No
Language                        : en-US
Tagged PDF                      : Yes
XMP Toolkit                     : Adobe XMP Core 5.6-c015 84.159810, 2016/09/10-02:41:30
Format                          : application/pdf
Creator                         : Dan Coronia
Title                           : TEST REPORT
Creator Tool                    : Microsoft® Word 2010
Metadata Date                   : 2018:08:02 15:23:41+08:00
Producer                        : Microsoft® Word 2010
Document ID                     : uuid:29922ba3-32ea-4c83-9b4c-2ca6a97a3ebf
Instance ID                     : uuid:e6ca628b-676e-441e-b513-bd17f157aecc
Page Count                      : 23
