SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: 2APY9-BT-TLC-1
Report No.: LCS180521052AEA

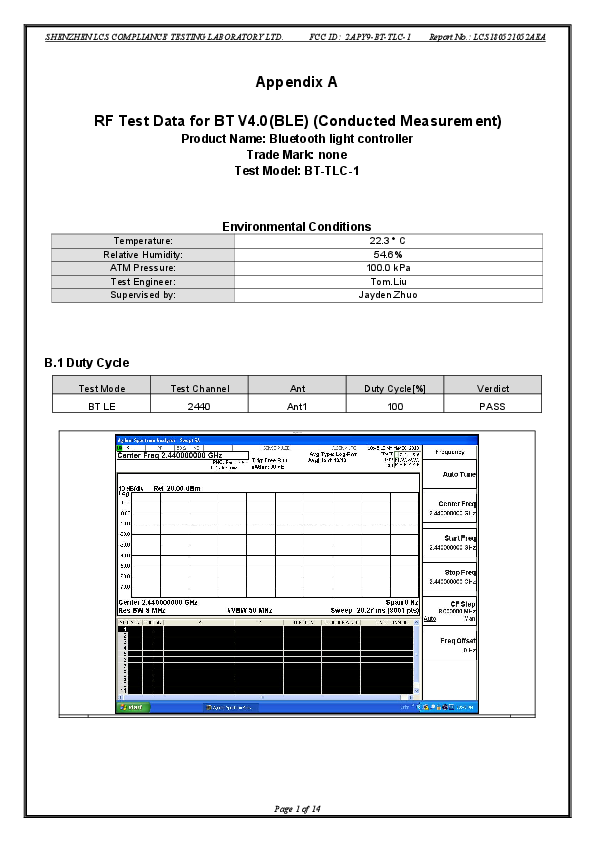

Appendix A
RF Test Data for BT V4.0(BLE) (Conducted Measurement)
Product Name: Bluetooth light controller
Trade Mark: none
Test Model: BT-TLC-1
Environmental Conditions
Temperature:
Relative Humidity:
ATM Pressure:
Test Engineer:
Supervised by:
22.3  C
54.6%
100.0 kPa
Tom.Liu
Jayden.Zhuo
B.1 Duty Cycle
Test Mode
Test Channel
Ant
Duty Cycle[%]
Verdict
BT LE
2440
Ant1
100
PASS
#imgrbbl e1hchnnav
Page 1 of 14
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: 2APY9-BT-TLC-1
Report No.: LCS180521052AEA
B.2 Maximum Conducted Peak Output Power
Mode
Channel
Conduct Peak Power[dBm]
Limit [dBm]
Verdict
BT LE
LCH
-3.859
30
PASS
BT LE
MCH
-4.097
30
PASS
BT LE
HCH
-4.638
30
PASS
Test Graphs
LCH
MCH
Page 2 of 14
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: 2APY9-BT-TLC-1
HCH
Page 3 of 14
Report No.: LCS180521052AEA
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: 2APY9-BT-TLC-1
Report No.: LCS180521052AEA
B.3 Maximum Power Spectral Density
Mode
Channel
PSD [dBm/3KHz]
Limit [dBm/3KHz]
Verdict
BT LE
LCH
-16.140
PASS
BT LE
MCH
-16.471
PASS
BT LE
HCH
-16.841
PASS
Test Graphs
LCH
MCH
Page 4 of 14
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: 2APY9-BT-TLC-1
HCH
Page 5 of 14
Report No.: LCS180521052AEA
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: 2APY9-BT-TLC-1
Report No.: LCS180521052AEA
B.4 6dB Bandwidth
Mode
Channel
6dB Bandwidth [MHz]
Limit [MHz]
Verdict
BT LE
LCH
0.7517
≥0.5
PASS
BT LE
MCH
0.7084
≥0.5
PASS
BT LE
HCH
0.7747
≥0.5
PASS
Test Graphs
LCH
MCH
Page 6 of 14
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: 2APY9-BT-TLC-1
HCH
Page 7 of 14
Report No.: LCS180521052AEA
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: 2APY9-BT-TLC-1
Report No.: LCS180521052AEA
B.5 RF Conducted Spurious Emissions
Mode
Channel
Pref [dBm]
Max. Level [dBm]
Limit [dBm]
Verdict
BT LE
LCH
-4.241
-31.376
-24.241
PASS
BT LE
MCH
-4.484
-29.651
-24.484
PASS
BT LE
HCH
-5.099
-32.257
-25.099
PASS
BT LE_LCH_Graphs
Pref/BT LE/LCH
Puw/BT LE/LCH
Page 8 of 14
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: 2APY9-BT-TLC-1
BT LE_MCH_Graphs
Pref/BT LE/MCH
Puw/BT LE/MCH
Page 9 of 14
Report No.: LCS180521052AEA
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: 2APY9-BT-TLC-1
BT LE_HCH_Graphs
Pref/BT LE/HCH
Puw/BT LE/HCH
Page 10 of 14
Report No.: LCS180521052AEA
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: 2APY9-BT-TLC-1
Report No.: LCS180521052AEA
B.6 Band-edge for RF Conducted Emissions
Mode
Channel
Carrier Power[dBm]
BT LE
LCH
-3.882
BT LE
HCH
-4.609
Max.Spurious Level
Limit [dBm]
Verdict
-50.511
-23.88
PASS
-50.206
-24.61
PASS
[dBm]
Test Graphs
LCH
HCH
Page 11 of 14
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: 2APY9-BT-TLC-1
Report No.: LCS180521052AEA
B.7 Restrict-band band-edge measurements
Test
Mode
Test
Chann
Ant
Freq.
el
2402
BT LE
2480
Power
Gain
[dBm]
Ground
Factor
[dBuV/m]
Limit Verdi
Detector [dBuV/ ct
m]
Ant1
2310.0
-43.87
2.0
51.39
PEAK
74
PASS
Ant1
2310.0
-54.15
2.0
41.11
AV
54
PASS
Ant1
2390.0
-43.17
2.0
52.09
PEAK
74
PASS
Ant1
2390.0
-53.91
2.0
41.35
AV
54
PASS
Ant1
2483.5
-42.91
2.0
52.35
PEAK
74
PASS
Ant1
2483.5
-53.61
2.0
41.64
AV
54
PASS
Ant1
2500.0
-42.77
2.0
52.48
PEAK
74
PASS
Ant1
2500.0
-53.54
2.0
41.72
AV
54
PASS
Page 12 of 14
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: 2APY9-BT-TLC-1
Report No.: LCS180521052AEA
Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK
Restrict-band band-edge measurements_BT LE_2402_Ant1_AV
Page 13 of 14
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: 2APY9-BT-TLC-1
Report No.: LCS180521052AEA
Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK
Restrict-band band-edge measurements_BT LE_2480_Ant1_AV
Page 14 of 14
