SNA5 SuperNote Teardown Internal Photos - FCC ID 2AQZ9-SNA5

FCC ID 2AQZ9-SNA5

Internal Photos

SuperNote

by Shanghai Ratta Smart Technology Co.,Ltd.

Document preview loads when visible.

Document Details

FCC ID2AQZ9-SNA5
Document ID4130835
Document TypeInternal Photos
DescriptionInternal Photos

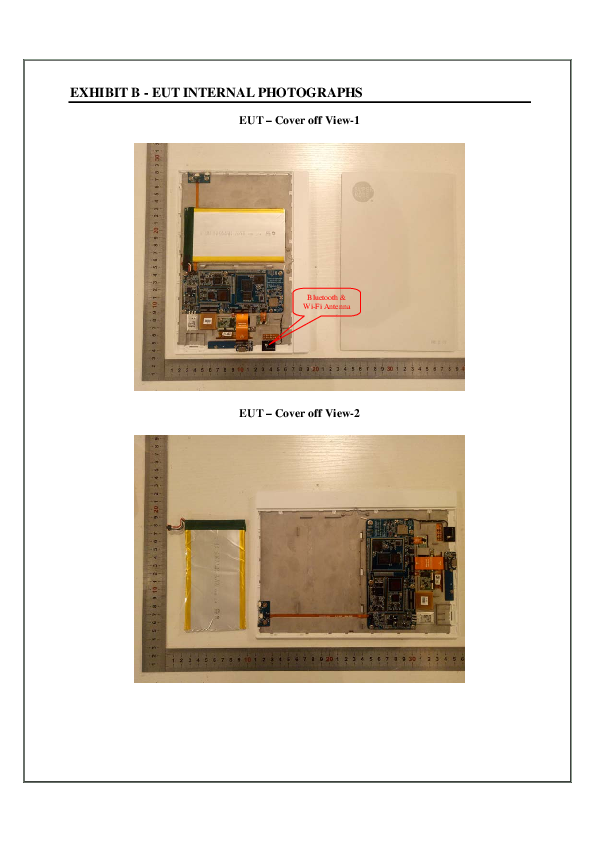

Document TitleEXHIBIT B_EUT INTERNAL PHOTOGRAPHSx
ApplicantShanghai Ratta Smart Technology Co.,Ltd.
Equipment ClassSuperNote
Product CodeSNA5
Application IDqBn/oE/9s8gXtD8t09OfvQ==
Application PurposeOriginal Equipment
Application Date2019-01-18
Frequency Range2402-2480 MHz
FRN0027797042
Test FirmBay Area Compliance Laboratories Corp. (Kunshan)
Certified ByHedy Jiang
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceYes
Composite PartNo
Submitted2019-01-18
Available2019-01-18
Created2018-12-25
Modified2019-01-08
Pages7
File TypeAdobe Acrobat PDF
File Size786591
File SHA-256141baeb73a13606b7bcb6272ee4bb212e8f5ee743ad9c841dc8d8dbe10997723
PDF Metadata Authorbaclks56
PDF Metadata Producerbaclks56 Acrobat Distiller 11.0 (Windows)
FCC.gov SourcesFCC.gov 4130835, FCC.gov 4130796
