SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: 2AR7P-HYCORET1
Report No.:LCS181022041AEA
Appendix A
RF Test Data for BT V4.0(BDR/EDR) (Conducted Measurement)
Product Name: Hycore All in one Wheel
Trade Mark: N/A
Test Model: Hycore T1
Environmental Conditions
24.6  C
53.2%
100.0 kPa
WANGCHUANG
Jayden.Zhuo
Temperature:
Relative Humidity:
ATM Pressure:
Test Engineer:
Supervised by:

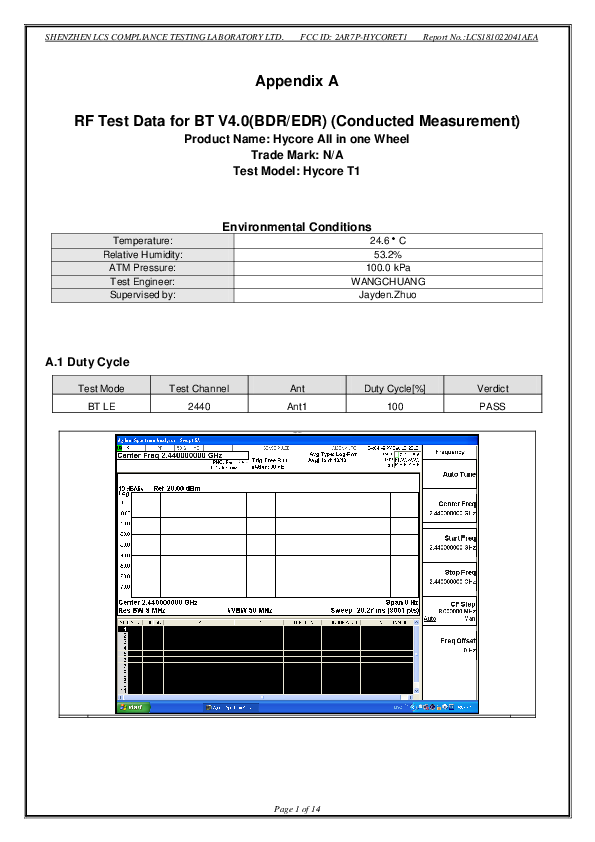

A.1 Duty Cycle
Test Mode
Test Channel
Ant
Duty Cycle[%]
Verdict
BT LE
2440
Ant1
100
PASS
#imgrbble1hchnnav
Page 1 of 14
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: 2AR7P-HYCORET1
Report No.:LCS181022041AEA
A.2 Maximum Conducted Peak Output Power
Mode
Channel
Conduct Peak Power[dBm]
Limit [dBm]
Verdict
BT LE
LCH
3.563
30
PASS
BT LE
MCH
3.719
30
PASS
BT LE
HCH
3.709
30
PASS
Test Graphs
LCH
MCH
Page 2 of 14
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: 2AR7P-HYCORET1
HCH
Page 3 of 14
Report No.:LCS181022041AEA
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: 2AR7P-HYCORET1
Report No.:LCS181022041AEA
A.3 Maximum Power Spectral Density
Mode
Channel
PSD [dBm/3KHz]
Limit [dBm/3KHz]
Verdict
BT LE
LCH
-11.320
PASS
BT LE
MCH
-11.204
PASS
BT LE
HCH
-11.255
PASS
Test Graphs
LCH
MCH
Page 4 of 14
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: 2AR7P-HYCORET1
HCH
Page 5 of 14
Report No.:LCS181022041AEA
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: 2AR7P-HYCORET1
Report No.:LCS181022041AEA
A.4 6dB Bandwidth
Mode
Channel
6dB Bandwidth [MHz]
Limit [MHz]
Verdict
BT LE
LCH
0.6940
≥0.5
PASS
BT LE
MCH
0.7058
≥0.5
PASS
BT LE
HCH
0.6944
≥0.5
PASS
Test Graphs
LCH
MCH
Page 6 of 14
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: 2AR7P-HYCORET1
HCH
Page 7 of 14
Report No.:LCS181022041AEA
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: 2AR7P-HYCORET1
Report No.:LCS181022041AEA
A.5 RF Conducted Spurious Emissions
Mode
Channel
Pref [dBm]
Max. Level [dBm]
Limit [dBm]
Verdict
BT LE
LCH
2.842
-43.414
-17.158
PASS
BT LE
MCH
2.997
-44.757
-17.003
PASS
BT LE
HCH
2.94
-44.960
-17.060
PASS
BT LE_LCH_Graphs
Pref/BT LE/LCH
Puw/BT LE/LCH
Page 8 of 14
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: 2AR7P-HYCORET1
BT LE_MCH_Graphs
Pref/BT LE/MCH
Puw/BT LE/MCH
Page 9 of 14
Report No.:LCS181022041AEA
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: 2AR7P-HYCORET1
BT LE_HCH_Graphs
Pref/BT LE/HCH
Puw/BT LE/HCH
Page 10 of 14
Report No.:LCS181022041AEA
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: 2AR7P-HYCORET1
Report No.:LCS181022041AEA
A.6 Band-edge for RF Conducted Emissions
Mode
Channel
Carrier Power[dBm]
BT LE
LCH
3.006
BT LE
HCH
3.203
Max.Spurious Level
Limit [dBm]
Verdict
-50.108
-16.99
PASS
-49.935
-16.8
PASS
[dBm]
Test Graphs
LCH
HCH
Page 11 of 14
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: 2AR7P-HYCORET1
Report No.:LCS181022041AEA
A.7 Restrict-band band-edge measurements
Test
Mode
Test
Chann
Power
Factor
[dBuV/m]
Limit
Detector [dBuV/ Verdi
ct
m]
Ant
Freq.
Ant1
2310.0
-43.73
2.0
53.52
PEAK
74
PASS
Ant1
2310.0
-54.01
2.0
43.25
AV
54
PASS
Ant1
2390.0
-43.80
2.0
53.46
PEAK
74
PASS
Ant1
2390.0
-53.62
2.0
43.64
AV
54
PASS
Ant1
2483.5
-43.65
2.0
53.61
PEAK
74
PASS
Ant1
2483.5
-53.30
2.0
43.96
AV
54
PASS
Ant1
2500.0
-43.04
2.0
54.22
PEAK
74
PASS
Ant1
2500.0
-53.24
2.0
44.02
AV
54
PASS
el
[dBm]
Gain
Ground
2402
BT LE
2480
Page 12 of 14
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: 2AR7P-HYCORET1
Report No.:LCS181022041AEA
Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK
Restrict-band band-edge measurements_BT LE_2402_Ant1_AV
Page 13 of 14
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: 2AR7P-HYCORET1
Report No.:LCS181022041AEA
Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK
Restrict-band band-edge measurements_BT LE_2480_Ant1_AV
Page 14 of 14
