MH670AWD MH670 Dongle Label Diagram - FCC ID 2AR8XMH-670-AWD
FCC ID 2AR8XMH-670-AWD
06-07_MH-670-AWD LabelSmpl-Loc
MH670 Dongle
Document preview loads when visible.
Document Details
| FCC ID | 2AR8XMH-670-AWD |
|---|---|
| Document ID | 4482161 |
| Document Type | ID Label/Location Info |

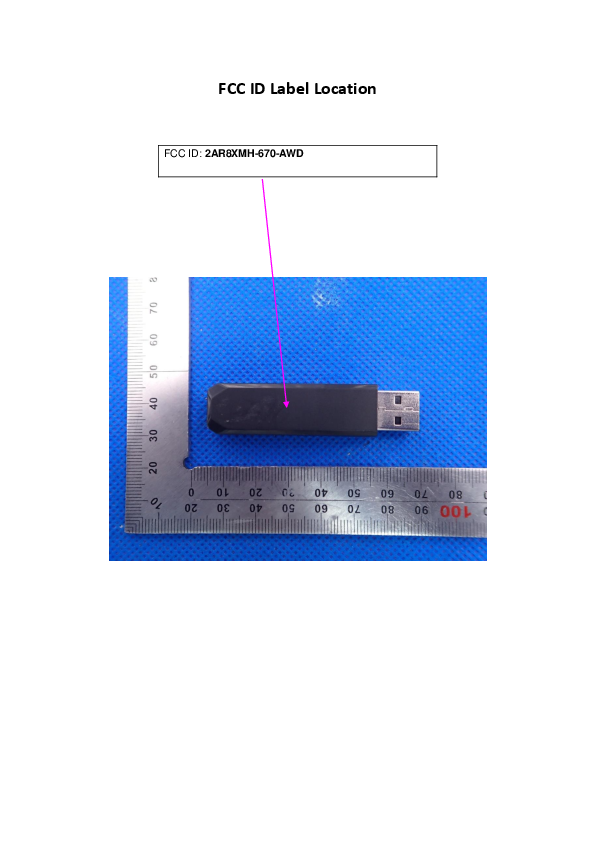

| Description | 06-07_MH-670-AWD LabelSmpl-Loc |
| Applicant | Cooler Master Technology Inc. |
| Equipment Class | MH670 Dongle |
| Product Code | MH670AWD |
| Application ID | xvGiGkGruoEM19M2DskwWw== |
| Application Purpose | Original Equipment |
| Application Date | 2019-10-17 |
| Frequency Range | 2404-2478 MHz |
| FRN | 0028111367 |
| Test Firm | Attestation of Global Compliance (Shenzhen) Co., L |
| Certified By | Joerg Kusig Head of Certification |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2019-10-17 |
| Available | 2019-10-17 |
| Created | 2019-10-17 |
| Modified | 2019-10-17 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 243511 |
| File SHA-256 | 592b23850f8fe1d786a3d430162bfb2a9b275ad7dbe5d1705f08064016feb26f |
| PDF Metadata Author | USER |
| PDF Metadata Producer | Microsoft® Word 2016 USER |
| FCC.gov Sources | FCC.gov 4482161 |
