Report Number: 68.950.18.0471.01

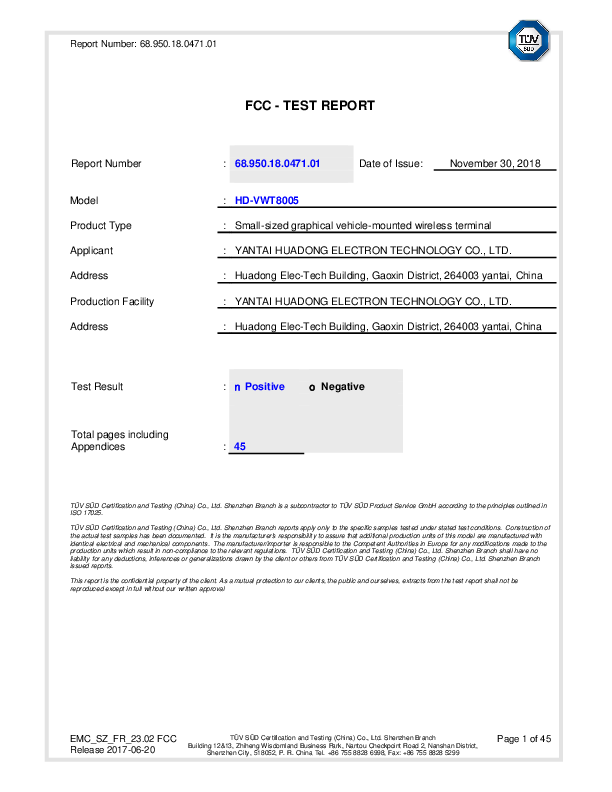

FCC - TEST REPORT
Report Number
: 68.950.18.0471.01
Date of Issue:
November 30, 2018
Model
: HD-VWT8005
Product Type
: Small-sized graphical vehicle-mounted wireless terminal
Applicant
: YANTAI HUADONG ELECTRON TECHNOLOGY CO., LTD.
Address
: Huadong Elec-Tech Building, Gaoxin District, 264003 yantai, China
Production Facility
: YANTAI HUADONG ELECTRON TECHNOLOGY CO., LTD.
Address
: Huadong Elec-Tech Building, Gaoxin District, 264003 yantai, China
Test Result
: n Positive
Total pages including
Appendices
: 45
o Negative
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in
ISO 17025.
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch reports apply only to the specific samples tested under stated test conditions. Construction of
the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with
identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the
production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch shall have no
liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
issued reports.
This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be
reproduced except in full without our written approval
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 1 of 45
Report Number: 68.950.18.0471.01
Table of Contents
Table of Contents......................................................................................................................................................... 2
Details about the Test Laboratory .............................................................................................................................. 3
Description of the Equipment under Test ................................................................................................................... 4
Summary of Test Standards ....................................................................................................................................... 5
Summary of Test Results ............................................................................................................................................ 6
General Remarks ......................................................................................................................................................... 7
Test Setups .................................................................................................................................................................. 8
Systems test configuration .......................................................................................................................................... 9
Technical Requirement ................................................................................................................................................. 10
9.1
Conducted Average output power .................................................................................................................... 10
9.2
6dB bandwidth ................................................................................................................................................... 11
9.3
99% bandwidth .................................................................................................................................................. 17
9.4
Power spectral density ...................................................................................................................................... 23
9.5
Spurious RF conducted emissions ................................................................................................................... 29
9.6
Band edge .......................................................................................................................................................... 36
9.7
Spurious radiated emissions for transmitter .................................................................................................... 39
10
Test Equipment List ............................................................................................................................................... 44
11
System Measurement Uncertainty ....................................................................................................................... 45
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 2 of 45
Report Number: 68.950.18.0471.01
Details about the Test Laboratory
Details about the Test Laboratory
Test Site 1
Company name:
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng Wisdomland Business Park,
Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052,
P. R. China
FCC Registration
Number:
514049
Telephone:
Fax:
86 755 8828 6998
86 755 8828 5299
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 3 of 45
Report Number: 68.950.18.0471.01
Description of the Equipment under Test
Product:
Small-sized graphical vehicle-mounted wireless terminal
Model no.:
HD-VWT8005
FCC ID:
2AROX-HDVWT8005
Rating:
24VDC, 0.84A, Max
RF Transmission
Frequency:
No. of Operated Channel:
2412MHz-2462MHz for 802.11b/g/n HT20
11
Modulation:
802.11b: BPSK, QPSK, CCK,
802.11g/802.11n HT20: BPSK, QPSK, 16-QAM, 64-QAM
Antenna Type:
external antenna
Antenna Gain:
5dBi max for 2.4GHz
Description of the EUT:
The Equipment Under Test (EUT) is a Small-sized graphical
vehicle-mounted wireless terminal supports 2.4GHz WIFI
functions.
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 4 of 45
Report Number: 68.950.18.0471.01
Summary of Test Standards
FCC Part 15 Subpart C
10-1-2017 Edition
Test Standards
PART 15 - RADIO FREQUENCY DEVICES
Subpart C - Intentional Radiators
All the test methods were according to KDB558074 D01 v5.0 DTS Measurement Guidance and
ANSI C63.10 (2013).
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 5 of 45
Report Number: 68.950.18.0471.01
Summary of Test Results
Technical Requirements
FCC Part 15 Subpart C
Test Condition
§15.207
Pages
Test Result
--
N/A
Test
Site
--
--
N/A
--
10
Pass
Site 1
23
Pass
Site 1
§15.247(e)
Conducted emission AC power
port
Conducted AV output power for
FHSS
Conducted AV output power for
DTS
Power spectral density
§15.247(a)(2)
6dB bandwidth
13
Pass
Site 1
§15.247(a)(1)
20dB Occupied bandwidth
--
N/A
--
§15.247(a)(2)
99% Occupied Bandwidth
17
Pass
Site 1
§15.247(a)(1)
Carrier frequency separation
--
N/A
--
§15.247(a)(1)(iii)
Number of hopping frequencies
--
N/A
--
§15.247(a)(1)(iii)
Dwell Time
--
N/A
--
§15.247(d)
29
Pass
Site 1
§15.247(d)
Spurious RF conducted
emissions
Band edge
36
Pass
Site 1
§15.247(d) & §15.209 &
§15.205
§15.203
Spurious radiated emissions for
transmitter
Antenna requirement
39
Pass
Site 1
See
note 2
Pass
--
§15.247(b)(1)
§15.247(b)(3)
Note 1: N/A – Not Applicable.
Note 2: The EUT uses an external Antenna 5dBi max. According to §15.203, it is considered sufficiently
to comply with the provisions of this section.
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 6 of 45
Report Number: 68.950.18.0471.01
General Remarks
Remarks
This submittal(s) (test report) is intended for FCC ID: 2AROX-HDVWT8005, complies with Section
15.207, 15.209, 15.205, 15.247 of the FCC Part 15, Subpart C rules.
SUMMARY:
All tests according to the regulations cited on page 5 were
n - Performed
o - Not Performed
The Equipment under Test
n - Fulfills the general approval requirements.
o - Does not fulfill the general approval requirements.
Sample Received Date:
September 05, 2018
Testing Start Date:
September 05, 2018
Testing End Date:
October 19, 2018
- TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch –
Reviewed by:
Prepared by:
_______________________
Phoebe Hu
EMC Project Manager
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
_______________________
Mark Chen
EMC Project Engineer
Tested by:
_______________________
Carry Cai
EMC Test Engineer
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 7 of 45
Report Number: 68.950.18.0471.01
Test Setups
7.1 Radiated test setups
Below 1GHz
Above 1GHz
7.2 Conducted RF test setups
Measuring receiver
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
EUT
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 8 of 45
Report Number: 68.950.18.0471.01
Systems test configuration
Auxiliary Equipment Used during Test:
DESCRIPTION
MANUFACTURER
MODEL NO.
S/N
Laptop
Lenovo
T460S
---
USB Type C cable
GoPro
0.55m (Length)
---
AC Adapter
Apple
A1401
---
Test Channel information:
Test Mode
Channel (MHz)
802.11b
CH 1: 2412MHz
CH 6: 2437MHz
CH 11: 2462MHz
802.11g
CH 1: 2412MHz
CH 6: 2437MHz
CH 11: 2462MHz
802.11n HT20
CH 1: 2412MHz
CH 6: 2437MHz
CH 11: 2462MHz
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 9 of 45
Report Number: 68.950.18.0471.01
Technical Requirement
9.1 Conducted Average output power
Test Method
1. Setting the highest output power level of the EUT:
2. Connect to gated RF power meter.
Test Setup
EUT
Power Meter
Limits
According to §15.247 (b) (3), conducted Average output power limit as below:
Frequency Range
MHz
2400-2483.5
Limit
≤1
Limit
dBm
≤30
Test result as below table
802.11b
Frequency
MHz
Top channel 2412MHz
Middle channel 2437MHz
Bottom channel 2462MHz
Conducted Average
Output Power
dBm
11.1
11.3
11.9
Frequency
MHz
Top channel 2412MHz
Middle channel 2437MHz
Bottom channel 2462MHz
Conducted Average
Output Power
dBm
14.2
15.1
14.4
Frequency
MHz
Top channel 2412MHz
Middle channel 2437MHz
Bottom channel 2462MHz
Conducted Average
Output Power
dBm
14.0
14.9
14.4
Result
Pass
Pass
Pass
802.11g
Result
Pass
Pass
Pass
802.11n HT20
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
Result
Pass
Pass
Pass
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 10 of 45
Report Number: 68.950.18.0471.01
9.2 6dB bandwidth
Test Method
1. Use the following spectrum analyzer settings:
RBW=100K, VBW≥3RBW, Sweep = auto, Detector function = peak, Trace = max hold
2. Use the automatic bandwidth measurement capability of an instrument, may be
employed using the X dB bandwidth mode with X set to 6 dB, care shall be taken so that
the bandwidth measurement is not influenced by any intermediate power nulls in the
fundamental emission that might be ≥ 6 dB.
3. Allow the trace to stabilize, record the X dB Bandwidth value.
Limit
Limit [kHz]
≥500
Test result
Test Mode
Channel (MHz)
Result (MHz)
Limit (KHz)
Verdict
11b
11b
11b
11g
11g
11g
11n HT20
11n HT20
11n HT20
2412
2437
2462
2412
2437
2462
2412
2437
2462
8.12
8.12
8.12
15.16
15.20
15.24
16.0
15.2
15.2
≥500
≥500
≥500
≥500
≥500
≥500
≥500
≥500
≥500
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 11 of 45
Report Number: 68.950.18.0471.01
6 dB Bandwidth
11B Low channel 2412MHz
Date:30.SEP.2018 09:42:18
11B Middle channel 2437MHz
Date:30.SEP.2018 09:44:23
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 12 of 45
Report Number: 68.950.18.0471.01
11B High channel 2462MHz
Date:30.SEP.2018 09:46:04
11g Low channel 2412MHz
Date:30.SEP.2018 09:48:20
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 13 of 45
Report Number: 68.950.18.0471.01
11g Low channel 2437MHz
Date:30.SEP.2018 09:53:29
11g High channel 2462MHz
Date:30.SEP.2018 09:55:07
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 14 of 45
Report Number: 68.950.18.0471.01
11n(20MHz) Low channel 2412MHz
Date:30.SEP.2018 09:56:57
11n(20MHz) Low channel 2437MHz
Date:30.SEP.2018 09:59:03
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 15 of 45
Report Number: 68.950.18.0471.01
11n(20MHz) Low channel 2462MHz
Date:30.SEP.2018 10:01:01
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 16 of 45
Report Number: 68.950.18.0471.01
9.3 99% bandwidth
Test Method
4. Use the following spectrum analyzer settings:
RBW=100K, VBW≥3RBW, Sweep = auto, Detector function = peak, Trace = max hold
5. Use the automatic bandwidth measurement capability of an instrument, may be
employed using the OBW bandwidth mode.
6. Allow the trace to stabilize, record the OBW Bandwidth value.
Limit
Limit [kHz]
--
Test Result
Test Mode
Channel (MHz)
Result (MHz)
Limit (KHz)
Verdict
11b
11b
11b
11g
11g
11g
11n HT20
11n HT20
11n HT20
2412
2437
2462
2412
2437
2462
2412
2437
2462
12.707
12.707
12.747
17.423
17.423
17.463
18.382
18.342
18.382
-------------------
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 17 of 45
Report Number: 68.950.18.0471.01
11B Low channel 2412MHz
Date:30.SEP.2018 09:42:29
11B Middle channel 2437MHz
Date:30.SEP.2018 09:44:34
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 18 of 45
Report Number: 68.950.18.0471.01
11B High channel 2462MHz
Date:30.SEP.2018 09:46:15
11g Low channel 2412MHz
Date:30.SEP.2018 09:48:31
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 19 of 45
Report Number: 68.950.18.0471.01
11g Middle channel 2437MHz
Date:30.SEP.2018 09:53:40
11g High channel 2462MHz
Date:30.SEP.2018 09:55:18
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 20 of 45
Report Number: 68.950.18.0471.01
11n(20MHz) Low channel 2412MHz
Date:30.SEP.2018 09:57:08
11n(20MHz) middle channel 2437MHz
Date:30.SEP.2018 09:59:15
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 21 of 45
Report Number: 68.950.18.0471.01
11n(20MHz) High channel 2462MHz
Date:30.SEP.2018 10:01:12
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 22 of 45
Report Number: 68.950.18.0471.01
9.4 Power spectral density
Test Method
This procedure shall be used if maximum peak conducted output power was used to
demonstrate compliance:
1. Set analyzer center frequency to DTS channel center frequency. RBW=3kHz,
VBW≥3RBW, Span=1.5 times DTS bandwidth, Detector=Peak, Sweep=auto,
Trace= max hold.
2. Allow trace to fully stabilize, use the peak marker function to determine the maximum
amplitude level within the RBW .
3. Repeat above procedures until other frequencies measured were completed.
Limit
Limit [dBm]
≤8
Test result
Test Mode
11b
11b
11b
11g
11g
11g
11n HT20
11n HT20
11n HT20
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
Channel
(MHz)
2412
2437
2462
2412
2437
2462
2412
2437
2462
Result
(dBm)
0.54
0.79
1.10
-17.8
-16.9
-17.6
-16.7
-16.7
-16.5
Limit
(dBm)
Verdict
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 23 of 45
Report Number: 68.950.18.0471.01
11B Low channel 2412MHz
Date:30.SEP.2018 09:42:42
11B Middle channel 2437MHz
Date:30.SEP.2018 09:44:47
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 24 of 45
Report Number: 68.950.18.0471.01
11B High channel 2462MHz
Date:30.SEP.2018 09:46:28
11g Low channel 2412MHz
Date:30.SEP.2018 09:48:44
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 25 of 45
Report Number: 68.950.18.0471.01
11g Middle channel 2437MHz
Date:30.SEP.2018 09:53:53
11g High channel 2462MHz
Date:30.SEP.2018 09:55:31
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 26 of 45
Report Number: 68.950.18.0471.01
11n(20MHz) Low channel 2412MHz
Date:30.SEP.2018 09:57:21
11n(20MHz) Middle channel 2437MHz
Date:30.SEP.2018 09:59:27
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 27 of 45
Report Number: 68.950.18.0471.01
11n(20MHz) High channel 2462MHz
Date:30.SEP.2018 10:01:25
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 28 of 45
Report Number: 68.950.18.0471.01
9.5 Spurious RF conducted emissions
Test Method
1. Establish a reference level by using the following procedure:
a. Set RBW=100 kHz. VBW≥3RBW. Detector =peak, Sweep time = auto couple, Trace
mode = max hold.
b. Allow trace to fully stabilize, use the peak marker function to determine the maximum
PSD level.
2. Use the maximum PSD level to establish the reference level.
a. Set the center frequency and span to encompass frequency range to be measured.
b. Use the peak marker function to determine the maximum amplitude level. Ensure that
the amplitude of all unwanted emissions outside of the authorized frequency band
(excluding restricted frequency bands) are attenuated by at least the minimum
requirements, report the three highest emissions relative to the limit.
3. Repeat above procedures until other frequencies measured were completed.
Limit
Frequency Range
MHz
30-25000
Limit (dBc)
-20
Test Result
Test Mode
11b
11b
11b
11b
11b
11b
11g
11g
11g
11g
11g
11g
11n HT20
11n HT20
11n HT20
11n HT20
11n HT20
11n HT20
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
Channel
(MHz)
2412
2412
2437
2437
2462
2462
2412
2412
2437
2437
2462
2462
2412
2412
2437
2437
2462
2462
Freq Range
(MHz)
30~1000
1000~26500
30~1000
1000~26500
30~1000
1000~26500
30~1000
1000~26500
30~1000
1000~26500
30~1000
1000~26500
30~1000
1000~26500
30~1000
1000~26500
30~1000
1000~26500
Result (dBm)
-62.63
-51.52
-63.22
-51.2
-63.08
-52.59
-63.2
-53.11
-63.34
-52.56
-63.46
-52.55
-63.21
-52.38
-63.39
-52.8
-63.28
-53.2
Limit
(dBm)
-13.38
-13.38
-13.23
-13.23
-12.72
-12.72
-14.15
-14.15
-14.5
-14.5
-14.26
-14.26
-14.44
-14.44
-14.17
-14.17
-14.16
-14.16
Verdict
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 29 of 45
Report Number: 68.950.18.0471.01
Test Graphs
11B_Ant1_2412_30~1000
D ate: 30.S EP .2018 09:43:07
11B_Ant1_2412_1000~26500
D ate:30.S EP .2018 09:43:19
11B_Ant1_2437_30~1000
D ate:30.S EP .2018 09:45:02
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 30 of 45
Report Number: 68.950.18.0471.01
11B_Ant1_2437_1000~26500
D ate:30.S EP .2018 09:45:13
11B_Ant1_2462_30~1000
D ate:30.S EP .2018 09:46:53
11B_Ant1_2462_1000~26500
D ate:30.S EP .2018 09:47:04
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 31 of 45
Report Number: 68.950.18.0471.01
11G_Ant1_2412_30~1000
D ate:30.S EP .2018 09:49:08
11G_Ant1_2412_1000~26500
D ate:30.S EP .2018 09:49:20
11G_Ant1_2437_30~1000
D ate:30.S EP .2018 09:54:08
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 32 of 45
Report Number: 68.950.18.0471.01
11G_Ant1_2437_1000~26500
D ate:30.S EP .2018 09:54:19
11G_Ant1_2462_30~1000
D ate:30.S EP .2018 09:55:56
11G_Ant1_2462_1000~26500
D ate:30.S EP .2018 09:56:07
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 33 of 45
Report Number: 68.950.18.0471.01
11N20SISO_Ant1_2412_30~1000
D ate:30.S EP .2018 09:57:46
11N20SISO_Ant1_2412_1000~26500
D ate:30.S EP .2018 09:57:57
11N20SISO_Ant1_2437_30~1000
D ate:30.S EP .2018 09:59:42
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 34 of 45
Report Number: 68.950.18.0471.01
11N20SISO_Ant1_2437_1000~26500
D ate:30.S EP .2018 09:59:54
11N20SISO_Ant1_2462_30~1000
D ate:30.S EP .2018 10:01:50
11N20SISO_Ant1_2462_1000~26500
D ate:30.S EP .2018 10:02:01
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 35 of 45
Report Number: 68.950.18.0471.01
9.6 Band edge
Test Method
1 Use the following spectrum analyzer settings:
Span = wide enough to capture the peak level of the in-band emission and all spurious
RBW = 100 kHz, VBW≥RBW, Sweep = auto, Detector function = peak, Trace = max
hold.
2 Allow the trace to stabilize, use the peak and delta measurement to record the result.
3 The level displayed must comply with the limit specified in this Section.
Limit
Frequency Range
MHz
30-25000
Limit (dBc)
-20
Test result
Test Mode
Ch Name
Channel
Result
Limit
Verdict
11b
11b
11g
11g
11n HT20
11n HT20
Low
High
Low
High
Low
High
2412
2462
2412
2462
2412
2462
-49.46
-57.65
-37.65
-48.79
-36.23
-47.93
-20.38
-18.35
-22.42
-22.92
-20.93
-20.69
PASS
PASS
PASS
PASS
PASS
PASS
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 36 of 45
Report Number: 68.950.18.0471.01
Test Graphs
11B_Ant1_Low_2412
D ate:30.S EP .2018 09:42:52
11B_Ant1_High_2462
D ate:30.S EP .2018 09:46:38
11G_Ant1_Low_2412
D ate:30.S EP .2018 09:48:54
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 37 of 45
Report Number: 68.950.18.0471.01
11G_Ant1_High_2462
D ate:30.S EP .2018 09:55:41
11N20SISO_Ant1_Low_2412
D ate:30.S EP .2018 09:57:31
11N20SISO_Ant1_High_2462
D ate:30.S EP .2018 10:01:35
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 38 of 45
Report Number: 68.950.18.0471.01
9.7 Spurious radiated emissions for transmitter
Test Method
1: The EUT was place on a turn table which is 1.5m above ground plane for above 1GHz
and 0.8m above ground for below 1GHz at 3meter chamber room for test. The table was
rotated 360 degrees to determine the position of the highest radiation.
2: The EUT was set 3 meters away from the interference – receiving antenna, which was
mounted on the top of a variable – height antenna tower.
3: The height of antenna is varied from one meter to four meters above the ground to
determine the maximum value of the field strength. Both horizontal and vertical polarizations
of the antenna are set to make the measurement.
4: For each suspected emission, the EUT was arranged to its worst case and then the
antenna was tuned to heights from 1 meter to 4 meters and the rotatable table was turned
from 0 degrees to 360 degrees to find the maximum reading.
5: Use the following spectrum analyzer settings According to C63.10:
For Above 1GHz
Span = wide enough to capture the peak level of the in-band emission and all spurious
RBW = 1MHz, VBW≥RBW for peak measurement and VBW = 10Hz for average
measurement, Sweep = auto, Detector function = peak, Trace = max hold.
For Below 1GHz
Use the following spectrum analyzer settings:
Span = wide enough to capture the peak level of the in-band emission and all spurious
RBW = 100 KHz, VBW≥RBW for peak measurement, Sweep = auto, Detector function =
peak, Trace = max hold.
Note:
1: The resolution bandwidth and video bandwidth of test receiver/spectrum analyzer is
120 KHz for Quasi-peak detection (QP) at frequency below 1GHz.
2: The resolution bandwidth of test receiver/spectrum analyzer is 1MHz and the video
bandwidth is 3MHz for peak detection (PK) at frequency above 1GHz.
3: The resolution bandwidth of test receiver/spectrum analyzer is 1MHz and the video
bandwidth is 3MHz for RMS Average ((duty cycle ˂ 98%) for Average detection (AV) at
frequency above 1GHz, then the measurement results was added to a correction factor
(20log(1/duty cycle)).
4: The resolution bandwidth of test receiver/spectrum analyzer is 1MHz and the video
bandwidth is 10Hz (duty cycle ˃ 98%) for Average detection (AV) at frequency above
1GHz.
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 39 of 45
Report Number: 68.950.18.0471.01
Limit
The radio emission outside the operating frequency band shall be at least 20 dB below that in
the 100 kHz bandwidth within the band that contains the highest level of the desired power.
Radiated emissions which fall in the restricted bands, as defined in section15.205, must comply
with the radiated emission limits specified in section 15.209.
Frequency
MHz
30-88
88-216
216-960
960-1000
Above 1000
Above 1000
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
Field Strength
uV/m
100
150
200
500
500
5000
Field Strength
dBμV/m
40
43.5
46
54
54
74
Detector
QP
QP
QP
QP
AV
PK
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 40 of 45
Report Number: 68.950.18.0471.01
Spurious radiated emissions for transmitter
According to C63.10, if the peak (or quasi-peak) measured value complies with the average limit,
it is unnecessary to perform an average measurement, so AV emission value did not show in
below table if the peak value complies with average limit.
Transmitting spurious emission test result as below:
11B:
Low channel 2412MHz Test Result
Frequency
Band
301000MHz
100025000MHz
Frequency
MHz
586.67
586.67
-----
Emission
Level
dBuV/m
35.74
37.94
-----
Polarization
Limit
Detector
Margin
dBμV/m
46
46
74
54
74
54
QP
QP
PK
AV
PK
AV
dBuV/m
10.26
8.06
-----
Polarization
Limit
Detector
Margin
dBμV/m
43.5
46
74
54
74
54
QP
QP
PK
AV
PK
AV
dBuV/m
-------
Polarization
Limit
Detector
Margin
dBμV/m
43.5
46
74
54
74
54
QP
QP
PK
AV
PK
AV
dBuV/m
-------
Correct
factor
(dB)
-9.9
19.9
-----
Result
Pass
Pass
Pass
Pass
Pass
Pass
11B:
Middle channel 2437MHz Test Result
Frequency
Band
301000MHz
100025000MHz
Frequency
MHz
-------
Emission
Level
dBuV/m
-------
Correct
factor
(dB)
-------
Result
Pass
Pass
Pass
Pass
Pass
Pass
11B:
High channel 2462MHz Test Result
Frequency
Band
301000MHz
100025000MHz
Frequency
MHz
-------
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
Emission
Level
dBuV/m
-------
Correct
factor
(dB)
-------
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Result
Pass
Pass
Pass
Pass
Pass
Pass
Page 41 of 45
Report Number: 68.950.18.0471.01
11G:
Low channel 2412MHz Test Result
Frequency
Band
301000MHz
100025000MHz
Frequency
MHz
-------
Emission
Level
dBuV/m
-------
Polarization
Limit
Detector
Margin
dBμV/m
46
46
74
54
74
54
QP
QP
PK
AV
PK
AV
dBuV/m
-------
Polarization
Limit
Detector
Margin
dBμV/m
43.5
46
74
54
74
54
QP
QP
PK
AV
PK
AV
dBuV/m
-------
Polarization
Limit
Detector
Margin
dBμV/m
43.5
46
74
54
74
54
QP
QP
PK
AV
PK
AV
dBuV/m
-------
Correct
factor
(dB)
-------
Result
Pass
Pass
Pass
Pass
Pass
Pass
11G:
Middle channel 2437MHz Test Result
Frequency
Band
301000MHz
100025000MHz
Frequency
MHz
-------
Emission
Level
dBuV/m
-------
Correct
factor
(dB)
-------
Result
Pass
Pass
Pass
Pass
Pass
Pass
11G:
High channel 2462MHz Test Result
Frequency
Band
301000MHz
100025000MHz
Frequency
MHz
-------
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
Emission
Level
dBuV/m
-------
Correct
factor
(dB)
-------
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Result
Pass
Pass
Pass
Pass
Pass
Pass
Page 42 of 45
Report Number: 68.950.18.0471.01
11N(20MHz):
Low channel 2412MHz Test Result
Frequency
Band
301000MHz
100025000MHz
Frequency
MHz
586.67
586.67
-----
Emission
Level
dBuV/m
35.74
37.94
-----
Polarization
Limit
Detector
Margin
dBμV/m
46
46
74
54
74
54
QP
QP
PK
AV
PK
AV
dBuV/m
10.26
8.06
-----
Polarization
Limit
Detector
Margin
dBμV/m
43.5
46
74
54
74
54
QP
QP
PK
AV
PK
AV
dBuV/m
-------
Polarization
Limit
Detector
Margin
dBμV/m
43.5
46
74
54
74
54
QP
QP
PK
AV
PK
AV
dBuV/m
-------
Correct
factor
(dB)
-9.9
19.9
-----
Result
Pass
Pass
Pass
Pass
Pass
Pass
11N(20MHz):
Middle channel 2437MHz Test Result
Frequency
Band
301000MHz
100025000MHz
Frequency
MHz
-------
Emission
Level
dBuV/m
-------
Correct
factor
(dB)
-------
Result
Pass
Pass
Pass
Pass
Pass
Pass
11N(20MHz):
High channel 2462MHz Test Result
Frequency
Band
301000MHz
100025000MHz
Frequency
MHz
-------
Emission
Level
dBuV/m
-------
Correct
factor
(dB)
-------
Result
Pass
Pass
Pass
Pass
Pass
Pass
Remark:
(1) “*” means the emission(s) appear within the restrict bands shall follow the requirement of section
15.205.
(2) Data of measurement within this frequency range shown “--” in the table above means the reading of
emissions are the noise floor or attenuated more than 10dB below the permissible limits or the field
strength is too small to be measured.
(3) Above 1GHz: Corrector factor = Antenna Factor + Cable Loss- Amplifier Gain.
(4) Below 1GHz: Corrector factor = Antenna Factor + Cable Loss.
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 43 of 45
Report Number: 68.950.18.0471.01
10 Test Equipment List
Radiated Emission Test
DESCRIPTION
EMI Test Receiver
Trilog Super Broadband Test
Antenna
Horn Antenna
MANUFACTURER
Rohde & Schwarz
MODEL NO.
ESR 26
SERIAL NO.
101269
CAL. DUE DATE
2019-7-6
Schwarzbeck
VULB 9163
707
2019-6-28
Rohde & Schwarz
HF907
102294
2019-6-28
Pre-amplifier
Signal Generator
Attenuator
3m Semi-anechoic chamber
Test software
Rohde & Schwarz
Rohde & Schwarz
Agilent
TDK
Rohde & Schwarz
SCU 18
SMY01
8491A
9X6X6
EMC32
102230
839369/005
MY39264334
---Version 9.15.00
2019-7-6
2019-7-6
2019-7-6
2020-7-7
N/A
TS8997Test System
DESCRIPTION
Signal Generator
Vector Signal Generator
Communication
Synthetical Test
Instrument
Signal Analyzer
Vector Signal Generator
RF Switch Module
Power Splitter
10dB Attenuator
10dB Attenuator
10dB Attenuator
10dB Attenuator
10dB Attenuator
MANUFACTURER
Rohde & Schwarz
Rohde & Schwarz
Rohde & Schwarz
MODEL NO.
SMB100A
SMBV100A
SERIAL NO.
108272
262825
CAL. DUE DATE
2019-7-6
2019-7-6
CMW 270
101251
2019-5-31
Rohde & Schwarz
Rohde & Schwarz
Rohde & Schwarz
Weinschel
Weinschel
R&S
R&S
R&S
R&S
FSV40
SMU 200A
OSP120/OSP-B157
1580
4M-10
DNF
DNF
DNF
DNF
Test software
Rohde & Schwarz
EMC32
101030
105324
101226/100851
SC319
43152
DNF-001
DNF-002
DNF-003
DNF-004
Version
10.38.00
2019-7-6
2019-7-6
2019-7-6
2019-7-5
2019-7-6
2019-7-6
2019-7-6
2019-7-6
2019-7-6
N/A
Test software
Tonscend
System for BT/WIFI
Version 2.6
N/A
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 44 of 45
Report Number: 68.950.18.0471.01
11 System Measurement Uncertainty
For a 95% confidence level, the measurement expanded uncertainties for defined systems, in
accordance with the recommendations of ISO 17025 were:
System Measurement Uncertainty
Items
Uncertainty for Radiated Spurious Emission 25MHz-3000MHz
Uncertainty for Radiated Spurious Emission 3000MHz-18000MHz
Uncertainty for Radiated Spurious Emission 18000MHz-40000MHz
Uncertainty for Conducted RF test with TS 8997
EMC_SZ_FR_23.02 FCC
Release 2017-06-20
Extended Uncertainty
Horizontal: 4.80dB;
Vertical: 4.87dB;
Horizontal: 4.59dB;
Vertical: 4.58dB;
Horizontal: 5.05dB;
Vertical: 5.04dB;
RF Power Conducted: 1.16dB
Frequency test involved:
0.6×10-7 or 1%
TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch
Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District,
Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299
Page 45 of 45
Download: HDVWT8005 Small-sized graphical vehicle-mounted wireless terminal Test Report RF YANTAI HUADONG ELECTRON TECHNOLOGY CO.,LTD.
Mirror Download [FCC.gov]HDVWT8005 Small-sized graphical vehicle-mounted wireless terminal Test Report RF YANTAI HUADONG ELECTRON TECHNOLOGY CO.,LTD.
Document ID4111155
Application IDljeKW400A2tPjBRIMXwNKQ==
Document DescriptionRF test report
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize222.09kB (2776097 bits)
Date Submitted2018-12-20 00:00:00
Date Available2018-12-23 00:00:00
Creation Date2018-12-17 11:16:54
Producing SoftwarePDF-XChange Printer V6 (6.0 build 319) [Windows 10 Enterprise x64 (Build 15063)]
Document Lastmod2018-12-20 15:57:16
Document TitleRF test report

Source Exif Data [exif.tools]:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.4
Linearized                      : No
Create Date                     : 2018:12:17 11:16:54+08:00
Modify Date                     : 2018:12:20 15:57:16+08:00
XMP Toolkit                     : XMP Core 5.5.0
Producer                        : PDF-XChange Printer V6 (6.0 build 319) [Windows 10 Enterprise x64 (Build 15063)]
Format                          : application/pdf
Document ID                     : uuid:5c502337-ad4e-47f0-bc26-ddd6581d8120
Instance ID                     : uuid:6fc71881-ba10-486f-b605-2402ceb8c502
Page Count                      : 45
