7543 Smart Band Test Setup Photos - FCC ID 2ARUI-7543

FCC ID 2ARUI-7543

10_7543 TSup

Smart Band

by American Exchange Time LLC

Document preview loads when visible.

Document Details

FCC ID2ARUI-7543
Document ID4290814
Document TypeTest Setup Photos
Description10_7543 TSup

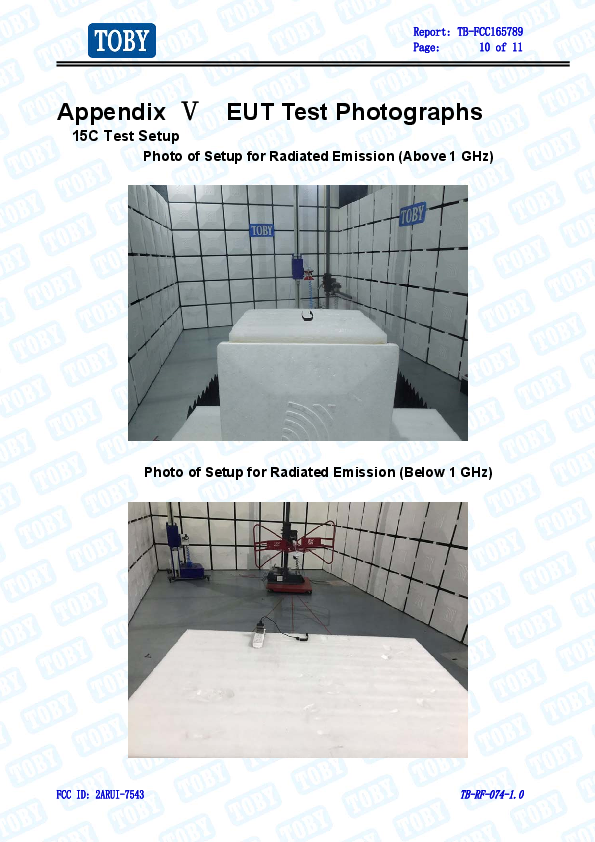

Document TitleTB-FCC165789 EUT Photos and Test Setup Photos(FCC)
ApplicantAmerican Exchange Time LLC
Equipment ClassSmart Band
Product Code7543
Application IDvpo74D7n4OghMO7S+R3Gpw==
Application PurposeOriginal Equipment
Application Date2019-05-23
Frequency Range2402-2480 MHz
FRN0028020899
Test FirmShenzhen Toby Technology Co., Ltd.
Certified ByJoerg Kusig Head of Certification
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2019-05-23
Available2019-05-23
Created2019-05-20
Modified2019-05-20
Pages2
File TypeAdobe Acrobat PDF
File Size356383
File SHA-256e8b8064d95871b4d2ffb183370c7b8b11c0553bed87304827dfd1520d58e6214
PDF Metadata AuthorAdministrator
PDF Metadata ProducerAcrobat Distiller 11.0 (Windows) Administrator
FCC.gov SourcesFCC.gov 4290814
