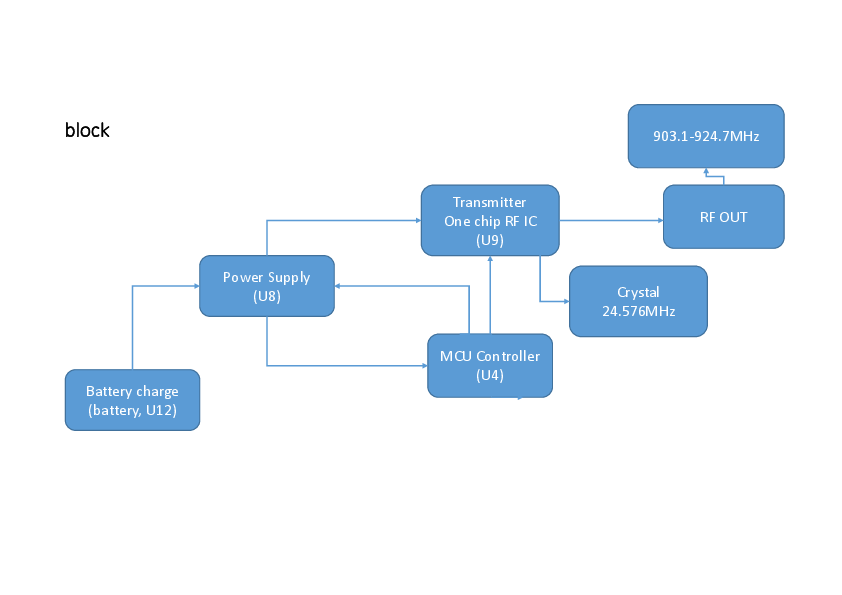

WS WIRELESS SYSTEM Block Diagram - FCC ID 2ARWY-WS

FCC ID 2ARWY-WS

Block Diagram

WIRELESS SYSTEM

by SWIFF TECHNOLOGY CO.,LTD.

Document preview loads when visible.

Document Details

FCC ID2ARWY-WS
Document ID4089732
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleWX-50-TX方框图.pptx
ApplicantSWIFF TECHNOLOGY CO.,LTD.
Equipment ClassWIRELESS SYSTEM
Product CodeWS
Application ID2/sJLL5B+SDBEXV8vZKQTw==
Application PurposeOriginal Equipment
Application Date2018-11-29
Frequency Range903.1-924.7 MHz
FRN0028037091
Test FirmBSL Testing Co.,Ltd.
Certified ByBill Zhao Manager, BSL Testing Co.,LTD
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2018-11-29
Available2018-11-29
Created2018-11-27
Modified2018-11-27
Pages1
File TypeAdobe Acrobat PDF
File Size58549
File SHA-256adc91a8ff2dbd22dff8f52eb910a74753155bcdedb5c725f21bae4c2c26b0e0c
PDF Metadata AuthorAdministrator
PDF Metadata ProducerAdministrator Acrobat Distiller 9.3.3 (Windows)
FCC.gov SourcesFCC.gov 4089732
