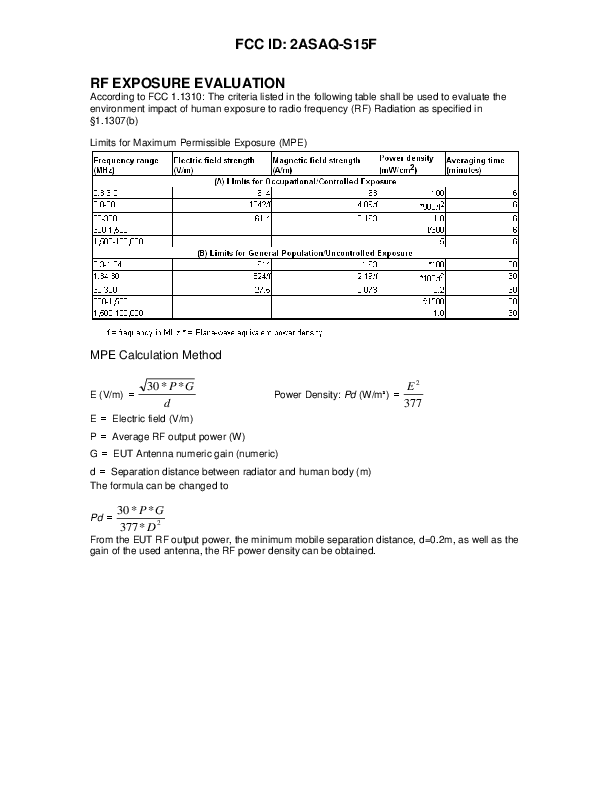

FCC ID: 2ASAQ-S15F
RF EXPOSURE EVALUATION
According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the
environment impact of human exposure to radio frequency (RF) Radiation as specified in
§1.1307(b)
Limits for Maximum Permissible Exposure (MPE)
MPE Calculation Method
E (V/m) =
30 * P * G
Power Density: Pd (W/m²) =
E2
377
E = Electric field (V/m)
P = Average RF output power (W)
G = EUT Antenna numeric gain (numeric)
d = Separation distance between radiator and human body (m)
The formula can be changed to
Pd =
30 * P * G
377 * D 2
From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the
gain of the used antenna, the RF power density can be obtained.
MAX OUTPUT POWER
WIFI
Test Channel
Frequency
(MHz)
Power
Setting
Duty Cycle
Factor
(dB)
11
2412
2437
2462
Default
Default
Default
11
2412
2437
2462
Default
Default
Default
11
2412
2437
2462
Default
Default
Default
2422
2437
2452
Default
Default
Default
Peak Output
Power
(dBm)
802.11b
13.4
13.5
13.3
802.11g
12.5
12.4
11.6
802.11n HT20
11.7
11.6
11.6
802.11n HT40
10.7
10.9
10.8
Maximum
Output
Power(dBm)
LIMIT
(dBm)
Verdict
13.4
13.5
13.3
30
30
30
PASS
PASS
PASS
12.5
12.4
11.6
30
30
30
PASS
PASS
PASS
11.7
11.6
11.6
30
30
30
PASS
PASS
PASS
10.7
10.9
10.8
30
30
30
PASS
PASS
PASS
Measurement Result
Operation Frequency: WIFI: 2412-2462MHz for 802.11b/g/11n(HT20);
2422-2452MHz for 802.11n(HT40);
Power density limited: 1mW/ cm
Antenna Type: Metal Antenna
Antenna gain: 2.32 dBi,
R=20cm
WIFI:
Channel
Freq. (MHz)
2412
2437
2462
2412
2437
2462
2412
2437
2462
2412
2437
2452
conducted
power
modulation
(dBm)
802.11b
802.11g
802.11n
HT20
802.11n
HT40
Max
Tune-up
power (dBm)
Antenna
tune-up power
Gain
(dBm)
(mW)
(dBi)
Numeric
(mW/cm2 )
Power
density
Limits
(mW/cm2)
Evaluation
result
13.4
13±1
14
25.119
2.32
1.71
0.0085
13.5
13±1
14
25.119
2.32
1.71
0.0085
13.3
13±1
14
25.119
2.32
1.71
0.0085
12.5
12±1
13
19.953
2.32
1.71
0.0068
12.4
12±1
13
19.953
2.32
1.71
0.0068
11.6
12±1
13
19.953
2.32
1.71
0.0068
11.7
11±1
12
15.849
2.32
1.71
0.0054
11.6
11±1
12
15.849
2.32
1.71
0.0054
11.6
11±1
12
15.849
2.32
1.71
0.0054
10.7
10±1
11
12.589
2.32
1.71
0.0043
10.9
10±1
11
12.589
2.32
1.71
0.0043
10.8
10±1
11
12.589
2.32
1.71
0.0043
Conclusion:
For the max result : 0.0085≤ 1.0 for Max Power Density, compliance RF exposure.
Signature:
Date: 2019-02-15
NAME AND TITLE (Please print or type): Jason Chen/Manager
COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E,
Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.
