TK319 GPS TRACKER Test Setup Photos - FCC ID 2ASOCTK319

FCC ID 2ASOCTK319

Test setup

GPS TRACKER

by Shenzhen eelink communication Technology Co., Ltd

Document preview loads when visible.

Document Details

FCC ID2ASOCTK319
Document ID4255748
Document TypeTest Setup Photos

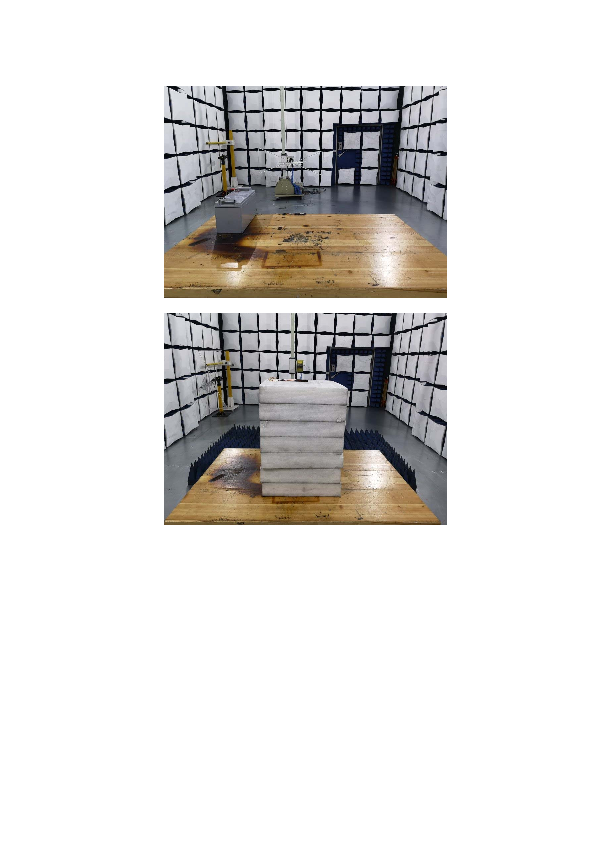

DescriptionTest setup
Document TitleCTL1902272081-WF GSM WCDMAx
ApplicantShenzhen eelink communication Technology Co., Ltd
Equipment ClassGPS TRACKER
Product CodeTK319
Application IDwHmh7rJskJeUukTQ9YcXHQ==
Application PurposeOriginal Equipment
Application Date2019-04-27
Frequency Range1850.2-1909.8 MHz
FRN0028304921
Test FirmShenzhen CTL Testing Technology Co., Ltd.
Certified ByShangzhen Cheng Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2019-04-27
Available2019-04-27
Created2019-04-19
Modified2019-04-19
Pages1
File TypeAdobe Acrobat PDF
File Size223106
File SHA-256a87f0b66ea6d1b27914680e7f361a79bd9dea9e88bdcc586b5c890e7ba694e61
PDF Metadata AuthorAdministrator
PDF Metadata ProducerAdministrator Acrobat Distiller 9.0.0 (Windows)
FCC.gov SourcesFCC.gov 4255748
