20HBL AU-STREAM Hybrid Test Setup Photos - FCC ID 2AT6N-20HBL
FCC ID 2AT6N-20HBL
Test Setup Photos
AU-STREAM Hybrid
Document preview loads when visible.
Document Details
| FCC ID | 2AT6N-20HBL |
|---|---|
| Document ID | 4732582 |
| Document Type | Test Setup Photos |
| Description | Test Setup Photos |

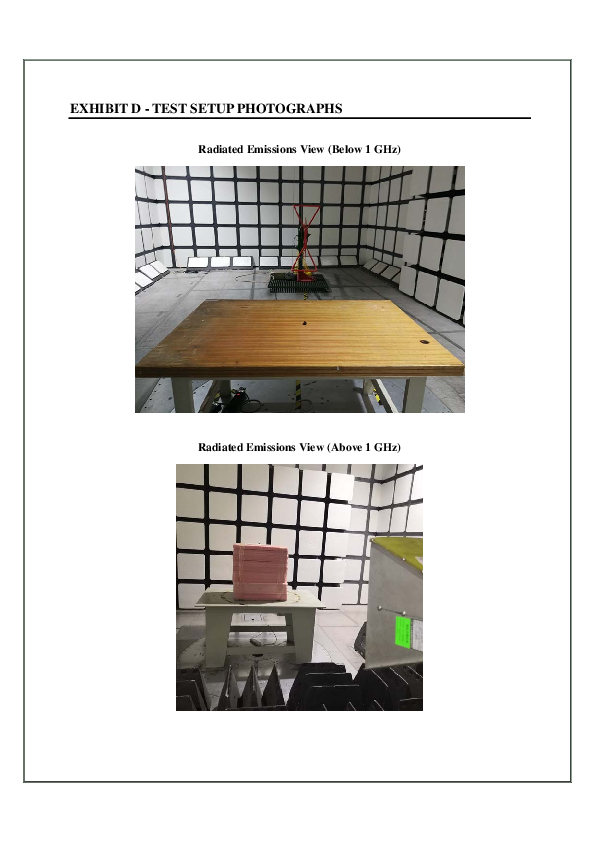

| Document Title | Test Setup Photos 15.247-Left Earbud---看完 |
| Applicant | AUSOUNDS INTELLIGENCE, LLC |
| Equipment Class | AU-STREAM Hybrid |
| Product Code | 20HBL |
| Application ID | Nyti7nECM7FAcXW8j2Aqxg== |
| Application Purpose | Original Equipment |
| Application Date | 2020-05-21 |
| Frequency Range | 2402-2480 MHz |
| FRN | 0028688877 |
| Test Firm | Bay Area Compliance Laboratories Corp. (Shenzhen) |
| Certified By | RUI Qiu |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | Yes |
| Submitted | 2020-05-20 |
| Available | 2020-05-21 |
| Created | 2020-05-08 |
| Modified | 2020-05-08 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 107045 |
| File SHA-256 | a70be2902f4b85867048835942e45396701b590c5ac976e2a876ffdbdf2bc840 |
| PDF Metadata Author | sz18104 |
| PDF Metadata Producer | sz18104 Acrobat Distiller 9.0.0 (Windows) |
| FCC.gov Sources | FCC.gov 4732582 |
