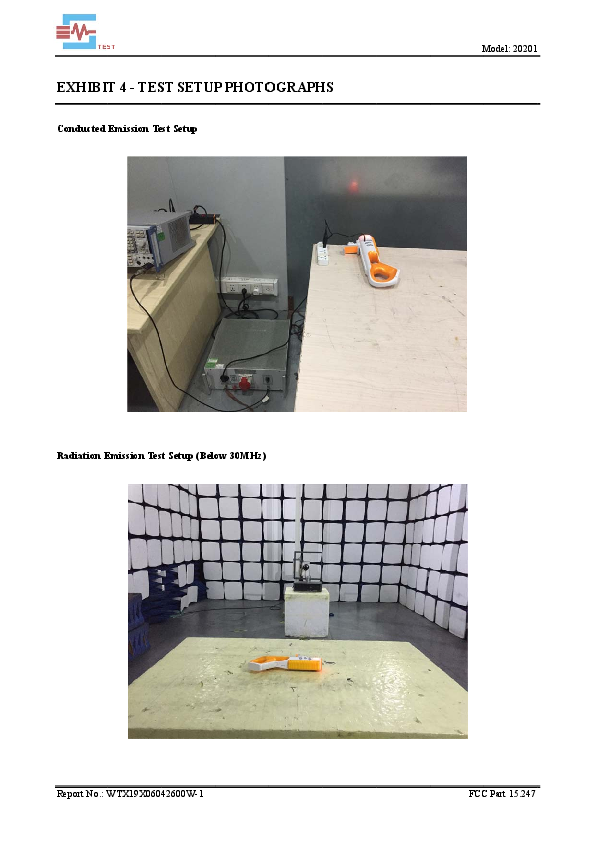

20201 Blaster A1/A2 Test Setup Photos - FCC ID 2ATSS-20201

FCC ID 2ATSS-20201

test setup photos

Blaster A1/A2

by Arkade, Inc.

Document preview loads when visible.

Document Details

FCC ID2ATSS-20201
Document ID4396205
Document TypeTest Setup Photos
Descriptiontest setup photos
Document TitleANNEX_Part 15C
ApplicantArkade, Inc.
Equipment ClassBlaster A1/A2
Product Code20201
Application IDyBwGBApGZNET0udhLI6kQw==
Application PurposeOriginal Equipment
Application Date2019-08-12
Frequency Range2402-2480 MHz
FRN0028601649
Test FirmWaltek Testing Group (Shenzhen) Co., Ltd.
Certified ByJandy So PSQ Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2019-08-12
Available2019-08-12
Created2019-08-02
Modified2019-08-02
Pages3
File TypeAdobe Acrobat PDF
File Size416996
File SHA-2563aca2603f6307be03bd4389cb7d3b06adb3997bc0ddc5d5c36707639bf42e58f
PDF Metadata Authoraaa
PDF Metadata ProducerAcrobat Distiller 9.3.2 (Windows) aaa
FCC.gov SourcesFCC.gov 4396205
