WACB4 Legrand Adorne 4 Button Scene... - FCC ID 2AU5D-WACB4

FCC ID 2AU5D-WACB4

Label Location Variant WNACB4

Legrand Adorne 4 Button Scene Controller

by Legrand/Pass & Seymour

Document preview loads when visible.

Document Details

FCC ID2AU5D-WACB4
Document ID5971059
Document TypeID Label/Location Info

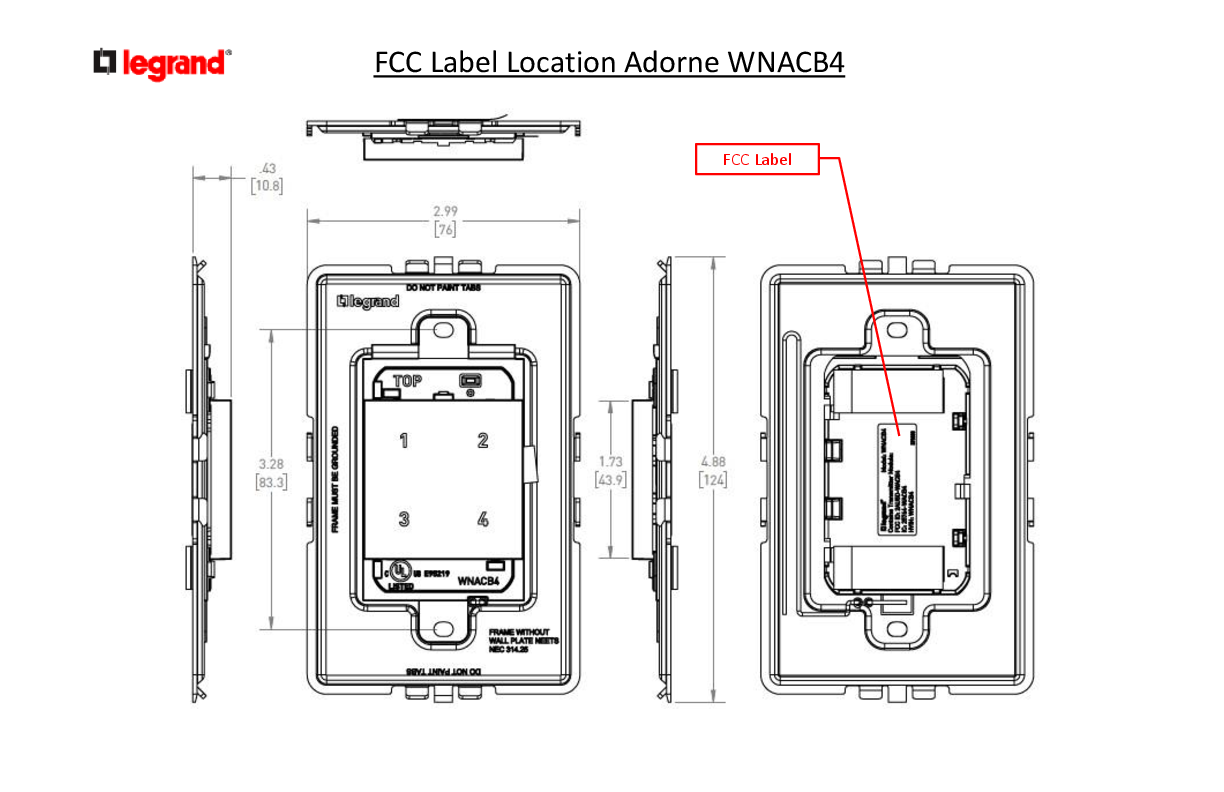

DescriptionLabel Location Variant WNACB4
Document TitleSlide 1
ApplicantLegrand/Pass & Seymour
Equipment ClassLegrand Adorne 4 Button Scene Controller
Product CodeWACB4
Application IDV1XN3CnXJ0fAOTCFrAZCTw==
Application PurposeOriginal Equipment
Application Date2022-07-08
Frequency Range2405-2480 MHz
FRN0028978146
Test FirmBEC Incorporated
Certified ByKris Glassford
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2022-06-30
Available2022-07-08
Created2022-06-14
Modified2022-06-14
Pages1
File TypeAdobe Acrobat PDF
File Size103292
File SHA-256e7a4c16718ace0ea1b3258dbc9721cfb6c667d92ebaef5f72a8fbb015b50f926
PDF Metadata Authorjricha1g
PDF Metadata ProducerMicrosoft® PowerPoint® for Microsoft 365 jricha1g
FCC.gov SourcesFCC.gov 5971059
