250052024GTX Caterpillar 1/24 R/C... - FCC ID 2AUJF-2500520-24GTX

FCC ID 2AUJF-2500520-24GTX

Block Diagram

Caterpillar 1/24 R/C Cars

by Diecast Masters Company Limited

Document preview loads when visible.

Document Details

FCC ID2AUJF-2500520-24GTX
Document ID4891545
Document TypeBlock Diagram
DescriptionBlock Diagram

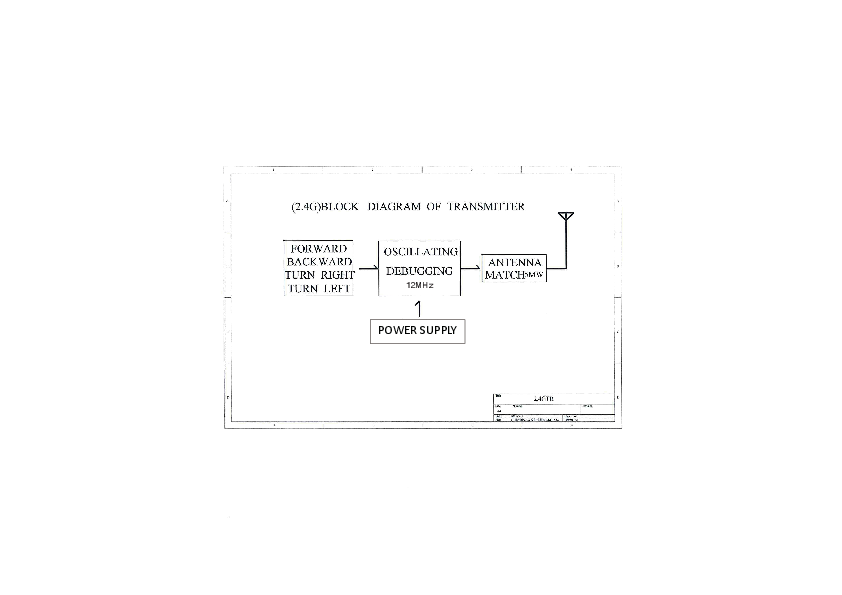

Document Title2.4G TX BD2
ApplicantDiecast Masters Company Limited
Equipment ClassCaterpillar 1/24 R/C Cars
Product Code250052024GTX
Application IDTpcMjMoxSv6HdKvwxsQfug==
Application PurposeOriginal Equipment
Application Date2020-09-08
Frequency Range2405-2475 MHz
FRN0028799633
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByKenneth Wong Senior Lead Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2020-09-08
Available2020-09-08
Created2016-02-15
Modified2019-06-06
Pages1
File TypeAdobe Acrobat PDF
File Size286160
File SHA-256a6fe162bda2accc3246db4bcb613bd095d5c2d303602aae333f6dc2c4c2311fa
PDF Metadata Authorfylee
PDF Metadata ProducerPDFCreator 2.5.2.5233 PDFCreator 2.5.2.5233
FCC.gov SourcesFCC.gov 4891545
