MH22203 BLUETOOTH HEADPHONE Test Setup Photos - FCC ID 2AVD2-MH22203
FCC ID 2AVD2-MH22203

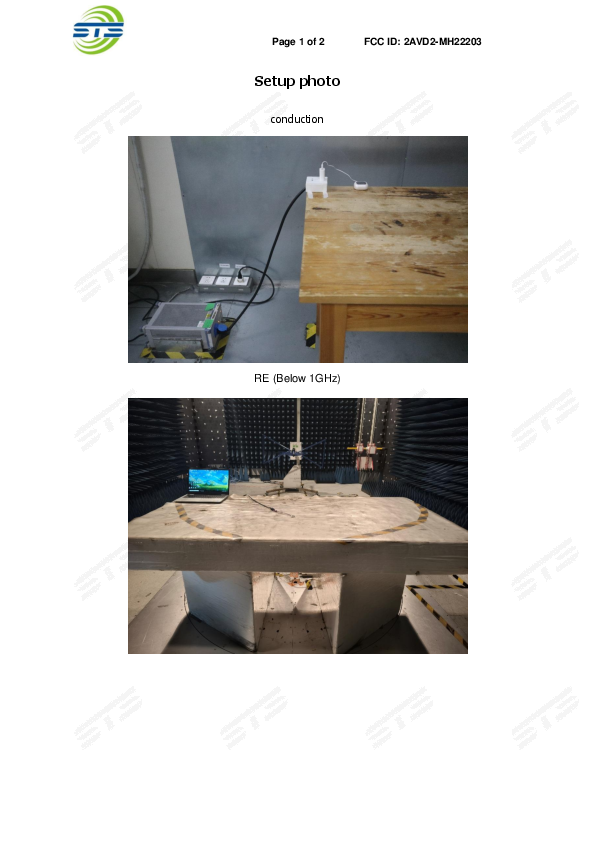

Test setup photo
BLUETOOTH HEADPHONE
Document preview loads when visible.
Document Details
| FCC ID | 2AVD2-MH22203 |
|---|---|
| Document ID | 8263320 |
| Document Type | Test Setup Photos |
| Description | Test setup photo |
| Applicant | Shenzhen Monster Creative Technology Co., Ltd. |
| Equipment Class | BLUETOOTH HEADPHONE |
| Product Code | MH22203 |
| Application ID | 2UPsdRId+mZGv72Tgfppaw== |
| Application Purpose | Original Equipment |
| Application Date | 2025-05-06 |
| Frequency Range | 2402-2480 MHz |
| FRN | 0036280543 |
| Test Firm | SHENZHEN STS TEST SERVICES CO.,LTD. |
| Certified By | Wang run long R & D Manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2025-05-06 |
| Available | 2025-05-06 |
| Created | 2025-03-25 |
| Modified | 2025-03-25 |
| Pages | 2 |
| File Type | Adobe Acrobat PDF |
| File Size | 465541 |
| File SHA-256 | 8736a5e8822a10ccbf18c0bda183e7a3dce8a3e763086c6670e5040bd0ee6d21 |
| PDF Metadata Author | admin |
| PDF Metadata Producer | Microsoft® Word 2013 Microsoft® Word 2013 |
| FCC.gov Sources | FCC.gov 8263320 |
