4022XXB Candy Con USB Dongle Block Diagram - FCC ID 2AVT24022XXB
FCC ID 2AVT24022XXB

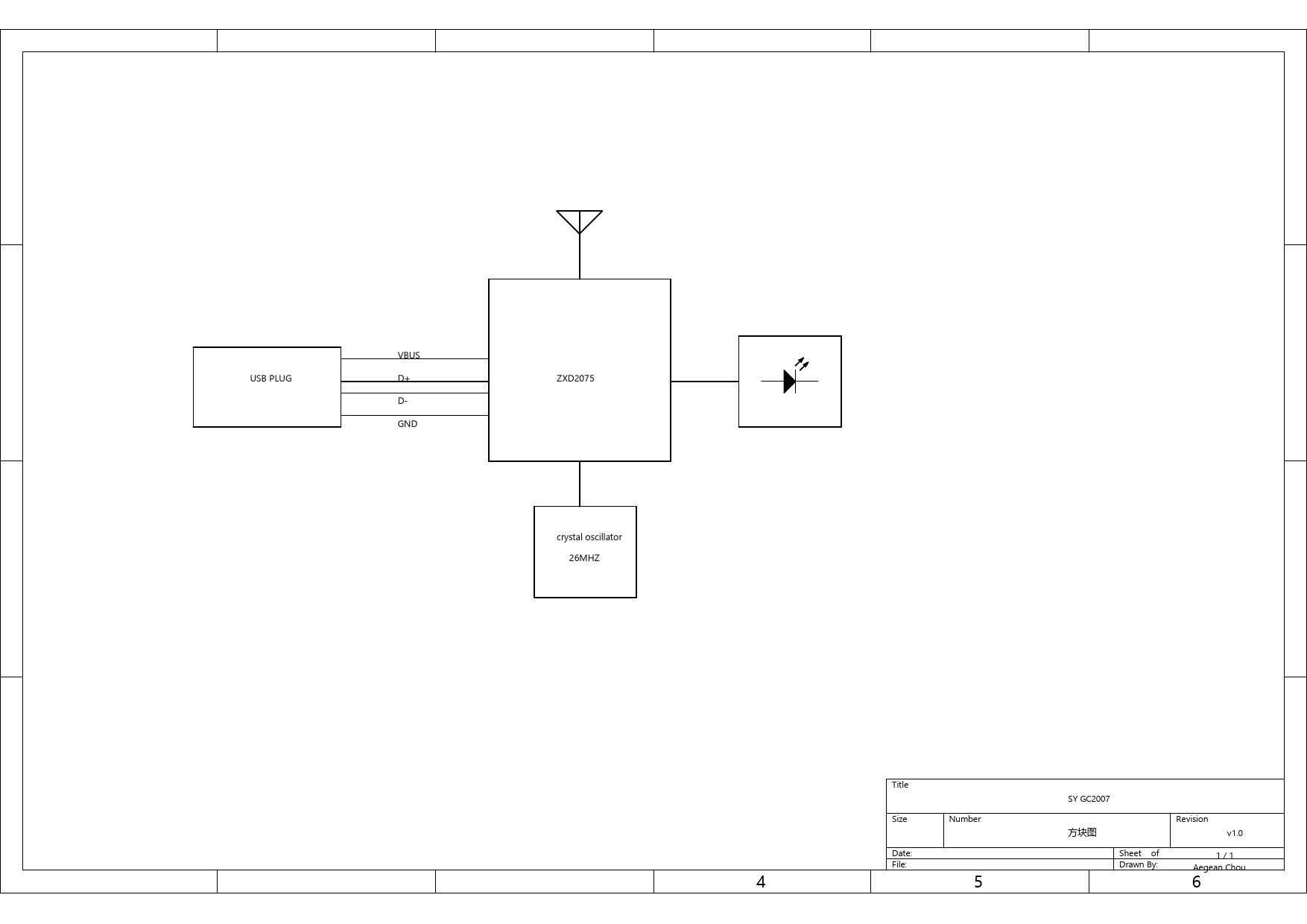

Block Diagram
Candy Con USB Dongle
Document preview loads when visible.
Document Details
| FCC ID | 2AVT24022XXB |
|---|---|
| Document ID | 7079438 |
| Document Type | Block Diagram |
| Description | Block Diagram |
| Document Title | 20231031 SY GC2007 V1 |
| Applicant | Dongguan 3e electronics Co.,Ltd |
| Equipment Class | Candy Con USB Dongle |
| Product Code | 4022XXB |
| Application ID | j2f+LyPqhEW9pHC3x76IKg== |
| Application Purpose | Original Equipment |
| Application Date | 2024-01-25 |
| Frequency Range | 2402-2480 MHz |
| FRN | 0029296530 |
| Test Firm | Intertek Testing Services Shenzhen Ltd. Longhua Br |
| Certified By | William Chen manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Short-Term Confidentiality Date | 07/24/2024 |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | Yes |
| Submitted | 2024-01-25 |
| Available | 2024-07-24 |
| Created | 2024-01-18 |
| Modified | 2024-01-25 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 297213 |
| File SHA-256 | bf8eb9632c217422b3da8a90c7e55c189ea7d1238adbe35e62d7ccb7357d7dec |
| PDF Metadata Author | peterqi |
| PDF Metadata Producer | peterqi Microsoft: Print To PDF |
| FCC.gov Sources | FCC.gov 7079438 |
