F51555B RL Micro RC Competition Pack... - FCC ID 2AWSR-F51555B

FCC ID 2AWSR-F51555B

Block Diagram

RL Micro RC Competition Pack

by Funrise Toys (HK) Ltd

Document preview loads when visible.

Document Details

FCC ID2AWSR-F51555B
Document ID5841854
Document TypeBlock Diagram
DescriptionBlock Diagram

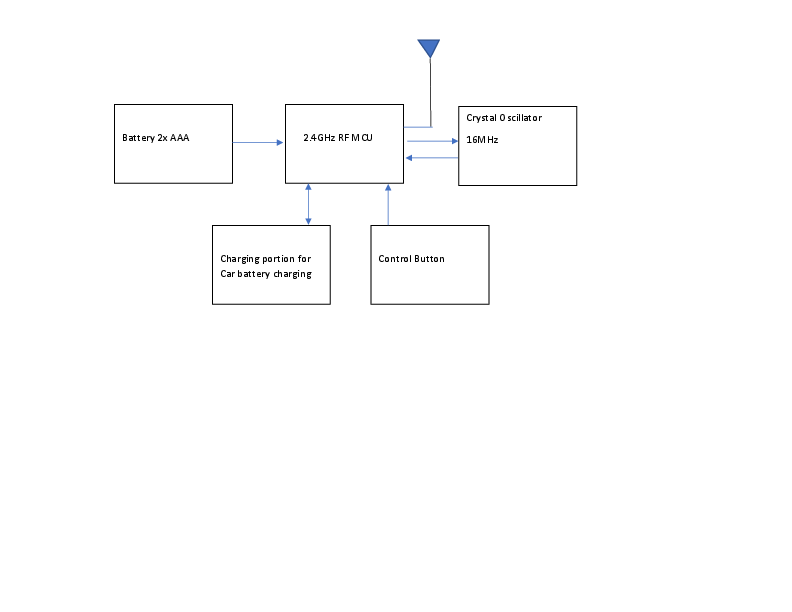

Document TitleBlock for Controller
ApplicantFunrise Toys (HK) Ltd
Equipment ClassRL Micro RC Competition Pack
Product CodeF51555B
Application IDLnBDYESG6ZJMisYzPHg6nw==
Application PurposeOriginal Equipment
Application Date2022-04-25
Frequency Range2415-2475 MHz
FRN0029699949
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByKenneth Wong manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2022-04-25
Available2022-04-25
Created2022-04-25
Modified0002-01-01
Pages1
File TypeAdobe Acrobat PDF
File Size19742
File SHA-256d249bc506867a1d498fb77db93c7258b30e44d577f4f9f1d87407fdebbe122e5
PDF Metadata Authorkennethw
PDF Metadata ProducerGPL Ghostscript 9.07 kennethw
FCC.gov SourcesFCC.gov 5841854
