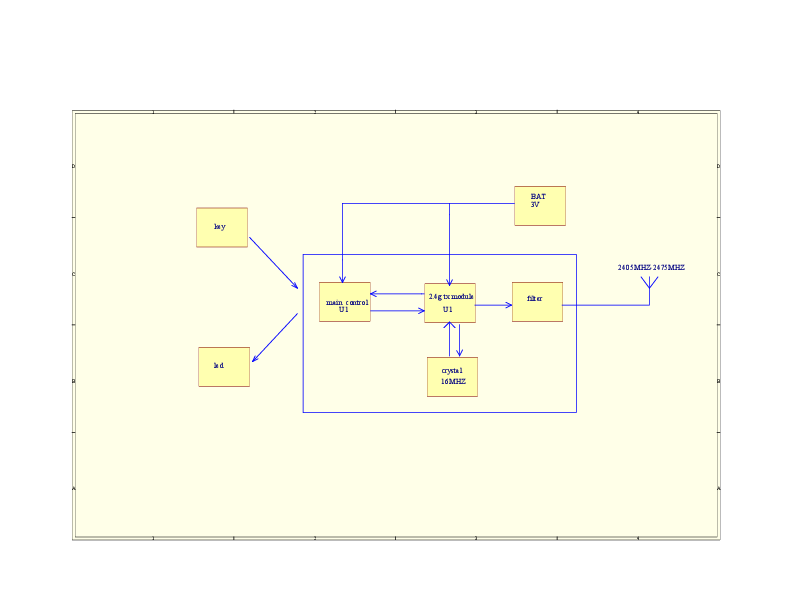

F71038B TMNT PIZZA BLASTER RC Block Diagram - FCC ID 2AWSR-F71038B

FCC ID 2AWSR-F71038B

Block Diagram

TMNT PIZZA BLASTER RC

by Funrise Toys (HK) Ltd

Document preview loads when visible.

Document Details

FCC ID2AWSR-F71038B
Document ID6514895
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantFunrise Toys (HK) Ltd
Equipment ClassTMNT PIZZA BLASTER RC
Product CodeF71038B
Application IDf21/Usm3uSVaY8dOcbOZpw==
Application PurposeOriginal Equipment
Application Date2023-05-07
Frequency Range2405-2475 MHz
FRN0029699949
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByKenneth Wong Assistant Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2023-05-07
Available2023-05-07
Created2023-03-07
Modified2023-04-26
Pages1
File TypeAdobe Acrobat PDF
File Size69971
File SHA-25649f88e3b7500d7cf10df557bc9c3efc254cdccf2ce1a25d019d5bc4790d7edbc
PDF Metadata Producer福昕高级PDF编辑器打印机 版本 9.7.0.2220
FCC.gov SourcesFCC.gov 6514895
