IDS1NODE Sensor Label Diagram - FCC ID 2AZQW-IDS1NODE
FCC ID 2AZQW-IDS1NODE

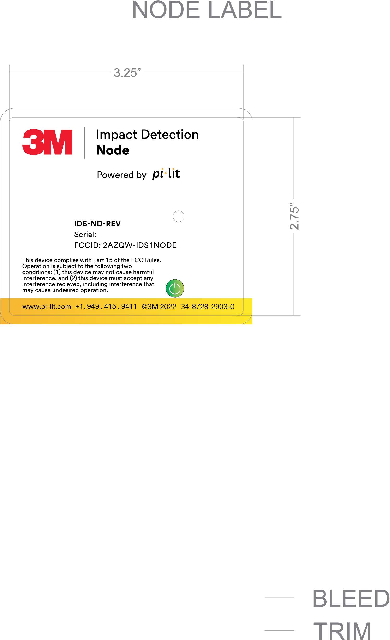

3M label - Node
Sensor
Document preview loads when visible.
Document Details
| FCC ID | 2AZQW-IDS1NODE |
|---|---|
| Document ID | 6060246 |
| Document Type | ID Label/Location Info |
| Description | 3M label - Node |
| Applicant | Pi Variables Inc |
| Equipment Class | Sensor |
| Product Code | IDS1NODE |
| Application ID | BzNMXsQEZwRiu/p29j2SKQ== |
| Application Purpose | Original Equipment |
| Application Date | 2022-08-17 |
| Frequency Range | 2405-2480 MHz |
| FRN | 0030850390 |
| Test Firm | UL LLC |
| Certified By | James Selevan CEO |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Short-Term Confidentiality Date | 02/13/2023 |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2022-08-16 |
| Available | 2022-08-17 |
| Created | 2022-05-25 |
| Modified | 2022-05-25 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 112657 |
| File SHA-256 | 22e9a97e9875615ce8bd776cdda00d9f71c28e5a7b5c90a0592d06852547e9ba |
| PDF Metadata Producer | Adobe Acrobat 22.1 Adobe Acrobat 22.1 Image Conversion Plug-in |
| FCC.gov Sources | FCC.gov 6060246 |
