HNV88HD All-in-One Live Streaming... - FCC ID 2BAMI-HN-V88-HD

FCC ID 2BAMI-HN-V88-HD

Appendix A _Test Data BT_Part1

All-in-One Live Streaming Device

by Shanghai HeBird Electronic Technology Co., LTD

Document preview loads when visible.

Document Details

FCC ID2BAMI-HN-V88-HD
Document ID6461044
Document TypeTest Report

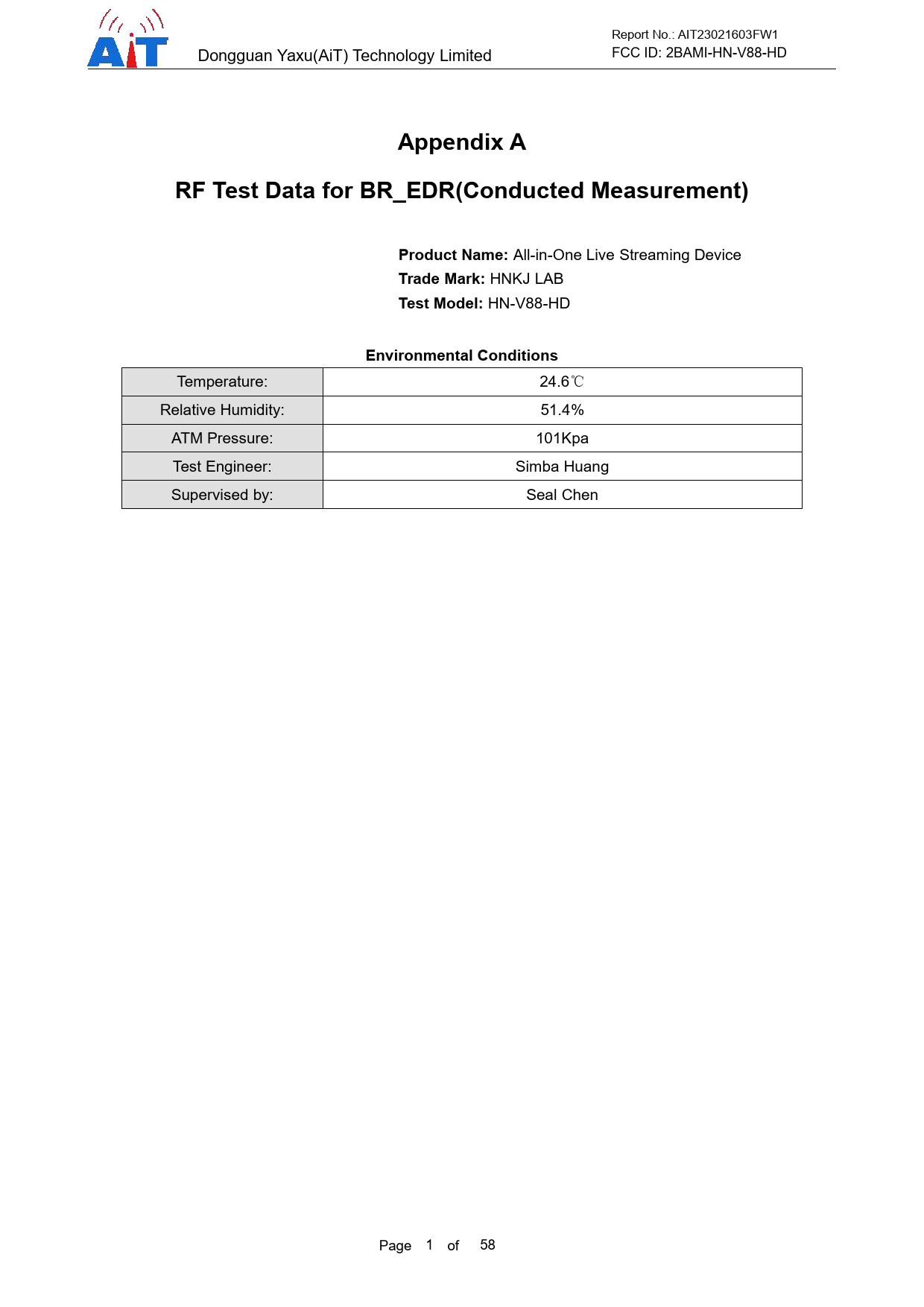

DescriptionAppendix A _Test Data BT_Part1
ApplicantShanghai HeBird Electronic Technology Co., LTD
Equipment ClassAll-in-One Live Streaming Device
Product CodeHNV88HD
Application IDG0mEtDis5pMzx0TSjNggCg==
Application PurposeOriginal Equipment
Application Date2023-04-07
Frequency Range2402-2480 MHz
FRN0033554783
Test FirmDongguan Yaxu (AiT) Technology Limited
Certified ByPENG JI Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceYes
Composite PartNo
Submitted2023-04-07
Available2023-04-07
Created2023-04-07
Modified0002-01-01
Pages54
File TypeAdobe Acrobat PDF
File Size5767687
File SHA-25644e20d59b2f5714da22351a7ecccf795c1dae471545dfaa6a43ef5cd7bc2f2cd
PDF Metadata AuthorWCB
PDF Metadata ProducerWCB PDFsharp 1.50.5147 (www.pdfsharp.com)
FCC.gov SourcesFCC.gov 6461044
