ZW39 Smartwatch Teardown Internal Photos - FCC ID 2BCAH-ZW39

FCC ID 2BCAH-ZW39

Internal Photos

Smartwatch

by Shenzhen Zhiweide Technology Co., Ltd

Document preview loads when visible.

Document Details

FCC ID2BCAH-ZW39
Document ID6717000

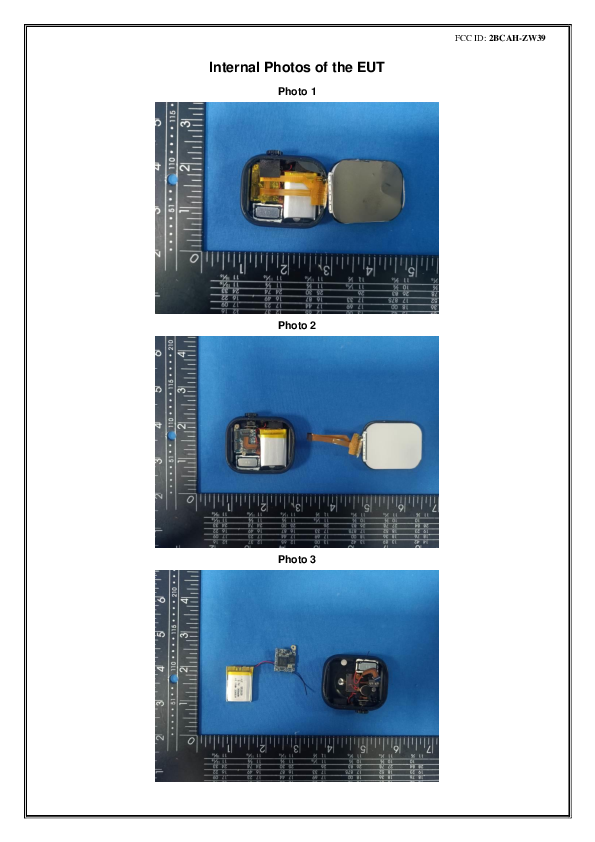

Document TypeInternal Photos
DescriptionInternal Photos
ApplicantShenzhen Zhiweide Technology Co., Ltd
Equipment ClassSmartwatch
Product CodeZW39
Application IDnlnD/GM0Zt+Ayi19WARhJA==
Application PurposeOriginal Equipment
Application Date2023-08-08
Frequency Range2402-2480 MHz
FRN0034060483
Test FirmSHENZHEN CTA TESTING TECHNOLOGY CO., LTD.
Certified ByLv Gang Employee
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2023-08-08
Available2023-08-08
Created2023-08-08
Modified0002-01-01
Pages3
File TypeAdobe Acrobat PDF
File Size502313
File SHA-256f1d0dc504a657a86e2a96f46eb479fb04ef8a212eb4998cec492161ea6c6a0da
PDF Metadata ProducerMicrosoft® Word 2016 Microsoft® Word 2016
FCC.gov SourcesFCC.gov 6717000
