RF211B DMX racer Schematics - FCC ID 2BF7ORF211B

FCC ID 2BF7ORF211B

Circuit Diagram

DMX racer

by Wing Dynasty Limited

Document preview loads when visible.

Document Details

FCC ID2BF7ORF211B
Document ID7362148
Document TypeSchematics

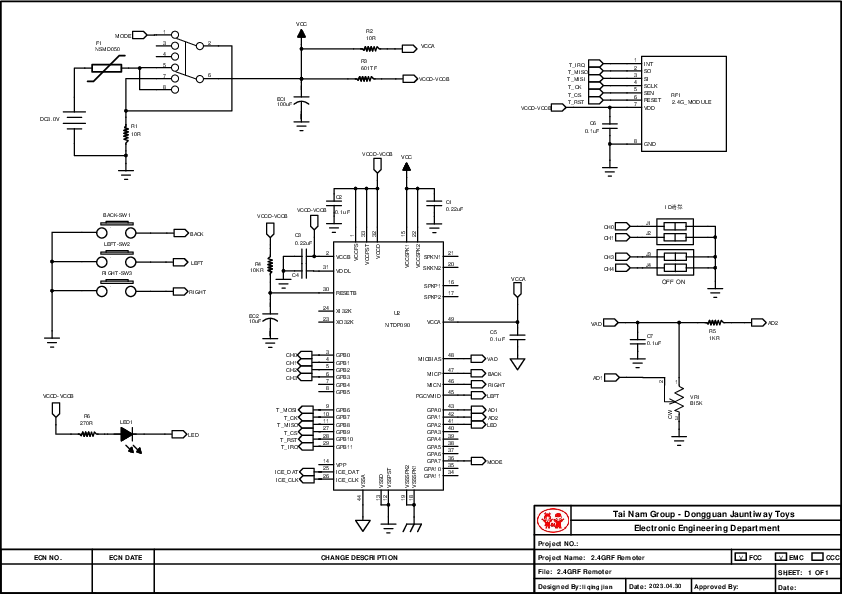

DescriptionCircuit Diagram
Document Title2
ApplicantWing Dynasty Limited
Equipment ClassDMX racer
Product CodeRF211B
Application IDPTwGG9OkwrMKjIt7VWE+HQ==
Application PurposeOriginal Equipment
Application Date2024-05-30
Frequency Range2423-2463 MHz
FRN0035359843
Test FirmIntertek Testing Services Shenzhen Ltd. Longhua Br
Certified ByWilliam Chen manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2024-05-30
Available2024-05-30
Created2024-04-30
Modified2024-04-30
Pages2
File TypeAdobe Acrobat PDF
File Size117558
File SHA-256d8cab0a5740906405f5da6631985d8495de424a76266a9bb2b7eb4171f3d32da
PDF Metadata Authorqj_li
PDF Metadata ProducerAcrobat Distiller 9.0.0 (Windows) qj_li
FCC.gov SourcesFCC.gov 7362148
